Product details

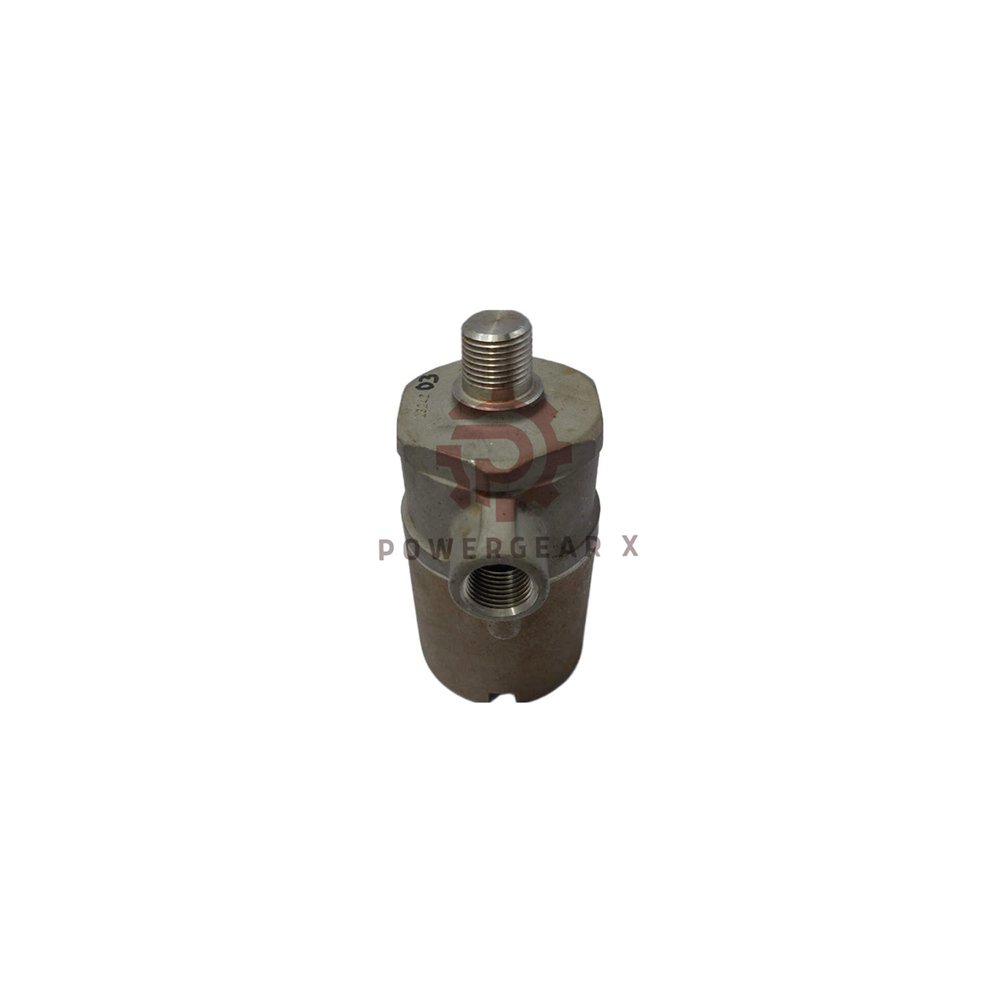

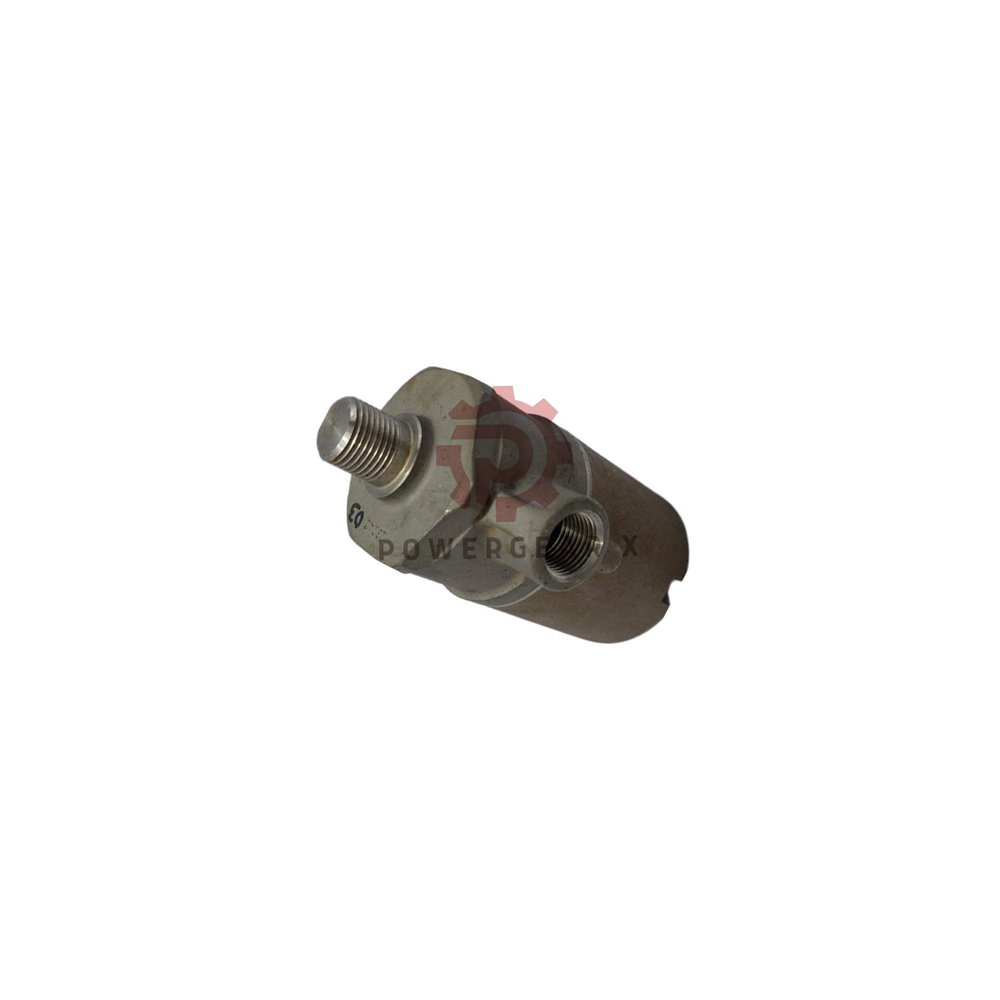

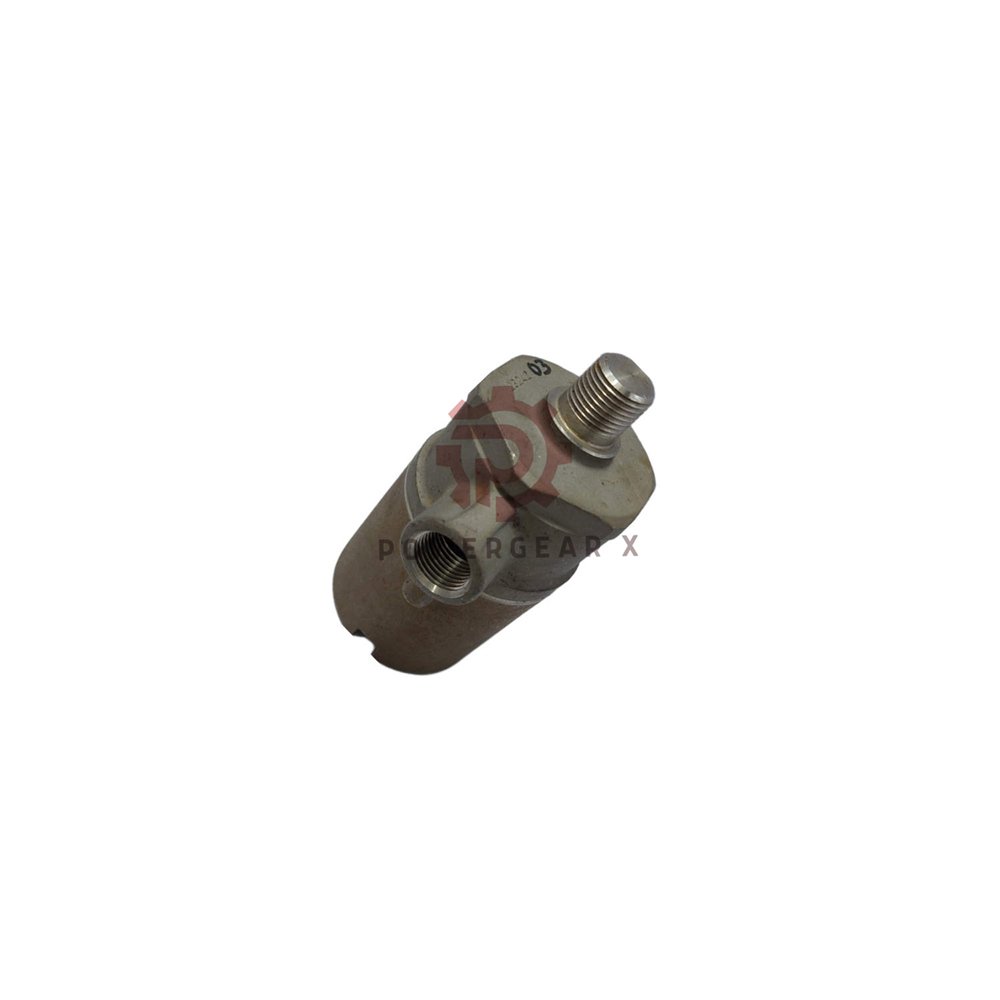

Bently Nevada 107770-04-02 Velocity Transducer Housing – CENELEC Certified Explosion-Proof Assembly
- Part Number: 107770-04-02
- Model: Velocity Transducer Housing – CENELEC Approved
- Manufacturer: Bently Nevada
- Condition: New & Original in Factory Packaging
- Warranty: 12-Month Factory Warranty
Overview
- The Bently Nevada 107770-04-02 integrates the proven 330500 Velomitor Sensor and 21128 Housing.
- It features a 1/2-14 BSP mounting thread and an explosion-proof 1/2-14 NPT cable exit.
- Designed for CENELEC Zone 1, Group IIC hazardous areas.
- Complies with RoHS Directive 2011/65/EU and ATEX/IECEx safety standards.
Technical Specifications
- Mounting Thread: 04 = 1/2-14 BSP
- Cable Exit Fitting: 02 = Explosion-proof 1/2-14 NPT
- Sensor Type: 330500 Velomitor Velocity Sensor
- Housing Type: 21128 Pre-installed Assembly
- Frequency Response: 5 Hz – 2,000 Hz
- Output Sensitivity: 100 mV/in/s ±3%
- Dynamic Range: ±50 mm/s peak velocity
- Temperature Range: -40°C to +125°C
- Operating Voltage: 18–28 VDC
- Current Draw: <10 mA typical
- Ingress Protection: IP67 sealed stainless steel body
- Shock Tolerance: 500 g peak
- Humidity Resistance: 95% non-condensing
Model Configuration Tree
- 107770
- Mounting Thread Options:
- 04 – 1/2-14 BSP
- Cable Exit Options:
- 02 – 1/2-14 NPT Explosion-Proof Type
- Factory Assembly Includes:
- 330500 Velomitor Sensor
- 21128 Housing
- Mounting Thread Options:
Certifications & Safety
- Compliance: ATEX, IECEx, and CENELEC certified
- Hazardous Area: Zone 1, Group IIC T6
- Explosion Protection: Ex d IIC certified for flameproof applications
- Wiring: Use EN 60079-25 compliant Type A or B cables
- Entity Parameters: Must meet rated electrical supply limits
Performance Benefits
- Explosion-proof design ensures safe operation in critical areas.
- Compact housing enables easy mounting in tight locations.
- Durable stainless steel structure resists corrosion and vibration.
- Low noise output for precision vibration monitoring.
- Optimized for compatibility with Bently Nevada monitoring systems.
Delivery Information
- Worldwide shipping via FedEx, UPS, or DHL.
- Secure packaging ensures product integrity during transit.
- Expedited options available upon request.
Common Applications
- Turbine and compressor vibration measurement
- Power generation and refining equipment
- Pump and motor monitoring systems
- Rotating industrial machinery condition tracking
Professional FAQ
- Q: What makes the 107770-04-02 different from other models?
A: It features a BSP thread and an explosion-proof cable exit for advanced safety. - Q: How does the 330500 Velomitor improve performance?
A: It delivers stable output and wide frequency response for accurate vibration data. - Q: What installation torque is recommended?
A: Use 10–12 Nm for secure mounting without signal distortion. - Q: Can it be installed in outdoor environments?
A: Yes, the IP67 enclosure ensures durability in harsh outdoor conditions. - Q: How fast is delivery for this product?
A: Typical delivery is 5–7 working days through FedEx, UPS, or DHL.
