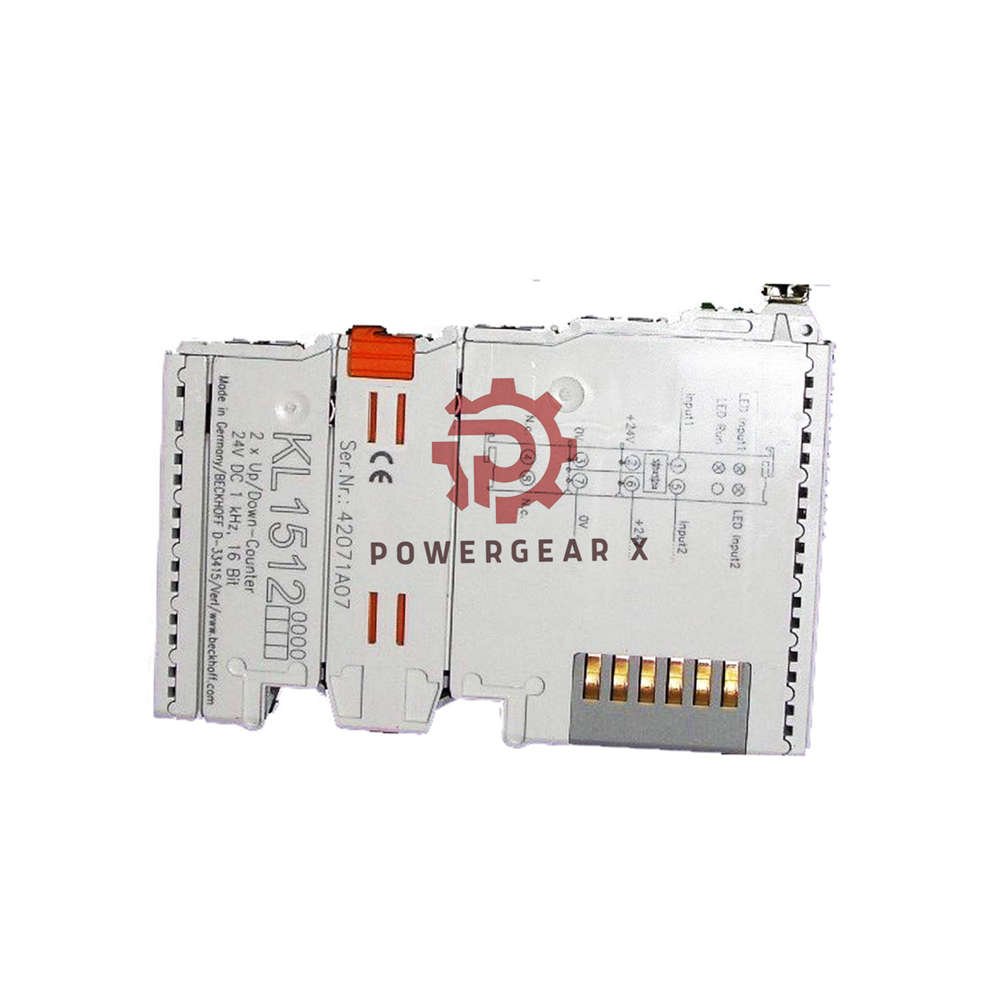

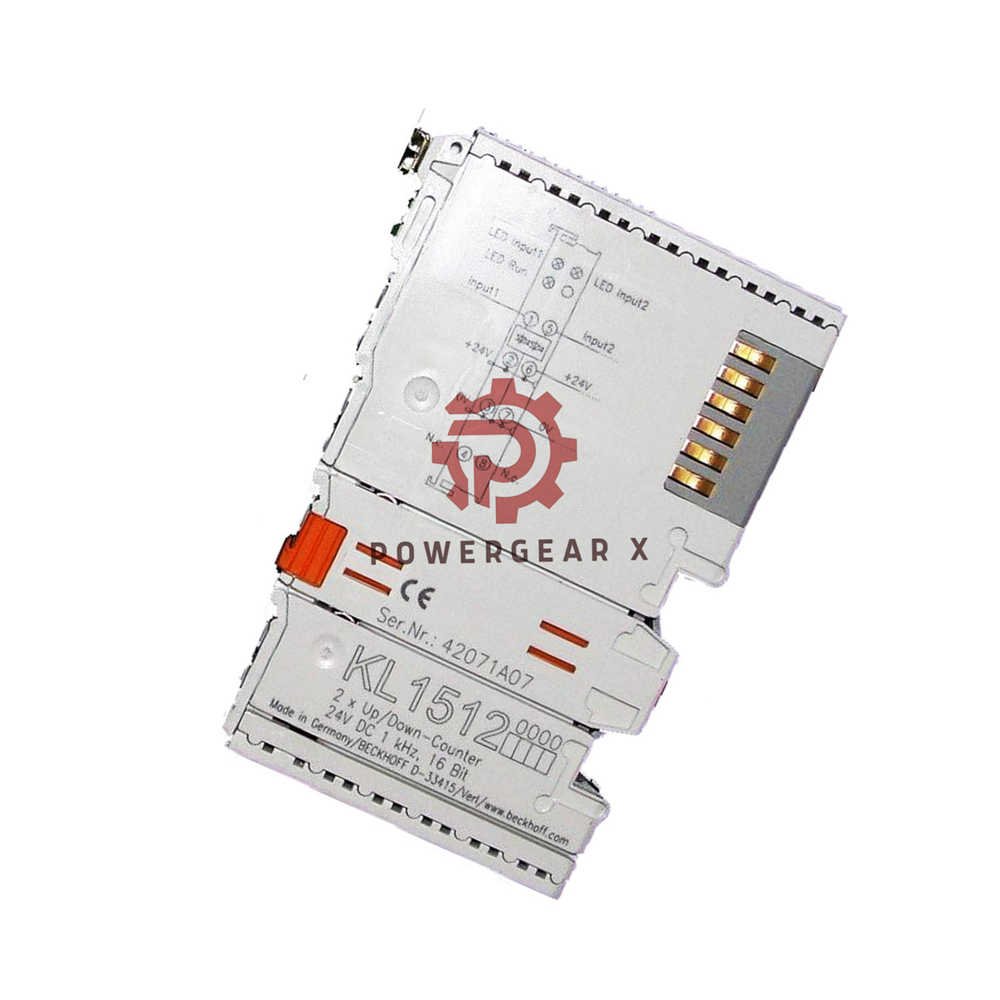

Name: Beckhoff KL1512 Counter | 2-Ch Up/Down, 1 kHz, 16-Bit, Bus Terminal
SKU: KL1512
Price: 234.00 USD
Availability: InStock

Product details

KL1512 | 2-Channel Up/Down Counter, 24 V DC, 1 kHz, 16 bit

Brand: Beckhoff
Model: KL1512
Type: 2-channel up/down counter (Bus Terminal)

Counts binary pulses – transmits counter state to automation device.
Can be set as up counter or down counter (16 bit).
Two inputs with LED status indicators.
Ideal for simple counting tasks – flow meters, event counting.

Technical Data

Number of inputs: 2
Nominal voltage: 24 V DC (-15 % / +20 %)
Signal “0” voltage: -3 … +5 V
Signal “1” voltage: 15 … 30 V
Counting frequency: max. 1 kHz
Counter depth: 16 bits
Input filter: 0.2 ms
Input current (typ.): 5 mA
Current consumption (K-bus): typ. 50 mA
Electrical isolation: 500 V (K-bus / field potential)
Bit width in process image: 16 bit data, 8 bit control/status
Configuration: via Bus Coupler or controller
Weight: approx. 55 g

Environmental & Mechanical

Operating temperature: 0 … +55 °C
Storage temperature: -25 … +85 °C
Relative humidity: 95 %, no condensation
Vibration / shock: acc. to EN 60068-2-6 / EN 60068-2-27
EMC immunity / emission: acc. to EN 61000-6-2 / EN 61000-6-4
Protection class / installation position: IP20 / variable
Pluggable wiring: for all KSxxxx Bus Terminals

Approvals

CE, UL, Ex

Expert Review

“The KL1512 is a reliable counter for basic counting tasks. Its 1 kHz frequency handles most flow meters and event counters. The 16-bit depth is sufficient for many industrial applications. Easy configuration via Bus Coupler saves time.”

Manager’s Insight

“This terminal is cost-effective and compact. It reduces wiring effort with pluggable connections. The UL and Ex approvals make it suitable for global and hazardous area installations. A solid choice for OEMs and system integrators.”

Applications & Suitable Devices

Flow meters – count pulses from turbine or paddle wheel meters.
Event counting – production batch counting, part counting.
Speed monitoring – measure RPM from proximity sensors.
Works with Beckhoff Bus Couplers (BK series) and controllers.

Comparison with Similar Models

KL1501 – 1-channel counter, 100 kHz, 32-bit (higher speed, single channel).
KL1511 – 2-channel counter, 10 kHz, 16-bit (higher frequency, same channels).
KL1521 – 2-channel counter with quadrature decoder (for encoders).

FAQ

What is the maximum counting frequency?
Max. 1 kHz – suitable for slow to medium pulse rates.
Can I use it as a down counter only?
Yes. Configure it as up or down counter via the Bus Coupler.
Does it support 32-bit values?
No. Counter depth is 16 bits (0 to 65535).
Is it Ex-approved for hazardous areas?
Yes. The terminal carries Ex approval (ATEX).
What is the input filter time?
0.2 ms – filters short noise pulses.
