Product Description

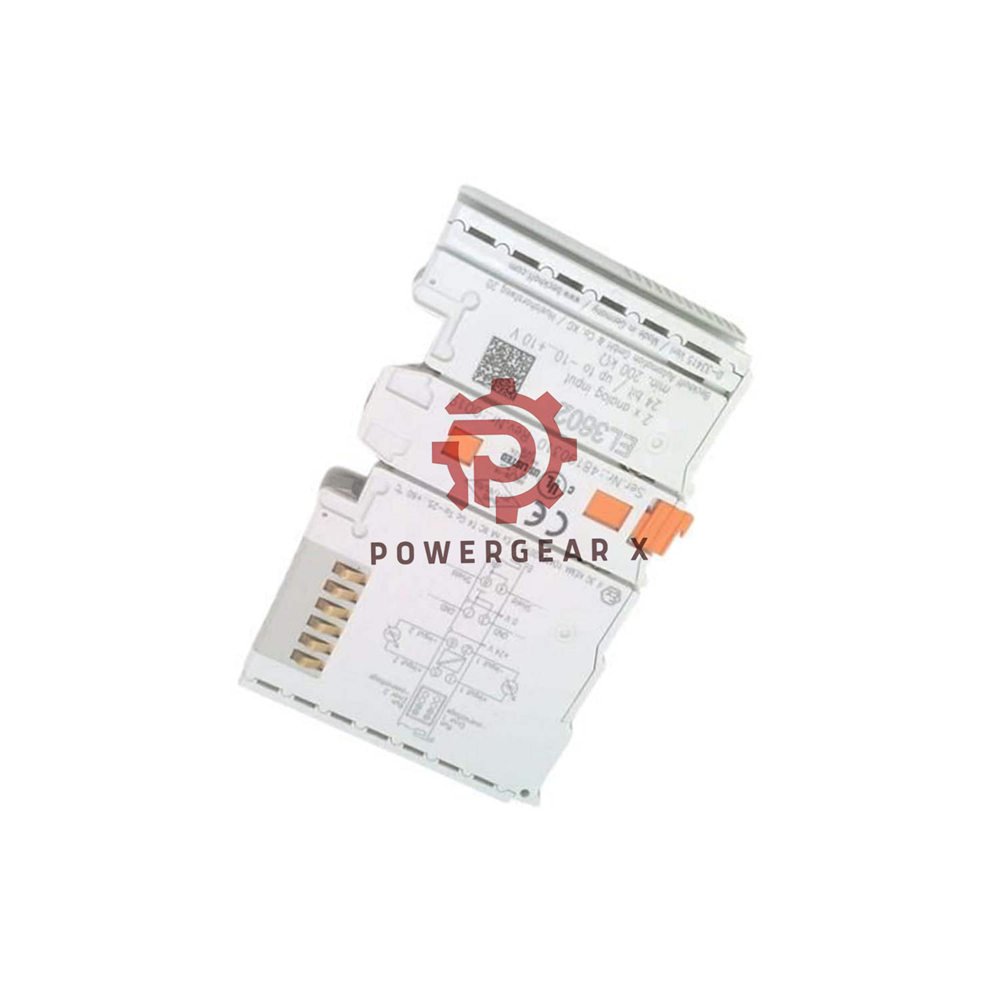

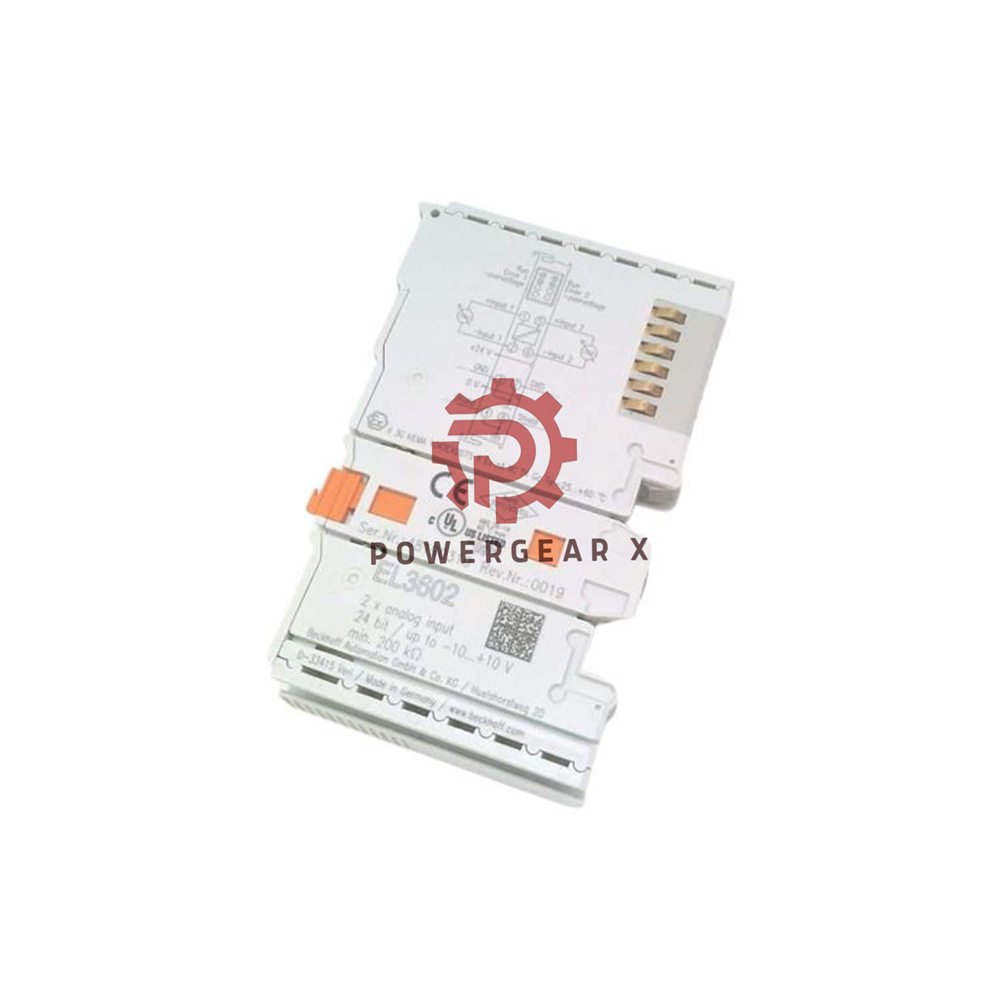

BECKHOFF EL3602 is a high-precision 2-channel analog input terminal. It handles voltage signals in ranges ±10 V, ±5 V, ±2.5 V, and ±1.25 V. The 24-bit resolution ensures accurate digitization. It transmits data electrically isolated to the automation device. The EtherCAT Terminal uses differential inputs with common internal ground. LED indicators show the signal state for each channel.
Technical Specifications
- Brand & Model: BECKHOFF EL3602 (ES3602 for pluggable wiring)
- Inputs: 2 (differential)
- Measuring Ranges: ±10 V, ±5 V, ±2.5 V, ±1.25 V (parameterizable)
- Resolution: 24 bit (including sign)
- Conversion Time: 20 ms default, configurable 1…400 ms
- Input Filter Limit Frequency: 3 kHz
- Internal Resistance: > 200 kΩ
- Common-mode Voltage (UCM): max. 35 V
- Measuring Error: < ±0.01 % at 25 °C (50 Hz filter, relative to full scale)
- Crosstalk Attenuation: > 60 dB
- Electrical Isolation: 500 V (E-bus/signal voltage)
- Current Consumption E-bus: typ. 190 mA
- Power Supply: via E-bus
Environmental & Mechanical Data
- Operating Temperature: -25…+60 °C
- Storage Temperature: -40…+85 °C
- Relative Humidity: 95 %, no condensation
- Vibration/Shock Resistance: EN 60068-2-6 / EN 60068-2-27
- EMC Immunity/Emission: EN 61000-6-2 / EN 61000-6-4
- Protection Rating: IP20
- Weight: approx. 60 g
- Housing Material: Polycarbonate
- Dimensions (W x H x D): 12 mm x 100 mm x 68 mm
Installation & Wiring
- Mounting: 35 mm DIN rail (EN 60715) with lock
- Side-by-side mounting: double slot and key connection
- Wiring: spring actuation by screwdriver
- Conductor cross-section: solid 0.08…2.5 mm², stranded 0.08…2.5 mm², ferrule 0.14…1.5 mm²
- AWG: solid 28…14, stranded 28…14, ferrule 26…16
- Stripping length: 8…9 mm (EL), 9…10 mm (ES)
- Current load power contacts: Imax: 10 A
Compatibility & Approvals
- Fieldbus: EtherCAT (distributed clocks not supported)
- Approvals: CE, UL, ATEX (II 3 G Ex nA IIC T4 Gc)
Expert Review
The EL3602 delivers exceptional precision for critical voltage measurements. Its 24-bit resolution and low measuring error make it ideal for quality control and test stands. The configurable conversion time allows balancing speed and accuracy. For high-EMI environments, the differential inputs and 500V isolation provide robust signal integrity. A solid choice for demanding automation tasks.
Manager’s Insight
From a cost-benefit perspective, the EL3602 reduces system complexity with its wide range and high accuracy. Its compact design saves panel space, and the pluggable wiring option (ES3602) simplifies maintenance. The extended temperature range ensures reliable operation in harsh factory conditions. This terminal adds long-term value to any EtherCAT-based control system.
Typical Applications
- Precision voltage monitoring in battery test systems
- High-resolution data acquisition for R&D labs
- Analog sensor interfacing in industrial automation
- Process control loops requiring high linearity
- Calibration and measurement equipment
FAQ
- What is the default conversion time?20 ms. You can adjust it from 1 to 400 ms.
- Can I use this with a 5V sensor?Yes, select the ±5 V range via parameterization.
- What is the maximum common-mode voltage?35 V maximum between inputs and ground.
- Is wiring pluggable?Yes, order ES3602 for pluggable wiring.
- How to filter noise?The terminal includes a 3 kHz input filter and configurable filter times.
- Can I monitor limit values?Yes, the EL3602 supports limit value monitoring.
Experience-based FAQ
- Is the EL3602 suitable for high-vibration environments?Yes, it meets EN 60068-2-6 vibration standards.
- What is the benefit of differential inputs?They reject common-mode noise, improving measurement accuracy in noisy plants.
- How to choose between EL3602 and ES3602?Choose ES3602 if you need pluggable wiring for faster replacement or maintenance.
Selection Guide
- For high precision and fixed wiring: Choose EL3602.
- For easy maintenance with pluggable wiring: Choose ES3602.
- For very low-level signals (e.g., ±1.25 V): The EL3602 provides excellent resolution.
- For fast-changing signals: Reduce conversion time down to 1 ms (configuration required).
- For harsh industrial environments: The wide temperature range and ATEX approval make it a safe choice.
Packaging & Warranty
- Package includes: EL3602 terminal, documentation
- Warranty: 12 months from delivery date
