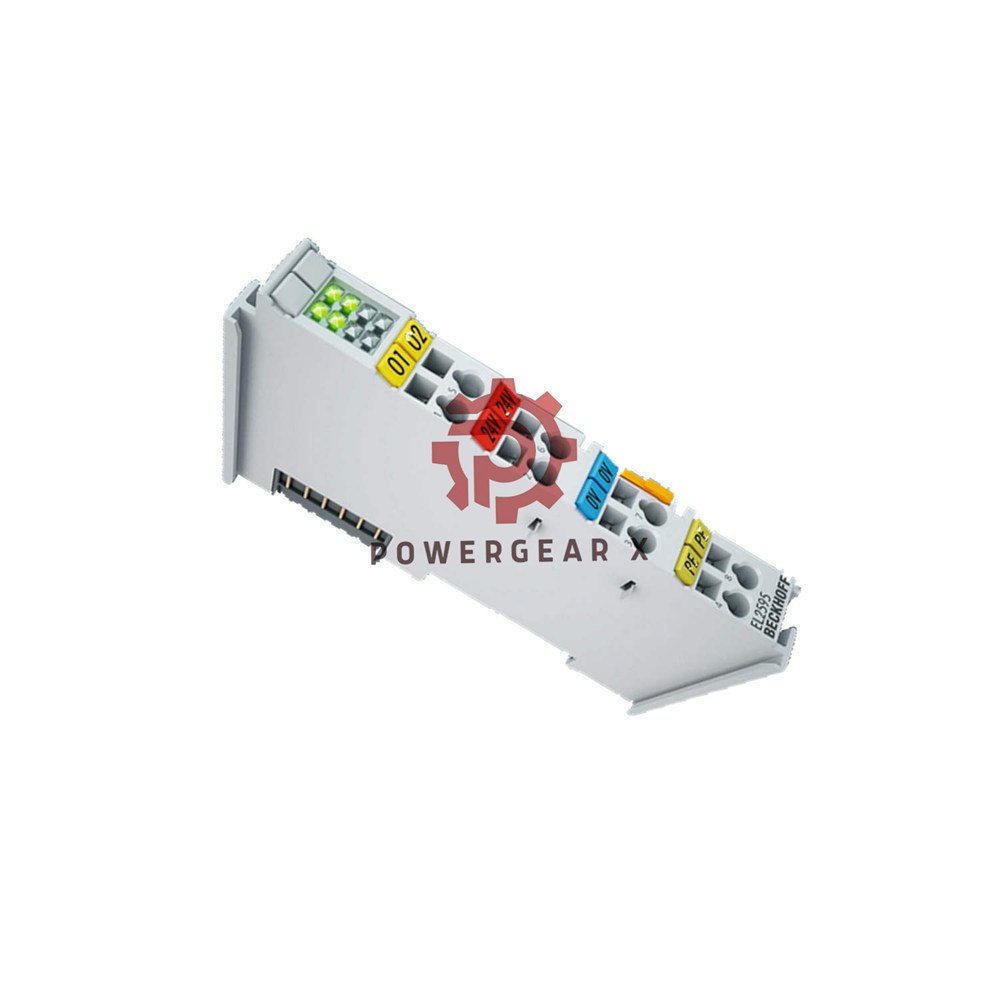

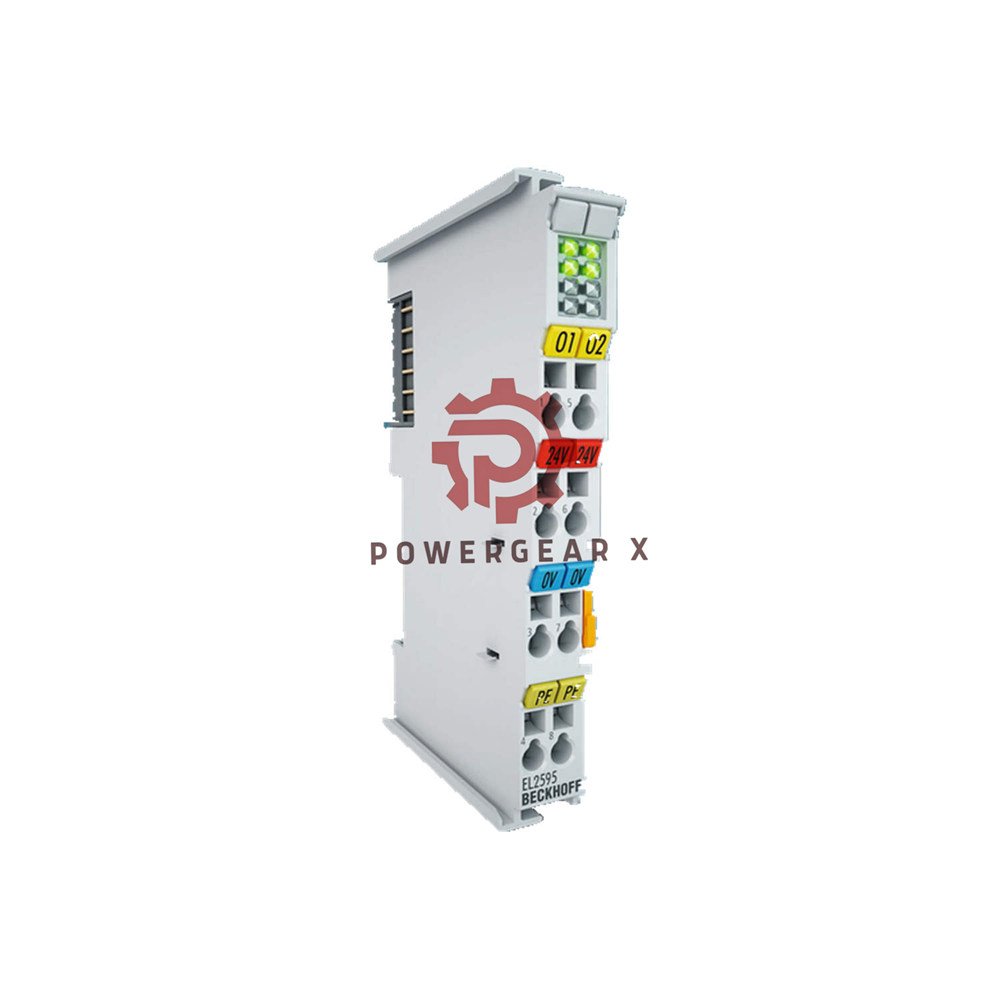

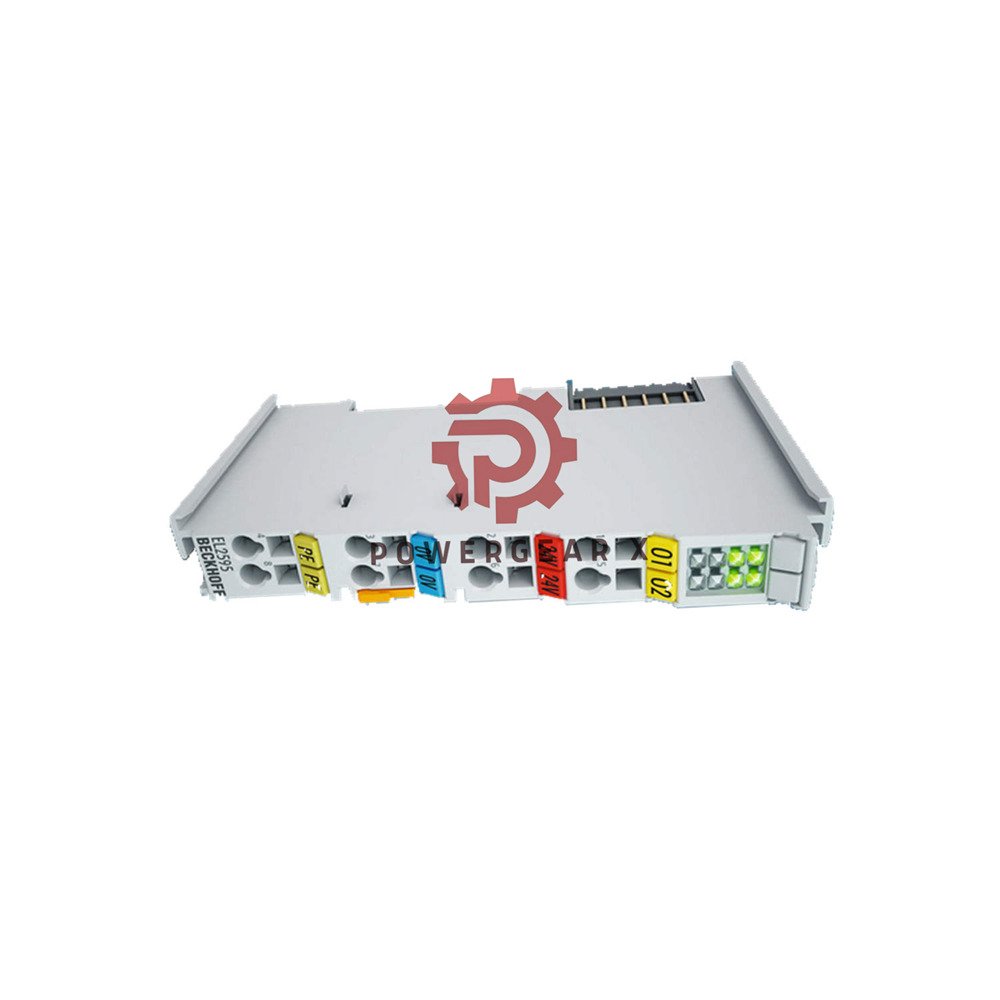

Beckhoff EL2595 | EtherCAT LED Terminal

1-channel LED output, 48 V DC, 0.7 A – Regular delivery.

The EL2595 is a constant current source for LEDs. It controls one or more series-connected LEDs. Users set the current. The integrated power supply adjusts the forward voltage automatically. It uses a step-up/down converter from a 24 V DC input. Output voltage adjusts during operation to maintain the set current. Fast switching supports short-term lighting and extremely short flashes. Pulse duration: 1 µs to infinity. Timestamp via distributed clocks. External trigger input available. Real-time diagnostics monitor input/output current and voltage. If load errors occur, the terminal switches off (resettable).

Key Features

Simple lighting tasks and continuous LED operation
Max. output current 300…700 mA
Optional automatic operation if communication fails
Supports XFC technology timestamp
Synchronized via distributed clocks (XFC)

Application Recommendations

EL2595 1st gen: sufficient for basic lighting tasks.
EL2596 / EL2596-0010: more powerful, high-precision control.
EL2564: for simple continuous RGBW (voltage mode).

Technical Data

Brand: Beckhoff
Model: EL2595
Series: EtherCAT Terminal
Recommended use: constant lighting > 300 mA, simple illumination
Connection: 2-wire
Number of outputs: 1
Input voltage: 24 V DC (-15 % / +20 %)
Load type: LED (ohmic)
Distributed clocks: yes, precision < 1 µs
Output voltage: 2…48 V DC (step-up/down control)
Max. output current: 300…700 mA (depends on voltage and duty cycle)
Switching times: TYP. TON < 1 µs, TOFF < 1 µs, pulses from 200 µs
Trigger input: 1 (electrically isolated, typ. 8 mA, 5…24 V DC)
E-bus current consumption: typ. 130 mA
Power contacts current: typ. 20 mA + load
Electrical isolation: 500 V (E-bus/field potential)
Special features: auto operation on comms loss, continuous operation
Weight: approx. 55 g
Operating temperature: 0…+55 °C
Storage temperature: -25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock: EN 60068-2-6 / EN 60068-2-27
EMC immunity/emission: EN 61000-6-2 / EN 61000-6-4
Protection rating: IP20
Installation position: variable
Approvals: CE
Housing: HD (High Density) with signal LEDs
Material: polycarbonate
Dimensions (W x H x D): 12 mm x 100 mm x 68 mm
Mounting: 35 mm DIN rail (EN 60715)
Connection cross-section: 0.08…1.5 mm² (solid), 0.25…1.5 mm² (stranded), 0.14…0.75 mm² (ferrule)
AWG: 28…16 (solid), 22…16 (stranded), 26…19 (ferrule)
Stripping length: 8…9 mm
Current load power contacts: Imax: 10 A

Installation & Commissioning

Mounting: Snap onto 35 mm DIN rail (EN 60715).
Wiring: Direct plug-in for solid conductors; use screwdriver for spring actuation.
Stripping length: 8…9 mm.
Side-by-side: Double slot and key connection.
Labeling: Use BZxxx series markers.
Commissioning: Set current via TwinCAT. Diagnostics show real-time values.
Maintenance: Resettable overload protection; no regular maintenance needed.

Compatibility & Integration

Fieldbus: EtherCAT (distributed clocks supported).
Software: TwinCAT 2 / 3.
Trigger input: 5…24 V DC, electrically isolated.
Load: LED strings (ohmic).

Expert Review

The EL2595 offers reliable constant current control for basic LED lighting. Its step-up/down converter handles varying LED forward voltages. The fast switching (< 1 µs) and timestamp support make it ideal for strobe or pulsed applications. Diagnostics help monitor performance. For high-end precision, consider the EL2596 series. Overall, it’s a cost-effective solution for simple illumination and continuous LED tasks.

Manager’s Insight

This terminal reduces engineering effort with automatic voltage adjustment. It provides real-time diagnostics, protecting both the load and the system. The optional auto-operation ensures process continuity even if the controller loses communication. Choose the EL2595 for standard lighting needs; upgrade to EL2596 for demanding applications where precision is critical.

Typical Applications

FAQ

What is the maximum output current?
The EL2595 supports 300…700 mA, depending on output voltage and duty cycle.
Can I use it for short flashes?
Yes, pulse duration is adjustable from 1 µs to infinity. Fast switching supports very short light pulses.
How does the auto-operation work?
If communication is lost, the terminal continues with the last set current.
What load errors cause shutdown?
If the load exits a specified corridor (e.g., short or open circuit), the EL2595 switches off protectively.
Is an external trigger needed?
An external trigger input is available, but you can also use timestamp via distributed clocks.
What is the difference to EL2596?
The EL2596 is more powerful and high-precision. EL2595 is for simple lighting > 300 mA.

Selection Guide

EL2595: Basic constant lighting, simple illumination, cost-effective.
EL2596 / EL2596-0010: High-precision control, demanding applications.
EL2564: Voltage mode RGBW continuous lighting.
Choose EL2595 if: You need a simple, reliable LED driver with diagnostics and flash capability.
Choose EL2596 if: You require higher accuracy or more output power.
