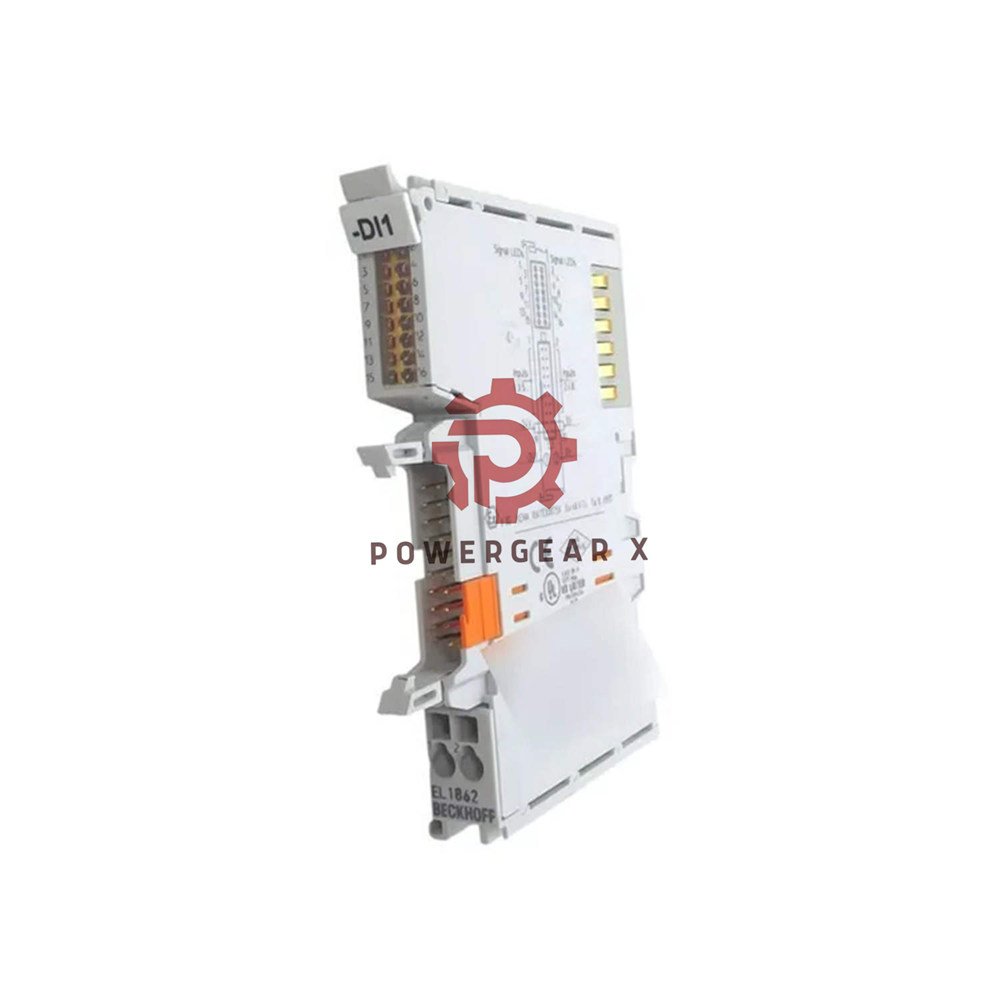

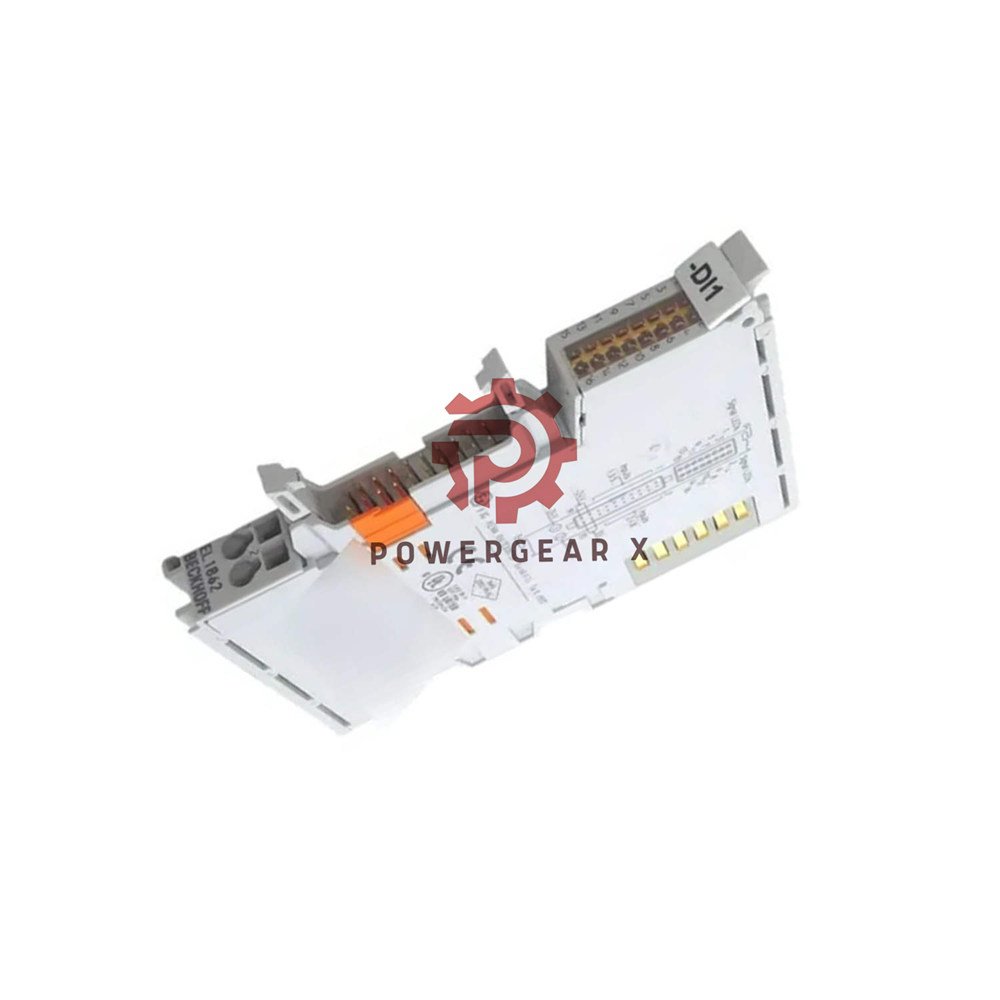

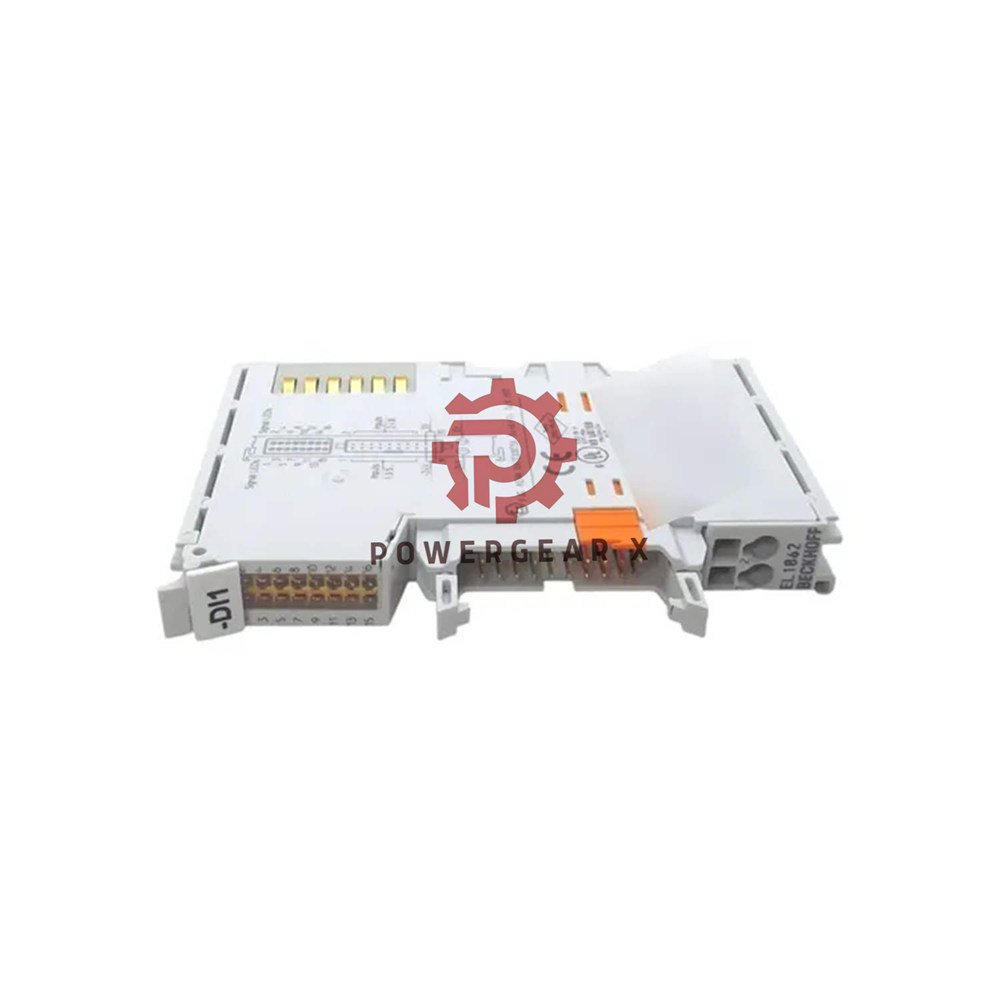

Beckhoff EL1862 | 16-Channel Digital Input Terminal, 24V DC, EtherCAT

Beckhoff EL1862 | 16-Channel Digital Input Terminal

Product status: Regular delivery.
Brand: Beckhoff
Model: EL1862
Type: EtherCAT Terminal, 16-channel digital input, 24 V DC, 3 ms filter.

• Ultra-compact design – fits in 12 mm terminal housing.
• Flat-ribbon cable connection with 20-pin IDC strip for secure wiring.
• LED indicators for each channel – quick status check.
• Input filter 3.0 ms – eliminates switch bouncing.
• Power contacts passed through for daisy-chaining.

Description

The EL1862 digital input terminal reads 24 V DC signals from sensors or switches.
It offers 16 channels in a very small footprint.
A 20-pin IDC connector simplifies wiring of many channels.
The 3 ms input filter rejects mechanical switch bounce.
LEDs show the signal state per channel.
This terminal is ideal for high-density I/O applications.

Technical Data

• Connection technology: flat-ribbon cable (AWG 28, pitch 1.27 mm)
• Specification: EN 61131-2, type 1/3
• Number of inputs: 16
• Nominal voltage: 24 V DC (-15 % / +20 %)
• Rated current (per pin): max. 1 A
• Signal “0” voltage: -3 … +5 V (type 1/3)
• Signal “1” voltage: 11 … 30 V (type 3)
• Input current (typ.): 3 mA (type 3)
• Input filter (typ.): 3.0 ms
• Distributed clocks: –
• Current consumption (E-bus): typ. 100 mA
• Current consumption (power contacts): 4 mA from 24 V supply
• Electrical isolation: 500 V (E-bus / field potential)
• Bit width in process image: 16 inputs
• Configuration: no address or configuration setting
• Special features: also available as ground switching
• Weight: approx. 60 g

Environmental & Mechanical

• Operating temperature: 0 … +55 °C
• Storage temperature: -25 … +85 °C
• Relative humidity: 95 %, no condensation
• Vibration / shock: acc. to EN 60068-2-6 / EN 60068-2-27
• EMC immunity / emission: acc. to EN 61000-6-2 / EN 61000-6-4
• Protection rating / installation position: IP20 / variable

Approvals & Markings

• CE, UL, ATEX
• Ex marking: II 3 G Ex nA IIC T4 Gc

Housing & Installation

• Design form: compact terminal housing with signal LEDs
• Material: polycarbonate
• Dimensions (W x H x D): 12 mm x 100 mm x 73 mm
• Installation: on 35 mm DIN rail (EN 60715) with lock
• Side by side mounting: double slot and key connection
• Marking: labeling of BZxxx series
• Wiring: flat-ribbon cable, AWG 28, pitch 1.27 mm

Installation Guide

• Mount on 35 mm DIN rail – snap into place.
• Connect flat-ribbon cable to 20-pin IDC header.
• Wire sensors to the ribbon cable (AWG 28).
• Apply 24 V DC power via power contacts.
• No addressing or configuration needed – plug and play.

Debugging & Maintenance

• LED per channel – green = “1” signal.
• No software setup required.
• Filter time fixed at 3 ms – no adjustment needed.
• Clean with dry cloth; keep terminals free of dust.

Compatibility

• EtherCAT – works with any Beckhoff or third-party EtherCAT master.
• Compatible with ELxxxx series terminals.
• Power contacts pass through for adjacent terminals.

Expert Review

“The EL1862 is a workhorse for high-channel-count digital inputs.
The 3 ms filter is ideal for noisy industrial environments.
IDC connection saves panel space and wiring time.
Reliable, robust, and cost-effective.”

Manager’s Insight

“For machine builders, this terminal reduces assembly errors.
Ribbon cable wiring is faster than individual wires.
The UL and ATEX approvals make it suitable for global projects.
Stock availability ensures short lead times.”

Applications & Suitable Devices

• PLC I/O expansion – connect sensors, switches, pushbuttons.
• Factory automation – conveyor systems, packaging machines.
• Process control – valve feedback, level switches.
• Robotics – end-effector signals, safety interlocks.
• Works with Beckhoff CX, CP, and EP series controllers.

FAQ

• What cable type is required?
  Use flat-ribbon cable with AWG 28 and 1.27 mm pitch.
• Can I connect mechanical switches?
  Yes. The 3 ms filter eliminates contact bounce.
• Do I need to set addresses?
  No. The EL1862 auto-detects in the EtherCAT network.
• Is it ATEX certified?
  Yes, Ex nA IIC T4 Gc for Zone 2 hazardous areas.
• What is the power consumption?
  E-bus: typ. 100 mA; power contacts: 4 mA from 24 V.
• Can I ground the inputs?
  Yes. The terminal supports ground-switching variant.

Selection Guide

• For 16 channels in small space → EL1862 is the best choice.
• If you need faster filter, consider EL1860 (no filter).
• For fewer channels, choose EL1809 (8-channel) or EL1819 (16-channel with different connection).
• Use EL1862 with ribbon cable for high-density cabinets.
