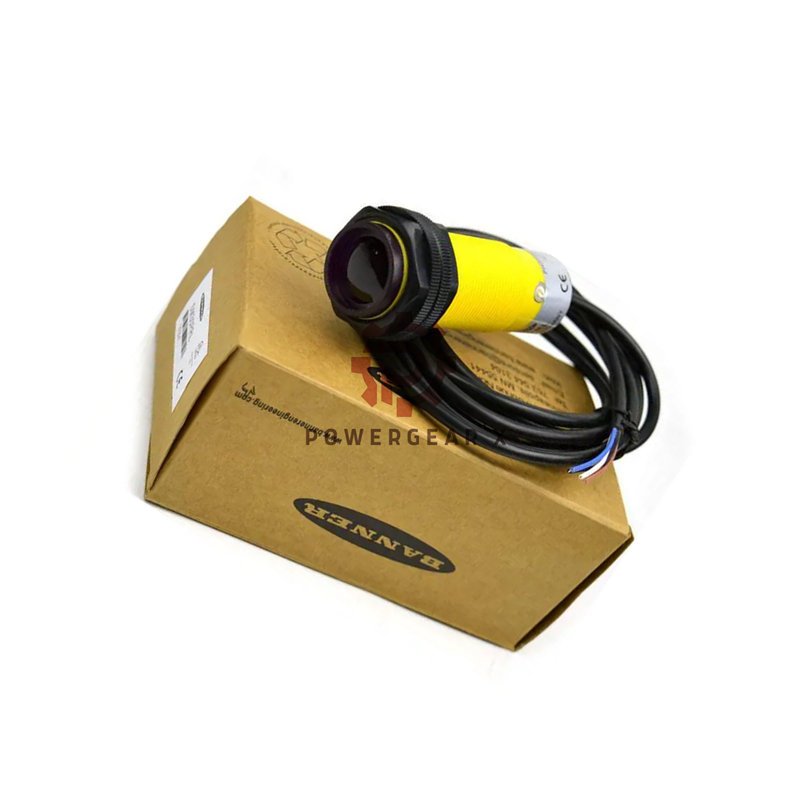

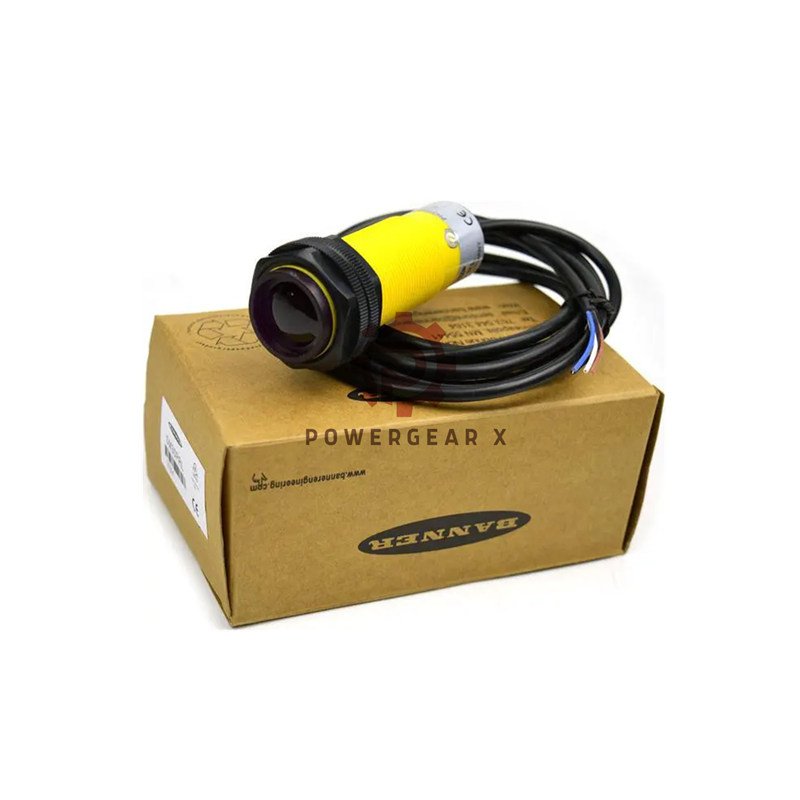

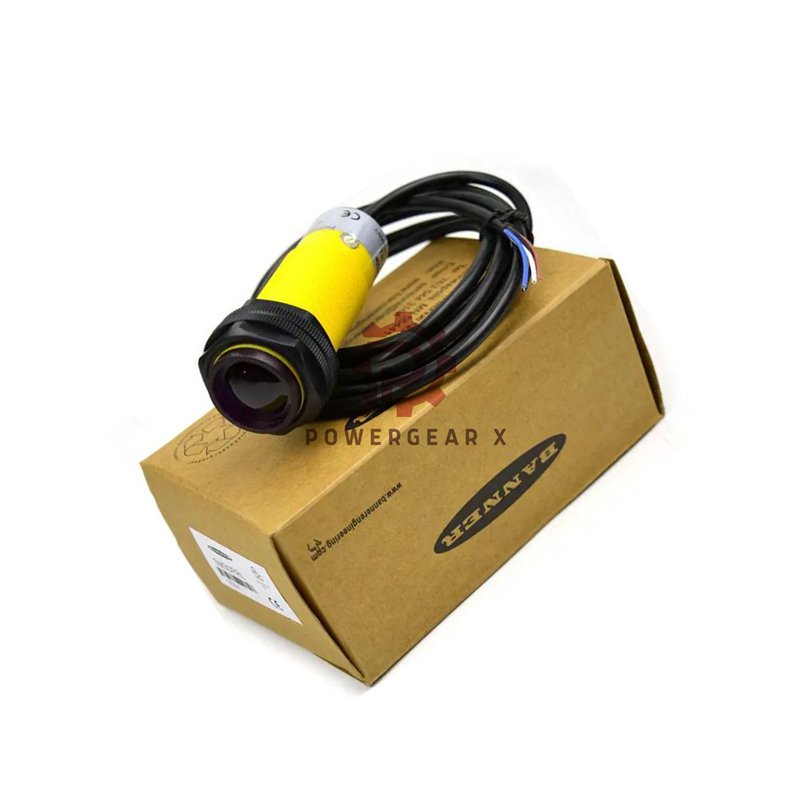

Banner Engineering SM30PRL W/30 Photoelectric Sensor | 150m Receiver

Banner Engineering SM30PRL W/30 | Infrared Photoelectric Sensor Receiver

The Banner SM30PRL W/30 is a high-performance photoelectric receiver from the SM30 series.
Developed for long-range sensing up to 150 meters, it combines precision detection and rugged durability.
Engineered and supplied by Powergear X Automation.

Main Specifications

• Model: SM30PRL W/30 (P/N 27291)
• Sensing Mode: Opposed (Receiver)
• Sensing Range: 150 m
• Light Source: Infrared LED
• Supply Voltage: 10–30 VDC
• Outputs: Bipolar (1 NPN, 1 PNP)
• Output Response: 10 ms
• Repeatability: 1000 µs
• Cable Length: 2 m (6.5 ft)
• Housing Material: PBT Thermoplastic
• Housing Style: 30 mm Barrel
• Lens Material: Acrylic
• IP Rating: IP67
• NEMA Rating: NEMA 6P

Performance & Environment

• Operating Temp: –40°C to +70°C
• Relative Humidity: 90% @ 50°C
• Encapsulated design for vibration resistance
• No quick disconnect; cable connection ensures tight sealing
• High reliability under industrial humidity and dust

Special Features

• Dual NPN/PNP outputs for flexible integration
• Fast 10 ms response for dynamic detection
• Compact thermoplastic barrel housing
• Rugged design meets IP67/NEMA 6P standards
• Designed for harsh industrial environments

Applications

• Packaging and labeling systems
• Conveyor belt detection
• Automated assembly lines
• Industrial robotics
• Material positioning systems

Warranty & Shipping

• Warranty: 12 months by Powergear X Automation
• Shipping: Global delivery via
  FedEx,
  UPS,
  DHL

Product Benefits

• 150-meter detection range for long-distance sensing
• Fast setup and stable output with LEDs indicator
• Rugged IP67 body ensures resistance to water and dust
• Reliable performance in outdoor and factory conditions
• Wide temperature range for global industrial use

Professional FAQ

• Q: Can SM30PRL W/30 operate outdoors?
  A: Yes, it features IP67/NEMA 6P protection and works well in outdoor and dusty areas.
• Q: What type of signal outputs does this model offer?
  A: It includes both NPN and PNP outputs for flexible connection options.
• Q: How do I align the sensor with its emitter?
  A: Align both units using visible alignment tools or test LED feedback during installation.
• Q: What is the best mounting distance for optimal accuracy?
  A: The recommended distance is within 140–150 meters for maximum reliability.
• Q: Does the SM30PRL W/30 need maintenance?
  A: Minimal maintenance—clean the lens periodically to maintain sensing precision.
