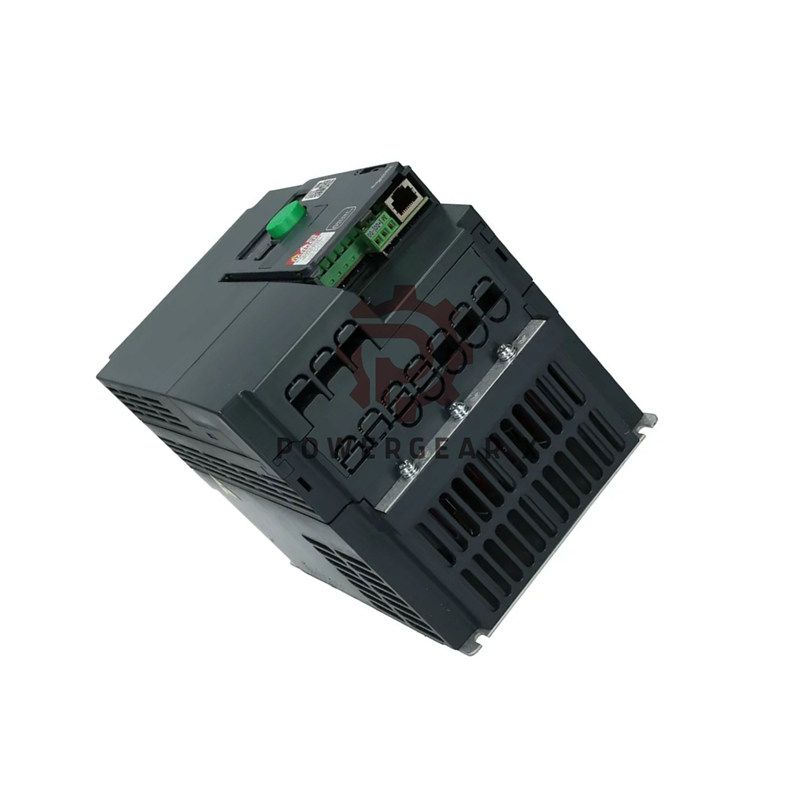

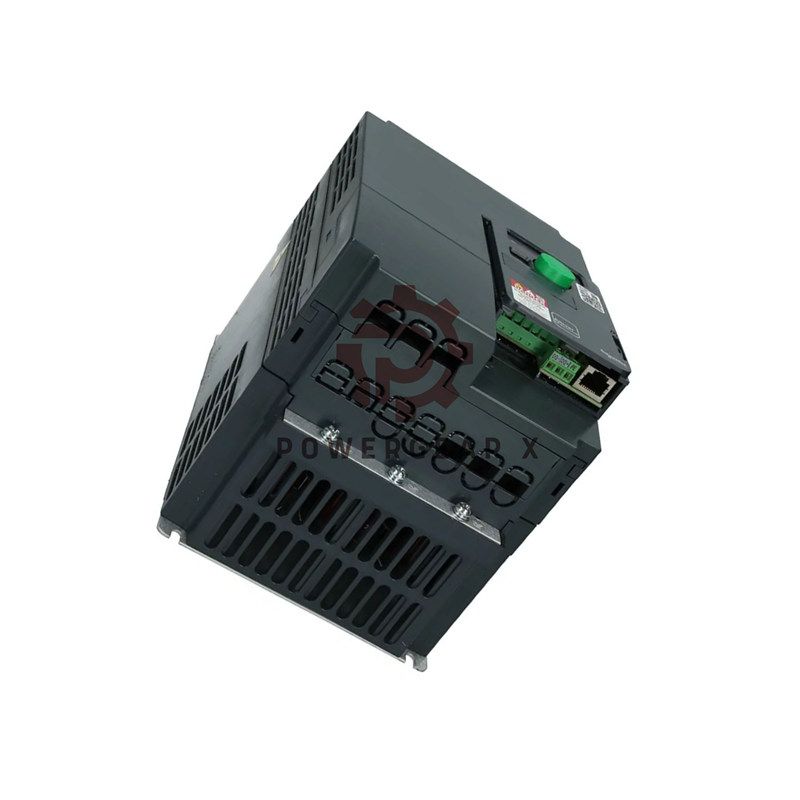

Name: ATV320U55N4C Variable Speed Drive – Altivar 5.5kW VFD
SKU: ATV320U55N4C
Availability: InStock

Product details

ATV320U55N4C Variable Speed Drive – Compact & Powerful

5.5 kW, 380–500 V, 3-phase. Simple setup. Stable control. Made for modern machines.
Author: Powergear X Automation
Warranty: 12 months.
Fast delivery: FedEx / UPS / DHL.
Contact: sales@powergearx.com | +86 18030005825

Main Highlights

Model: ATV320U55N4C (5.5 kW, heavy-duty rated)
Supply: 380–500 V ±15/10%
Output current: 14.3 A
Built-in EMC filter, IP20
Control: V/F, sensorless vector, energy-saving modes
Fast torque: up to 200% short-term boost
Safe Torque Off (STO) + SS1 safety
Brake chopper included

Extra Technical Data

Max output freq: 0.599 kHz
Switching freq: 2–16 kHz (4 kHz nominal)
Cooling airflow: 60 m³/h
Line current: 20.7 A at 380 V
Apparent power: 12.6 kVA
Analog inputs: 0–10 V, ±10 V, 0–20 mA
Analog output: 0–10 V / 0–20 mA selectable
Relay durability: 100,000 cycles
Shock resistance: 150 m/s²
Vibration resistance: 10 m/s²

Why Choose This Drive

Stable speed even under heavy load
Fast stop with DC injection
Low heat, high efficiency
Safe, reliable, CE/UL/ATEX certified
Ready for Modbus & CANopen

Available Communication Options

FAQ

1. Can this model run both synchronous and asynchronous motors?
Yes. It offers sensorless vector modes for both motor types.
2. What is your most common field feedback about this drive?
Users report stable torque at low speed and very low trip rates.
3. Is braking hardware required externally?
No. The unit includes an integrated brake chopper.
4. Does it support fast machine cycles?
Yes. High-speed I/O and fast analog response make it suitable for rapid processes.
5. What is the typical lifespan of the cooling fan?
Customers usually replace it after 3–5 years depending on duty cycle and ambient dust.
