Name: Atlas Copco LMS88 GIR38 Pneumatic Wrench | 7370 ft-lb High Torque
SKU: LMS88 GIR38
Availability: InStock

Product details

The LMS88 GIR38 is a beast in heavy-duty disassembly, offering an incredible power-to-weight ratio.
We find the Grease Retaining System critical for reducing downtime in harsh, dust-heavy environments.
Engineers prefer the LMS88 GIR38 for its zero-reaction force, protecting operators during high-torque applications.
This straight-model impact wrench is perfectly suited for Shipbuilding, Heavy Mining, and Large Infrastructure projects.
The LMS88 GIR38 integrates smoothly into workflows requiring M30 to M42 bolt size management.

Model Specification: LMS88 GIR38 (Atlas Copco)
Drive System: 1-1/2 inch Square Male Output
Peak Torque Capacity: 7370 ft-lb (Max)
Operational Torque Range: 737 ft-lb to 4054 ft-lb for precision control.
Impact Frequency: 540 impacts per minute for rapid fastener breakdown.
Fluid Dynamics: 69.4 cfm air consumption at a maximum 100 psi working pressure.

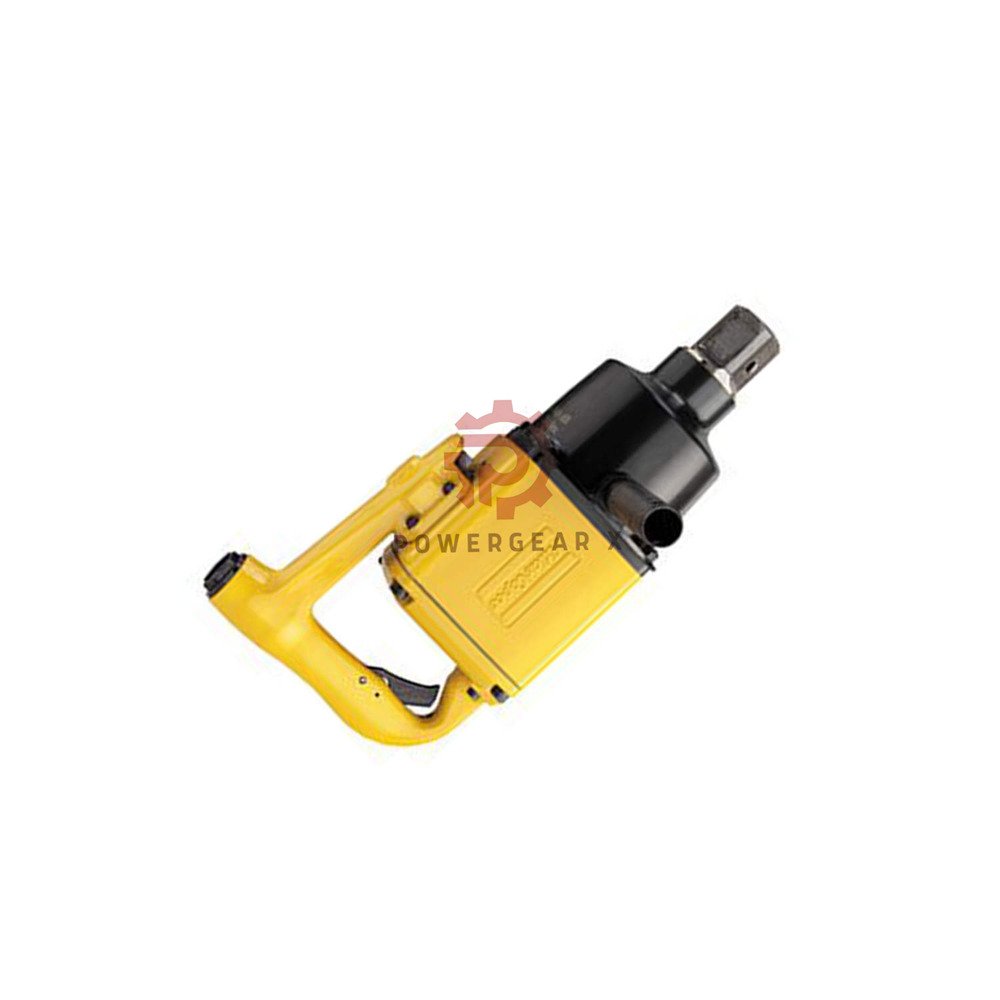

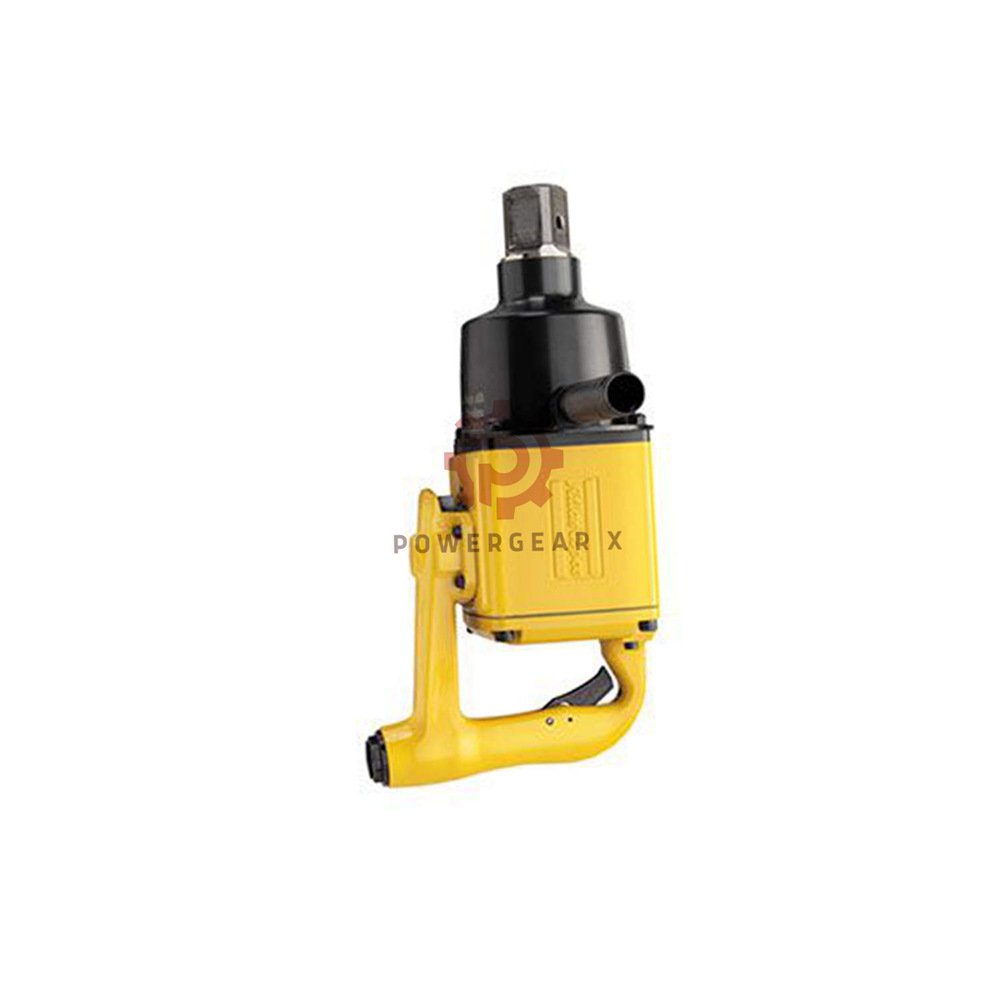

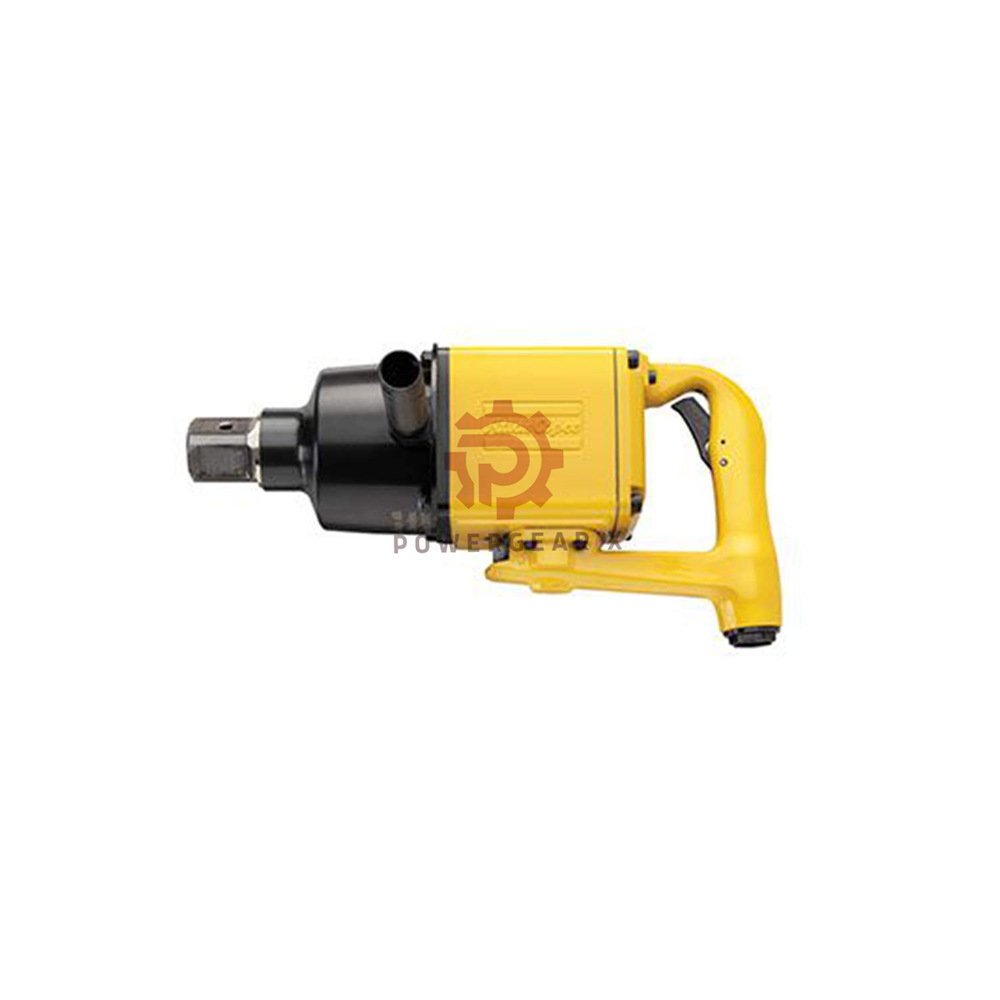

Form Factor: Straight-type industrial housing with a tool weight of 33 lb (15 kg).
Physical Reach: 381 mm total length with a 63.5 mm CS distance.
Air Connection: 1/2 inch NPT air inlet thread for high-flow compatibility.
Compliance: Certified to EN ISO 11148-6:2012 and EAC safety directives.

Fastener Suitability: Optimized for heavy industrial bolts between 30 mm and 42 mm.
Media Compatibility: Designed for standard compressed air systems with 16 mm recommended hose size.
Operator Safety: Vibration value of 4.8 m/s² ensures compliance with modern ergonomics.
Durability Features: Non-shut-off design ensures the tool continues to drive in the toughest stalling conditions.
Environmental Tolerance: Built to withstand the vibration-heavy cycles of heavy-machinery remanufacturing.

Fulfillment Window: Ready for dispatch within 12-48 hours from our facility.
Shipping Networks: Express global logistics provided by DHL, FedEx, and UPS.
Quality Assurance: Guaranteed with a standard 12-month industrial warranty.
Packaging Details: Ships in a reinforced 45.5 x 28 x 22.4 cm crate; total weight 16.81 kg.
Supply Status: Original equipment manufactured in Hungary (HU).

What makes the LMS88 GIR38 grease system “unique”?
It uses a centrifugal retention method that keeps gears lubricated longer than standard open-gear impact tools.
Is an external air lubricator required for this specific model?
Yes, to maintain the LMS88 GIR38‘s 7370 ft-lb peak, we strongly suggest an inline FRL (Filter-Regulator-Lubricator).
Can I use standard 1″ sockets with an adapter on this tool?
While possible, we advise using native 1-1/2″ impact sockets to prevent energy loss and adapter shearing.
Selection Advice: When should I choose the LMS88 over the RTP series?
Select the LMS88 GIR38 for high-speed disassembly where precision torque shut-off is less critical than raw power.
Installation Pro-Tip:
Ensure your compressor can sustain 70 cfm at 100 psi, or the tool will not reach its impact frequency.
