Armor Protection | Bently Nevada 330902-00-10-10-01-05 NSv Armored Proximity Probe

Armored Protection for Critical Measurements

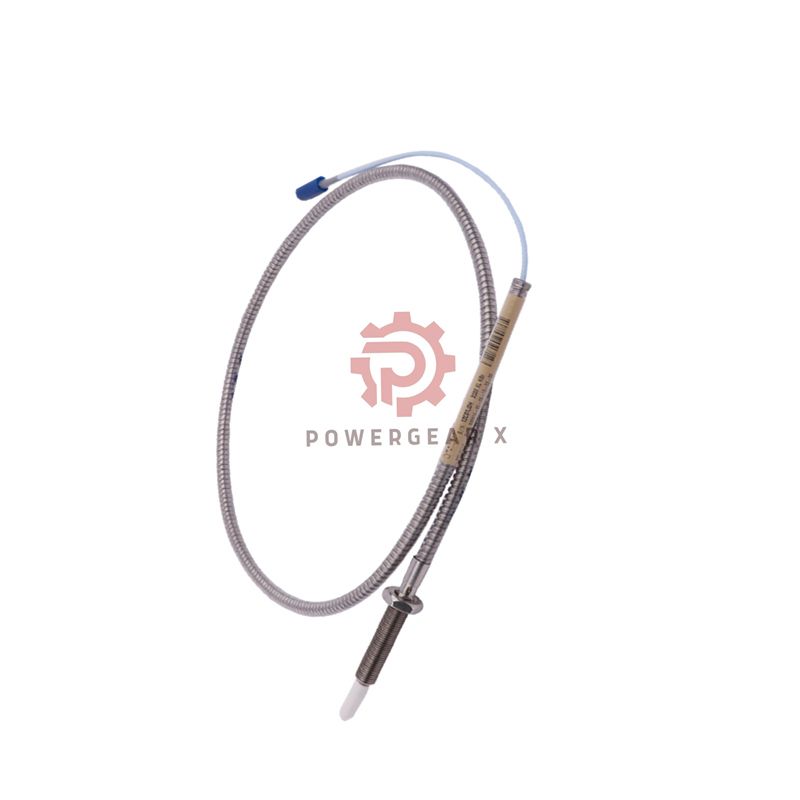

This Bently Nevada 3300 NSv Proximity Probe features a protective armored casing. It is perfect for harsh industrial environments. The model 330902-00-10-10-01-05 offers superior durability. It guards the sensitive cable against abrasion and impact. Ensure reliable vibration monitoring where physical damage is a risk.

Complete Product Breakdown & Specifications

• Core Product: Bently Nevada 3300 NSv Probe, 330902
  • Thread: 1/4-28 UNF.
  • Key Feature: With protective armor.
• Configuration Details (Suffix):
  • -00: Unthreaded Length = 0.0 in.
  • -10: Overall Case Length = 1.0 in.
  • -10: Total Length = 1.0 meter cable.
  • -01: Connector = Mini ClickLoc with protector.
  • -05: Agency Approval = Multiple.
• Construction & Materials:
  • Case: Rugged AISI304 Stainless Steel.
  • Tip: Tough Polyphenylene Sulfide (PPS).
  • Cable: 75 Ω coaxial with FEP insulation.
• Electrical Data:
  • Probe DC Resistance (1.0m): 4.2 Ω ± 0.5 Ω.
• Mechanical Limits:
  • Mounting Torque (1/4-28 thread):
    • Maximum: 7.3 N•m (65 in-lb).
    • Recommended: 5.1 N•m (45 in-lb).
  • Max Thread Engagement: 0.375 inches.
• Environmental Ratings:
  • Operating/Storage Temp: -52°C to +177°C.
  • Seal Notice: Avoid long periods below -34°C.
  • Seal Type: Viton O-ring.
  • Certifications: Multiple hazardous area approvals (EPL Ga/Gc/Dc).
• Weight: Approx. 14 to 150 g.

Expert Answers to Your Questions (FAQ)

About the Armor & Use

• When should I choose an armored probe?
• Choose it for installations where the cable may get crushed, rubbed, or hit. This is common near moving parts or in high-traffic maintenance areas.
• Does the armor change how I install the probe?
• No. Install the probe body the same way. The armor only protects the cable exiting from the back of the probe case.

Technical & Selection Guidance

• What does the “connector protector” (option -01) do?
• It is a sturdy shell that locks over the ClickLoc connector. It prevents accidental disconnection and strain on the cable joint.
• The thread engagement limit is short. Why?
• The 1/4-28 thread is small. Engaging it too deep can cause the probe tip to touch the shaft. Always measure the required depth in your mounting hole first.
• How do I get this product and what support is included?
• We ship globally via FedEx, UPS, and DHL. Your purchase includes a full 12-month warranty. Contact us for fast quotes and technical support.

Need a durable solution for tough spots? Our team can help you select the right sensor.

Reach out today: sales@powergearx.com or +86 18030005825 (WhatsApp).
