Allen-Bradley 1769-L35E CompactLogix Controller | Ethernet

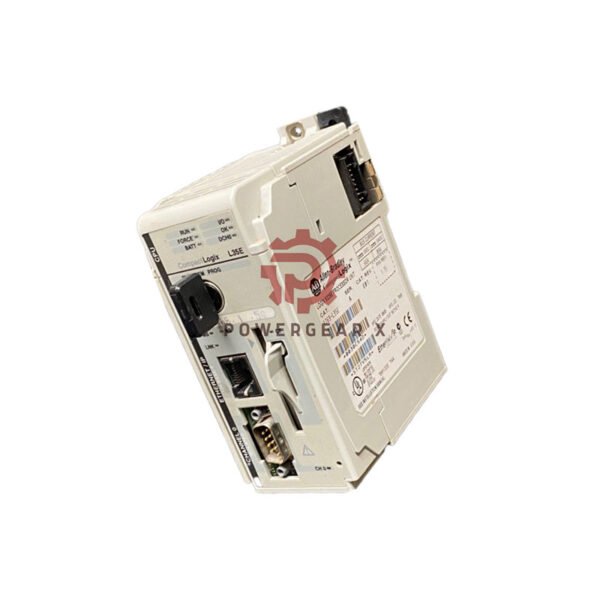

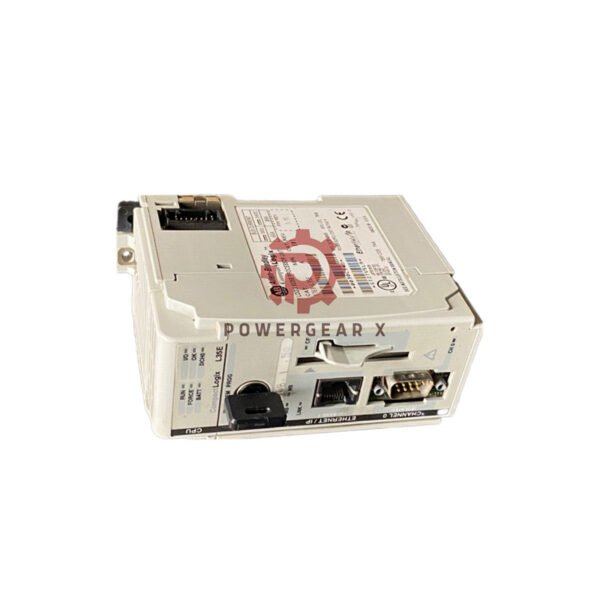

Allen-Bradley 1769-L35E: Advanced CompactLogix Controller

The 1769-L35E delivers powerful control for medium automation applications. This CompactLogix controller features 1.5MB memory and dual communication ports. It supports both Ethernet and RS232 connectivity options. The 1769-L35E handles up to thirty I/O modules for flexible expansion.

Technical Specifications

• Manufacturer: Allen-Bradley/Rockwell Automation
• Model Number: 1769-L35E Series A/B
• Memory Capacity: 1.5 megabytes user memory
• Communication Ports: 1 Ethernet (10/100 Mbps), 1 RS232
• I/O Capacity: 30 local modules, 3 expansion banks
• Power Requirements: 660mA @ 5V DC, 90mA @ 24V DC
• Battery Backup: 1769-BA lithium battery
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Ethernet Cable: Standard Cat5/Cat6 (up to 100m)
• Serial Cable: 1747-CP3/1756-CP3 (up to 15.2m)

Compatible Accessories

• Memory Cards: 1784-CF64/128 CompactFlash
• Battery Module: 1769-BA for memory backup
• Communication Cables: 1747-CP3/1756-CP3
• Power Supplies: 1769-PA4 and compatible units
• All 1769 Compact I/O modules supported

Installation & Mounting

• DIN rail or panel mounting options available
• Maximum 4-module distance from power supply
• 22-14 AWG solid or 22-16 AWG stranded wire
• 1.1 to 1.8 N-m mounting torque specification
• Open-style enclosure for easy access

Shipping & Support

• Global shipping via FedEx, UPS, and DHL
• Package weight: 0.66 lbs (0.30 kg)
• Package dimensions: 8x8x5 inches
• 12-month manufacturer warranty included
• Complete technical documentation provided

Frequently Asked Questions

• Q: What programming software does it use?
  A: It uses Studio 5000 Logix Designer software.
• Q: How many Ethernet connections does it support?
  A: It supports up to 32 CIP connections over Ethernet.
• Q: What is the maximum I/O capacity?
  A: It supports up to 30 local I/O modules maximum.
• Q: Does it support non-volatile memory?
  A: Yes, with 1784-CF64 or 1784-CF128 CompactFlash cards.
• Q: What protocols are available on the RS232 port?
  A: DF1 and DH485 protocols are supported.
