🔥 Product Overview

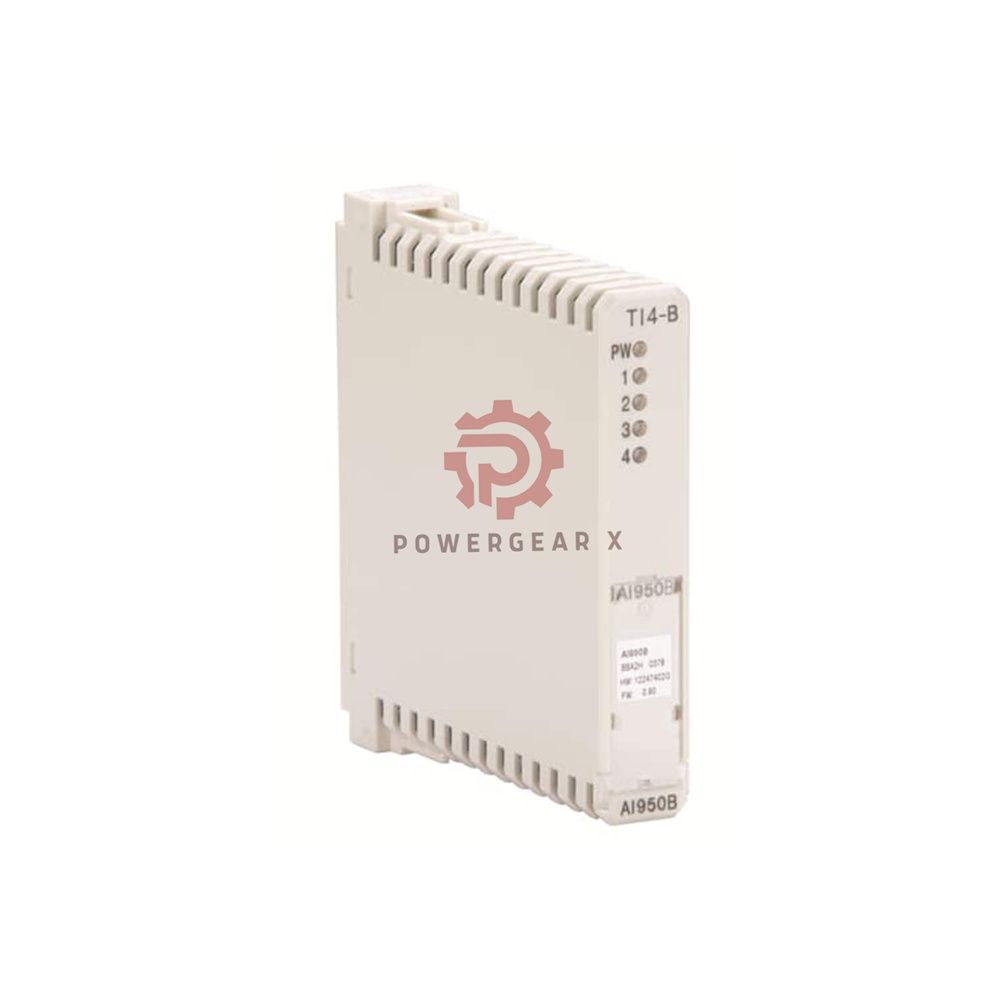

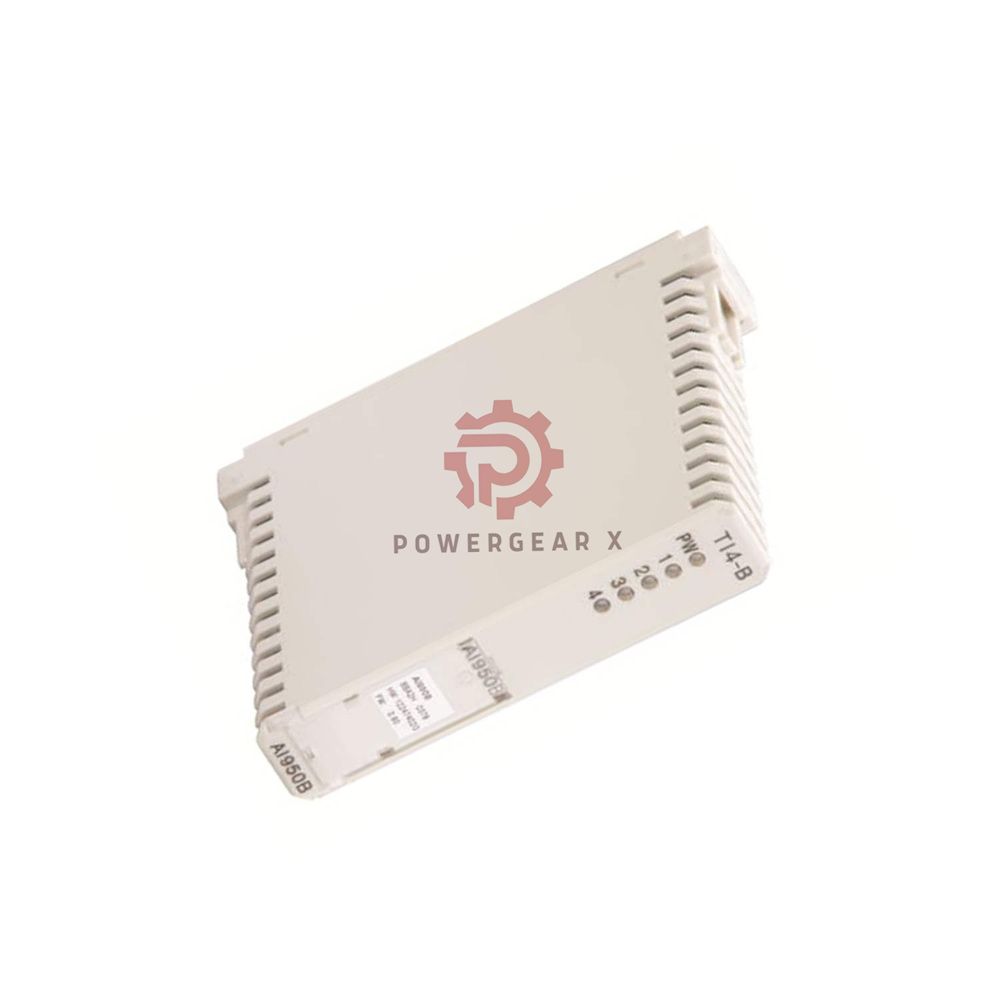

- ABB AI950B 3KDE175522L9500 – 4-channel temperature input module for S900 I/O systems.
- Certified for Zone 2 hazardous area installation, connects to sensors in Zone 0/1/2.
- Supports RTD (Pt100, Pt1000, Ni100) and thermocouples (B,E,J,K,L,N,R,S,T,U).
- Channel-to-channel electrical isolation for maximum signal integrity.
- Hot swap capability: replace module live without system shutdown.
✨ Key Features
- Hazardous Area Certification
- ATEX Zone 2 approved for safe use in explosive atmospheres
- Connect sensors from Zone 0, 1, or 2 via intrinsic safety
- Redundancy & Flexibility
- Redundancy: Power and communication (system level)
- Hot Configuration in Run – no process interruption
- Hot Swap functionality – replace during operation
- Diagnostics & Protection
- Extended Diagnostic via FDT/DTM
- Short circuit and break detection per channel
- G3 coating for corrosive atmospheres
- Isolation
- Channel-to-channel electrical isolation
- Input/bus and input/power isolation
- Communication
- PROFIBUS DP interface to control system
- HART frames transmission via fieldbus
📊 Technical Specifications
- Product Identity
- Brand: ABB
- Model: AI950B | Article No: 3KDE175522L9500
- Type: Temperature Input Module | Series: S900 I/O
- Input Specifications
- Channels: 4 isolated analog inputs
- RTD Support: Pt100, Pt1000, Ni100 (2/3/4-wire)
- Resistance: 0…3 kOhms
- Thermocouple Types: B, E, J, K, L, N, R, S, T, U
- mV Input: Yes
- Cold Junction Compensation: Internal or external
- HART: Yes
- Intrinsic Safety: Yes (for Zone 2/1/0 sensors)
- Environmental & Certification
- CE Mark: Yes
- Hazardous Location: ATEX Zone 2
- Corrosive Atmosphere: ISA-S71.04 G3 coated
- Operating Temp: -20°C to +60°C
- Humidity: Max 93% ±3% at 40°C
- RoHS: DIRECTIVE/2011/65/EU
- WEEE: DIRECTIVE/2012/19/EU
- Mechanical Data
- Mechanics: S900 system format
- Width: 20 mm (0.79 in)
- Depth: 104 mm (4.09 in)
- Height: 104 mm (4.09 in)
- Weight: 0.135 kg (0.30 lbs)
🔧 Installation & Operation
- Mounting: DIN rail mount on S900 backplane for Zone 2 areas.
- Wiring: Direct field connection to sensors in hazardous zones.
- Replacement: Hot swap design – remove module while system runs.
- Compensation: Select internal or external cold junction reference.
- Diagnostics: Per-channel open/short detection, HART status.
📦 Package & Logistics
- Package includes: 1x ABB AI950B module (3KDE175522L9500), anti-static bag, documentation.
- Warranty: 12 months against manufacturing defects from invoice date.
- Shipping:
- Express couriers: FedEx, UPS, DHL – fully tracked worldwide.
- Same-day dispatch for in-stock orders.
❓ FAQ – Selection & Application Guide
- Q: Can AI950B connect to sensors in Zone 0?A: Yes, the module is for Zone 2 but connects to intrinsically safe sensors located in Zone 0, 1, or 2.
- Q: What is the advantage of channel-to-channel isolation?A: It prevents ground loops and interference between channels. Ideal for precise temperature measurements.
- Q: Does it support 4-wire RTD connections?A: Yes, AI950B supports 2, 3, and 4-wire RTD for Pt100, Pt1000, and Ni100 sensors.
- Q: How do I choose internal vs external cold junction?A: Use internal for terminal temperature, external for remote reference. Configure via FDT/DTM.
- Q: Can I replace this module without removing power?A: Yes, hot swap is fully supported. No need to power down the backplane.
