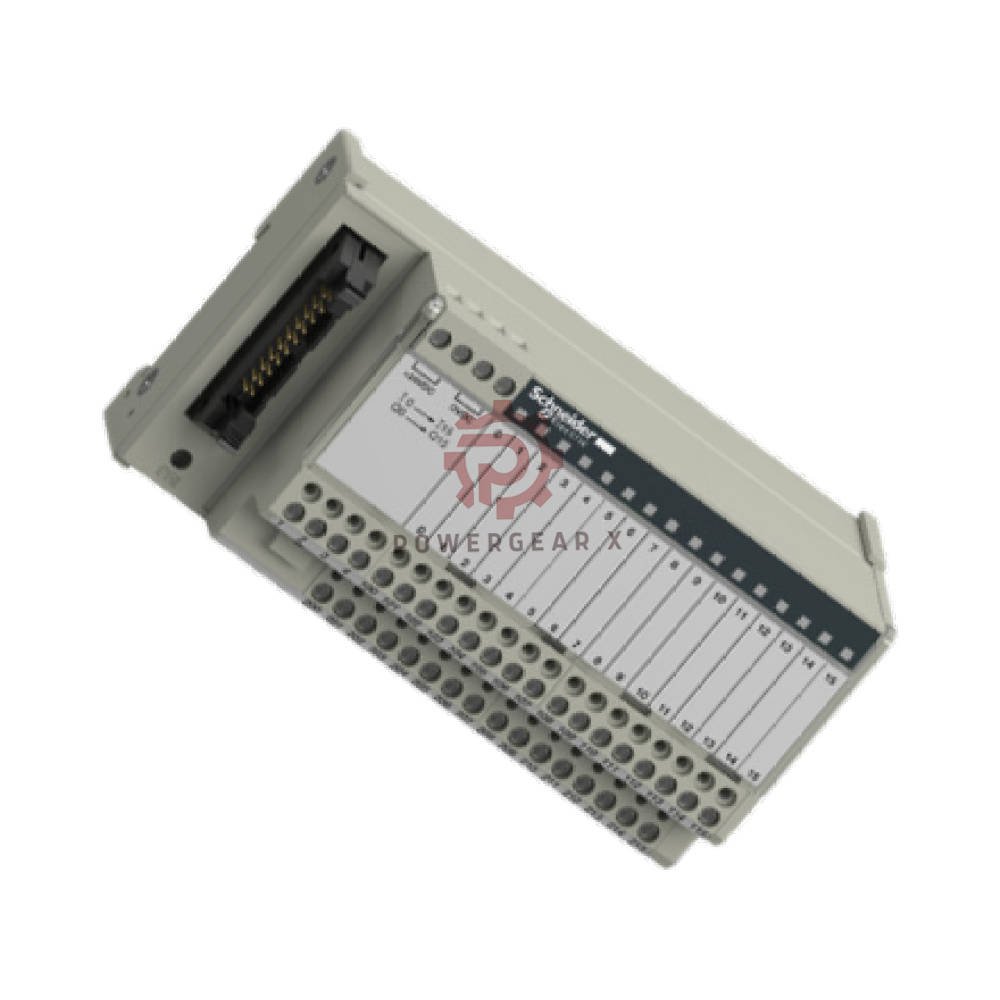

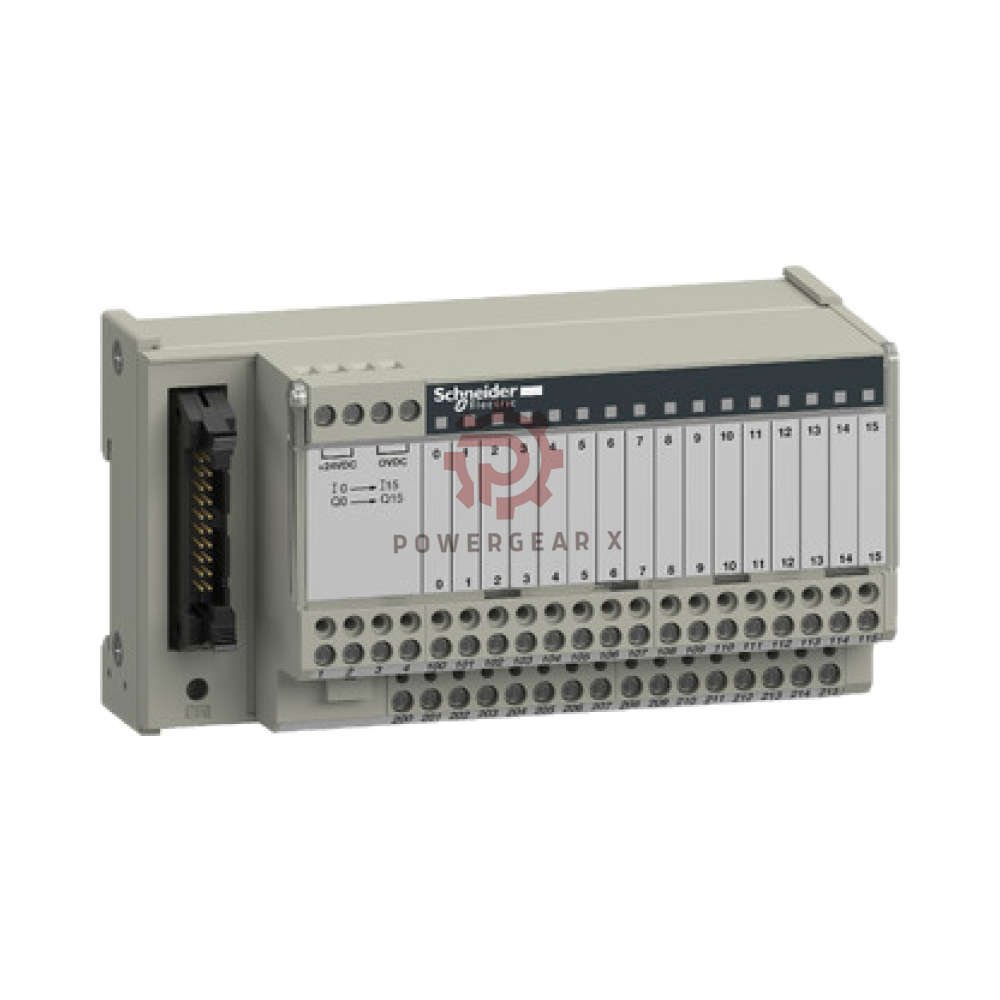

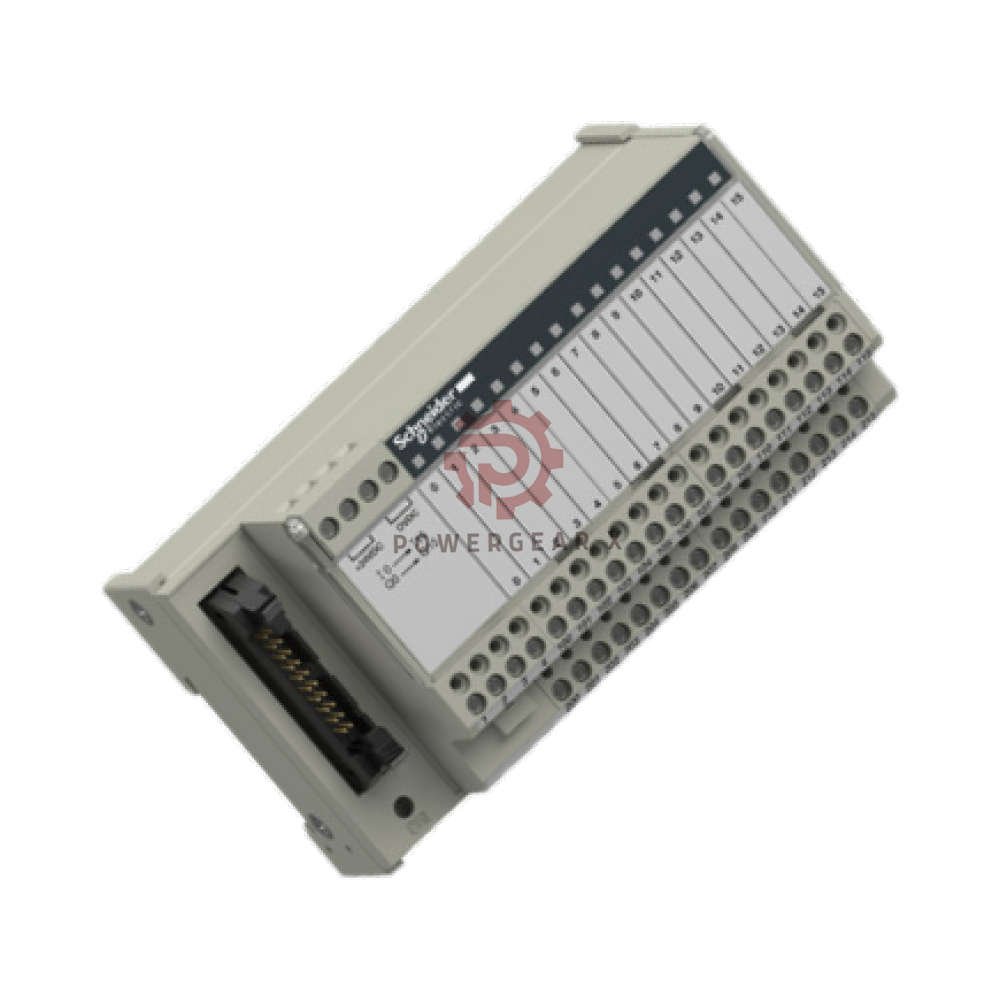

ABE7H16S21 Schneider Electric ABE7 16-Channel I/O Sub-Base

ABE7H16S21 Schneider Electric Passive Discrete I/O Connection Sub-Base

ABE7H16S21 is a 16-channel passive discrete I/O connection sub-base from the Schneider Electric Telefast ABE7 range. It links field devices to control systems. It also brings 0V or 24V polarity distribution to each channel.

Each channel has two terminals and a clear LED. A built-in channel isolator helps protect signals. A 2 A internal fuse adds another layer of safety. The module fits 35 mm DIN rail or screw mounting. It is active in production as of 2026-09.

Why Choose This Module

• Fast wiring: HE-10 connector and screw terminals save time.
• Clear status: One LED per channel shows signal state.
• Safer circuits: Internal fuse and channel isolator reduce risk.
• Flexible supply: Works with 19-30V DC per IEC 61131-2.
• Compact build: 16 channels fit in a narrow DIN rail space.
• Proven range: Part of the widely used Telefast ABE7 family.

Technical Specifications

• Brand: Schneider Electric
• Model: ABE7H16S21
• Series: ABE7
• Module type: Passive discrete I/O connection sub-base with isolator
• Number of channels: 16
• Terminals per channel: 2
• Signal type: Discrete input/output, 0V or 24V polarity distribution
• Rated supply voltage: 19-30V DC (IEC 61131-2)
• Maximum supply current: 1.8 A
• Current per channel: 0.5 A
• Connector: HE-10
• Protection: 2 A internal fuse, LED per channel, channel isolator
• Operating temperature range: -5 to 60 °C
• Protection rating: IP2X
• Mounting: 35 mm DIN rail clips or screw
• Dimensions (H×W×D): 77 × 206 × 58 mm
• Weight: 0.64 kg
• Wire cross-section: 0.14-2.5 mm² solid, 0.09-1.5 mm² flexible
• Lifecycle: Active (in production, Telefast ABE7 range)
• Last verified: 2026-09

Performance and Environmental Notes

• Measurement range: 0V to 24V discrete signal levels
• Frequency response: Not specified for passive discrete distribution
• Sensitivity: Channel LEDs react to discrete 0V or 24V states
• Linearity: Not applicable to passive connection sub-base
• Resolution: One bit per channel, on or off
• Temperature range: -5 to 60 °C operating
• Environmental tolerance: IP2X protection, indoor industrial use
• Noise immunity: Channel isolator improves signal stability

Installation Guide

• Snap the unit onto a 35 mm DIN rail or fix it with screws.
• Keep the cabinet within -5 to 60 °C.
• Use wire sizes from 0.14-2.5 mm² solid or 0.09-1.5 mm² flexible.
• Connect the HE-10 connector to the control side.
• Wire field devices to the two terminals per channel.
• Check 19-30V DC supply polarity before power-up.
• Confirm each channel LED after power is applied.

Commissioning and Maintenance

• Verify 0V and 24V distribution before connecting loads.
• Keep current below 0.5 A per channel.
• Do not exceed 1.8 A total supply current.
• Check the 2 A internal fuse if a group stops working.
• Clean with a dry cloth only. Do not use liquids.
• Re-tighten terminals after the first week of operation.

Compatibility

• Works with Schneider Electric Telefast ABE7 accessories.
• Suits HE-10 prewired cables.
• Fits standard 35 mm DIN rail systems.
• Pairs with PLC and relay modules using 0V or 24V discrete signals.
• Follows IEC 61131-2 supply requirements.

Certifications and Compliance

• Designed to IEC 61131-2 supply voltage rules.
• Protection rating: IP2X.
• Part of the Schneider Electric Telefast ABE7 range.
• Lifecycle status: Active as of 2026-09.

Packing List

• 1 × ABE7H16S21 sub-base
• 1 × product documentation
• Protective packing

Warranty and Shipping

• Warranty: 12 months
• Dispatch: 12-24 hours after order confirmation
• Couriers: FedEx, UPS, DHL
• Contact: sales@powergearx.com
• WhatsApp: +86 18030005825

Expert Review

The ABE7H16S21 does one job well. It brings 16 discrete channels together in a small space. The LED per channel makes troubleshooting quick. The channel isolator and internal fuse add useful protection. Wiring is simple thanks to the HE-10 connector and clear terminals. This is not a smart module. It is a solid passive interface for clean 0V or 24V distribution. For machine builders who value speed and reliability, it is a strong choice.

Manager’s Insight

This sub-base cuts panel wiring time. It also reduces wiring errors. The 16 channels and 0.5 A per channel fit many industrial loads. The 2 A fuse protects the module and connected devices. Stock this item for PLC cabinets, relay panels, and discrete sensor banks. It is active in production, so supply is stable. Pair it with HE-10 cables for faster builds. For teams using Schneider Electric Telefast ABE7, this is a practical core part.

Best Applications and Equipment

• PLC control cabinets with discrete I/O
• Relay panels and interface panels
• Sensor and actuator distribution
• Machine tools and packaging lines
• Material handling and conveyor systems
• Process skids with 24V DC signals
• Test benches and automation cells

FAQ

What does the ABE7H16S21 do?

It connects 16 discrete field signals to a control system. It also distributes 0V or 24V per channel.

Is this an active or passive module?

It is a passive connection sub-base. It does not process logic.

How many wires can each channel take?

Each channel has two terminals. Use solid wire from 0.14-2.5 mm² or flexible wire from 0.09-1.5 mm².

What is the maximum current per channel?

The limit is 0.5 A per channel. Total supply current must stay below 1.8 A.

Does it have short-circuit protection?

It has a 2 A internal fuse. It also has a channel isolator for signal protection.

Can I see channel status?

Yes. Each channel has an LED for clear status indication.

What connector does it use?

It uses an HE-10 connector.

What is the operating temperature range?

It runs from -5 to 60 °C.

How do I mount it?

Use 35 mm DIN rail clips or screw mounting.

Is it still in production?

Yes. It is active in the Telefast ABE7 range. Last verified: 2026-09.

Experienced User Questions

Can I mix 0V and 24V channels on one module?

Yes. The module supports 0V or 24V polarity distribution. Check your wiring plan before power-up.

What causes a channel LED to stay off?

Check the field wiring first. Then check the 2 A internal fuse. Also confirm supply voltage is within 19-30V DC.

Can I use this module outdoors?

No. It has IP2X protection. Use it inside a suitable cabinet.

How do I reduce noise on long cables?

Use shielded cable where possible. Keep signal and power wires separate. The channel isolator also helps.

Buying Guide

• Count your discrete channels. Choose 16-channel models for dense panels.
• Check load current. Stay within 0.5 A per channel.
• Confirm supply voltage is 19-30V DC.
• Match your cable system to the HE-10 connector.
• Plan for 35 mm DIN rail or screw mounting space.
• Order spare fuses and HE-10 cables for fast service.
• Buy from a supplier with 12-24 hour dispatch and 12-month warranty.
