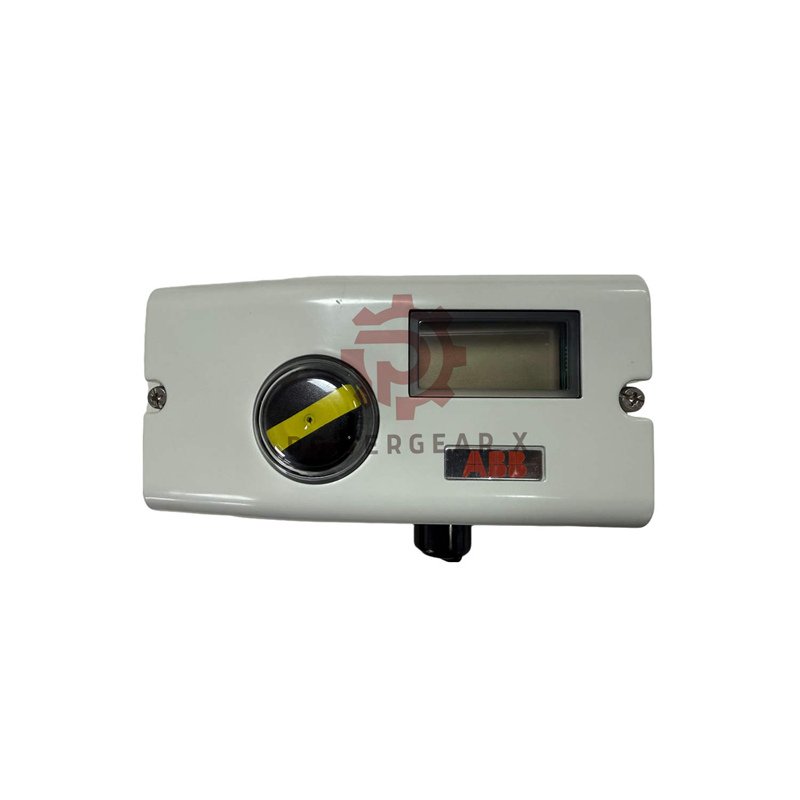

ABB V18345-1010521001 TZIDC Electro-Pneumatic Positioner for Control Valves

Product Overview

• ABB V18345-1010521001 TZIDC is an intelligent electro-pneumatic valve positioner.
• The device converts 4–20 mA signals into precise pneumatic valve positioning.
• The design suits demanding industrial control valve applications.

Key Performance Features

• Signal input supports 4–20 mA direct or reverse action.
• Fast response with a 20 ms sampling rate.
• High positioning resolution exceeds 4000 A/D steps.

Control Accuracy

• Characteristic deviation stays within ≤ 0.5%.
• Adjustable tolerance band ranges from 0.3% to 10%.
• Adjustable dead band from 0.1% to 10%.

Environmental Resistance

• Temperature influence remains ≤ 0.5% per 10°C.
• Vibration resistance reaches ±1% up to 10 g and 80 Hz.
• Seismic performance meets DIN/IEC 68-3-3 Class III requirements.

Housing and Protection

• Aluminum enclosure meets IP65 / NEMA 4X standards.
• The design omits mechanical indicators for improved durability.
• Mounting orientation does not affect performance.

Signal, Feedback, and Action

• Electrical input uses an LKS adapter for stable signal transmission.
• Analog feedback provides 4–20 mA two-wire position output.
• Double acting pneumatic control includes a fail freeze safety function.

Technical Specifications

• Brand
  • ABB
• Model
  • V18345-1010521001
• Series
  • TZIDC Intelligent Positioner
• Input Signal
  • 4–20 mA
• Feedback Output
  • 4–20 mA, two-wire
• Action
  • Double acting, fail freeze
• Connections
  • Electrical: 1/2-14 NPT
  • Air: 1/4-18 NPT
• Housing
  • Aluminum, IP65, NEMA 4X
• Weight
  • 1.7 kg

Installation Notes

• Mount directly on compatible control valves using standard hardware.
• Connect electrical wiring before applying pneumatic pressure.
• Configure parameters through the integrated operator panel.

Packing List

• ABB TZIDC electro-pneumatic positioner
• Analog feedback plug-in module
• Standard mounting accessories

Shipping

• Worldwide delivery via FedEx, UPS, or DHL.
