ABB DI890 8‑channel NAMUR Digital Input Module 3BSC690073R1 Intrinsic Safety S800

⚡ ABB DI890 – 8‑Channel NAMUR Digital Input with Intrinsic Safety

• ABB DI890 (3BSC690073R1) – 8 individually isolated channels.
• Each channel powers NAMUR proximity sensors or volt‑free contacts.
• Intrinsic safety on each channel – no external barriers.
• Galvanic isolation: channel‑to‑channel, to ground, and to ModuleBus.
• Line fault detection for NAMUR sensors without extra components.
• Use with TU890 (Ex) or TU891 (non‑Ex) compact MTU.
• G3 corrosion resistant, ATEX/IECEx Zone 2 with interface to Zone 0.

🔢 Model & Key Options – 3BSC690073R1

• 3BSC690073R1 – S800 series DI890 module
  • 8 channels NAMUR / volt‑free contact input
  • Individual isolation (channel‑to‑channel & to common)
  • Line fault detection – built‑in for NAMUR
  • OSP (output preset) on error
  • Filter times : digital 2/4/8/16 ms, analog 1 ms
  • Current limited sensor power (intrinsically safe)

📊 Technical Data – Simplified

• Number of channels : 8, NAMUR input level
• Isolation : 50 V rated insulation, 500 V a.c. dielectric test
• Power consumption : 1.4 W dissipation
• Current draw (ModuleBus) : typ. 120 mA, max <150 mA
• External +24 V draw : typ. 50 mA, max <70 mA
• Operating temp : 0…+55 °C (+32…+131 °F)
• Storage temp : -40…+70 °C (-40…+158 °F)
• Protection : IP20 (IEC 60529), pollution degree 2
• Corrosion class : ISA‑S71.04 G3 compliant
• Dimensions (WxHxD) : 45 x 119 x 102 mm (1.77”x4.7”x4.01”)
• Weight : 0.2 kg (0.44 lb)

🛡️ Intrinsic Safety & Diagnostics

• Each channel Ex ia / ib compatible (Zone 0/Zone 2 interface).
• Current limiting for sensor supply – eliminates external safety barriers.
• Diagnostics: 3 front LEDs (Fault‑red, Run‑green, Warning‑yellow).
• Per‑channel status + fault LED.
• Internal process voltage supervision & loop supervision.
• OSP (output preset) activates if error detected.

🔌 Mounting & Wiring – TU890 / TU891 MTU

• TU890 (Ex applications) : two‑wire direct connection to field devices.
• TU891 (non‑Ex) : same compact form, no additional terminals.
• Keying code: AA ensures correct module placement.
• Vertical mounting max ambient 40 °C (104 °F) with compact MTU.

🧰 Debug & Maintenance Ease

• Individual channel indicators – instant status check.
• OSP (Output Preset) – predefine safe state on fault.
• Hot‑swap capable (S800 mechanics).
• No external components needed for NAMUR line fault detection.
• For volt‑free contacts: simply add series/parallel resistors.

🌍 Certifications & Environmental Resistance

• ATEX / IECEx Zone 2 with interface to Zone 0.
• cFMus Class I, Div 2 / Zone 2 with interface to Div 1 / Zone 0.
• Marine certified : ABS, BV, DNV, LR.
• CE marked, RoHS, WEEE compliant.
• EMC: EN 61000‑6‑4, EN 61000‑6‑2.
• Electrical safety: EN 61010‑1, EN 61010‑2‑201.
• G3 corrosion protection (ISA‑S71.04).

📦 Package & Warranty

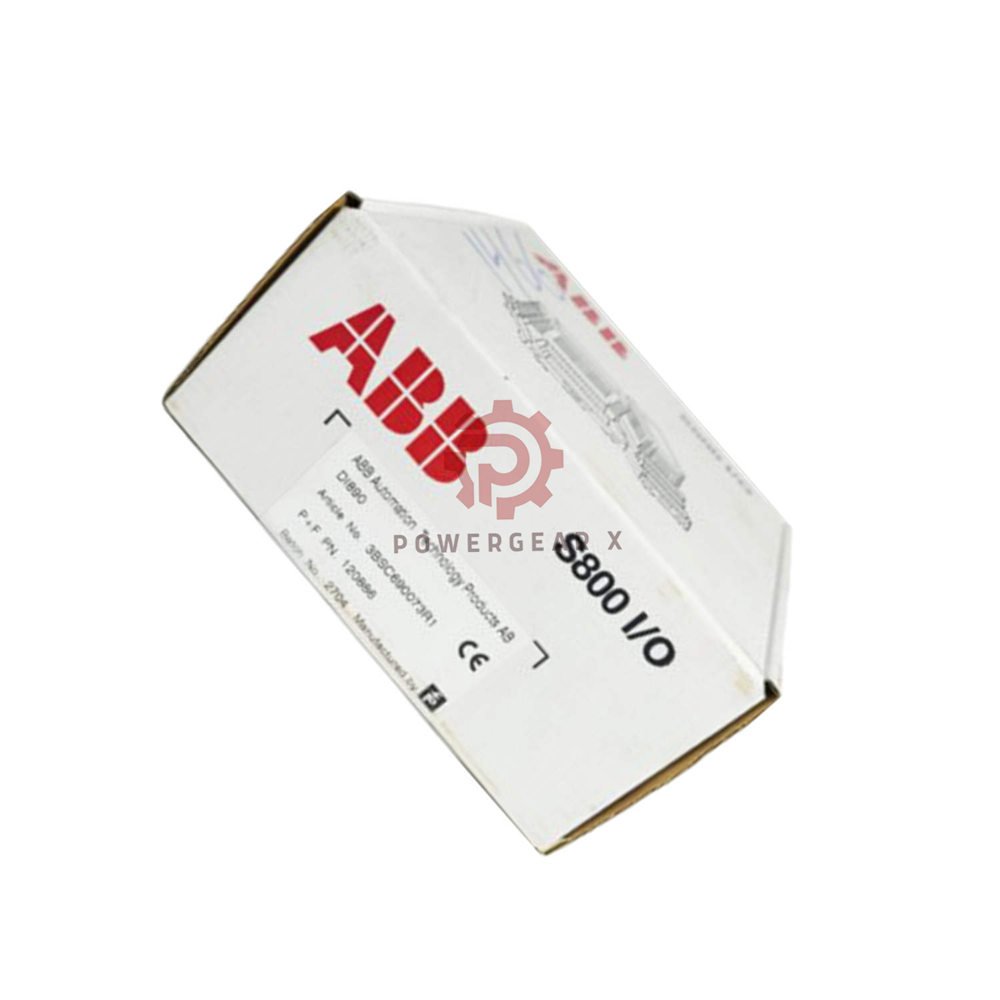

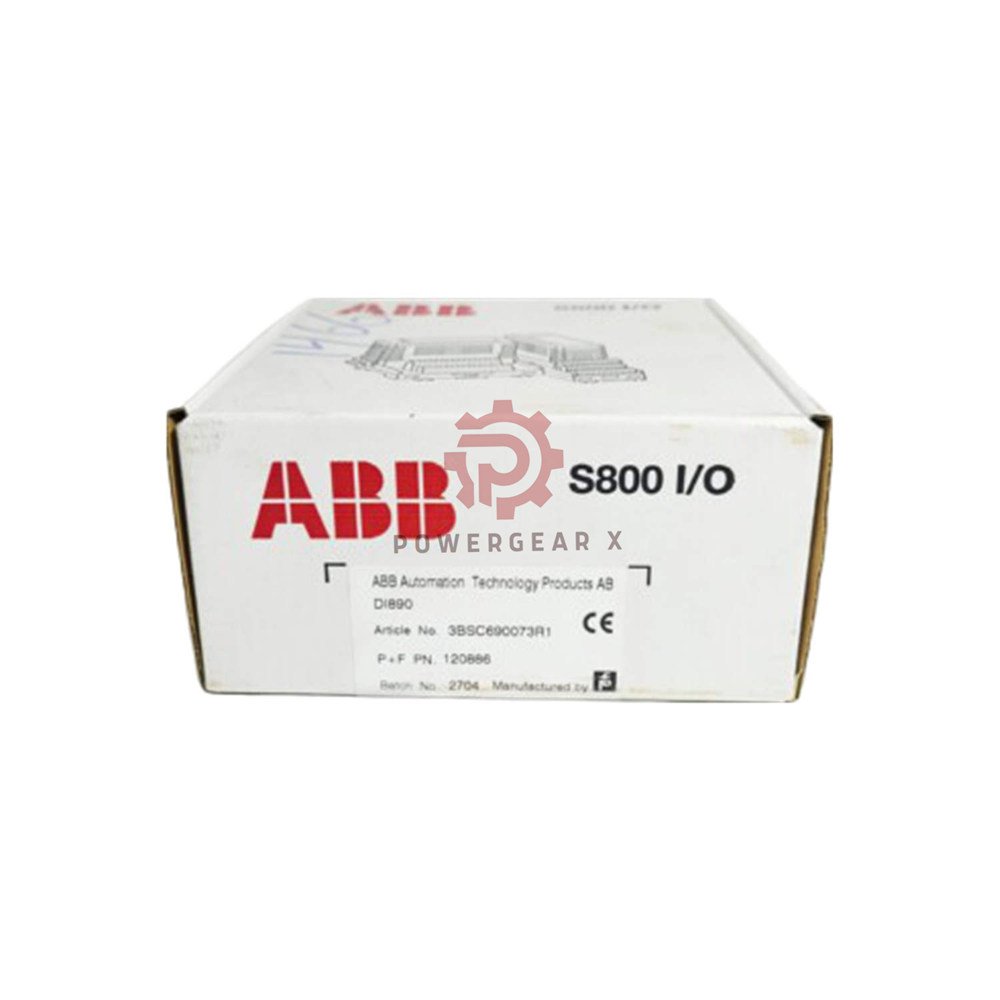

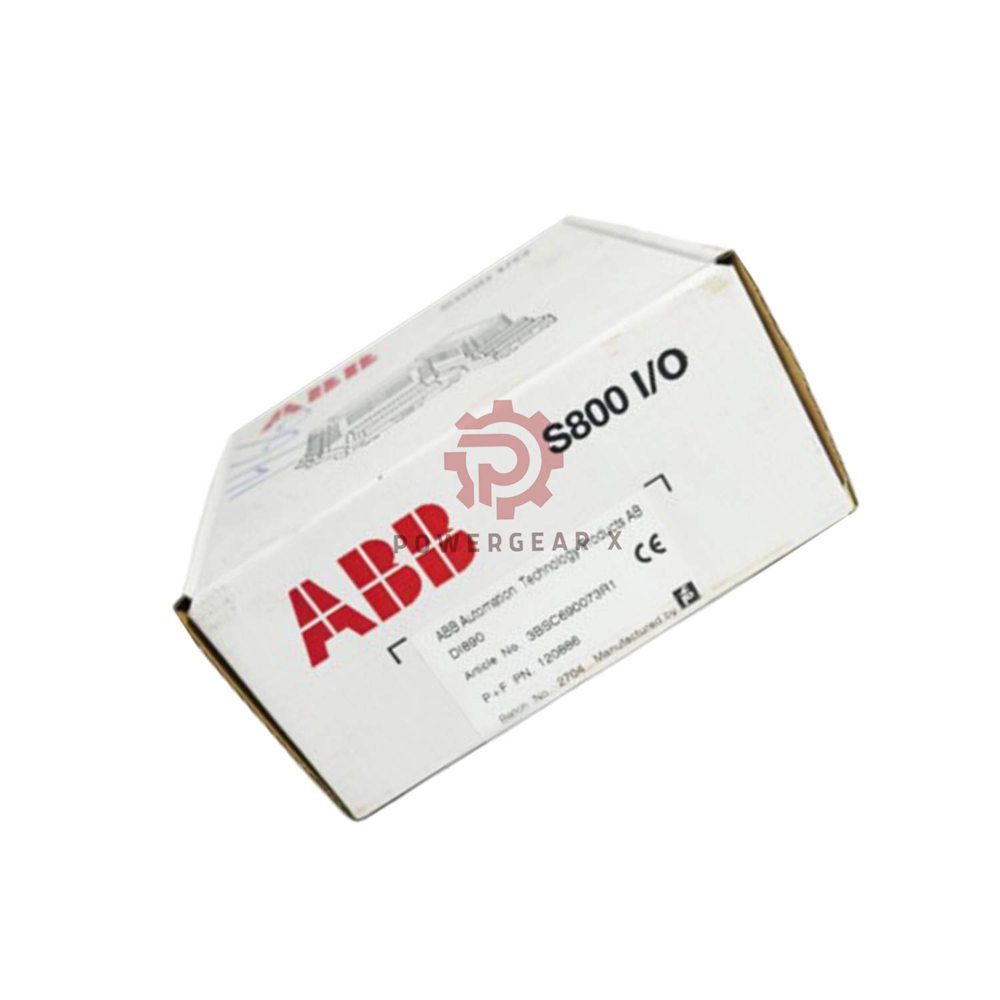

• 1x ABB DI890 module (3BSC690073R1)
• 1x connector / mechanical key (AA)
• Quick start guide (multi‑language)
• 📄 12‑month warranty against defects.
• Shipping: FedEx, UPS, DHL – tracked and insured.

⚙️ Typical Applications

• NAMUR proximity sensors in hazardous areas (refineries, chemical plants).
• Volt‑free contact monitoring (valve position, limit switches).
• SIL‑capable loops requiring intrinsic safety.
• Integration with ABB S800 I/O and 800xA systems.

❓ Expert FAQ – Selection & Practical Tips

• Q: Can DI890 directly replace an older non‑isolated module?Yes. The DI890 offers per‑channel isolation, so rewiring is simpler. You may reuse existing TU890/891 MTU.
• Q: How to handle line fault detection with dry contacts?Add a 10 kΩ resistor in series and a 1 kΩ resistor in parallel to the contact. This lets the module detect open/short circuit.
• Q: Which filter setting works for fast proximity switches?Use 2 ms digital filter for high‑speed counting. For contact bounce, choose 8 ms or 16 ms.
• Q: Is this module suitable for Zone 0 sensors?Yes. Each channel is intrinsically safe and can interface with Zone 0 devices when using TU890 MTU.
• Q: What external power supply do I need?A SELV 24 V d.c. supply (min 70 mA per module). The module limits current per channel for safety.
• 选购指导 / Buying tip:For Ex areas, order DI890 + TU890. For non‑Ex, DI890 + TU891 saves cost. Need marine approval? This module already includes ABS, BV, DNV, LR.
