ABB CI540 S100 I/O Bus Extension | Advant Master 3BSE001077R1

Product Overview

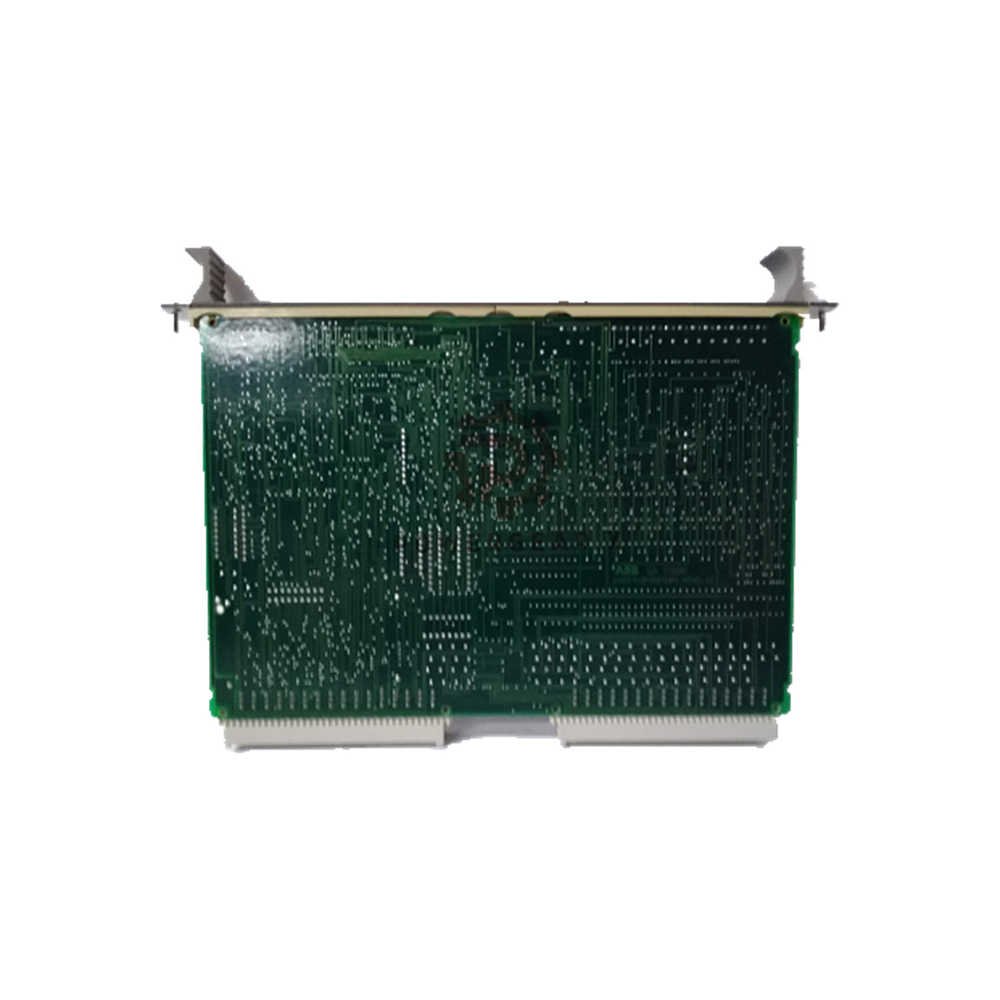

ABB CI540 3BSE001077R1 is an S100 I/O Bus Extension module for Advant Master Process Control System. It extends I/O communication buses in distributed control systems. Compact and lightweight at 0.115 kg. Note: This part is exempt from RoHS per Article 2(4)(c), (e), (f), (j). Built for reliable performance in industrial automation.

Key Specifications

• Brand: ABB
• Model: CI540 (3BSE001077R1)
• Product Type: Communication Module
• Description: S100 I/O Bus Extension
• System: Advant Master Process Control System
• HS Code: 85389091
• Customs Tariff: 85389091

Physical Dimensions

• Depth/Length: 234 mm
• Height: 31.5 mm
• Width: 108 mm
• Weight: 0.115 kg (115 grams)

Environmental Compliance

• RoHS Status: Not RoHS Compliant (Exempted)
• Exemption Reference: 2011/65/EU Article 2(4)(c), (e), (f), (j)
• Declaration: 3BSE088609 EU Declaration of Conformity
• WEEE Category: 5 – Small Equipment (≤50 cm)
• Batteries: 0 (No batteries)
• SCIP Number: 9e863caf-df85-407f-b1f8-0b5ddb5b5943 Sweden

Installation Guide

• Mounting: Install in S100 I/O rack within Advant Master system.
• Connection: Connect to bus cables for I/O extension.
• Configuration: Configure using Advant Master engineering tools.
• Compatibility: Works with Advant Master 500 series controllers.

Package Contents

• Includes: ABB CI540 module, documentation.
• Warranty: 12 months against manufacturing defects.
• Note: RoHS exempt – check local regulations before use.

Shipping Options

• Couriers: FedEx, UPS, DHL express worldwide.
• Packaging: Anti-static protective box.

Typical Applications

• Bus Extension: Extend S100 I/O bus to additional racks.
• System Expansion: Add more I/O modules to Advant Master.
• Legacy Systems: Maintain and upgrade existing installations.
• Distributed Control: Connect remote I/O to central controllers.

Key Benefits

• Compact Size: Saves space in control cabinets.
• Lightweight: Only 115g, easy to handle.
• Proven Technology: Reliable for Advant Master systems.
• RoHS Exempt: Approved for industrial applications.

Expert FAQs

• Q: What is the main function of CI540?A: It extends the S100 I/O bus in ABB Advant Master systems. Allows more I/O modules at greater distance.
• Q: Why is this module not RoHS compliant?A: It is exempt under EU directive 2011/65/EU Article 2. Industrial control equipment may use exempt materials for reliability.
• Q: Can I use CI540 with modern ABB systems?A: It is designed for Advant Master legacy systems. For newer systems, check compatibility with 800xA or newer bus extenders.
• Q: What is the maximum bus length with CI540?A: Refer to Advant Master manual. Typically extends S100 bus up to several hundred meters depending on configuration.
• Q: Does the 12-month warranty cover this module?A: Yes, 12 months against defects. Covers manufacturing issues. Does not cover incompatibility with newer systems.
• Q: How fast is international shipping?A: FedEx, UPS, DHL deliver in 3-5 business days. Express options available.
• Q: What is SCIP number used for?A: SCIP is EU database for substances of concern. This number identifies the module for regulatory reporting.
• Q: Can I return if it doesn’t fit my system?A: Returns accepted within 30 days if unused. Check compatibility before ordering.
• Q: Is configuration software included?A: No, software sold separately. Use Advant Master engineering tools.

Selection Guide

• Choose CI540 if: You need to extend S100 I/O bus in Advant Master. Legacy system maintenance required. Compact size needed.
• Alternative: For newer 800xA systems, consider CI801 or CI854. For different bus types, check CI520 or CI530.
• Compatibility Check: Verify your system uses S100 I/O bus. Confirm rack space available (234mm depth).
• Regulatory Note: RoHS exempt means it may contain lead or other substances. Check local waste disposal rules.
• Spare Strategy: Stock one spare for critical legacy lines. Production of these modules may phase out.
