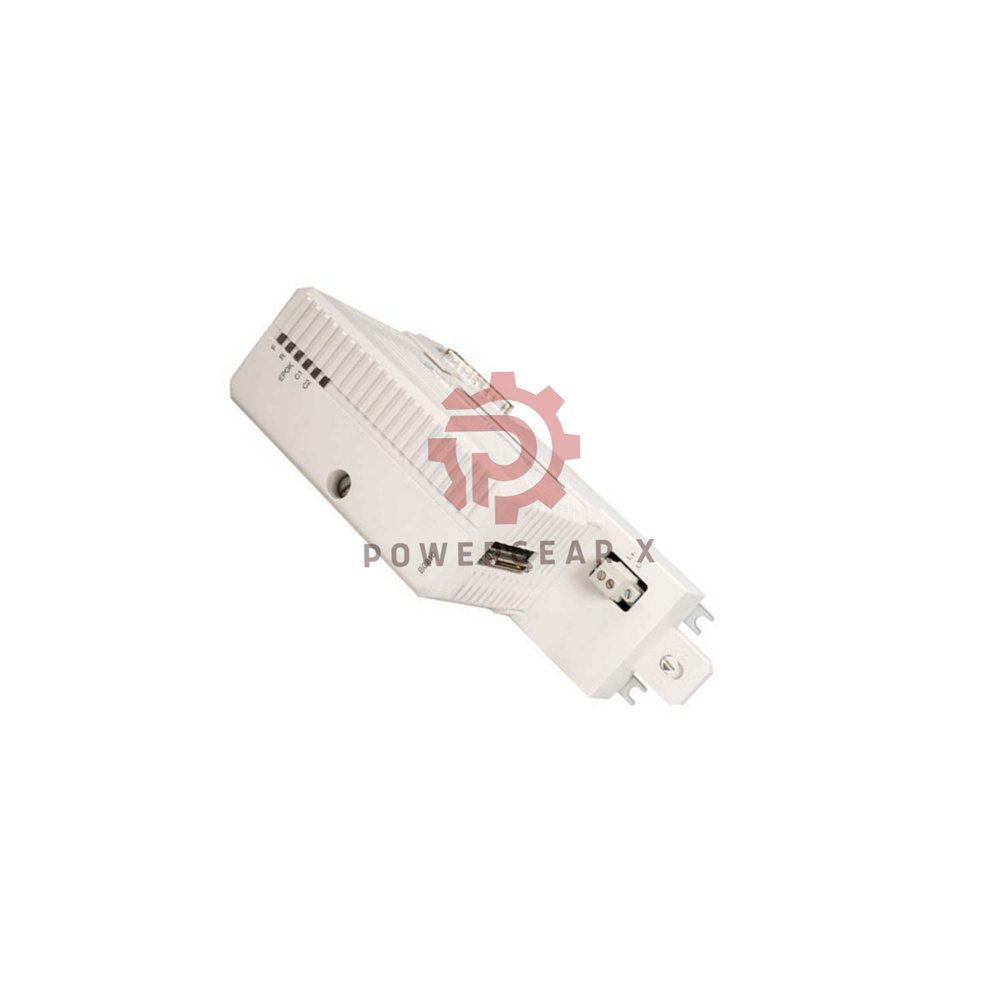

Name: ABB BC810 3BSE031155R1 CEX-Bus Redundant High Integrity Hot Swap
SKU: BC810
Availability: InStock

Product details

Product Overview

ABB BC810 3BSE031155R1 (BC810K02) is a CEX-Bus Interconnection Unit. It increases CEX-Bus availability by dividing it into separate segments. The unit consists of TP857 baseplate and power supply/logic board. Baseplate holds CEX-Bus connectors, external power connections, voting diode and fuse. Logic board contains +3.3 V converter, drivers, and interconnection cable connector. Supports redundant communication interfaces and online CPU replacement. Hot swap capable.

Model Structure & Key Features

BC810 – CEX-Bus Interconnection Unit Series
- Redundant communication interfaces supported on CEX-Bus
- High integrity system design
- Hot swap support for online replacement
- Two basic parts TP857 baseplate + power supply/logic board
- External power voting diode and fuse on baseplate
- DIN rail grounded through metal housing
- Online CPU replacement without disturbing CEX traffic
- Segments CEX-Bus to improve system availability

Technical Specifications

Brand ABB
Model BC810 (3BSE031155R1, BC810K02 package)
Type CEX-Bus Interconnection Unit
Redundancy Yes
High Integrity Yes
Hot Swap Yes
Power supply input 24 V nominal (19.2 – 30 V DC), L+ and L- terminals
Power consumption +24 V 50 mA typical (70 mA max)
Power dissipation 1.2 W typical
Operating temperature +5 to +55 °C (+41 to +131 °F)
Storage temperature -40 to +70 °C (-40 to +158 °F)
Relative humidity 5 to 95% non-condensing
Protection class IP20 (EN60529, IEC 529)
Dimensions (HxWxD) 185 x 59 x 127.5 mm (7.3 x 2.9 x 5.0 in)
Weight (package) 1.5 kg (3.31 lbs) BC810K02

Compatible CPUs

PM857, PM861A, PM862, PM863, PM864A
PM865, PM866, PM866A, PM867, PM891

CEX-Bus Functionality

Extends onboard communication ports with communication interface units
Supports redundant communication interfaces on CEX-Bus
Divides CEX-Bus into separate segments for higher availability
Online CPU replacement without stopping CEX traffic
CEX traffic stops only if BC810 itself is replaced

Mounting & Installation

Mounting DIN rail with metal housing grounding
Baseplate TP857 contains CEX-Bus and power connectors
External power L+ and L- terminals, voting diode and fuse on baseplate
Interconnection cable Connects logic board to baseplate
Hot swap Replace CPU baseplate without power down

Certifications & Compliance

CE Mark Yes
Electrical safety UL 61010-1, UL 61010-2-201
Hazardous location cULus Class 1 Zone 2, AEx nA IIC T4, Ex nA IIC T4Gc X
Marine certificates ABS, BV, DNV-GL, LR
RoHS compliance EN 50581:2012
WEEE compliance Directive 2012/19/EU

Package & Shipping

Included BC810K02 package: TP857 baseplate + power supply/logic board
Warranty 12 months against defects
Express shipping FedEx, UPS, DHL – 2-5 business days
Order processing Within 24 hours for stock items

Frequently Asked Questions

Q: What is the purpose of BC810 in a control system?
BC810 segments the CEX-Bus to improve availability. It allows redundant communication interfaces and online CPU replacement without disrupting CEX traffic.
Q: Can I replace BC810 while system is running?
No. If BC810 itself is replaced, all traffic to that CEX segment stops. However, CPU baseplate replacement is online without disturbance.
Q: Which CPUs work with BC810?
BC810 works with PM857, PM861A, PM862, PM863, PM864A, PM865, PM866, PM866A, PM867, and PM891. Check compatibility for your specific CPU.
Q: What does the BC810K02 package include?
It includes TP857 baseplate and the power supply/logic board. Baseplate has CEX-Bus connectors, power terminals, voting diode and fuse.
Q: Is BC810 suitable for hazardous areas?
Yes. It has cULus Class 1 Zone 2, AEx nA IIC T4, and Ex nA IIC T4Gc X certification for hazardous locations.
Selection tip: Use BC810 in redundant systems with PM86x/PM89x CPUs. It enables true high integrity by segmenting CEX-Bus and supporting hot swap.
Experience note: Always mount BC810 on grounded DIN rail. The metal housing provides grounding – ensure good contact for safety and EMC performance.
