Overview

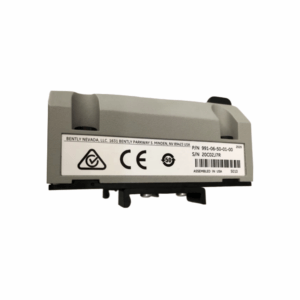

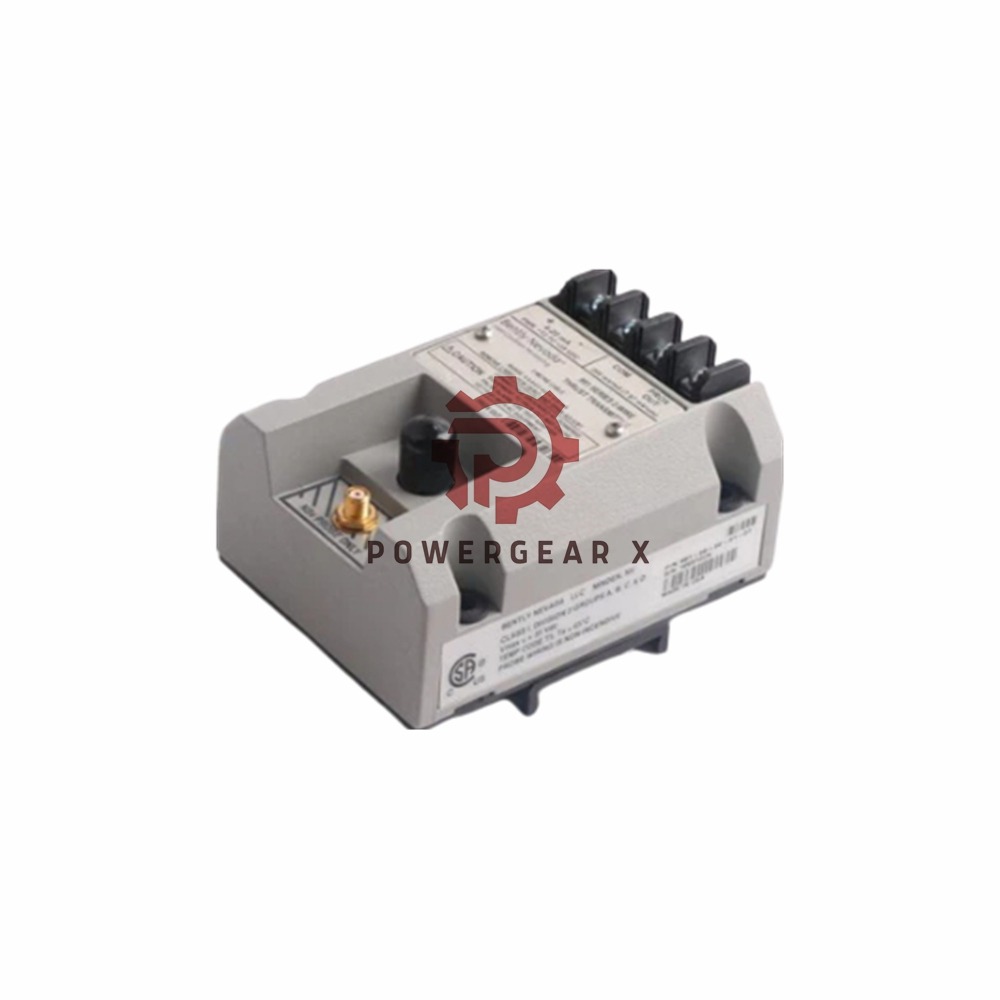

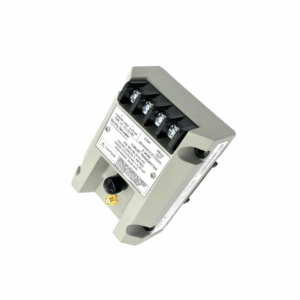

The Bently Nevada 991-06-70-03-05 vibration transmitter delivers precise axial displacement monitoring in extreme environments. Certified for ATEX Zones 0/2 and ABS maritime standards, it combines DIN rail clips with screw locking for secure installation on ships, oil rigs, and chemical plants. The 4–20 mA output ensures reliable data transmission even in explosive atmospheres.
Model Code Breakdown ( 991-06-70-03-05 )
| Code | Feature | Details |
|---|---|---|
| -06 | Range | ±0.6 mm (±24 mils) |
| -70 | Cable Length | 7 m (23 ft) |
| -03 | Mounting | DIN rail clips + screws |
| -05 | Certifications | CSA/ATEX/ABS |
Core Specifications
- ⚡ Electrical: 4–20 mA (2-wire), 12–35 Vdc
- ⚡ Accuracy: ±1.5% full scale
- ⚡ Response Time: <100 µs fault detection
Environmental Resilience
| Operating Temp | -35°C to +85°C | (-31°F to +185°F) |
| Protection Rating | IP68 (dust/waterproof) | |
| Vibration | 20 g (IEC 60068-2-6) | |
Certifications & Uses
- ✅ ATEX II 1G Ex ia IIC T4 (Zone 0)
- ✅ ABS Type 1 for marine thrusters
- ✅ CSA C22.2 No. 0-10 industrial compliance
For more detailed information:991 Thrust Transmitter Datasheet
