Product details

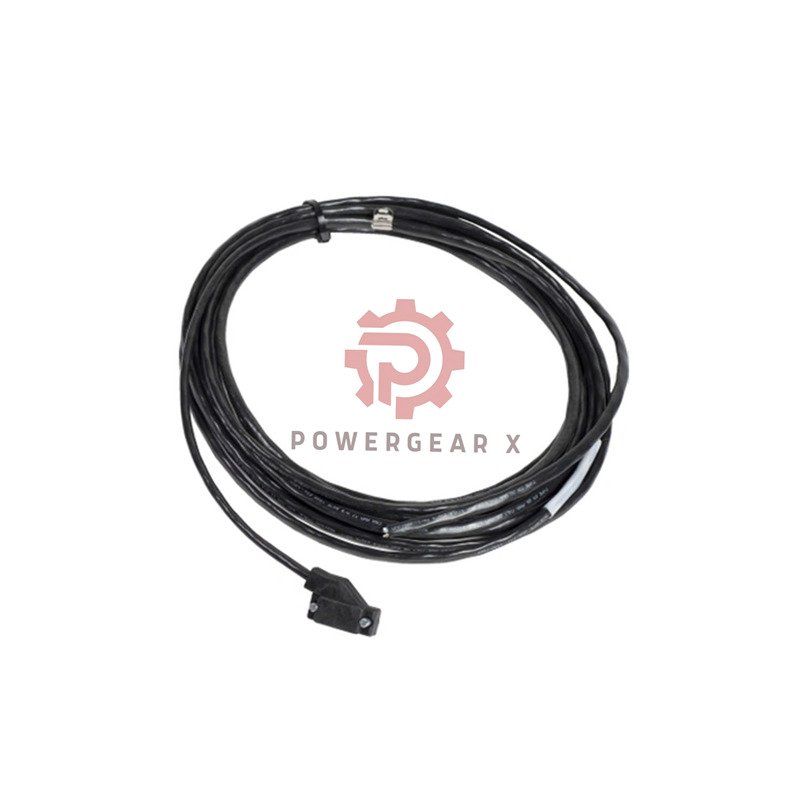

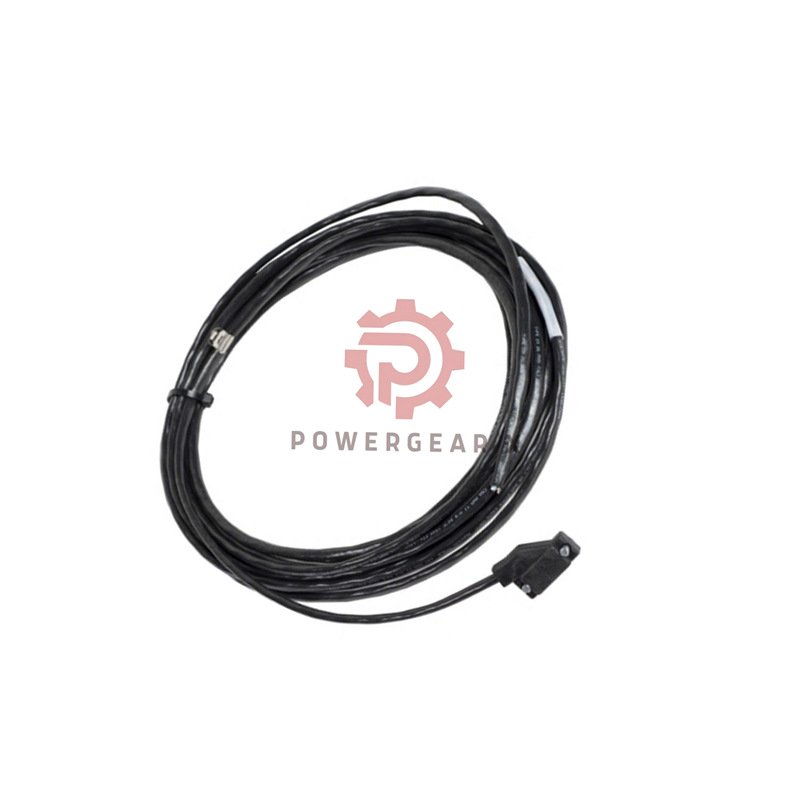

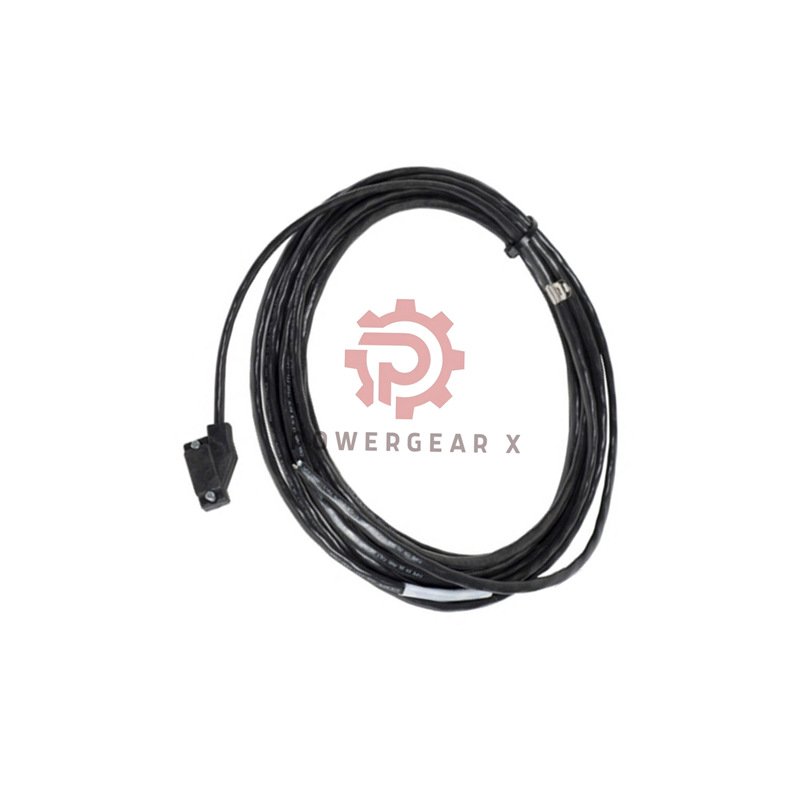

Schneider Electric 990NAD21130 Modicon Quantum Drop Cable
The 990NAD21130 is a reliable drop cable for Modicon Quantum systems.
It supports stable field communication.
It fits industrial networks with ease.
Why Choose This Cable
- Designed for Modbus Plus networks
- Strong signal integrity over long distance
- Flexible free end for custom wiring
- Stable operation in harsh conditions
- Original Schneider Electric quality
Core Technical Data
- Manufacturer: Schneider Electric
- Series: Modicon Quantum
- Model: 990NAD21130
- Product type: Drop connection cable
- Cable length: 6 meters 19.7 ft
- Connector type: SUB-D 9 male angled
- Cable end: Free site tap end
- Net weight: 0.53 kg 1.17 lb
Environmental Performance
- Operating temperature: 0 to 60 °C
- Storage temperature: -25 to 70 °C
- Operating humidity: Up to 80 percent non-condensing
- Storage humidity: Up to 80 percent non-condensing
- Maximum altitude: 1000 meters
Electrical and Mechanical Features
- Optimized impedance for fieldbus signals
- Low signal loss across full length
- Durable jacket for industrial cabinets
- Secure connector locking design
- Consistent performance under vibration
System Compatibility
- Modicon Quantum automation platform
- Modicon Premium automation platform
- Modicon Momentum systems
- Advantys STB distributed I O
- Lexium 15 drive systems
Supported Reference Devices
- 990NAD23000 and 990NAD23010
- 990NAD23020 and 990NAD23021
- 490NRP25300 network modules
- STBNMP2212 communication adapters
- 140CPU31110 and 140CPU43412U CPUs
Installation Notes
- Avoid sharp bends during routing
- Keep distance from high voltage lines
- Secure cable to reduce movement
- Check connector seating after install
Typical Use Cases
- PLC to field device connections
- Modbus Plus network extensions
- Industrial control cabinets
- Factory automation upgrades
- Legacy system maintenance
Warranty and Delivery
- 12 month warranty from shipment date
- Fast shipping via FedEx UPS or DHL
- Factory sealed packaging
Professional FAQ
- Is this cable suitable for noisy plants?
- Yes. It maintains signal stability in industrial environments.
- Can the free end be cut to size?
- Yes. It allows flexible site termination.
- What is a common installation mistake?
- Routing near power cables without separation.
- Does length affect communication quality?
- No. It is designed for stable 6 meter transmission.
- How to extend service life?
- Reduce strain and avoid repeated bending.
