Overview

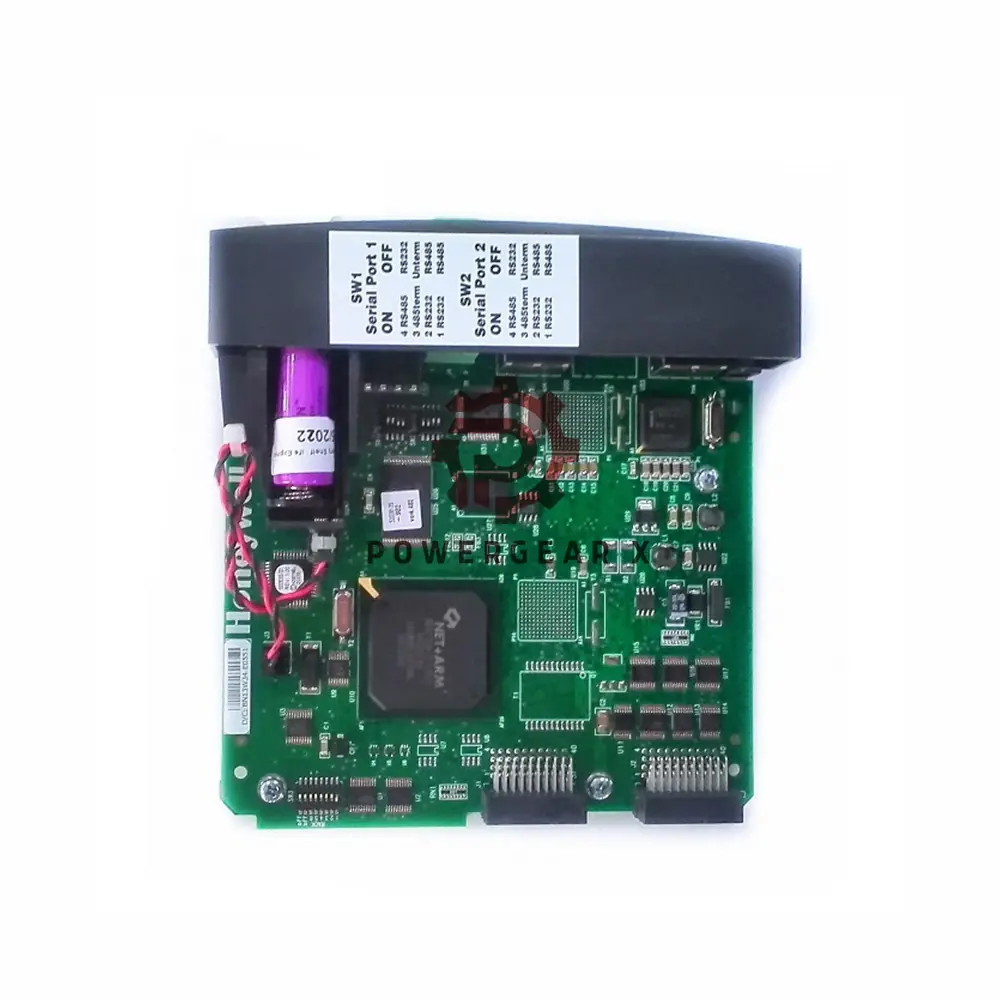

The ControlEdge 900SP1-0200 Processor Module is a high-performance expansion processor designed for industrial automation applications. It incorporates cutting-edge technology, including a Dual-Core ARM® Cortex™-A9 processor for optimal performance and reliability. Below is an in-depth overview of its technical specifications, features, and common applications.
Technical Specifications
| Item | Specification |
|---|---|
| Model | 900SP1-0200 |
| Processor | Dual-Core ARM® Cortex™-A9, 667 MHz |
| Max Current @ 5V | 520 mA |
| Max Current @ 24V | 0 mA |
| Heat Dissipation | 2.6 W |
| Ethernet Ports | 2 |
| Network Port Speed | 10/100BaseTx, auto-detecting |
| Isolation | 1500 Volts RMS (1 minute, 60 Hz) |
| Transient Suppression | 600W peak pulse power (10×1000μs waveform) |
| Cable Lengths | Shielded Ethernet: 100m, Fiber optic multi-mode: 5000m, Fiber optic single-mode: 40km |
FAQ
Q1: What is the maximum cable length for Ethernet connections?
- The maximum cable length for Shielded Ethernet is 100 meters (328 feet), and for Fiber Optic cables, multi-mode is 5000 meters (16,404 feet), and single-mode can extend up to 40 km (131,234 feet).
Q2: What is the power consumption of the 900SP1-0200 module?
- The module consumes 520 mA at 5V and dissipates a total heat of 2.6W during operation.
Q3: Does the module support redundant networking?
- Yes, the module supports redundant networking via Star, Ring, or DLR topologies.
Q4: What kind of protection does the module have against electrical surges?
- The 900SP1-0200 module is designed with 600W peak pulse power capability to protect against transient voltage surges.
Q5: Can the module connect to both EtherNet/IP and PROFINET devices?
- Yes, the module is compatible with both EtherNet/IP and PROFINET I/O devices.
