Product details
Stable Signal Detection – Honeywell 900G04-0101 Digital Input Module
- Honeywell 900G04-0101 detects AC and DC digital signals.
- Provides 16 isolated input channels.
- Wide voltage range supports many field devices.
- Works in industrial automation systems.
- Each channel has LED status indication.
Core Capabilities
- 16 independent input points
- Supports AC and DC signals
- Individual channel isolation
- Fast response ensures accurate detection
- Built-in diagnostic indicators
Technical Specifications
- Brand: Honeywell
- Model: 900G04-0101
- Type: Digital Input Module
- Channels: 16 inputs
- AC Voltage Range: 80–264 VAC
- DC Voltage Range: 80–125 VDC
- Peak Voltage: 264 VAC / 150 VDC
- Frequency: 47–63 Hz (AC)
- On Level: 75 VAC / 75 VDC
- Off Level: 20 VAC / 30 VDC
- Input Impedance: 48 kΩ
- Input Current: 1–2 mA typical
- Min On Current: 0.3 mA
- Max Off Current: 0.2 mA
- Response Time: ~6 ms
- Isolation: 350 VAC channel protection
Status & Diagnostics
- Green LED per channel shows input ON state
- Blinking LED shows module activity
- Red LED indicates fault or diagnostics
- Quick visual check improves maintenance speed
Configuration Breakdown
- 900G04-0101
- ├─ 900G04
- Digital input module series
- Supports AC/DC detection
- └─ 0101
- 16-channel configuration
- Standard industrial version
Installation Notes
- Use Euro 36-terminal block
- Connect correct voltage source
- Ensure proper wiring polarity
- Check insulation before power on
Applications
- Switch signal detection
- Industrial monitoring systems
- Control panel input signals
- Power system status detection
- Automation process control
Packing & Warranty

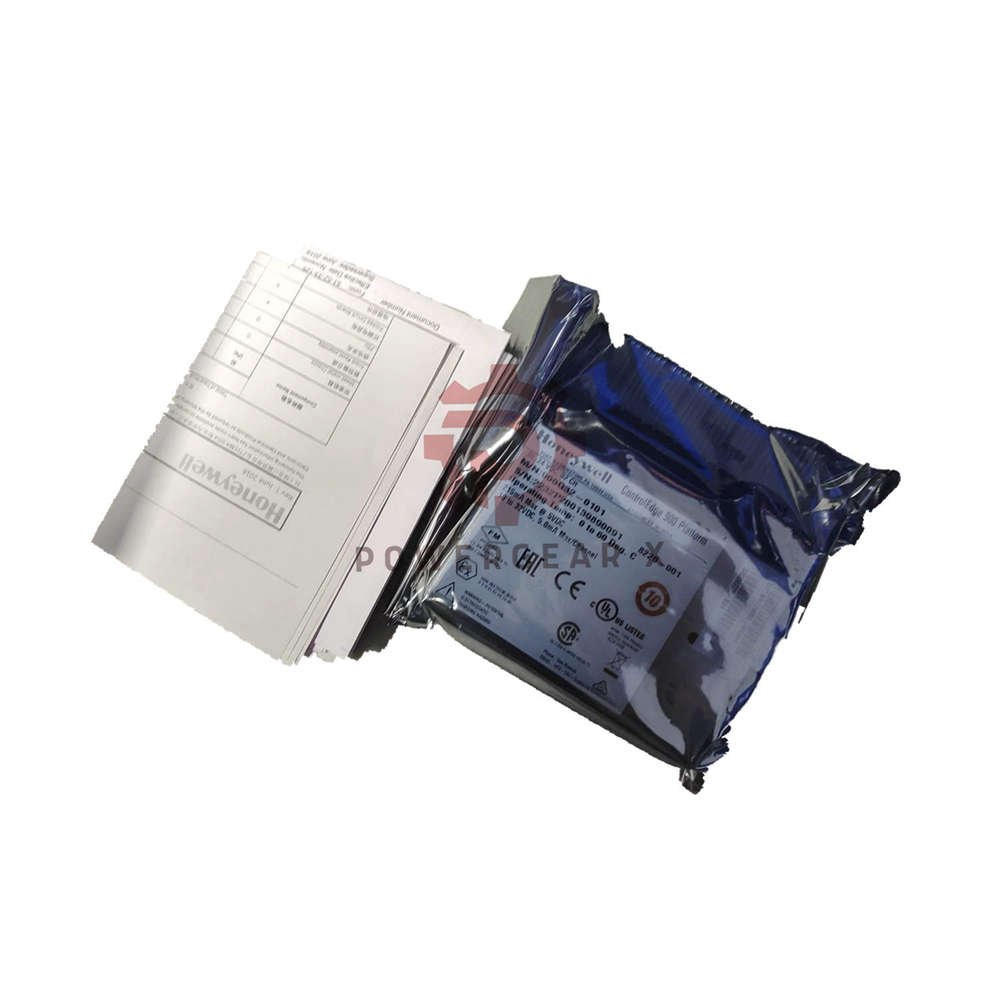

- 1 × 900G04-0101
- Secure packaging
- 12-month warranty included
Shipping Options
- FedEx fast delivery
- UPS reliable shipping
- DHL express service
FAQ
- Can this module handle both AC and DC inputs?
- Yes. It supports both types within rated voltage range.
- How to confirm input signal is active?
- Check the green LED on each channel.
- What is a common wiring issue?
- Wrong voltage level may prevent signal detection.
- How to choose correct digital input module?
- Match voltage range, channel count, and system type.
- What service support is provided?
- We provide warranty and technical assistance.
