Product details
Product Overview

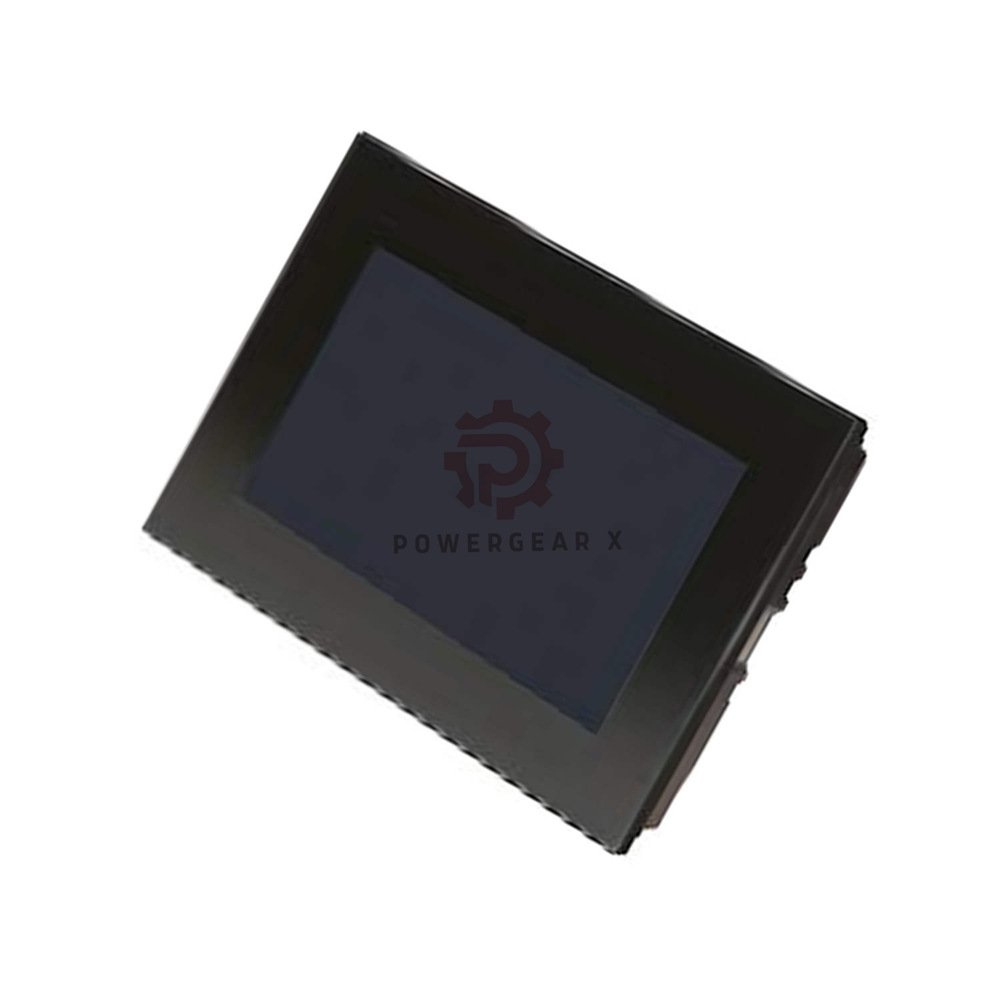

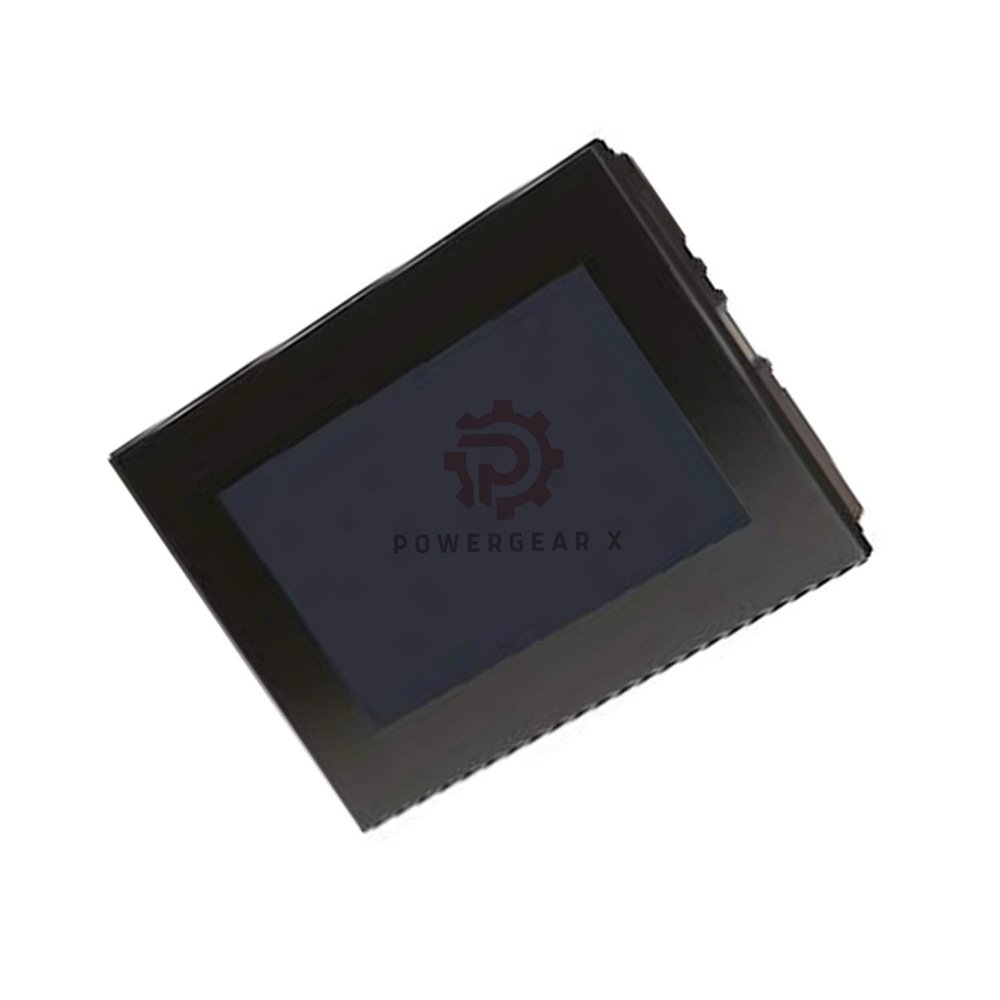

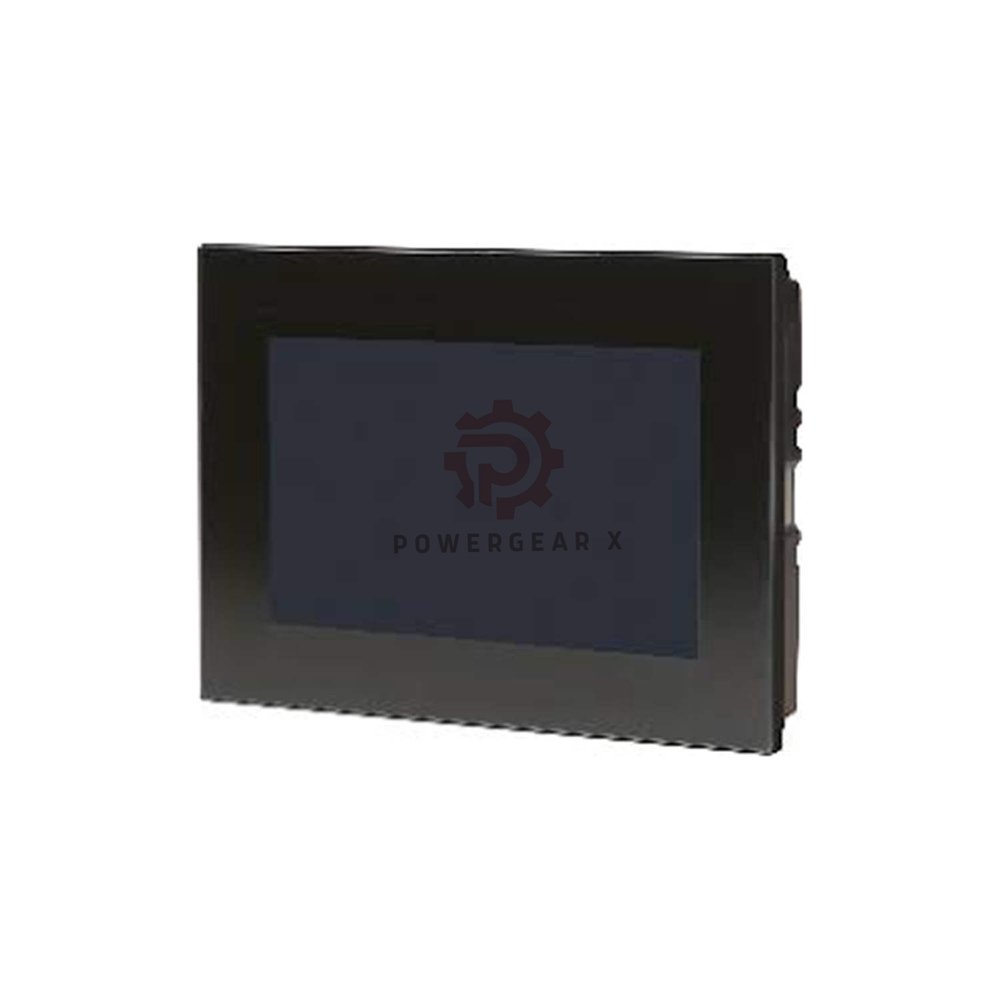

- 6PPT50.0702-16B – a 7.0″ Power Panel T50 from B&R.
- Combines HMI display with powerful edge computing.
- Features a glass front with projected capacitive touch (multi-touch).
- Runs on an 800 MHz dual-core ARM Cortex-A9 processor.
Key Features
- 7.0″ WVGA display – 800 x 480 resolution, 16.7M colors.
- Multi-touch PCT – chemically hardened glass (6H).
- Dual Gigabit Ethernet – integrated switch for daisy-chaining.
- Passive cooling – no fan, silent and reliable.
- mapp View support – ready for modern web-based visualization.
- Wide operating temp – -20 to 60°C.
- High brightness – 500 cd/m² for outdoor readability.
- Multiple certifications – DNV, ABS, LR, CCS, BV for marine use.
Technical Specifications
- Brand – B&R (Bernecker + Rainer)
- Model – 6PPT50.0702-16B
- Series – Power Panel T50
- Type – HMI + controller (panel PC)
- CPU – ARM Cortex-A9 dual-core, 800 MHz
- RAM – 1 GB
- Flash storage – 512 MB onboard
- Display – 7.0″ TFT, WVGA (800×480), 16.7M colors
- Brightness – 500 cd/m²
- Backlight life – 50,000 h (half-brightness)
- Touch – PCT multi-touch, glass front (6H)
- Ethernet – 2× Gigabit (integrated switch, RJ45)
- USB – 2× USB 2.0 (Type A, 0.5 A each)
- Power supply – 24 V DC (-25% / +30%)
- Power consumption – 7.4 W typical, 8.8 W max
- Protection – Front IP65, back IP20
- Operating temp – -20 to 60°C
- Storage temp – -20 to 80°C
- Dimensions – 197×140×42.2 mm
- Weight – 0.9 kg
Interfaces & Connectivity
- ETH1/ETH2 – 10/100/1000 Mbit/s, integrated 2-port switch
- Auto-MDI/MDIX – no crossover cable needed
- USB ports – 2× Type A for keyboard, mouse, or drive
- Max cable length – 100 m per segment
Certifications & Approvals
- CE, UKCA, cULus (E115267)
- DNV – Temp B, Humidity B, Vibration A, EMC B (bridge/open deck)
- CCS, LR (ENV1), KR, ABS, BV (EC31B)
- CRA (Cyber Resilience Act) – in preparation
Software & Services
- Operating system – PPT50 system
- mapp View – web-based visualization supported
- VNC client – remote access via network
- Embedded web browser – view web pages on panel
- Service page – integrated for diagnostics
Mounting & Environment
- Mounting orientation – vertical standard, ±25° tilt, 90° rotation (landscape/portrait)
- Derating – reduce max temp by 5°C for non-standard orientations
- Altitude – 0-2000 m no limit; >2000 m derate 0.5°C per 100 m
- Humidity – refer to temperature/humidity diagram
Installation & Maintenance
- Mounting – panel cut-out (see manual for dimensions).
- Wiring – 24 V DC supply, use shielded Ethernet cables.
- Cooling – passive, ensure adequate ventilation.
- Maintenance – clean glass front with soft cloth; no moving parts.
Packaging & Delivery
- Includes – 1 Power Panel, terminal blocks, quick guide.
- Warranty – 12 months against defects.
- Shipping – 12‑24 hours via FedEx, UPS, or DHL.
Expert Review
- Manager’s Insight: “The 6PPT50.0702-16B is a rugged, marine-ready panel that excels in harsh environments. Its dual Ethernet switch and multi-touch glass front make it perfect for modern control rooms. The -20°C to 60°C range is a game-changer for outdoor applications.”
Applications
- Best for – Marine vessels, offshore platforms, factory floors, and machine control.
- Works with – PLCs, drives, sensors, and IoT gateways.
- Used in – Ship automation, process control, and heavy machinery.
Comparison
- 6PPT50.0702-16B vs. 6PPT50.0701-16B – 0702 has multi-touch; 0701 is single-touch. Choose multi-touch for modern UI.
- 6PPT50.0702-16B vs. 6PPC70.0702-16B – PPC70 has a fan; T50 is passively cooled. T50 is better for dusty areas.
- 6PPT50.0702-16B vs. 5PC900.1505-01 – 5PC900 is an older generation; T50 offers better performance and certifications.
- Compare details: B&R Power Panel T50 Series
FAQ
- Q: What is the operating temperature range?
A: -20 to 60°C. - Q: Does this panel support multi-touch gestures?
A: Yes, projected capacitive touch with multi-touch support. - Q: Can I use this panel outdoors?
A: Yes, with 500 cd/m² brightness and IP65 front, it suits outdoor use. - Q: How many Ethernet ports does it have?
A: 2 ports with an integrated switch for daisy-chaining. - Q: What marine certifications does it hold?
A: DNV, ABS, LR, CCS, and BV. - Q: Can I mount it in portrait mode?
A: Yes, software-configurable for landscape or portrait. - Q: Is there a buzzer for alarms?
A: Yes, an internal buzzer is included. - Q: What is the warranty period?
A: 12 months from purchase. - Q: How fast is delivery?
A: We ship within 12‑24 hours via FedEx, UPS, or DHL.
Selection Guide
- Choose 6PPT50.0702-16B if:
- You need a 7″ HMI with multi-touch for modern interfaces.
- Your application requires marine or offshore certifications.
- You want a fanless, rugged design for harsh environments.
- Consider other models if:
- You need a larger screen – check 10″ or 15″ T50 variants.
- You require integrated I/O – look at Power Panel C-series.
- You don’t need multi-touch – choose the 0701 variant for cost savings.
- Pro tip: For marine applications, always choose the version with full DNV/ABS approvals – this model has them all.
