Product details
Product Overview

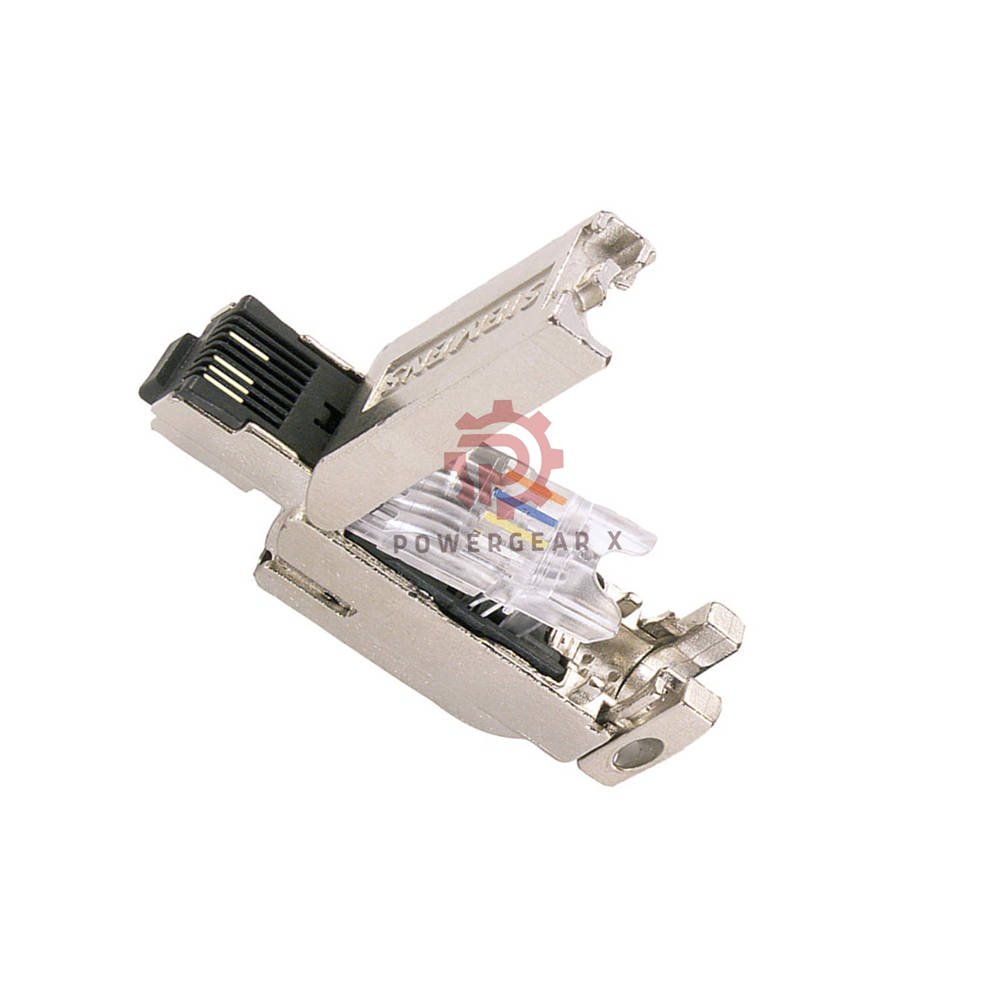

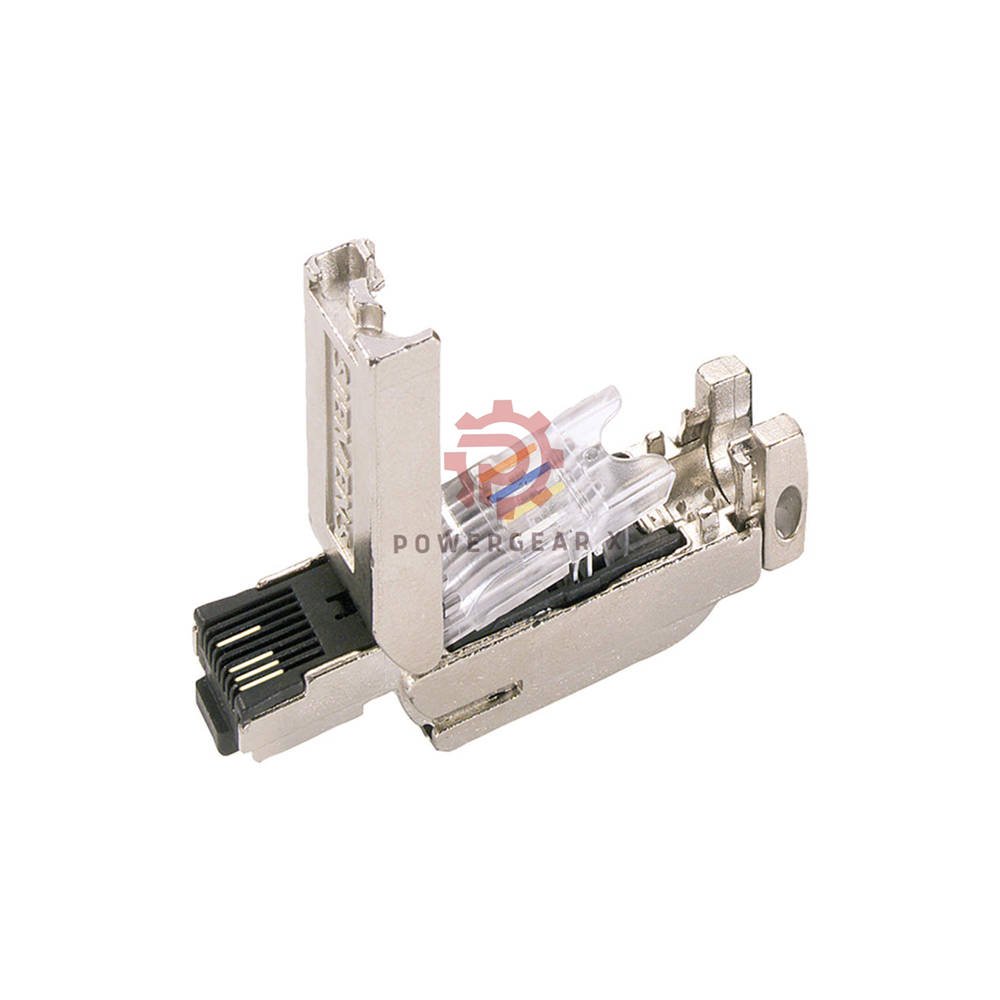

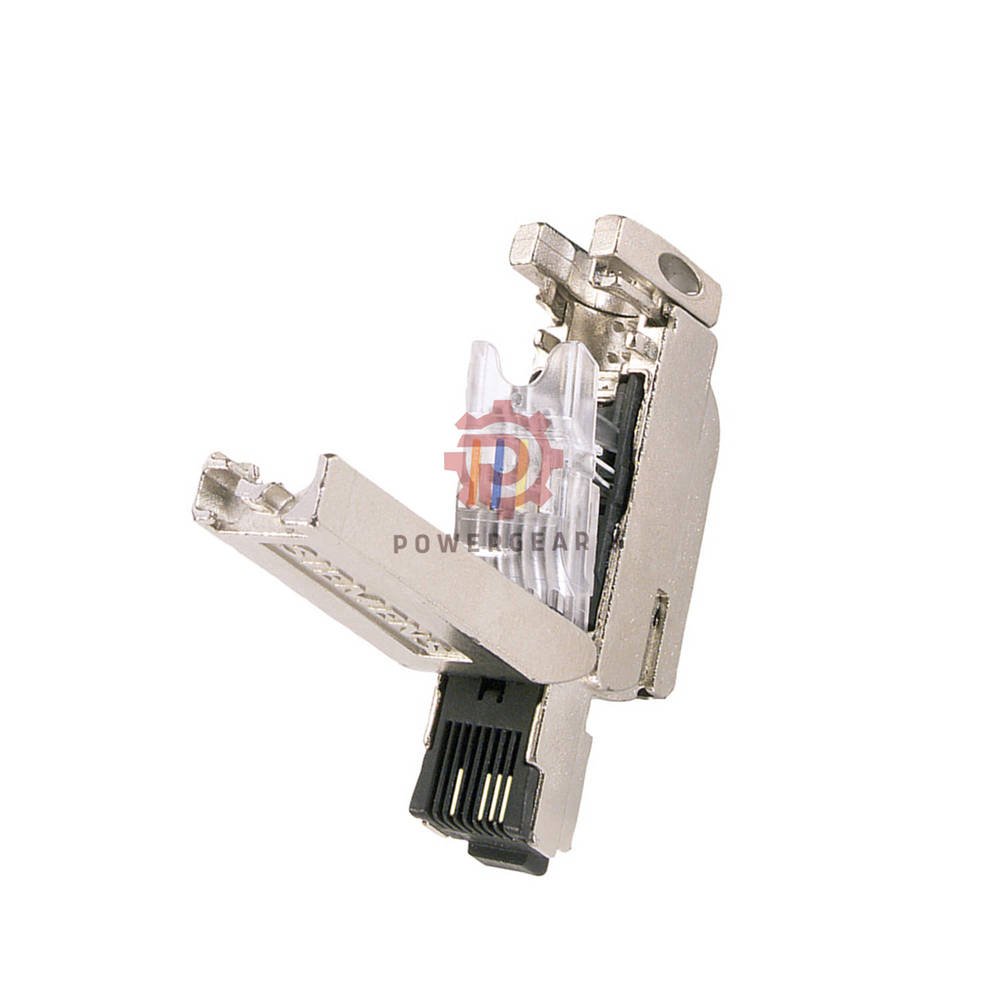

The 6GK1901-1BB10-2AA0 is a Siemens Industrial Ethernet FastConnect RJ45 plug. It supports 10/100 Mbit/s transfer. The rugged metal housing makes it durable. It is designed for IE FC TP 2×2 cables and enables fast on-site assembly.
Core Features
- Type: IE FC RJ45 Plug 180 (2×2)
- Data Rate: 10 Mbit/s, 100 Mbit/s
- Interfaces: 4-pin FC contacts + 1 RJ45 device port
- Termination: Integrated crimp contacts for AWG22 cable
- Cable Exit: 180° straight
- Housing Material: Metal (rugged)
- Re-use Cycles: 10
- PoE / PoE+: Supported
- Silicone-free: Yes
Technical Data (Tree Structure)
- Transmission Performance
- Industrial Ethernet: 10 Mbit/s, 100 Mbit/s
- Complies with Cat5 structured cabling
- Electrical Connection
- FC side: 4-pin crimp contacts (AWG22)
- Device side: Standard RJ45 plug
- FastConnect: Yes
- Mechanical Specifications
- Width: 13.7 mm
- Height: 16 mm
- Depth: 55 mm
- Net weight: 35 g
- Cable diameter: 6.5 mm
- Conductor cross-section: 0.33 mm²
- Environmental Resistance
- Operating temperature: -40 … +85 °C
- Storage temperature: -40 … +85 °C
- Transport temperature: -40 … +85 °C
- Humidity (25°C non-condensing): ≤95%
- Protection class: IP20
- Certifications & Compliance
- RoHS compliant: Yes
- UL / cULus: Yes
- Silicone-free: Yes
- Railway EN 50155: No
- Environmental Data (CO2 equivalent)
- Total: 0.277 kg
- Manufacturing: 0.263 kg
- Operation: 0.0086 kg
- End-of-life: 0.0062 kg
Installation & Usage
- Compatible cable: IE FC TP 2×2 (AWG22)
- FastConnect system for quick crimping
- 180° straight cable exit for tight spaces
- Integrated strain relief for tensile strength
- Metal housing offers extra mechanical protection
Applications & Compatible Devices
- Connect PLCs (e.g. S7-1200, S7-1500) to Industrial Ethernet
- Works with switches, I/O devices, HMIs
- Factory automation, process control, building automation
- Fast field cabling with FastConnect system
- PoE-powered IP cameras or wireless APs
Expert Review / Manager’s Insight
“The 6GK1901-1BB10-2AA0 is a reliable choice for field cabling. The metal housing and wide temperature range (-40 to 85°C) make it suitable for harsh environments. FastConnect crimping reduces installation time by 50%. PoE support adds flexibility for future expansions. For projects demanding high reliability and rapid deployment, this is a smart pick.”
Comparison with Similar Models
- 6GK1901-1BB10-2AA0 (this model): 180° cable exit, metal housing, PoE support, Cat5
- 6GK1901-1BB10-2AB0: 90° exit, plastic housing, no PoE
- 6GK1901-1BB11-2AA0: 180° exit, metal housing, Cat6a, higher bandwidth
- 6GK1901-1BB20-2AA0: Industrial RJ45, IP67, suitable for outdoor
Selection Guide & Practical Tips
- Verify cable type: must be IE FC TP 2×2 (AWG22).
- Choose cable exit direction: 180° version for straight cable runs.
- Consider ambient temperature: metal version is preferred for below -25°C.
- Max 10 re-mating cycles; avoid frequent reconnections after installation.
- For PoE applications, ensure switch supports 802.3af/at standard.
Professional FAQ
- Can I use this for Gigabit Ethernet?
No. This model is designed for 10/100 Mbit/s. For Gigabit, select the Cat6a version. - Do I need a special crimping tool?
Yes, use the Siemens FastConnect crimping tool (e.g. 6GK1901-1GA00). - Does it support PoE+ (30W)?
Yes, it is fully PoE+ compliant and can deliver 30W. - Can I install this in outdoor cabinets?
IP20 is for indoor dry areas only. For outdoor, use an IP67 enclosure. - How to ensure proper contact reliability?
Strip the cable to exactly 5 mm and crimp with full tool closure. - What is the warranty period?
12 months against manufacturing defects. - What about delivery time?
In-stock orders ship within 12-24 hours via FedEx, UPS, or DHL.
