Name: 6ES7453-3AH00-0AE0 Siemens FM 453 Positioning Module | 3-Ch Servo/Stepper
SKU: 6ES7453-3AH00-0AE0
Price: 234.00 USD
Availability: InStock

Product details

Product Overview

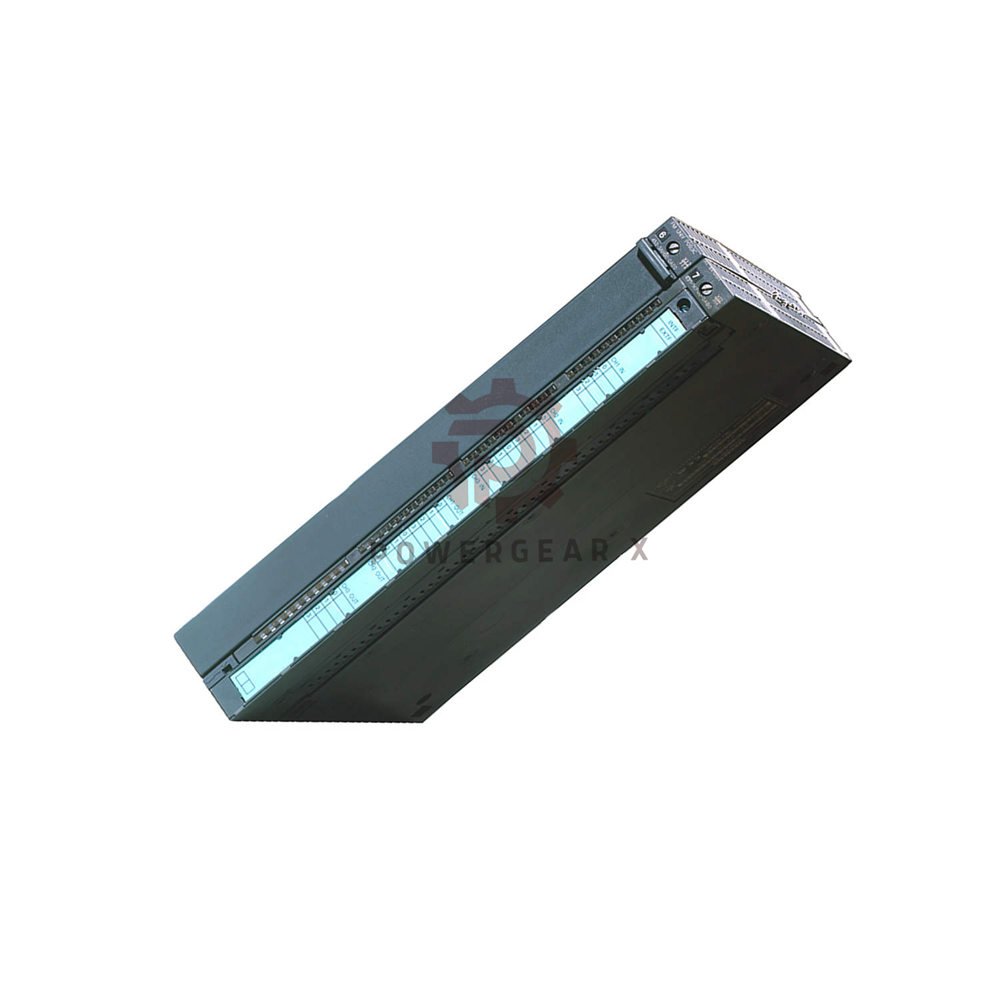

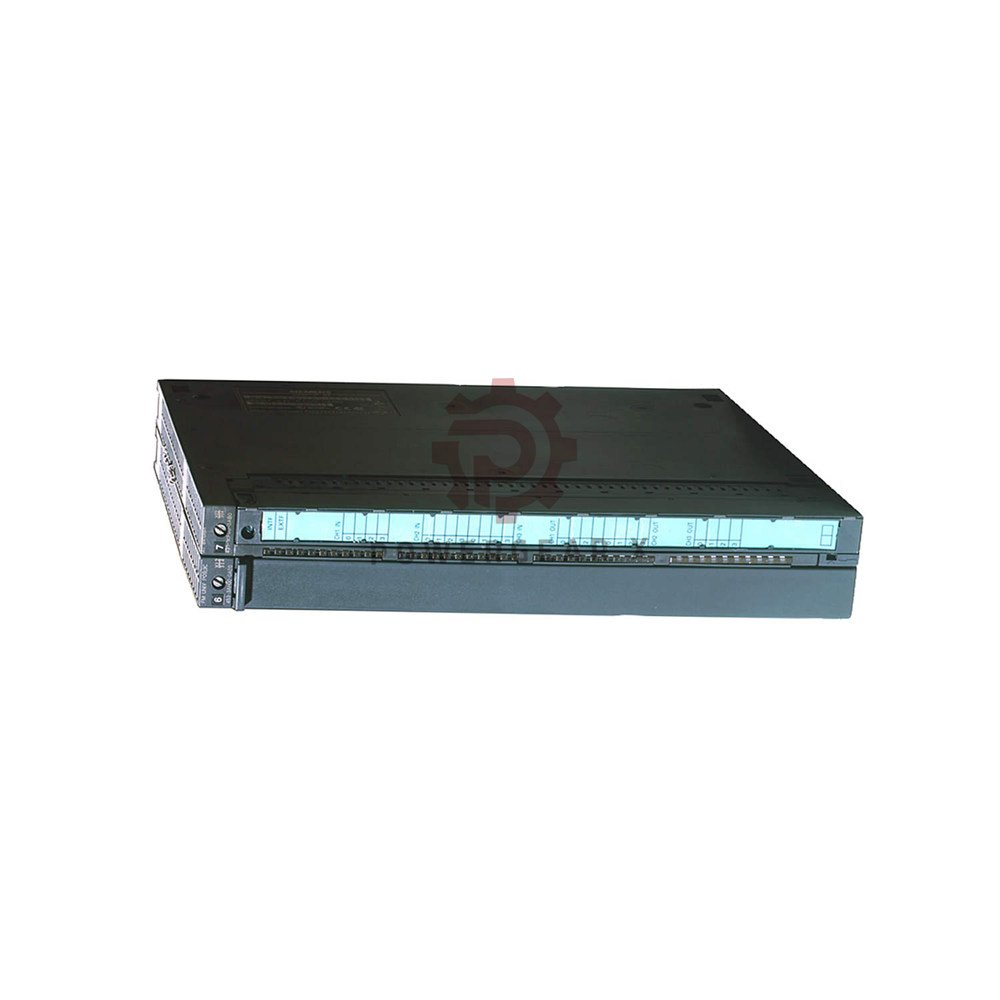

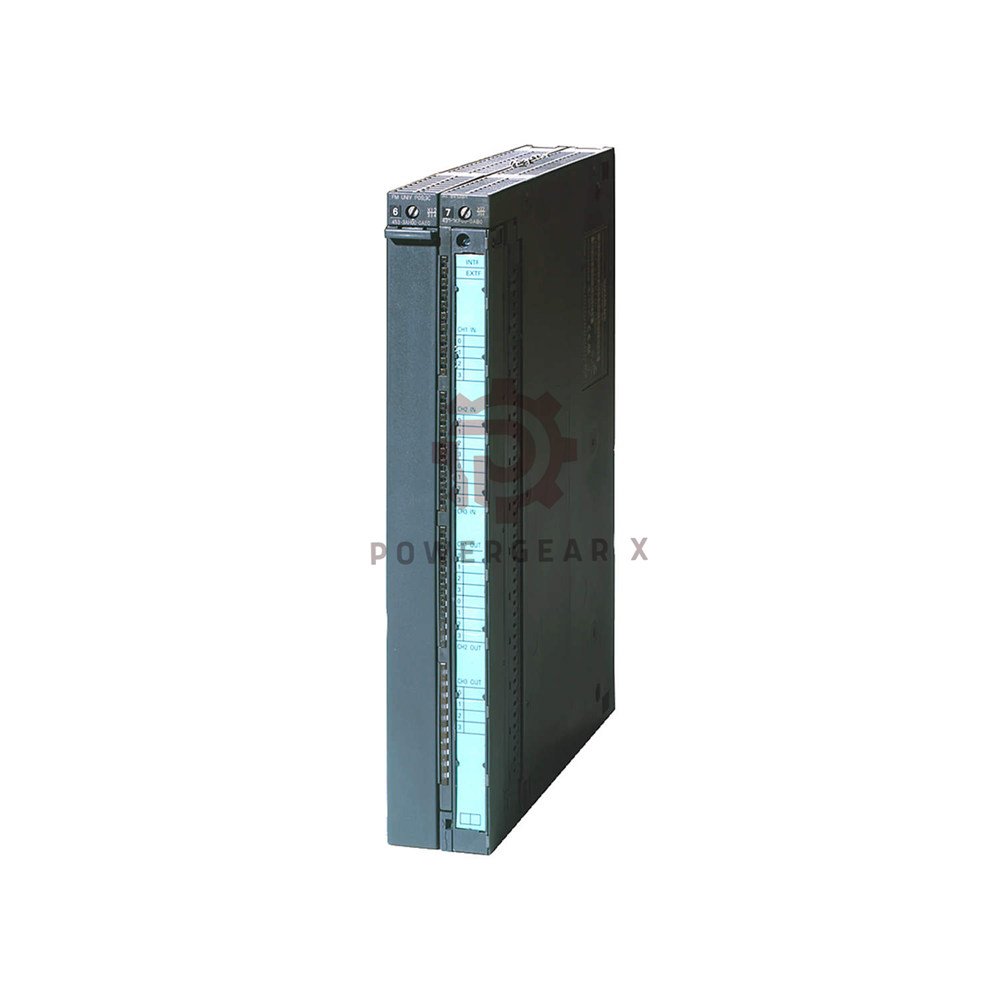

Siemens 6ES7453-3AH00-0AE0 is a function module for SIMATIC S7-400 positioning tasks.
- This FM 453 module controls 3 independent channels.
- Works with servo motors and stepper motors.
- Includes configuration software on CD for easy setup.
- Supports incremental and absolute (SSI) encoders.

Technical Specifications – Hierarchical View

Brand & Model
- Brand: Siemens
- Model: 6ES7453-3AH00-0AE0
- Series: SIMATIC S7-400 / FM 453
Power Supply
- Auxiliary voltage 1L+: 24V DC (20.4-28.8V)
- Load voltage 2L+: 24V DC
- Current from 1L+: max 1A (encoder supply)
- Current from 2L+ to 4L+: max 2A per channel
- Current from backplane: max 1.6A (5V DC)
- Power loss: 8 W (typical)
Encoder Supply
- 5V encoder supply: max 300mA output
- 5V cable length: 35m (max 210mA), 25m (max 300mA)
- 24V encoder supply: max 300mA output
- 24V cable length: 100m (max 300mA)
Digital Inputs (6 per channel)
- Input voltage: 24V DC rated
- Signal “0”: -3 to +5V (max 3mA)
- Signal “1”: 11 to 30V (max 7mA)
- Input delay (0→1): max 15µs
- Input delay (1→0): max 45µs
- Configuration: flexible assignment
Digital Outputs (4 per channel)
- Output voltage: 24V DC rated
- Signal “1” min voltage: UP – 0.3V
- Output current: 0.5A at 40°C, 0.1A at 60°C
- Short-circuit protection: Yes
- Switching frequency (resistive): 100Hz
- Switching frequency (inductive): 0.25Hz
Encoder Support
- Incremental encoder (symmetrical): RS422
- Absolute encoder (SSI): RS422
- Incremental input frequency: 1MHz (10m cable), 0.5MHz (35m)
- SSI clock frequency: 1.25Mbit/s
- SSI cable length: 250m (max 156kbit/s)
Drive Interface
- Analog drive setpoint: -10V to +10V
- Analog output current: -3 to +3mA
- Analog cable length: 30m
- Controller enable: max 50V, 1A, 30VA
Stepper Drive
- Differential output voltage: min 2V (RL=100Ω)
- Output current: max 60mA
- Pulse frequency: 200kHz
- Cable length: 35m (symmetrical), 10m (asymmetrical)
Isolation & Environment
- Digital inputs isolated: Yes (optocoupler)
- Digital outputs isolated: Yes (optocoupler)
- Operating temp: 0°C to 55°C
- Storage temp: -40°C to 70°C
Dimensions & Weight
- Width: 50 mm
- Height: 290 mm
- Depth: 210 mm
- Weight: 1,620 g

Expert Review & Manager’s Insight

Field Engineer Review:
- This module handles complex multi-axis positioning with ease.
- Three independent channels save rack space and cost.
- Use SSI encoders for long cable runs up to 250 meters.
- Stepper pulse frequency supports high-speed applications.
- Check temperature derating for outputs above 40°C.
Product Manager’s Insight:
- This is the most versatile positioning module for S7-400.
- Configuration software simplifies startup and commissioning.
- Great for packaging, printing, and material handling.
- Analog or stepper drives – one module does both.

Suitable Devices & Application Scenarios

Compatible with:
- Siemens S7-400 PLC systems (all CPUs)
- Servo drives with ±10V analog input
- Stepper motor drives with pulse/direction input
- Incremental and SSI absolute encoders
Applications:
- Multi-axis positioning systems
- Packaging machines and labeling equipment
- Printing presses and converting machinery
- Material handling and conveyor systems
- Pick-and-place and assembly automation

Installation & Wiring Guide

Mounting:
- Install in S7-400 rack with 50mm width slot.
- Requires 1x 48-pin front connector (not included).
- Ensure 24V supplies match load requirements.
Wiring:
- Use shielded cables for encoder and drive signals.
- Connect shield at one end only (module side preferred).
- Keep encoder cables away from motor power cables.
- Check cable length limits for each encoder type.

Maintenance & Debugging Tips

Use configuration software for initial setup and tuning.
Monitor digital inputs for limit switches and home signals.
Check output current derating at high temperatures.
Keep firmware updated for best performance.
Test positioning loops with small moves before production.

Package Contents

1x Siemens 6ES7453-3AH00-0AE0 function module
Configuration package on CD
Product documentation

Comparison with Related Models

6ES7431-7QH00-0AB0 – Analog input module (16 AI, 16-bit)
6ES7432-1HF00-0AB0 – Analog output module (8 AO, 13-bit)

Frequently Asked Questions (FAQ)

Q: How many axes can this module control?
- A: The FM 453 controls up to 3 independent positioning axes.
Q: What types of motors work with this module?
- A: It supports servo motors (analog) and stepper motors (pulse/direction).
Q: What encoders can I connect to this module?
- A: Incremental encoders (RS422) and SSI absolute encoders.
Q: What is the maximum SSI cable length?
- A: Up to 250 meters at lower clock frequencies (156kbit/s).
Q: Does the module include configuration software?
- A: Yes, it ships with a configuration package on CD for startup.
