Product Overview

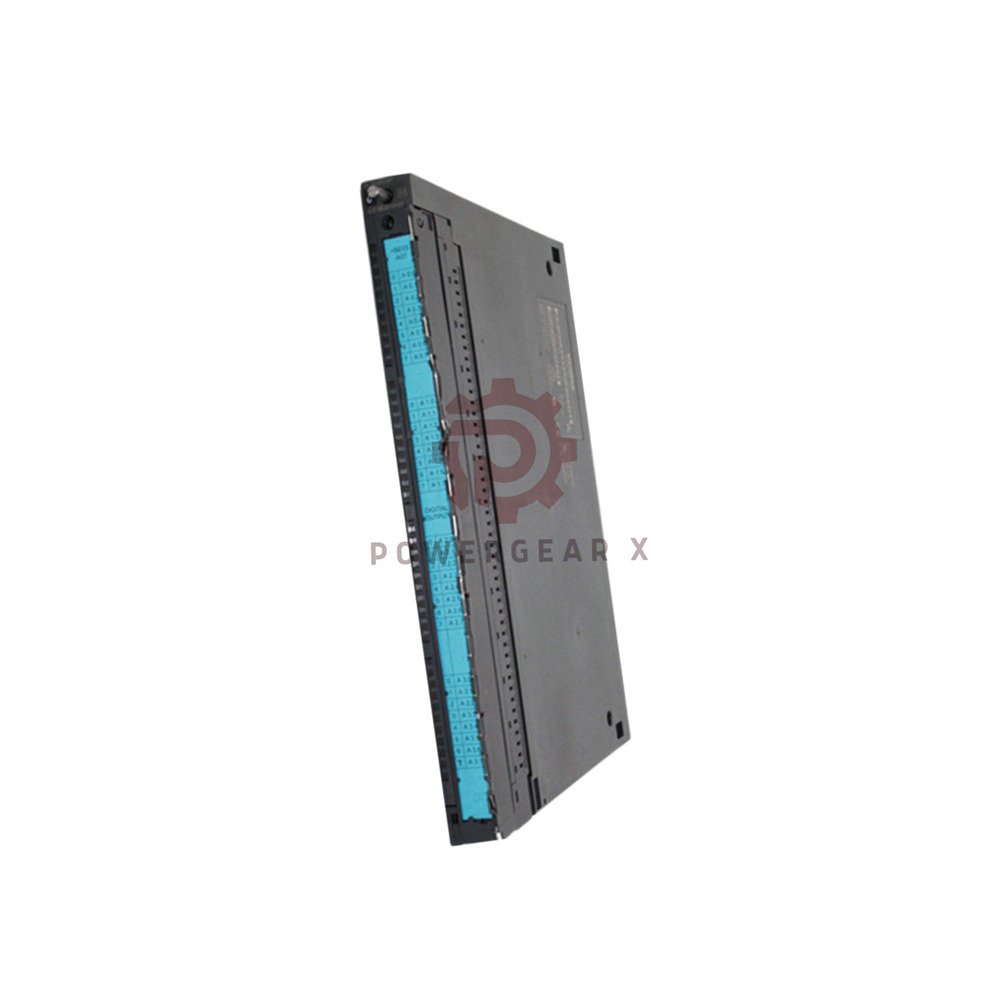

- Siemens 6ES7451-3AL00-0AE0 – positioning module for SIMATIC S7-400 systems
- FM 451 series, 3 independent positioning channels
- Designed for rapid/slow traverse drives
- Includes configuration package on CD
- Controls axes with incremental or absolute encoders
Technical Specifications – Hierarchical View
- Supply & Power
- Rated supply voltage: 24 V DC
- Typical current consumption: 550 mA
- Typical power loss: 3.6 W
- Digital Inputs (12 total – 4 per axis)
- Functions: reference cams, reversing cams, flying actual value setting, start/stop positioning
- Rated voltage: 24 V DC
- Signal “0”: -30 to +5 V
- Signal “1”: +11 to +30 V
- Input current (signal “1”): 9 mA typical
- Input current (signal “0”): 1.5 mA max (quiescent)
- Isolation: Yes, optically isolated
- Digital Outputs (12 total – 4 per axis)
- Functions: rapid traverse, creep, run right, run left
- Short-circuit protection: Yes
- Output voltage (signal “1”): UP -3 V minimum
- Output current (signal “1”): 600 mA max (0-55°C)
- Residual current (signal “0”): 0.5 mA max
- Isolation: Yes, optically isolated
- Encoder Support
- Incremental encoder (symmetrical) – RS 422, max. 1 MHz
- Incremental encoder (asymmetrical) – 24 V, max. 50 kHz
- Absolute encoder (SSI) – RS 422, max. 1.25 MHz
- Encoder Supply
- 5 V supply: max. 210 mA, cable length 35 m
- 24 V supply: max. 300 mA, cable length 100 m
- SSI encoder supply: 24 V, max. 300 mA, cable length 300 m
- Encoder Signals
- Incremental: A, notA, B, notB, N, notN (RS 422)
- Asymmetrical: A, B, N (24 V)
- SSI: DATA, notDATA, CL, notCL (RS 422)
- Telegram length: 13 or 25 bit (parameterizable)
- Gray code supported
- Environmental Conditions
- Operating temperature: 0 to 55 °C
- Storage/transport temperature: -40 to 70 °C
- Mechanical Data
- Width: 50 mm
- Height: 290 mm
- Depth: 210 mm
- Weight: 1,300 g approx.
- Connection: 1x 48-pin front connector required
Expert Review – Field Engineer’s Insight
- This module delivers reliable positioning for 3 independent axes.
- Use it for rapid traverse and creep speed control in machine tools.
- The 24 V encoder supply works with most industrial incremental encoders.
- SSI absolute encoders eliminate homing runs after power loss.
- The 6ES7451-3AL00-0AE0 handles positioning tasks without an external controller.
- Multiple reference cam inputs simplify axis homing procedures.
- The configuration package on CD includes all necessary software tools.
- This module reduces PLC CPU load by handling positioning independently.
Compatibility & Applications
- Compatible systems
- SIMATIC S7-400 PLCs (all CPU models)
- Works with S7-400 racks and power supplies
- Suitable devices
- Rapid/slow traverse drives with incremental encoders
- Servo drives with SSI absolute encoders
- Positioning axes with reference cams and limit switches
- Typical industries
- Machine tools, material handling, packaging machinery
- Robotics, conveyor systems, positioning tables
Model Comparison
- 6ES7451-3AL00-0AE0 vs other S7-400 positioning modules:
- vs 6ES7451-3AL00-0AE0 – 3 channels, rapid/slow traverse, SSI support
- vs 6ES7452-1AH00-0AE0 – FM 452 for servo drives with higher performance
- vs 6ES7453-3AH00-0AE0 – FM 453 for high-speed positioning with more functions
Installation & Wiring Guide
- Mounting
- Install the module in any S7-400 rack slot
- Secure with the built-in locking mechanism
- Allow airflow for heat dissipation (3.6W typical)
- Wiring best practices
- Use shielded cables for all encoder connections
- Keep cable length within specified limits for each encoder type
- Connect 24 V supply to the module power terminals
- Wire digital inputs for reference cams and limit switches
- Connect digital outputs to drive enable and direction signals
- Configuration notes
- Install the configuration software from the included CD
- Set parameters for each axis (encoder type, traverse speeds)
- Define reference cam and limit switch functions
- Test positioning profiles before commissioning
Maintenance & Troubleshooting
- Check encoder cable connections for wear or damage
- Verify 24 V supply voltage stays within specifications
- Monitor digital input status for correct limit switch operation
- Use diagnostic functions in the configuration software
- Inspect front connector for loose or oxidized contacts
Package Contents
- 1x Siemens 6ES7451-3AL00-0AE0 positioning module
- Configuration package on CD (software and documentation)
Shipping & Warranty
- 12-month warranty against manufacturing defects
- Express shipping: FedEx, UPS, DHL
- Dispatch within 12-24 hours (business days)
Frequently Asked Questions (FAQ)
- Q: How many axes can the 6ES7451-3AL00-0AE0 control?
- A: The module controls up to 3 independent positioning axes. Each axis has 4 inputs and 4 outputs.
- Q: What encoder types work with this module?
- A: Supports incremental (symmetrical/asymmetrical) and absolute (SSI) encoders. Choose based on your application requirements.
- Q: Does this module need a separate power supply?
- A: Yes, it requires a 24 V DC external power supply. The backplane provides only 5 V for internal logic.
- Q: What is the difference between rapid and creep traverse?
- A: Rapid traverse is the high-speed positioning movement. Creep is a slow speed for accurate final positioning.
- Q: Can I use this module with servo drives?
- A: Yes, with incremental or SSI encoders. The outputs control direction and speed commands to the drive.
- Q: What is the maximum cable length for SSI encoders?
- A: 300 m at 156 kbit/s. For higher clock frequencies, reduce the cable length accordingly.
Buying Guide & Selection Advice
- Choose the 6ES7451-3AL00-0AE0 for 3-axis positioning with rapid/slow traverse.
- Need more axes? Consider the FM 452 (4 axes) or FM 453 (high-speed positioning).
- For servo drive control with closed-loop, select the 6ES7452-1AH00-0AE0.
- Check your encoder type – incremental is common, SSI offers absolute position data.
- Verify your cable length matches the specifications for each encoder type.
Contact & Support
- Email: sales@powergearx.com
- WhatsApp: +86 18030005825 (click to chat)
- Technical support available in English and Chinese
