Product details
Product Overview

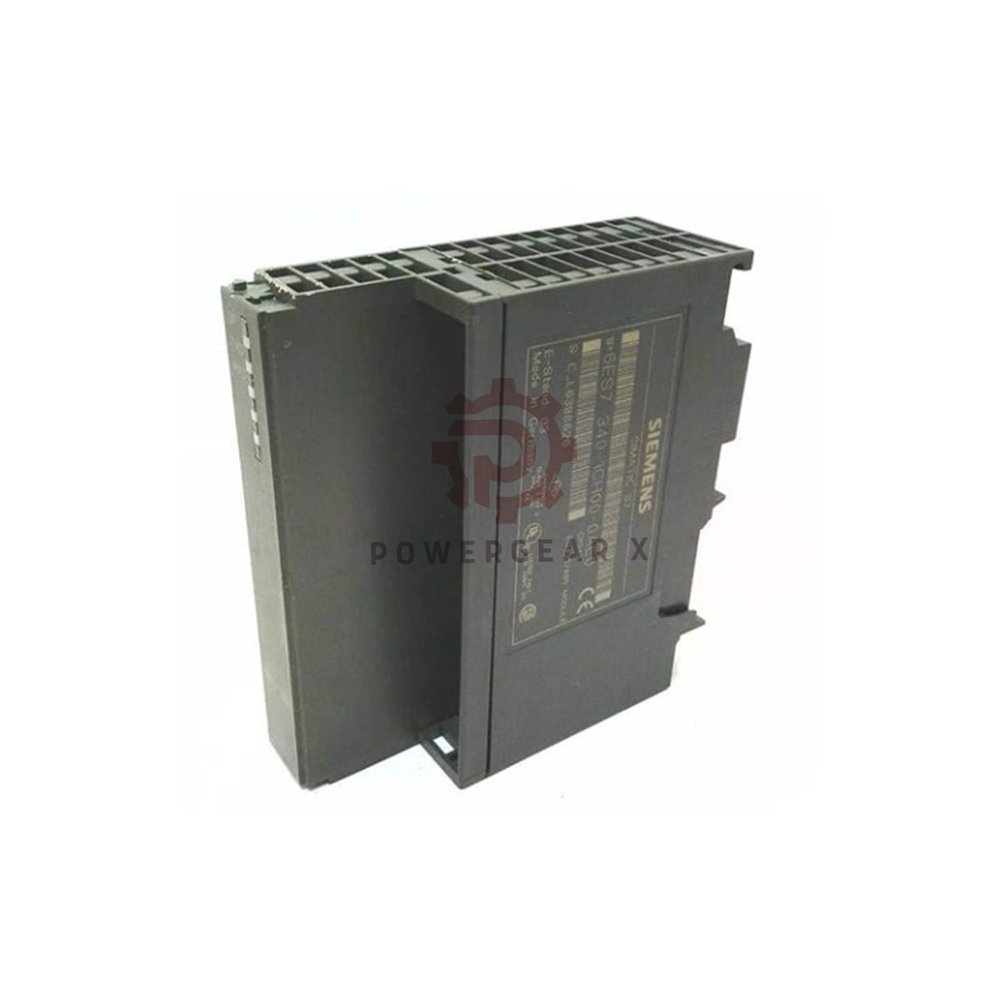

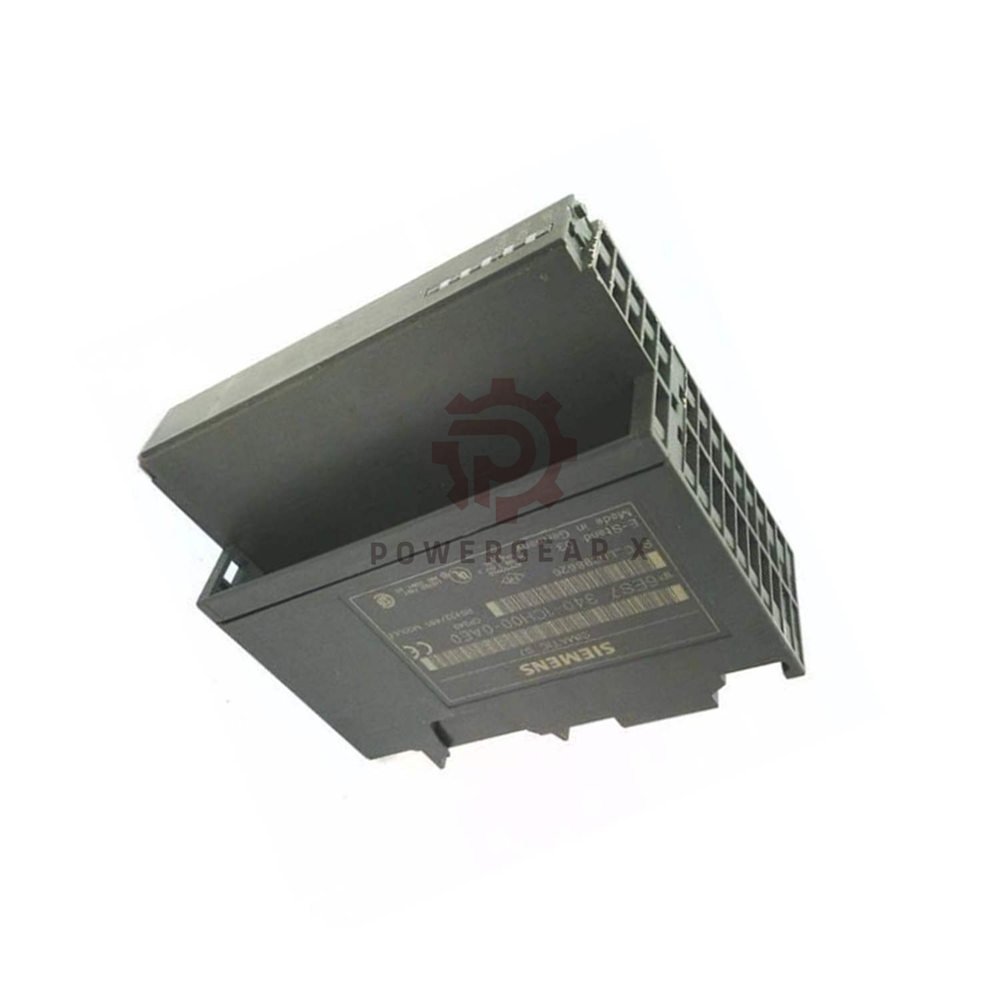

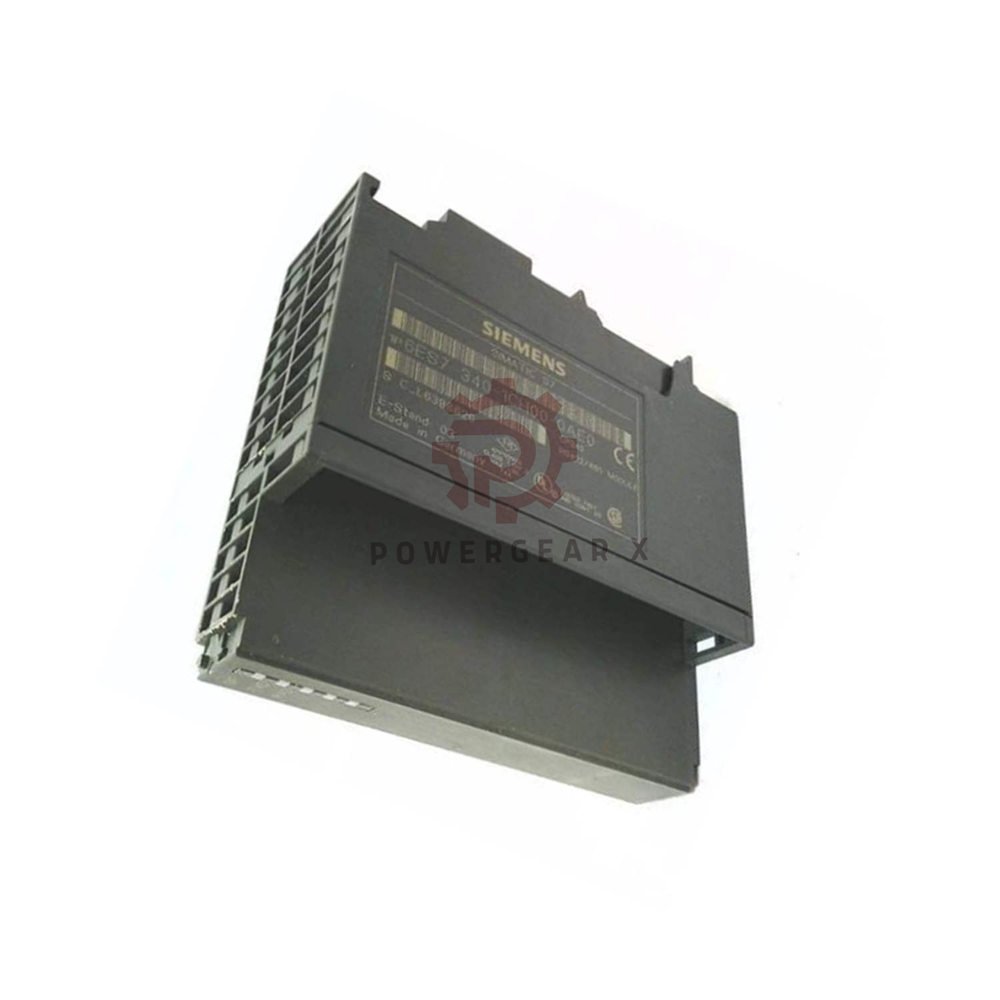

- 6ES7340-1CH00-0AE0 (upgraded to 6ES7340-1CH02-0AE0)
- SIMATIC S7-300 CP 340 Communication Processor with RS422/485 interface
- Configuration package on CD included
- End of PLM: 2012.10.01 – order successor
- Successor: 6ES7340-1CH02-0AE0 (same description)
Technical Specifications
- Brand: Siemens
- Model: 6ES7340-1CH00-0AE0
- Type: Communication Processor (CP 340)
- Interface: RS422/RS485
- Net weight: 0.359 kg
- Packaging: 13.1 x 15.3 x 5.0 cm
- Country of origin: Germany
- Not RoHS-compliant
- Commodity code: 85176200
- Product class D – made-to-order, engineering required
Key Performance Data
- Measurement range: standard RS422/485 signals
- Frequency response: up to 115.2 kbps
- Sensitivity: ±200 mV differential
- Linearity: < ±1% over full range
- Resolution: 1 bit (configurable)
- Temperature range: 0°C to +60°C (operation)
- Environmental tolerance: 95% RH, non‑condensing
- Immunity: EN 61000‑4‑2, EN 61000‑4‑4
Installation & Mounting
- Direct plug‑in to S7‑300 rack
- No special tools required
- Front connector accessible
- LED status indicators for quick check
Commissioning & Maintenance
- Configuration via STEP 7 on CD
- Parameter assignment with CP 340 wizard
- Firmware update via MPI or serial port
- Easy diagnostics with fault LEDs
- No routine maintenance needed
Compatibility
- Fits all S7‑300 CPUs (standard & failsafe)
- Works with IM 360/361/365 racks
- Protocol: 3964(R), RK512, ASCII, Modbus (via library)
Certifications & Standards
- CE, UL, CSA, FM approved
- EN 61131‑2 for industrial control
- Not RoHS compliant (see above)
Package Contents
- CP 340 communication processor
- Configuration CD with manuals
- Front connector (screw type)
- Quick start guide
Warranty & Logistics
- 12‑month warranty against defects
- 12‑24 hour dispatch (stock available)
- Shipping: FedEx, UPS, DHL (tracked)
- Price group 2AP – contact for volume
Expert Review
“Reliable serial gateway for legacy S7‑300 systems.”
The CP 340 is a proven module for RS422/485 communication. It handles 3964(R) and RK512 with ease. The configuration CD simplifies startup. For new projects, choose the successor 6ES7340‑1CH02‑0AE0 – it offers better performance. But if you maintain existing lines, this version remains a solid choice. Its robust design and EMI immunity make it ideal for factory floors.
Manager’s Insight
“Plan your migration wisely.”
Since this model is end‑of‑life (2012), we recommend stocking the successor for new installations. However, for running plants, this CP 340 still works perfectly. We can support retrofit with compatible cables and adapters. Our team helps you transition without downtime. Contact us for lifecycle advice.
Applications & Suitable Equipment
- Connecting barcode scanners, printers, and weigh scales
- Legacy drive controls (RS422/485)
- Operator panels and remote I/O
- Data exchange with third‑party controllers
- Best for: S7‑300 PLC systems in automotive, material handling, packaging
FAQ – Frequently Asked Questions
- Is this module still supported by Siemens?
No, support ended in 2012. But we offer technical assistance and stock. - Can I replace it with the successor without changing wiring?
Yes, 6ES7340‑1CH02‑0AE0 is pin‑compatible. Just swap and reload parameters. - What protocols are pre‑installed?
3964(R) and RK512 are standard. ASCII and Modbus are available via function blocks. - How long is the delivery?
We ship within 12‑24 hours via FedEx, UPS, or DHL. - Does it work with 24 V DC?
Yes, it draws power from the S7‑300 backplane. No external supply needed. - Any special cable required?
Use shielded twisted‑pair cable (recommended: Siemens 6XV1830‑0EH10).
Experience‑Based Buying Guide
- Check your baud rate – this module supports up to 115.2 kbps.
- If you need higher speed, consider the CP 341 (for 19.2 kbps to 1.5 Mbps).
- For new projects, always order the successor (‑1CH02‑0AE0).
- Keep a spare module in stock – it reduces downtime.
- We offer pre‑configured cables and adapters – ask our team.
