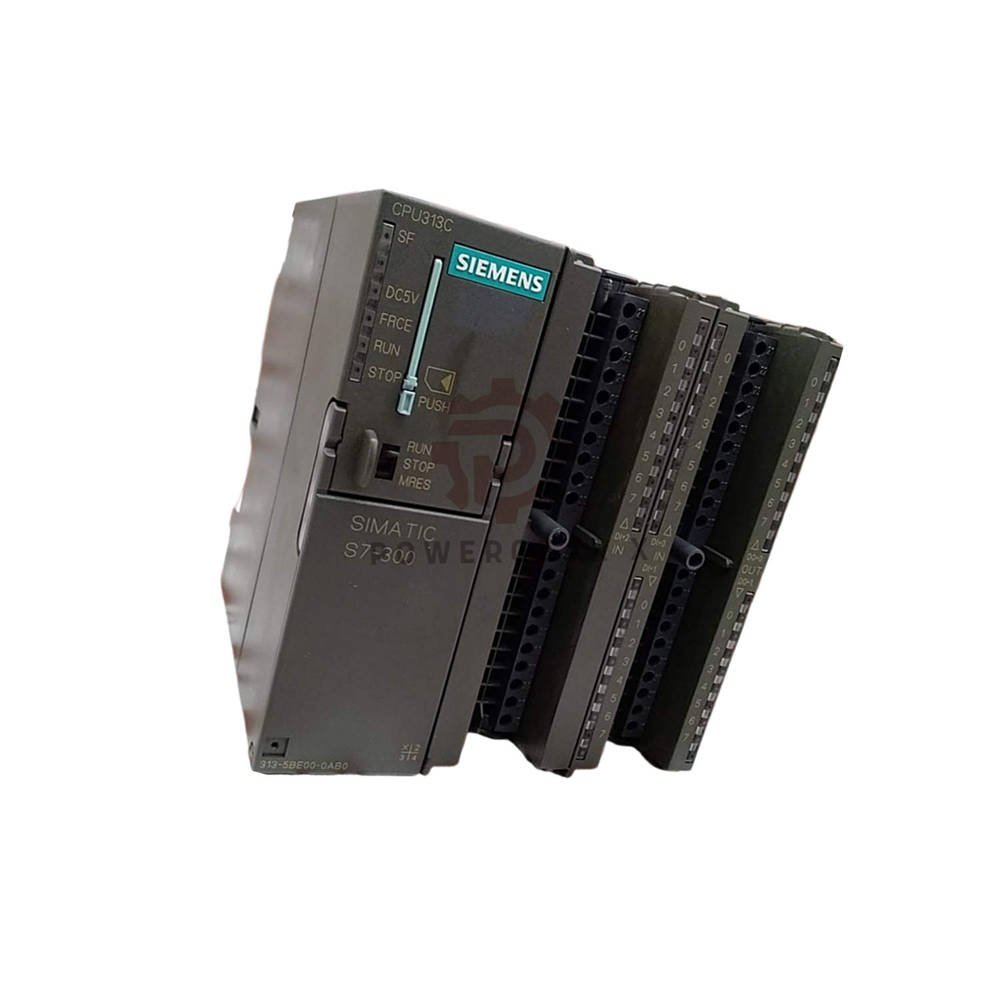

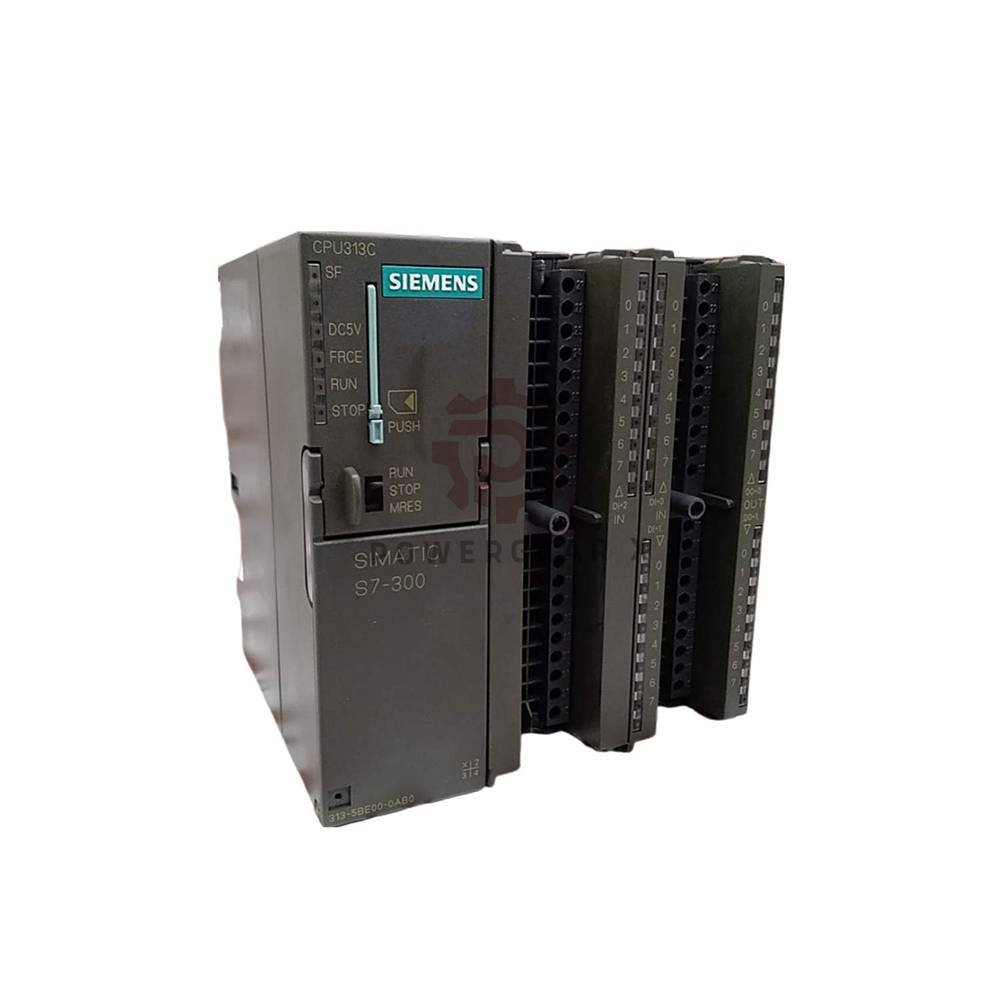

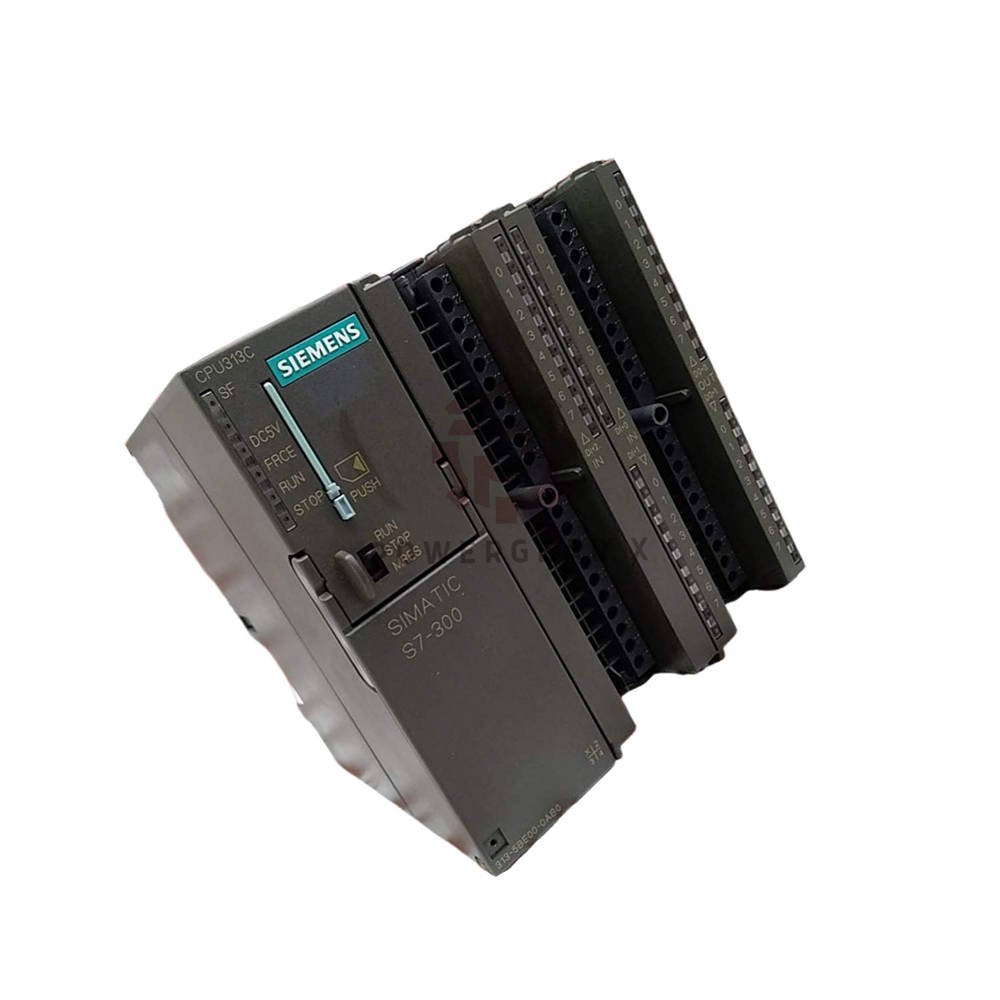

Name: 6ES7313-5BE00-0AB0 | SIMATIC S7-300 CPU 313C Compact PLC
SKU: 6ES7313-5BE00-0AB0
Price: 234.00 USD
Availability: InStock

Product details

Product Introduction

SIMATIC S7-300, CPU 313C Compact CPU with MPI, 24 DI/16 DO, 4AI, 2AO 1 PT100, 3 fast counters (30 kHz), integrated 24V DC power supply, 32 KB working memory. Micro Memory Card required.

This compact CPU is designed for demanding control tasks. It combines high processing speed with integrated I/O. It offers a perfect balance of performance and cost-effectiveness for mid-range automation applications.

Technical Specifications

Brand: Siemens
Model: 6ES7313-5BE00-0AB0
Series: SIMATIC S7-300
Module Type: Compact CPU
Working Memory: 32 KB integrated (program and data)
Load Memory: expandable via MMC, max. 4 MB
Power Supply: Rated 24V DC (20.4V to 28.8V)
Current Consumption: 700 mA (rated), Inrush 11 A typ.
Power Loss: 14 W typ.
Processing Times: Bit ops 0.1 µs typ., Word ops 0.5 µs, Fixed point 1 µs, Floating point 15 µs
Digital Inputs: 24 (24V DC), Input delay 0.1/0.3/3/15 ms
Digital Outputs: 16 (24V DC, 500 mA per channel), Short-circuit protected
Analog Inputs: 4 (Voltage/Current), 1 for Pt100, 12-bit resolution
Analog Outputs: 2 (Voltage/Current), 12-bit resolution
Counters: 3 fast counters (30 kHz)
Interfaces: MPI (187.5 kbps), 8 connections
Communication: PG/OP, Global data, S7 basic communication
Dimensions (WxHxD): 120 x 125 x 130 mm
Weight: approx. 660 g

Key Features & Benefits

Integrated I/O: 24 DI, 16 DO, 4 AI, 2 AO, 1 Pt100 directly on CPU.
High Performance: Fast processing with 0.1 µs bit operations.
Flexible Memory: 32 KB work memory, expandable load memory via MMC.
Integrated Functions: 3 counters, frequency measurement, PID controller.
Reliable Design: Maintenance-free backup via MMC, short-circuit protection.
Wide Temperature Range: Operates from 0°C to 60°C.

Measurement Range & Accuracy

Voltage Input: 0 to +10 V, Basic error limit ±0.7 %
Current Input: 0 to 20 mA, -20 to +20 mA, 4 to 20 mA, Basic error ±0.7 %
Resistance Input: 0 to 600 Ω, Basic error ±3 %
RTD Input: Pt100, Basic error ±3 %
Voltage Output: 0 to 10 V, -10 to +10 V, Basic error ±0.7 %
Current Output: 0 to 20 mA, -20 to +20 mA, 4 to 20 mA, Basic error ±0.7 %
Resolution: 12 bits with overrange (including sign)

Environmental & Immunity

Operating Temperature: 0°C to 60°C
Storage Temperature: -40°C to +70°C
Relative Humidity: 5% to 95% (non-condensing)
Interference Immunity: High resistance to electromagnetic interference (EN 61000-6-2)
Shock & Vibration: Tested according to IEC 60068-2

Installation & Commissioning

Mounting: Snap-on to standard DIN rail.
Wiring: Front connector with screw or spring terminals.
Configuration: STEP 7 V5.1 SP2 or higher.
Commissioning: Quick setup with integrated diagnostic LEDs.
Maintenance: Simple module exchange, no battery needed.

Compatibility & Expansion

Expansion Units: Max. 3 expansion units.
Modules per Rack: Max. 31 modules.
FMs & CPs: 8 FMs, 4 PtP CPs, 2 LAN CPs recommended.
Programming Languages: LAD, FBD, STL, SCL, GRAPH, HiGraph®.
Know-how Protection: Password protection for user program.

Certifications

CE, UL, CSA, FM, ATEX, IECEx (depending on configuration)
Marine approval (GL, LR, ABS, BV, DNV)

Package Contents

1x CPU 313C (6ES7313-5BE00-0AB0)
Front connector (not included, order separately)
Manual (digital download)
Warranty card

Warranty & Shipping

Warranty: 12 months against manufacturing defects.
Shipping: 12-24 hours dispatch (business days).
Carriers: FedEx, UPS, DHL (tracked express).

Expert Review

“The CPU 313C stands out for its integrated I/O and compact design. It is a reliable workhorse for small to mid-sized automation systems. The 30 kHz counters and PID functionality add significant value, reducing the need for extra modules. Its robust construction ensures long-term stability in industrial environments.”

Manager’s Insight

“For cost-sensitive projects requiring a balance of performance and I/O integration, the 313C is a smart choice. Its easy commissioning and broad compatibility with S7-300 ecosystem simplify project management. The maintenance-free MMC backup reduces downtime, making it a favorite among plant operators.”

Applications & Suitable Devices

Machinery: Packaging, textile, printing, and woodworking machines.
Material Handling: Conveyor systems, hoists, and cranes.
Building Automation: HVAC, lighting, and access control.
Process Control: Mixing, dosing, and temperature control.
Suitable with: ET200 distributed I/O, HMI panels, and SCADA systems.

Frequently Asked Questions (FAQ)

What memory card is required?
Micro Memory Card (MMC) is mandatory for program and data storage. Max. 4 MB.
Can I use this CPU without a battery?
Yes. The MMC provides maintenance-free backup. No battery is needed.
How many counters are integrated?
3 fast counters with a counting frequency of up to 30 kHz.
Is a shielded cable necessary for analog signals?
Shielded cables are recommended for analog and technological functions to ensure accuracy.
What is the maximum cable length for digital I/O?
Shielded: 1000 m (technological: 100 m). Unshielded: 600 m.
Can I connect a PROFIBUS DP master?
No. PROFIBUS DP master is not integrated, but a CP can be added.
What is the total current per output group?
Up to 40°C: 8 A. Up to 60°C: 4 A (per group).
Is the PID controller integrated?
Yes, a PID controller is available as an integrated function.

Experience-based Selection Guide

Choose CPU 313C when you need a compact controller with mixed I/O and moderate processing power.
Ideal for applications requiring up to 24 digital inputs and 16 digital outputs plus analog signals.
If you need more memory or faster counters, consider the CPU 314C-2 DP or higher.
For pure digital applications without analog needs, the CPU 312C is a cost-effective alternative.
Ensure you have a STEP 7 V5.1 SP2 or later for configuration.
