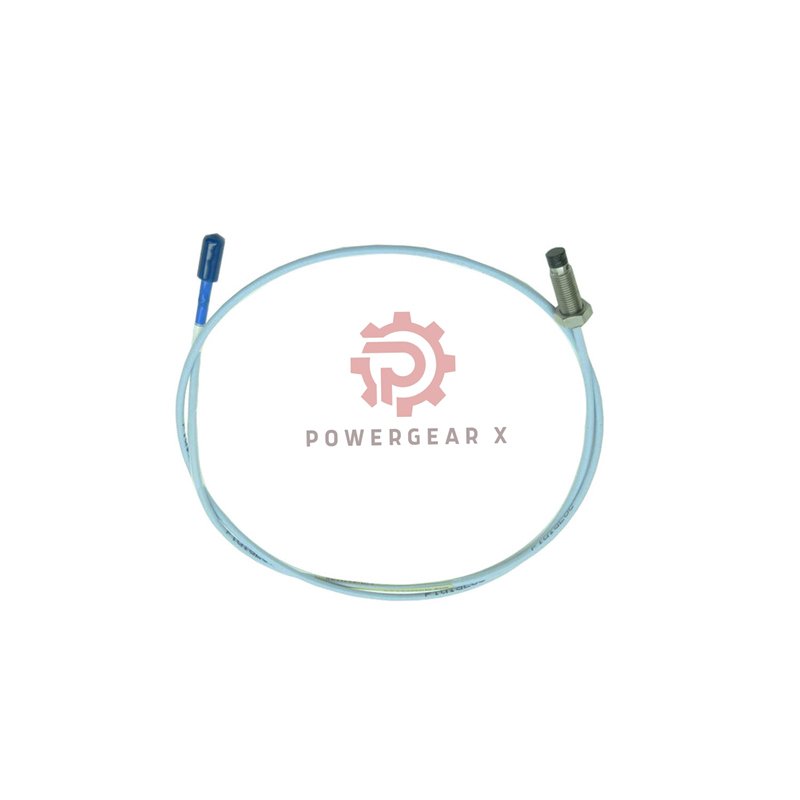

5-Meter Cable & Armor | Bently Nevada 330707-00-62-50-01-00 XL 11mm Long-Case Probe | 3300 Series Sensor

Long-Reach Armored Probe for Extended Distance Monitoring

This heavy-duty Bently Nevada 3300 XL 11mm Proximity Probe is engineered for challenging installations. The model 330707-00-62-50-01-00 combines a long 6.2-inch body with full cable armor and a 5-meter reach. It is the ideal choice for monitoring large machinery where sensors must be mounted far from the monitoring system.

Complete Configuration Details

• Core Product: Bently Nevada 3300 XL 11mm Probe, 330707
  • Thread Size: 1/2-20 UNF.
  • Key Features: With Armor & Connector Protector.
• Part Number Suffix Explained:
  • -00: Unthreaded Length = 0 in.
  • -62: Case Length = 6.2 in (Extended).
  • -50: Cable Length = 5.0 meters.
  • -01: Connector = Mini ClickLoc with protector.
  • -00: Agency Approval = Not required (Standard areas).
• Technical Specifications:
  • Body & Tip: AISI 304 SST case, PPS tip.
  • Cable: 75 Ω Triaxial, FEP insulation.
  • Electrical Data (5.0m): Resistance = 7.2 Ω ± 0.8 Ω.
  • Mechanical Care: Minimum bend radius = 1.0 inch.
  • Weight: 0.17 Kg.
• Critical Installation Limits:
  • Mounting Torque (1/2-20 thread):
    • Maximum Limit: 45.2 N•m.
    • Recommended Setting: 15.2 N•m.
  • Thread Engagement: Never exceed 0.750 inches.
  • Connector Torque: Finger tight only.
• Environmental Performance:
  • Temperature Range: -51°C to +177°C.
  • Seal Warning: Avoid prolonged exposure below -34°C.
  • Pressure Seal: Viton O-ring (Not factory tested).
  • Temperature Class: Rated for various ambient conditions (T1 to T5).

Specialized FAQ for This Configuration

System Integration & Use

• Why must this 5-meter probe only be used with a 5-meter Proximitor?
• The system calibration is length-specific. Mixing different cable lengths between the probe and monitor causes inaccurate readings and system errors.
• The case is 6.2 inches long. Will it fit my existing mounting hole?
• You must check the depth of your mounting boss. This long case is for deep installations. Ensure there is enough clearance behind the mounting point.

Protection & Ordering

• What does the connector protector (option -01) do?
• It is a metal or robust plastic sleeve that snaps over the connector. It prevents accidental disconnection and protects the connector from impact and dust.
• Can I use this armored probe in a high-vibration area?
• Yes. The stainless steel armor protects the cable from fatigue and wear caused by constant vibration, making it more durable than standard cable.
• How do you handle shipping and quality assurance?
• We dispatch promptly using major carriers like FedEx, UPS, and DHL. Your investment is secured with a standard 12-month manufacturer’s warranty.
