40mm Case 3300 XL Sensor | Bently Nevada 330709-000-040-50-01-00 Model for Machine Monitoring

Compact 11mm Vibration Sensor

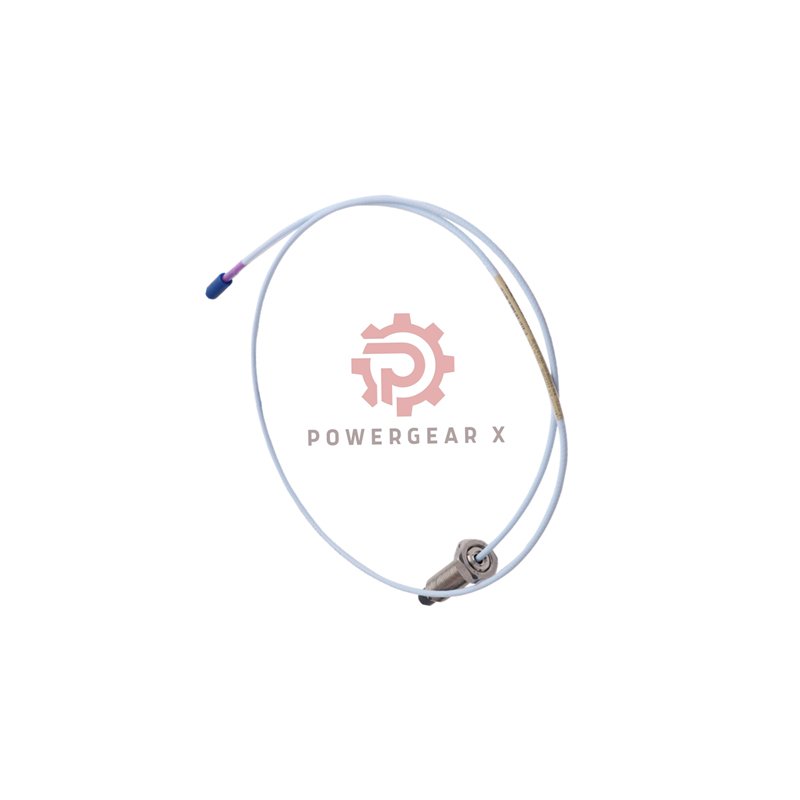

This is the Bently Nevada 3300 XL 11 mm Proximity Probe. It has a short 40mm case. It is perfect for tight spaces. This sensor gives accurate vibration and position data. It helps protect important machines from damage.

Main Product Benefits

• Short Case Design: 40mm length fits where space is limited.
• Standard 5-Meter Cable: Ideal for most common machine installations.
• Reliable Signal: Provides stable measurements for machine health.
• Durable Materials: Stainless steel and PPS resist wear and chemicals.
• Easy Connection: Miniature ClickLoc connector with protector for safe use.

Product Identification & Build

• Brand: Bently Nevada
• Complete Part Number: 330709-000-040-50-01-00
  • 330709: 11 mm Probe, M16x1.5 thread, standard
  • 000: 0 mm unthreaded part
  • 040: 40 mm overall case length
  • 50: 5.0 meters total cable length
  • 01: Mini ClickLoc with protector, standard cable
  • 00: No agency approval on label
• Probe Type: 3300 XL 11 mm Proximity Probe
• Made In: U.S.A.

Technical Specifications

• Electrical Details:
  • Cable: 75Ω Triaxial, FEP insulated (standard)
  • Length: 5.0 meters (16.4 feet)
  • Probe Resistance (RPROBE @ 5.0m): 7.2 Ω ± 0.8 Ω
• Physical Details:
  • Case Material: AISI 304 Stainless Steel
  • Tip Material: Polyphenylene Sulfide (PPS)
  • Thread: M16 x 1.5
  • Case Length: 40 mm
  • Max Thread Engagement: 24 mm
  • Recommended Case Torque: 21.1 N·m
  • Min. Cable Bend: 25.4 mm (1.0 inch)
• Target Requirements:
  • Min. Flat Surface: 30.5 mm diameter
  • Min. Shaft Diameter: 152 mm (6.0 inches)
• Temperature:
  • Works from -52°C to +177°C.
  • Warning: Avoid below -34°C to protect seals.
  • Supports EPL Ga, Gc, Dc temperature classes.

Installation Guide

• This 5-meter probe works with a 5-meter Proximitor Sensor.
• Screw into M16x1.5 hole. Use no more than 24 mm of thread.
• Tighten case to 21.1 N·m. Do not over-torque.
• Connect ClickLoc by hand. Keep the protector until you are ready.
• Avoid sharp bends in the cable below 25.4 mm.

System Compatibility

Made for Bently Nevada 3300 XL monitoring systems. It is a direct replacement part. The short 40mm case helps in tight spots. Need an 8mm probe for different applications? See our 3300 XL 8mm Proximity Probes.

Package Details & Support

• One (1) Bently Nevada 330709-000-040-50-01-00 Probe.
• Connector protector included.
• Full 12-Month Warranty.
• Quick Delivery: Options include FedEx, UPS, and DHL.

Expert FAQ

• Q: What does “overall case length 40mm” mean for installation?
• A: It means the metal body of the probe is very short. This is useful when the mounting space on your machine is shallow or crowded.
• Q: Can I use this 5-meter probe with a 9-meter Proximitor cable?
• A: No. The product note says this 5-meter probe is designed for use with the 5-meter Proximitor sensor only. Matching lengths is important for accurate system calibration.
• Q: Is the cable on this model waterproof or fluid-resistant?
• A: This variant (option 01) uses a “standard cable”. For wet areas, choose a model with “FluidLoc cable” (option 11 or 12).
• Q: The specs show a wide temperature range. What is the most important limit?
• A: For long life, the key limit is -34°C. Storing or using the probe below this temperature can damage the internal seal, even though it can operate down to -52°C.
• Q: What is your shipping and warranty policy for this item?
• A> We offer a 12-month warranty. We ship worldwide using major carriers like DHL, FedEx, and UPS for fast, trackable delivery.

Questions about this model? Contact us for support. Email sales@powergearx.com or chat on WhatsApp: +86 18030005825.
