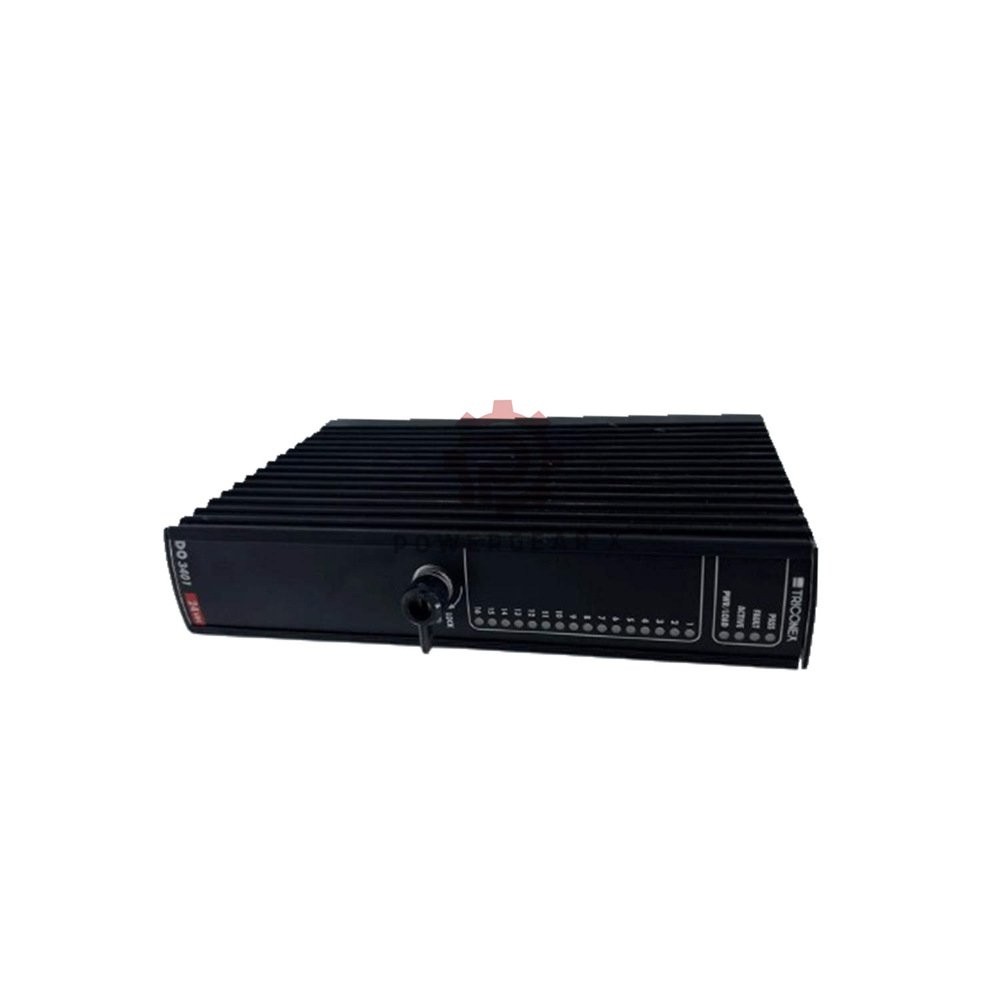

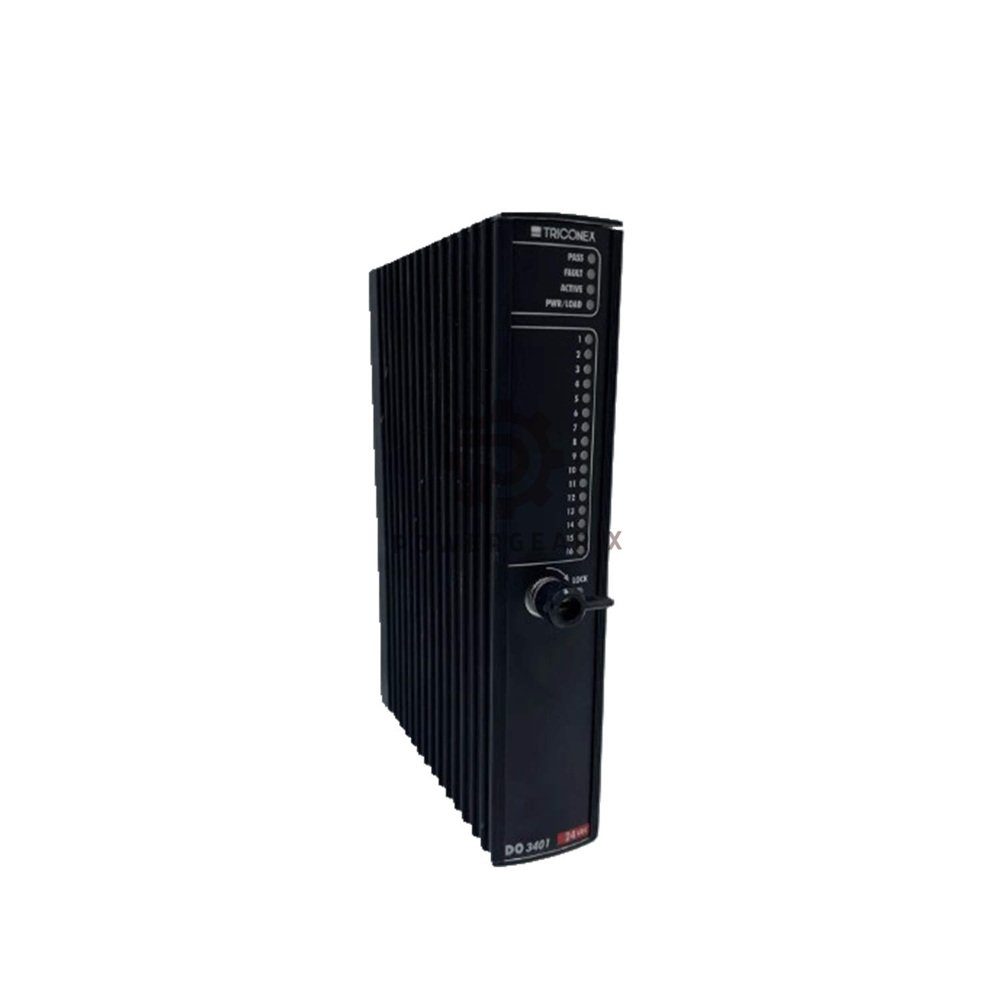

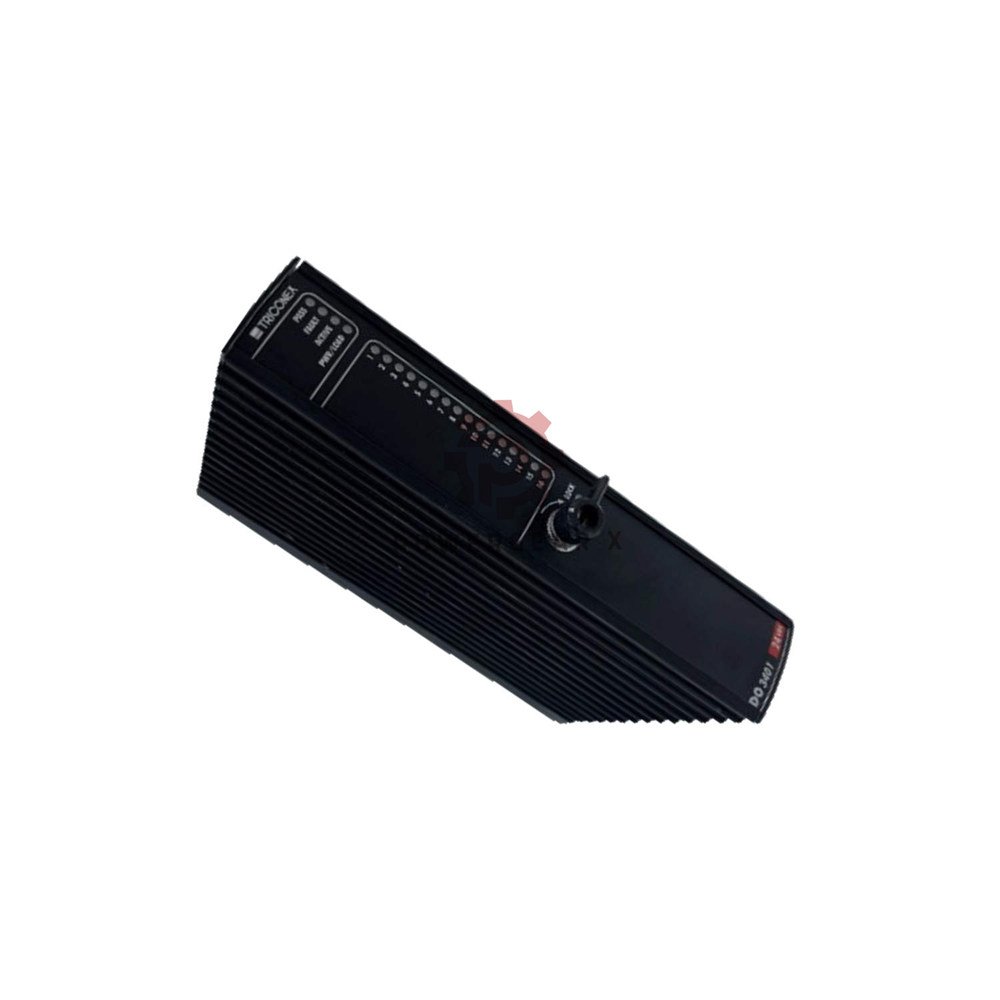

3401 Triconex DO Module – High-Availability Output Card

3401 | Triconex | Digital Output Module

TMR Architecture | Quad Voter Circuitry | 16 Commoned Points

This TMR Digital Output Module uses three isolated channels. Each channel accepts data from its associated Main Processor. The patented Quad Voter circuitry votes on output signals before applying them to the load. It uses parallel-series paths. Power flows if two of three switches close. This ensures safety and high availability.

Key Highlights

• Triple Modular Redundancy (TMR) for fault-tolerant outputs
• Quad Voter guarantees output integrity
• Output Voter Diagnostic (OVD) detects stuck-on/off points in less than 500 ms
• Hot-spare support for seamless replacement
• Mechanical keying prevents incorrect installation

Technical Data

• Brand: Triconex (Schneider Electric)
• Model: 3401
• Type: TMR Digital Output Module
• Points: 16, commoned
• Nominal Output Voltage: 24 VDC
• Operational Voltage Range: 15 to 30 VDC
• Absolute Max Output Voltage: 33 VDC
• Absolute Max Reverse Input: –0.6 VDC
• Output Current (Switching): <4.8 A (self-limiting)
• Output Current (Typical): 3.0 A
• Degraded Mode Current: >0.7 A (self-limiting), 1.5 A typical
• Field Alarms: Loss of field power, output shorted On/Off
• Loop-back Thresholds:
  • Off region: 0–5 VDC
  • Transition: 6–14 VDC
  • On region: 15–30 VDC
• Leakage to Load (Off state): <1 mA
• Diagnostic Glitch Duration: <2 ms max, 500 µs typical
• Maximum Toggle Rate: >20 ms
• On-state Voltage Drop: <1.0 VDC @ 1.5 A
• Loop-back Scan Time: <1.0 ms for all 16 points
• Isolation (Functional Earth to Protective Earth): 500 VDC min
• Isolation (Logic to Functional Earth): 800 VDC min

Expert Review & Manager’s Insight

Expert Review: The 3401 is a robust output module for safety systems. Quad Voter ensures outputs only change when two channels agree. OVD finds stuck faults quickly. It is a reliable choice for SIL 3 applications.

Manager’s Insight: This module reduces unplanned downtime. Hot-spare support allows live replacement. The diagnostics pinpoint channel faults, not just module errors. It offers great value for critical processes.

Compatibility & Applications

• Compatible Baseplates:
  • Model 2401 (standard applications)
  • Model 2401L (low-current, includes 180Ω series resistor)
  • DO External Termination Baseplate (for high-voltage or hazardous location panels)
• Ideal For:
  • Emergency shutdown (ESD) systems
  • Burner management
  • Valve and actuator control
  • Motor start/stop
  • High-integrity process control
• Application Scenarios: Oil & gas, chemical plants, power generation, and offshore platforms.

Installation & Maintenance

• Installation: Insert into a configured Tricon baseplate. The mechanical key prevents wrong insertion. Connect field wiring per terminal assignments. Ensure voltage within 15-30 VDC range.
• Maintenance: Hot-swappable – replace without powering down. The Fault LED indicates a channel issue. Use diagnostics to isolate the problem.
• Debugging: Monitor loop-back status via the MP. Check field power alarms and output states. OVD runs automatically every cycle.

Environmental & Immunity

• Temperature Range: -20°C to +70°C (operating)
• Storage Temperature: -40°C to +85°C
• Humidity: 5-95% RH (non-condensing)
• Immunity: Meets IEC 61000-4-2, -3, -4, -5 (typical for Tricon systems)
• Isolation: 500 VDC (functional to protective earth), 800 VDC (logic to functional earth)

Certifications & Compliance

• TÜV certified for SIL 3 (IEC 61508)
• UL 508, CSA C22.2
• CE marked
• RoHS compliant

Packaging & Delivery

• Package Contents: 3401 DO module, terminal blocks, installation guide, and diagnostic CD.
• Warranty: 12 months from purchase date.
• Shipping: 12-24 hours dispatch via FedEx, UPS, or DHL (tracking provided).

Frequently Asked Questions (FAQ)

• What does “commoned” mean for outputs?

  All outputs share a common return (0V) connection. This simplifies wiring for DC loads.

• How does the Quad Voter work?

  It uses parallel-series paths. Two of three channels must agree to close the output switch.

• What is the OVD diagnostic?

  Output Voter Diagnostic checks for stuck-on and stuck-off faults. It detects these in under 500 ms.

• Can I use this module with AC loads?

  No, the 3401 is designed for DC loads only (15-30 VDC).

• What if one channel fails?

  The module continues to operate. The Fault LED points to the specific channel, not the whole module.

• Is external current limiting needed?

  The module has self-limiting output current. For low-current apps, use the 2401L baseplate with series resistors.

Selection Guide & Expert Tips

• For standard applications: Choose 3401 with Model 2401 baseplate.
• For low-current loads: Select Model 2401L baseplate (includes 180Ω resistors).
• For high-voltage or hazardous areas: Use DO External Termination Baseplate with appropriate panels.
• Check field power: Ensure 15-30 VDC supply to avoid alarms.
• Pro tip: Use loop-back monitoring to verify output states in real time.
