330707-00-24-10-02-05 | Bently Nevada 11 mm Proximity Probe

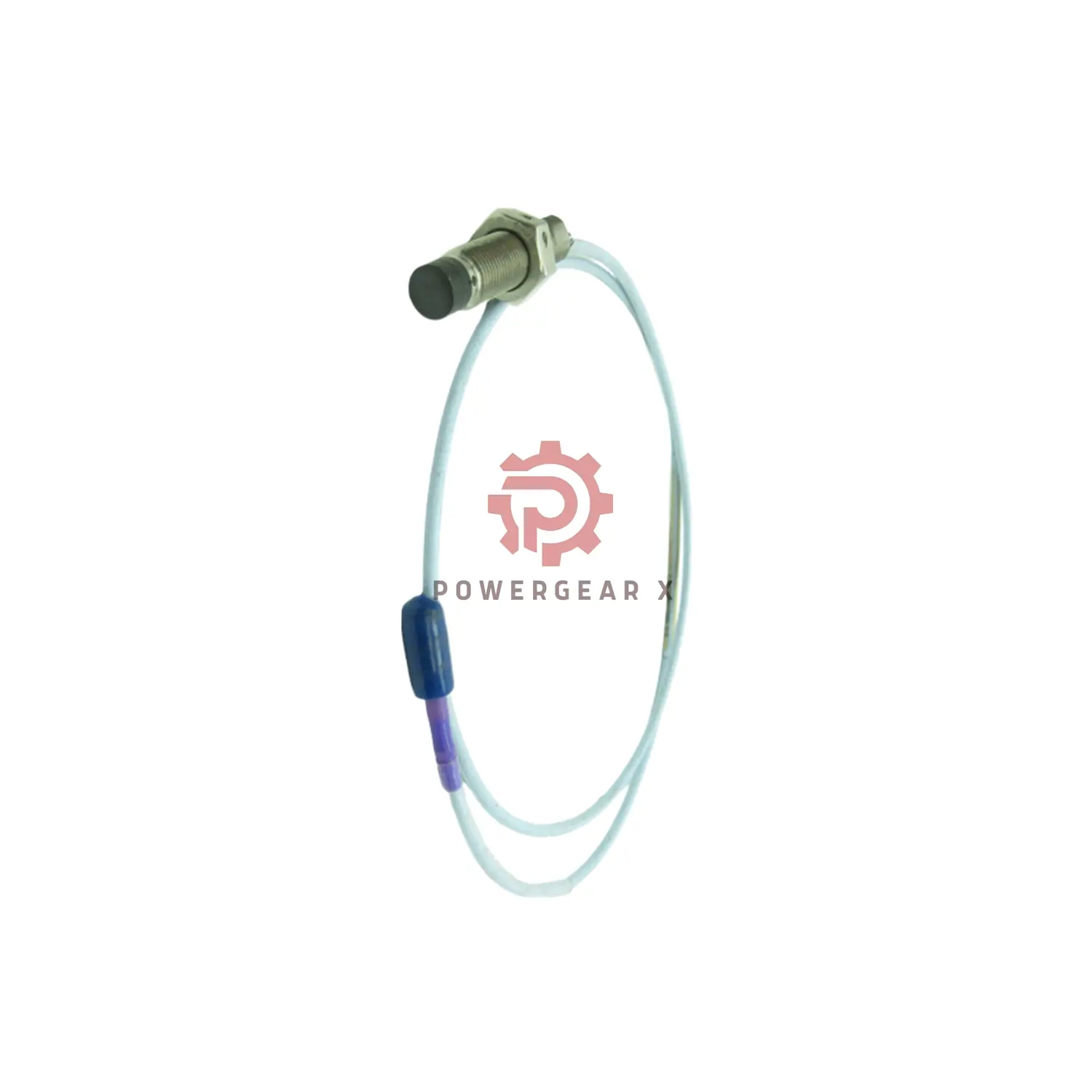

Bently Nevada 330707-00-24-10-02-05 3300 XL 11 mm Proximity Probe

Model Details

• 330707: 11 mm probe, 5/8-18 UNF thread, without armor
• 00: No unthreaded length (0 in)
• 24: Case length 2.4 in
• 10: Probe length 1.0 meter (3.3 feet)
• 02: Miniature coaxial ClickLoc connector, standard cable
• 05: Multiple agency approvals

Technical Specifications

• Tip Material: Polyphenylene sulfide (PPS)
• Case Material: AISI 304 stainless steel
• Cable: 75 Ω triaxial, FEP insulated, lengths 1, 5, or 9 meters
• Operating Temperature: -52°C to +177°C (-62°F to +351°F)
• Storage Temperature: Same as operating range
• DC Resistance (1 m): 5.9 ± 0.5 Ω
• Pressure Seal: Viton O-ring, not pressure tested before shipment

Installation Guide (330707-00-24-10-02-05)

• Use proper torque to avoid damage
• Install in 5/8-18 UNF threaded hole
• Avoid bending cable below 25.4 mm radius
• Keep probe above -34°C (30°F) to protect seal

Package & Warranty

• Includes one probe with cable
• 12-month warranty
