330701-00-24-90-02-05 Bently Nevada | 11 mm Proximity Probe

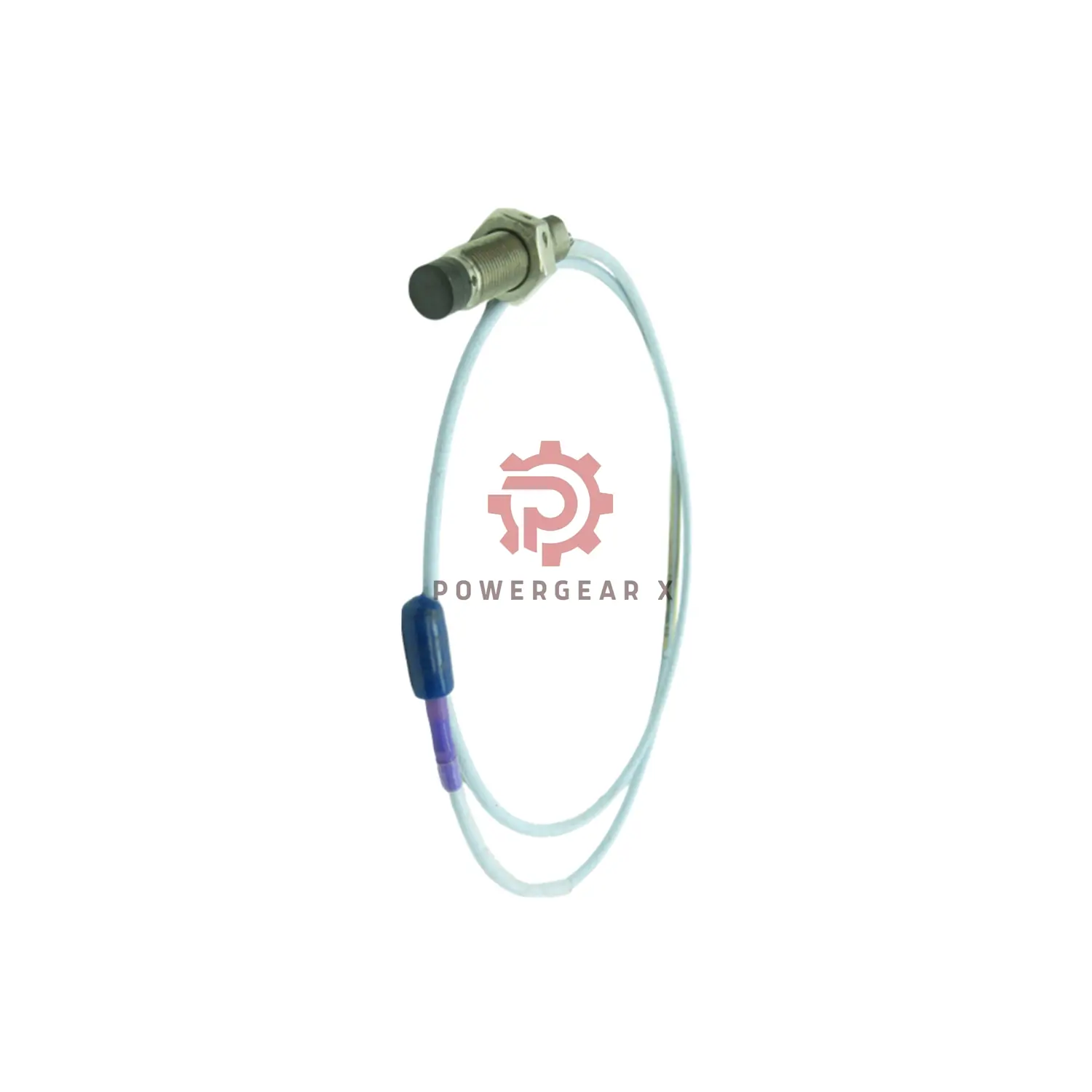

Bently Nevada 9M Long-Range Probe – Model 330701-00-24-90-02-05

Industrial vibration sensor with 9-meter cable for large facilities. Stainless steel construction with wide temperature range. Made in USA.

Part Number Details

• 330701: 11mm Probe (1/2-20 UNF thread)
• 00: 0″ unthreaded section
• 24: 2.4″ case length
• 90: 9.0 meter cable length
• 02: ClickLoc connector + standard cable
• 05: Multiple international approvals

Technical Highlights

• Extended cable: 9 meters (29.5 feet)
• Special resistance: 8.5Ω ±1.1Ω
• Max thread engagement: 0.750 inch
• Temperature range: -51°C to +177°C
• Min bend radius: 25.4mm (1.0 inch)
• Cable type: 75Ω triaxial FEP

Installation Guide

• Use 15.2 N•m torque (133 in•lb)
• Max torque: 45.2 N•m (400 in•lb)
• Finger-tight connectors only
• Avoid installation below -34°C

Shipping & Support

• Worldwide delivery: FedEx, UPS, DHL
• Certificate of Origin available
• 12-month manufacturer warranty

Expert FAQs

• Q: What applications need 9m cables?
  A: Large turbines, multi-level plants, distant equipment
• Q: Why higher resistance in 9m version?
  A: Longer cable increases electrical resistance
• Q: Can I cut the cable shorter?
  A: No – will damage probe function
• Q: Saltwater environment suitable?
  A: Yes – stainless steel resists corrosion
• Q: Pressure testing available?
  A: Custom service upon request

Get 330701-00-24-90-02-05 Documents

Download these resources:

• Complete installation guide
• Technical specifications
