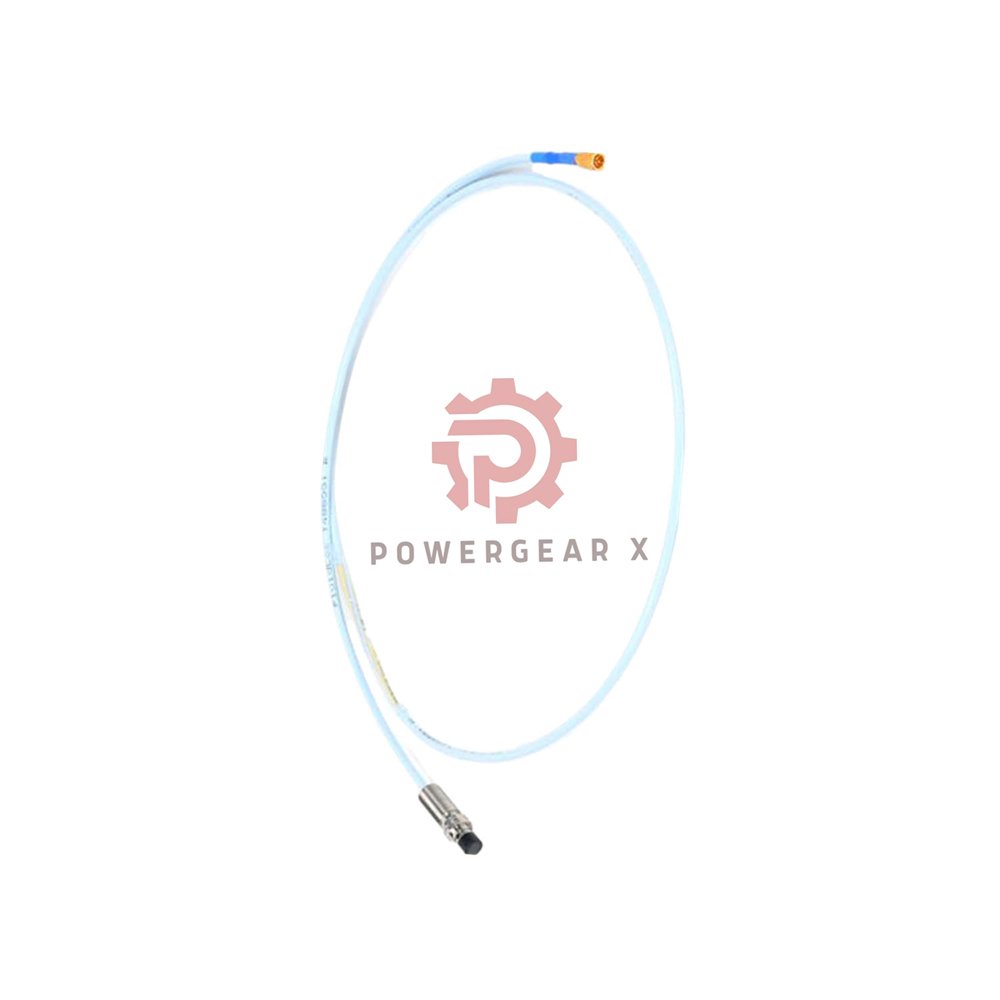

330193-00-03-10-CN Bently Nevada 3300 XL 8 mm Probe – Ultra-Short Case

330193-00-03-10-CN Bently Nevada 3300 XL 8 mm Probe

Brand: Bently Nevada · Series: 3300 XL · Type: 8 mm proximity probe · Thread: M10 x 1 · Case: 30 mm ultra-short · Cable: 1.0 meter.

Made in U.S.A. Non-contact sensor for vibration, position, speed. Compact design fits tight spaces.

Need help? sales@powergearx.com | +86 18030005825 (WhatsApp)

1. Model Code – Suffix Tree

• 330193 – Base: 3300 XL 8 mm Probe, M10 x 1 thread, without armor
  • Suffix 1: 00 – Unthreaded length
    • 00 = 0 mm unthreaded length
    • Max available: 230 mm · Min: 0 mm
  • Suffix 2: 03 – Overall case length
    • 03 = 30 mm case length (ultra-short)
    • Ideal for tight mounting areas
  • Suffix 3: 10 – Total cable length
    • 10 = 1.0 meter (3.3 feet)
    • DC resistance: 7.59 ± 0.50 Ω
  • Suffix 4: CN – Agency approval
    • CN = Country Specific approval
    • Contact us for approval details in your region

2. Key Technical Data – Simple & Clear

• Performance specs
  • Sensitivity: 7.87 V/mm (200 mV/mil) ±5%
  • Linear range: 2 mm (80 mils)
  • Linearity: ±0.025 mm (±1 mil) max
  • Frequency response: DC to 10 kHz
  • Resolution: sub-micron
• Environment & materials
  • Temp range: -52°C to +177°C (-62°F to +350°F)
  • Below -34°C may shorten seal life
  • Humidity: <3% change at 93% RH (56 days)
  • Tip: Polyphenylene sulfide (PPS)
  • Case: AISI 303/304 stainless steel
  • Thread: M10 x 1, max engagement 15 mm
  • Seal: Viton® O-ring (differential pressure)
• Magnetic field immunity (60 Hz)
  • Probe output: as low as 0.0004 mV pp/Gauss
  • Excellent resistance to nearby motors and transformers

3. Installation – Short & Simple

• Mounting
  • Thread M10 x 1, tighten to 10–12 N·m
  • Max thread depth: 15 mm only
  • 30 mm case fits where space is limited
• Cable routing
  • 1.0 m cable – easy to manage
  • Avoid sharp bends, use soft clamps
• Pressure seal note
  • Viton® O-ring seals differential pressure
  • Not tested before ship. Contact us if test needed.

4. Compatibility & System Setup

• Proximitor compatibility
  • Works with 3300 XL 8 mm Proximitor (330180/330181)
  • Compatible with 1m, 5m, and 9m Proximitor systems
• Compare with other models
  • 330191-00-40-10-00 – Standard case, longer unthreaded section
  • 330191-00-40-10-05 – With hazardous area approvals
• Total length rule
  • Probe + extension ≤ 9.5 m for best accuracy
  • 1.0 m probe works well alone or with short extensions

5. Expert Review & Manager’s Insight

• Engineer’s take
  • Ultra-short 30 mm case fits in cramped turbine casings
  • 0 mm unthreaded section means probe tip starts right at thread end
  • Low magnetic field interference – stable near large motors
• Manager’s advice
  • Best for retrofits where space is very tight
  • Country Specific approval (CN) – check local requirements
  • We ship in 12-24 hours via FedEx, UPS, DHL
  • 12-month warranty covers manufacturing defects

6. Best Applications & Equipment

• Compact machinery
  • Small turbines, compressors with limited probe space
  • Gearboxes, bearing housings with tight clearance
• Retrofit projects
  • Replace older probes where case length must be short
  • Upgrade existing machines without modifying mounts
• Standard rotating equipment
  • Pumps, fans, motors, generators
  • Vibration and position monitoring

7. Shipping & Warranty – What You Get

• Fast delivery
  • 12-24 hour dispatch after order
  • Carriers: FedEx, UPS, DHL worldwide
• Warranty
  • 12 months from ship date
  • Covers defects in materials and workmanship
  • Easy RMA: sales@powergearx.com
• Package includes
  • 1 x 330193-00-03-10-CN probe
  • Installation guide and certification

8. Professional FAQ – 5 New Questions

• Q: What does 00 unthreaded length mean for installation?
  • A: Probe tip starts right at thread end. No blank section before threads. Great for shallow mounting holes.
• Q: Why choose 30 mm case length?
  • A: Fits where standard 200 mm case is too long. Ideal for tight turbine casings or gearboxes.
• Q: What is “Country Specific” approval (CN)?
  • A: Approval varies by country. Contact us with your location. We help verify local compliance.
• Q: How does magnetic field immunity help me?
  • A: Probe output is only 0.0004 mV pp/Gauss. No false signals even near large motors or transformers.
• Q: What is your return policy if probe fails?
  • A: 12-month warranty. Contact sales@powergearx.com for quick replacement. We ship within 12-24 hours for warranty items too.

9. Selection Guide – Compare & Choose

• Pick 330193-00-03-10-CN if you need:
  • Ultra-short 30 mm case for tight spaces
  • 0 mm unthreaded section (tip starts at thread)
  • 1.0 meter cable, simple setup
  • Country Specific approval – check with us
• Compare with similar probes
  • 330191-00-40-10-00 – Longer 40 mm unthreaded, standard case, basic approval
  • 330191-00-40-10-05 – Similar length but with ATEX/CSA approvals
• Pro tip
  • Measure your mounting hole depth. If shallow, choose 00 unthreaded. If deep, choose longer unthreaded option.
  • For high temperature above 177°C, ask about extended range version.

10. Need Help? Contact Us

Email: sales@powergearx.com · WhatsApp: +86 18030005825
We provide engineering support and fast quotes for bulk orders.
