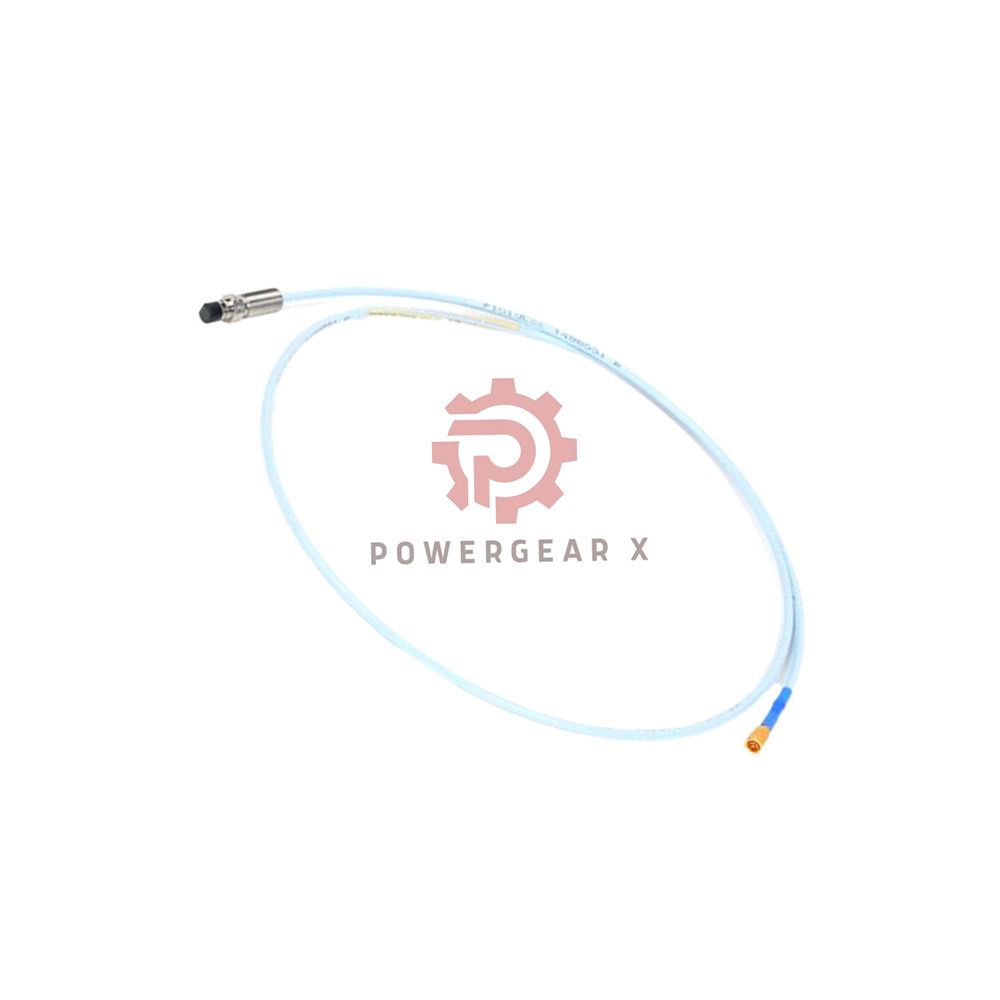

330193-00-02-90-CN Bently Nevada 3300 XL 8 mm Probe, M10 x 1 Thread, 9m Cable

 Product Overview

Bently Nevada 330193-00-02-90-CN
└── 3300 XL 8 mm Probe, M10 x 1 thread, without armor
├── Made in U.S.A.
└── 9.0 meter cable for remote monitoring applications

 Core Specifications

• Model
  └── 330193-00-02-90-CN
• Series & Type
  └── 3300 XL 8 mm Probe
  ├── M10 x 1 thread
  └── No armor
• Cable Length
  └── 90 = 9.0 meters (29.5 feet)
  └── Designed for use with 9 meter Proximitor sensor only
• Case Length
  └── 02 = 20 mm overall case length
• Unthreaded Length
  └── 00 = 0 mm (max unthreaded: 230 mm)
• DC Resistance
  └── 9.0 m probe: 9.87 ± 0.50 Ω (center to outer conductor)
• Materials
  └── Tip: Polyphenylene sulfide (PPS)
  └── Case: AISI 303 or 304 stainless steel
  └── Thread: M10 x 1, max engagement 15 mm

 Environmental & Operating Data

• Temperature Range
  └── Standard probe: -52°C to +177°C
  ├── Extended tip: -52°C to +218°C
  └── Cable & connector: -51°C to +260°C
  └── Caution: below -34°C may damage pressure seal
• Humidity Performance
  └── <3% scale factor change at 93% RH (IEC 68-2-3, 56 days)
• Magnetic Field Immunity (60 Hz, up to 300 Gauss)
  └── At 10 mil gap: probe 0.0004 mV pp/Gauss
  ├── At 50 mil gap: probe 0.0014 mV pp/Gauss
  └── At 90 mil gap: probe 0.0045 mV pp/Gauss
• Pressure Seal
  └── Viton® O-ring seals tip to case
  └── Not pressure tested before shipment

 Hazardous Area Approvals

• ia (Intrinsic Safety)
  └── Class I, Zone 0: AEx/Ex ia IIC T5…T1 Ga
  ├── Class I, Groups A, B, C, D
  ├── Class II, Groups E, F, G
  └── Class III
  └── Use with zener barriers (drawing 141092) or galvanic isolators
• nA, ec (Non-Incendive)
  └── Class I, Zone 2: AEx/Ex nA IIC T5…T1 Gc
  ├── Class I, Division 2, Groups A, B, C, D
  └── Use with non-incendive circuit (drawing 140979)

 Temperature Schedule (Probe Only)

• EPL Ga and Gc
  ├── T1: -55°C to +232°C
  ├── T2: -55°C to +177°C
  ├── T3: -55°C to +120°C
  ├── T4: -55°C to +80°C
  └── T5: -55°C to +40°C
• EPL Dc
  ├── T280°C: -55°C to +232°C
  ├── T225°C: -55°C to +177°C
  ├── T170°C: -55°C to +120°C
  ├── T130°C: -55°C to +80°C
  ├── T105°C: -55°C to +100°C
  └── T90°C: -55°C to +40°C

 Expert Review

└── “The 3300 XL 8 mm Probe with 9m cable is ideal for remote machine monitoring.
├── Long cable allows sensor placement far from the Proximitor.
├── Stainless steel case handles harsh plant environments.
└── Reliable choice for turbines, compressors, and large rotating equipment.”

 Manager’s Insight

└── We stock this Bently Nevada 330193-00-02-90-CN for clients needing long cable runs.
├── Perfect when the Proximitor must be placed in a safe area away from the machine.
├── 12-month warranty covers material and workmanship.
├── Ships within 12-24 hours via FedEx, UPS, or DHL.
└── Reduces downtime with fast delivery and reliable performance.

Suitable Applications & Equipment

• └── Steam turbines and gas turbines
• └── Centrifugal and reciprocating compressors
• └── Large electric motors and generators
• └── Pumps and fans in critical service
• └── Remote monitoring where Proximitor must be located away from the machine

 Installation & Compatibility

• Thread Engagement
  └── Max 15 mm. Use correct torque to avoid damage.
• System Matching
  └── This 9m probe works only with 9 meter Proximitor sensors.
  └── Do not use with 5m or 1m Proximitors.
• Pressure Seal Care
  └── Keep temperature above -34°C to protect the Viton® O-ring.

 Comparison & Selection Guide

└── Consider reverse mount probes for tight spaces:

• ├── 330195-02-12-10-05 – Reverse mount, 5m cable
• └── 330195-02-12-10-CN – Reverse mount, country specific approval

└── Choose standard probe for direct mounting. Choose reverse mount when clearance is limited.

 Frequently Asked Questions (FAQ)

• Can I use this probe with a 5m Proximitor?
  └── No. This 9m probe only works with 9 meter Proximitor sensors. Mismatch will cause errors.
• What is the longest cable available?
  └── 9.0 meters is the maximum for 3300 XL probes. Use extension cables for longer runs.
• How do I protect the pressure seal in cold weather?
  └── Keep probe temperature above -34°C. Use heat tracing or insulation if needed.
• What approvals does this model have?
  └── CN = country specific. It meets ia and nA/ec approvals with proper barriers per drawings.
• What is your return and warranty policy?
  └── 12-month warranty against defects. Ships in 12-24 hours. Contact us for returns.

 Shipping & Service

• └── 12-month warranty on materials and workmanship
• └── Ships within 12-24 hours after order confirmation
• └── Carriers: FedEx, UPS, DHL with global tracking
• └── Each probe in protective packaging with documentation
