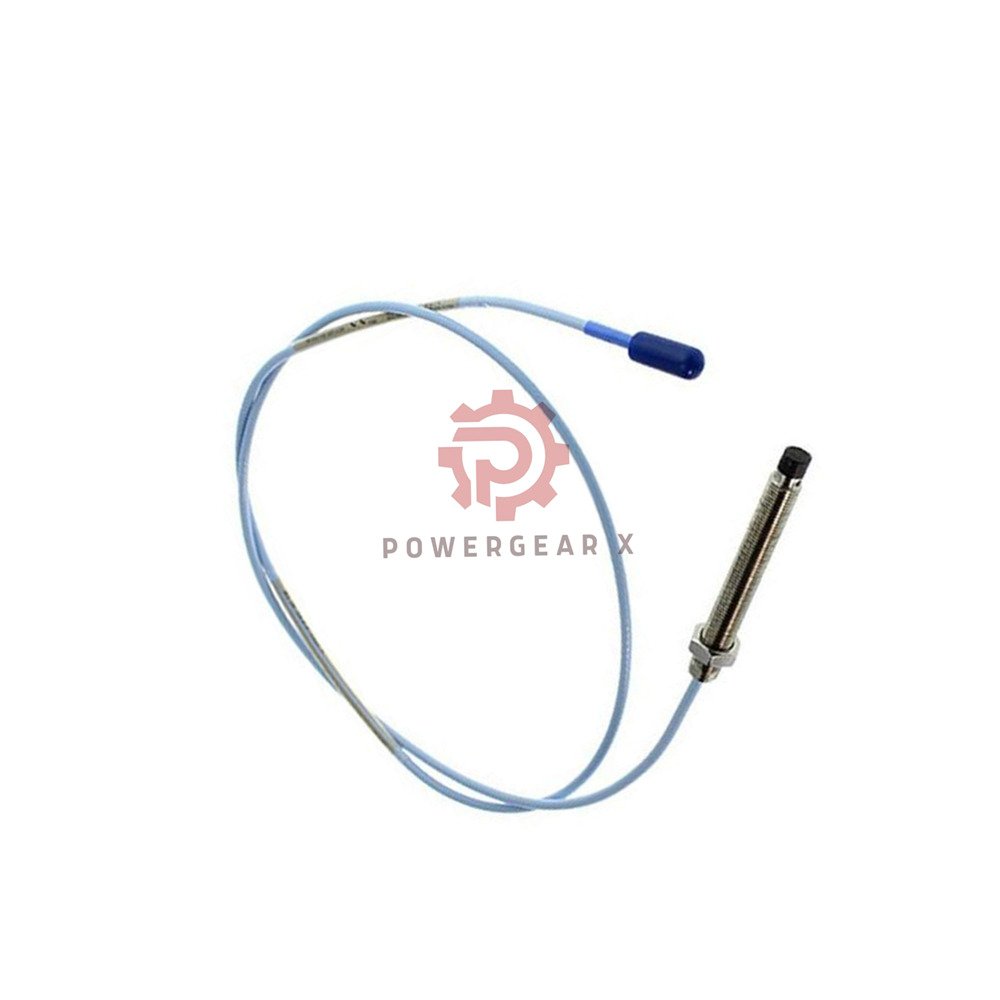

330191-00-26-10-00 Bently Nevada 8mm Probe – 3300 XL Series 1m Cable

330191-00-26-10-00 – Bently Nevada 3300 XL 8 mm Proximity Probe

Factory new · 12 months warranty · 12‑24h dispatch (FedEx/UPS/DHL)

Industrial eddy current probe for vibration/position. Patented TipLoc and CableLoc give 330 N pull strength. One‑piece 1 m system, no extension cable needed.

🧩 Ordering number tree – 330191 options

• 330191 – 3300 XL 8 mm ETR probe, 3/8-24 UNF thread, without armor
  • ├─ -00 – Minimum unthreaded length: 0.0 inch
  • ├─ -26 – Overall case length: 2.6 inch
  • ├─ -10 – Total probe length: 1.0 meter (3.3 ft) — one‑piece assembly
    • └─ No extension cable; direct connect
  • └─ -00 – Agency approval: not required (general purpose)

⚙️ Technical specifications (by category)

• Brand & series – Bently Nevada / 3300 XL 8 mm
• Power & output
  • Supply: -17.5 to -26 Vdc (12 mA max) ; barriers -23 to -26 Vdc
  • Sensitivity: ≤2 mV change / V input change
  • Output resistance: 50 Ω
• Impedance / cable
  • Nominal probe DC resistance (RPROBE): 7.59 Ω ±0.50 (1.0 m length)
  • Standard cable: 75 Ω triaxial FEP insulated
  • Optional: PFA for extended temperature
• Mechanical construction
  • Tip material: Polyphenylene sulfide (PPS) – thick encapsulation
  • Case material: AISI 303 / 304 stainless steel
  • Thread: 3/8-24 UNF, max engagement 0.563 in
  • Tensile strength: 330 N (75 lbf) probe case to lead
  • Connector: gold‑plated brass/BeCu, torque 0.565 N·m (5 in·lbf)
  • Weight: 323 g/m (11.4 oz per meter)
• Environmental & approvals
  • Temperature range (probe only): -55 °C to +232 °C (T1 class)
  • Sealing: Viton® O‑ring (differential pressure seal)
  • Entity parameters met with BN extension cables & BN Prox
  • Temperature schedules: EPL Ga, Gc, Dc (T1–T5) – full list in manual

🔧 Installation / maintenance hierarchy

• Mounting
  • Max thread engagement: 0.563 in – avoid overtightening
  • Use backup wrench on hex; never twist cable
  • TipLoc molding secures tip to body
• Cabling & strength
  • CableLoc: 330 N pull strength (connector to tip)
  • FluidLoc option (optional) – stops oil wicking
  • 1 m system: no extension cable, fewer connection points
• Maintenance
  • Gold connectors: torque to 0.565 N·m only
  • Periodic tip cleaning with non‑abrasive solvent
  • Inspect O‑ring before installation in pressurized zones

🔄 Compatibility & certification tree

• Compatible with
  • Bently Nevada 3300, 3500 monitors, Proximitor sensors
  • Third‑party systems with -24 Vdc supply & eddy current conditioner
  • Extension cables: only 3300 XL 8 mm series (not needed for 1 m)
• Certification path
  • -00 option: general industrial (no intrinsic safety cert)
  • With barriers: meets entity parameters per dwg 140979
  • Temperature class: T1 to T5 (see suffix schedules)

📦 Logistics & warranty

• Included: 1x Bently Nevada 330191-00-26-10-00 probe (factory sealed)
• Warranty: 12 months from shipment (defects coverage)
• Dispatch: 12‑24 hours (stock item)
• Shipping partners: FedEx, UPS, DHL – tracking provided

👨‍🔬 Manager’s insight – 8 mm advantage

We have seen 5 mm Proximity Probes work in tight spots, but the 8 mm version offers unmatched ruggedness. The thicker PPS tip and 330 N pull strength reduce downtime in high‑vibration machines. For new installations, choose the 1 m one‑piece assembly – simpler and more reliable. If oil leaks are a concern, add FluidLoc. This 330191 build is our top pick for steam turbine radial vibration.

📎 5 mm vs 8 mm – selection tree

• ➤ 3300 5 mm Proximity Probes (compact) – for confined areas
• ➤ This 8 mm probe (330191-00-26-10-00) – maximum durability
• ➤ Alternative part numbers
  • 330191-40-75-50-CN – different case length/options
  • 330191-40-75-90-05 – with armor & extended temp cable
• Selection guide: For temperatures above 177 °C, order PFA cable. For high pressure, verify thread engagement ≤0.563 in.

❓ Field FAQ

• Q: Can I pair this 8 mm probe with an older 5 mm extension?A: No – always use 3300 XL 8 mm extension cables. The 1 m system avoids extension entirely.
• Q: What does total length option “10” actually mean for installation?A: “10” = 1.0 meter one‑piece probe + cable. No extra connector, better signal integrity.
• Q: FluidLoc – do I need it for dry gas seals?A: Only for oil‑lubricated machines. If you have oil mist or wet sumps, choose FluidLoc.
• Q: Is this probe compatible with 3300/20 monitor?A: Yes – all 3300 XL monitors support 8 mm probes. Verify power supply range.
• Q: How do I avoid damaging the tip during assembly?A: Use the wrench flats on case – never pull the cable. TipLoc already prevents internal looseness.
• Q: Which agency approval suffix for Zone 1?A: -00 is not certified. You need -05 (ATEX) or -CN with barriers. Consult factory.

🏭 Applications & suitable equipment

• Machinery: Steam turbines, centrifugal compressors, gearboxes, pumps, hydro turbines
• Functions: Radial vibration, axial thrust, eccentricity, speed/phase reference
• Environments: Refineries, power generation, offshore platforms – stainless steel case & Viton seal
• Monitors: Bently Nevada 3500, 3300, 1900; also compatible with 3rd party conditioners with -24 Vdc supply
