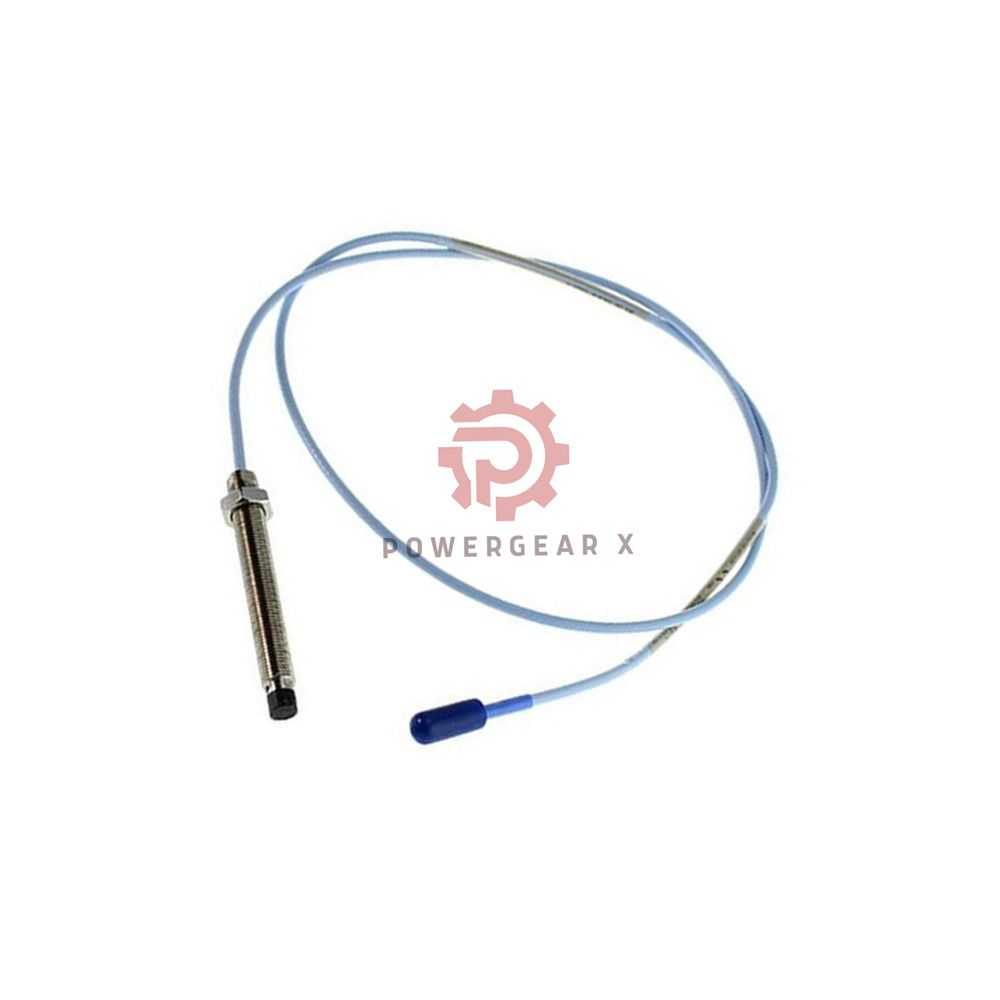

330191-00-16-90-05 Bently Nevada 8 mm ETR Proximity Probe

Product Brief

• 330191-00-16-90-05 Bently Nevada 3300 XL 8 mm ETR Proximity Probe. Factory new, original packaging.
• Patented TipLoc & CableLoc provide 330 N (75 lbf) pull strength. Robust PPS tip, stainless steel case.
• Total length 9.0 meters (29.5 feet) – no extension cable needed. Ideal for turbines, compressors, pumps.
• FluidLoc option prevents oil leakage through cable interior (available on request).
• 12‑month warranty, 12‑24 h express shipping (FedEx, UPS, DHL).
• Compare with 3300 5mm Proximity Probes for smaller machine applications.

Ordering Code – Tree Structure (Suffix Breakdown)

• 330191 (Base model: 3300 XL 8 mm ETR Probe, 3/8-24 UNF thread, without armor)
  • 00 – Unthreaded length: minimum 0.0 inch
  • 16 – Overall case length: 1.6 inch
  • 90 – Total length: 9.0 meters (29.5 feet)
  • 05 – Agency approvals: CSA, ATEX, IECEx
• Complete part: 330191-00-16-90-05

Technical Specifications

• Brand: Bently Nevada | Model: 330191-00-16-90-05
• Power supply: -17.5 to -26 Vdc (12 mA max). With barriers -23 to -26 Vdc.
• Sensitivity: < 2 mV change per volt input. Output resistance: 50 Ω.
• Probe DC resistance (RPROBE): 9.87 ± 0.50 Ω (9.0 m length).
• Thread size: 3/8-24 UNF, max engagement 0.563 in.
• Temperature range: Probe only -55°C to +232°C (T1 class). Full schedule per ATEX/IECEx.
• Materials: PPS tip, AISI 303/304 case, gold-plated connectors. FEP triaxial cable standard.
• Environmental: Viton® O-ring seals probe tip against differential pressure.
• EMI/RFI immunity: Built into 3300 XL system; use with BN extension cables and proximitor.

Installation & Maintenance

• Torque connectors to max 0.565 N•m (5 in•lb). Hand-tighten only.
• Use Bently Nevada extension cables and proximitors for entity parameter compliance.
• Ensure Viton O-ring seals correctly (probes not pressure tested before shipment).
• No calibration needed – factory set. Swap without system re-calibration.
• FluidLoc cable option simplifies maintenance in oil-wetted environments.

Compatibility & System Integration

• Compatible with 3300 XL, 3500, and Trendmaster* systems (*with adapter).
• Works with all Bently Nevada 8 mm proximitors and extension cables (sold separately).
• For tight spaces or retrofits, see 5mm Proximity Probes.
• Entity parameters met when used with BN extension cables and BN Proximitor®.

Certifications & Approvals

• CSA, ATEX, IECEx (option code 05) – suitable for hazardous areas.
• Temperature classifications: T1…T5 for gas groups, Dc for dust. Refer to temperature schedule.
• EPL Ga, Gc, Dc ratings. Non-incendive circuits per drawing 140979.

Packaging & Delivery

• Factory‑sealed Bently Nevada packaging. Includes probe with integral cable, test certificate.
• 12‑month warranty from shipment date.
• 12‑24 hour dispatch via FedEx, UPS, DHL (express shipping).
• Contact: sales@powergearx.com | +86 18030005825 (WhatsApp)

Expert Review – Manager’s Insight

• 8 mm advantage: Thicker PPS encapsulation and larger body offer superior robustness. Preferred for high‑stress rotating equipment.
• FluidLoc value: Prevents oil leakage through cable – a true reliability upgrade in lube oil systems.
• 9 m total length: Perfect when monitor rack is far from machine, eliminates extra junction boxes.
• 5 mm alternative: For tight installations, the 3300 5mm series offers similar performance in smaller thread sizes.

Selection Guide – Compare Similar Models

• 330191-40-75-15-05 – ATEX certified, 1.5 m cable, short system. Best for compact installations.
• 330191-40-75-15-00 – 7.5 inch case, 1.5 m cable, no agency approvals. Cost‑effective for general purpose.
• 330191-00-16-90-05 (this item) – 9 m total length, full hazardous approvals, longest cable. Recommended for remote monitoring racks.
• Need shorter or armored? Contact sales for options.

Frequently Asked Questions (FAQ)

• What machines typically use this 3300 XL 8 mm probe?Steam turbines, centrifugal compressors, gearboxes, large pumps, and any critical rotating asset requiring eddy‑current measurement.
• Can I use this probe with a 5 mm extension cable?No. Use only 8 mm Bently Nevada extension cables to maintain system accuracy.
• How do I select between 5 mm and 8 mm probes?8 mm offers greater durability. Choose 5 mm when mounting space is limited or retrofitting older 5 mm holes.
• What does “ETR” mean in the model?Extended Temperature Range – probe cable insulation rated for higher temperatures (PFA for ETR versions).
• Is the 9 m length including the probe tip?Yes. Total length from tip to connector is 9.0 meters. It is a one‑piece system; no extension cable required.
• Do you ship internationally?Yes. We ship worldwide via FedEx, UPS, or DHL. Typical dispatch within 12‑24 hours.
• Can I get a shorter version with the same approvals?Yes. Models like 330191-XX-XX-15-05 (1.5 m) share the same approvals. Contact us for availability.
