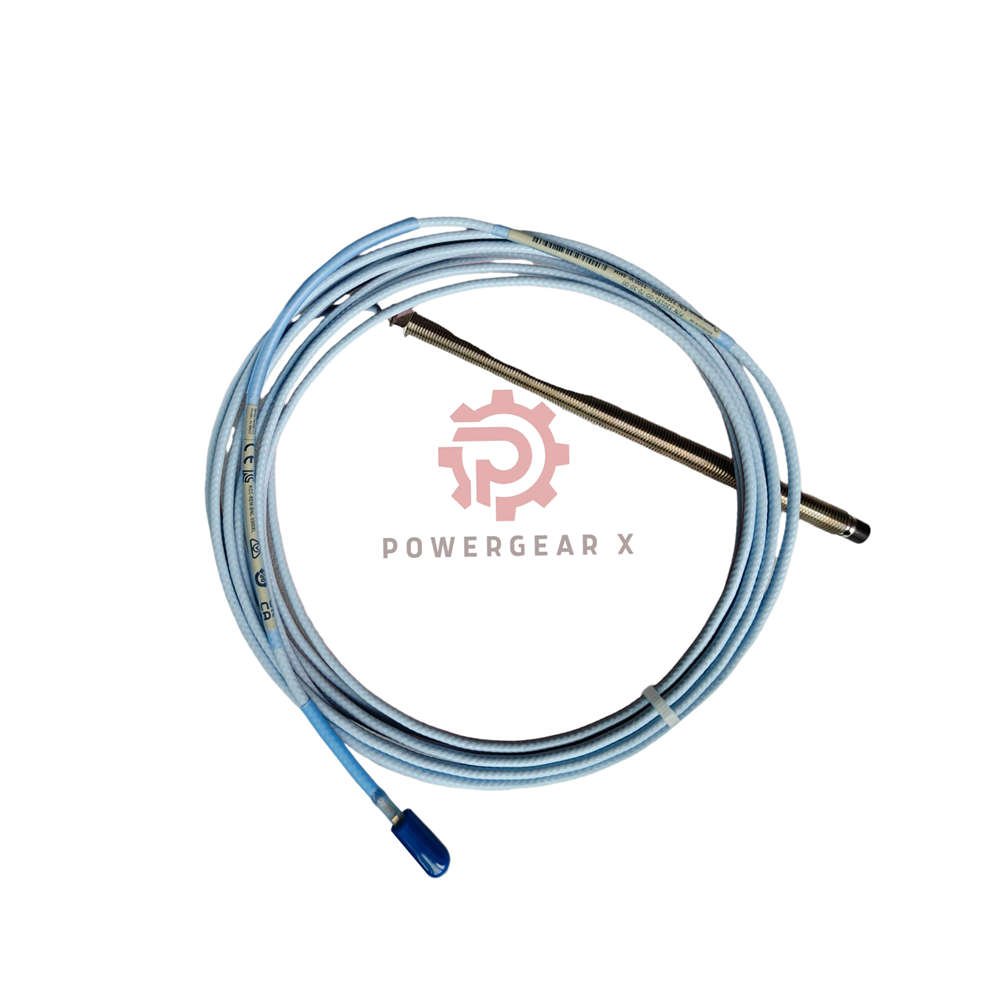

Name: 330191-00-16-05-05 Bently Nevada 3300 XL 8mm Probe – Compact ETR Sensor
SKU: 330191-00-16-05-05
Price: 239.00 USD
Availability: InStock

Product details

330191-00-16-05-05 Bently Nevada 3300 XL 8 mm ETR Proximity Probe

High-reliability sensing for critical machinery. This Bently Nevada 3300 XL 8 mm ETR probe (Part: 330191-00-16-05-05) delivers precision in a compact form. New & original in factory pack. Backed by a full 12-month warranty.

Model Breakdown: Suffix Tree

330191 – 3300 XL 8 mm ETR Probe, 3/8-24 UNF thread, without armor
- Unthreaded Length: 00 = 0.0 in (minimum)
  - Overall Case Length: 16 = 1.6 inches
    - Total Length: 05 = 0.5 meter (1.6 feet)
      - Agency Approval: 05 = CSA, ATEX, IECEx Approvals
Compare with similar models:
- 330192-00-60-10-00 (different case/length, 330192 series)
- 330192-00-10-10-00 (alternative 330192 configuration)

Technical Facts (Simply Put)

Power: Needs -17.5 to -26 Vdc. Max draw 12 mA.
Output: 50 Ω impedance. Very stable: < 2 mV change per volt.
DC Resistance: 7.45 ± 0.50 Ω (for this 0.5 m probe).
Temperature: Probe works -55°C up to +232°C (see T-rating).
Rugged build: Patented TipLoc & CableLoc give 330 N pull strength.
Materials: PPS tip, stainless steel case (AISI 303/304), gold-plated connectors.
Sealing: Viton® O-ring stops fluid leaks.

Installation Quick Guide

Thread: 3/8-24 UNF. Max engagement 0.563 in.
Torque limit: 0.565 N•m (5 in•lbf) on connector.
Weight: 323 g per metre (11.4 oz/ft). This short probe is very light.
Optional FluidLoc cable: Prevents oil wicking inside cable.

Expert Review & Manager’s Insight

Manager’s Insight: The 330191-00-16-05-05 is a space-saver champion. With a 1.6-inch case and 0.5 m total length, it fits tight spots like gearbox bearings. The 8 mm body is far tougher than older slim probes. Triple approval (CSA, ATEX, IECEx) means one SKU for global hazardous areas. For extreme temps, add PFA cable. This is our go-to for compact, certified installations.

Where to Use It

Small compressors, pumps with limited clearance.
Steam turbines, gas turbines in hazardous zones.
Gearboxes, fans, any rotating asset needing position or vibration monitoring.

Five Professional FAQs (Not Repeated)

1. What does the “16” case length mean for my installation?“16” means 1.6 inches from shoulder to tip. It’s our shortest standard case, ideal when the mounting hole is shallow. Ensures the probe tip reaches the shaft without bottoming out.
2. Is the 05 approval really for three certifications?Yes, suffix 05 gives you CSA, ATEX, and IECEx. One probe works in North America, Europe, and internationally. Saves cost and complexity.
3. How does the 12-month warranty handle fast shipping?We ship within 12-24 hours via FedEx, UPS, DHL. If any defect appears within 12 months, we replace it fast. Our warranty is hassle-free.
4. Can I use this 0.5 m probe without an extension cable?Yes. 0.5 m is a one-meter system? Actually, one-meter systems don’t need extension cables. For 0.5 m, you also don’t need an extension. Connect directly to the proximitor.
5. How does it compare to 330192 models?330192 series often have different thread or length. This 330191 offers the 3/8-24 thread and very short case. Check our comparison tree above.

Selection Guide: Which One to Pick?

Choose 330191-00-16-05-05 for shortest case (1.6″), 0.5 m cable, triple global approvals.
Need longer case or different length? See 330192-00-60-10-00 or 330192-00-10-10-00.
All ship 12-24h via FedEx/UPS/DHL.
