330191-00-08-50-CN Bently Nevada 8 mm Probe 3300 XL Series ETR Country Approved

Product Description

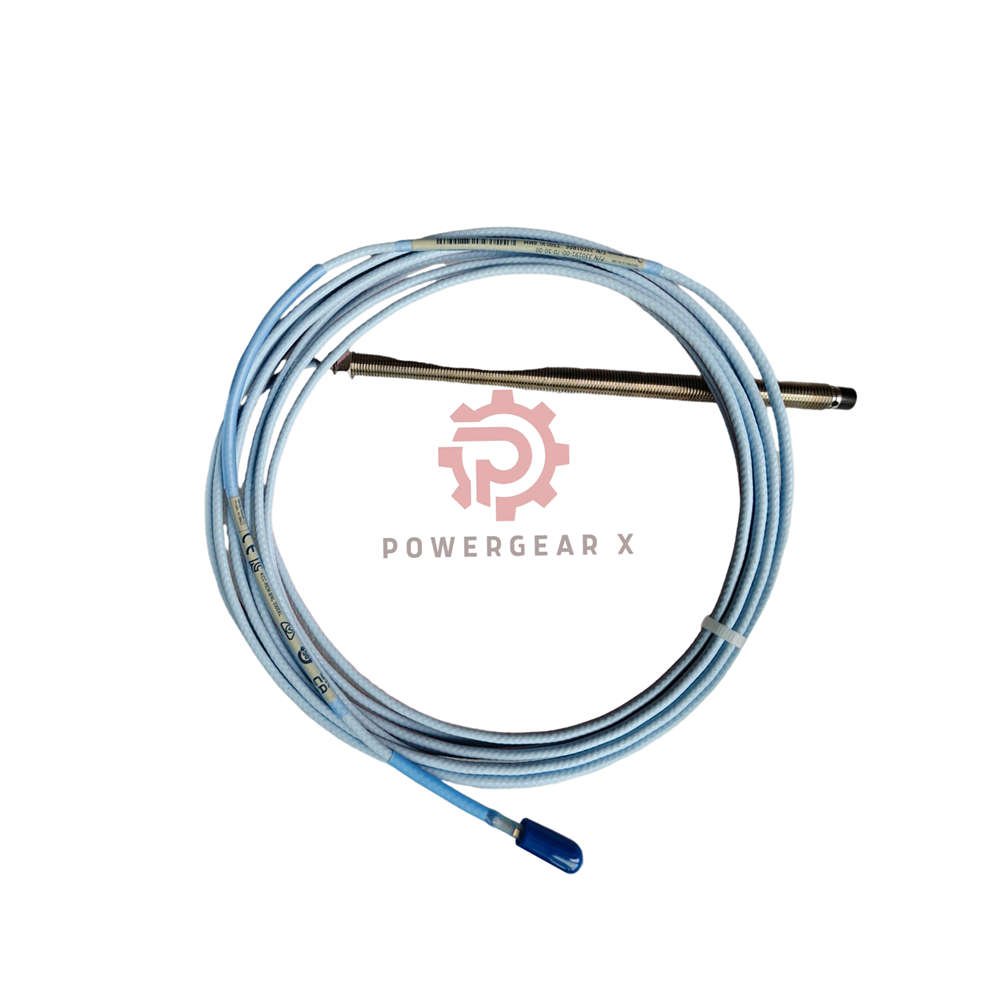

Genuine Bently Nevada 330191-00-08-50-CN
3300 XL 8 mm ETR Proximity Probes.
Extended Temperature Range design with Country Specific Approval (CN). Features 5.0 meter cable – designed for 5 meter Proximitor sensors only. Patented TipLoc and CableLoc technology ensure rugged reliability. Factory sealed, new in original packing.

Technical Specifications

• Brand: Bently Nevada
• Model: 330191-00-08-50-CN
• Type: 3300 XL 8 mm ETR Probe
• Thread: 3/8-24 UNF (Max engagement 0.563 in)
• Total Length: 5.0 meters (16.4 feet)
• Case Length: 0.8 in (Overall Case Length Option 08)
• Connector: Standard coaxial ClickLoc compatible
• Agency Approval: CN (Country Specific Approval)
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Case Material: AISI 304 stainless steel
• Temperature Range (Probe): -55°C to +232°C (T1 class)
• Power Requirement: -17.5 Vdc to -26 Vdc, 12 mA max
• Output Resistance: 50 Ω
• Probe DC Resistance: 8.73 Ω ± 0.50 (5.0m probe)
• Tensile Strength: 330 N (75 lbf) probe case to lead
• Recommended Torque: 5.1 N·m (45 in·lb)
• Max Connector Torque: 0.565 N·m (5 in·lb)
• Weight: Approx 1.615 Kg (5.0m cable included)

Configuration Options (Suffix Breakdown)

• Unthreaded Length (00): 0.0 inch
  • Minimum unthreaded tip
• Overall Case Length (08): 0.8 inch
  • Short case for shallow mounting
• Total Length (50): 5.0 meters (16.4 feet)
  • For use with 5 meter Proximitor only
• Agency Approval (CN): Country Specific Approval
  • Suitable for China market requirements

Performance & Environmental Data

• Linear Range: Optimized for 1.27 mm (50 mils) gap
• Supply Sensitivity: <2 mV change per volt change
• Sealing: Viton® O-ring prevents differential pressure leaks
• FluidLoc Option: Prevents oil leakage through cable (optional)
• Temperature Class (T1): -55°C to +232°C probe only
• EMI Rejection: Excellent 60 Hz magnetic field immunity

Installation Guide

• Mounting Thread: 3/8-24 UNF. Drill accordingly.
• Max Thread Engagement: 0.563 inch (14.3 mm)
• Torque Limit: 5.1 N·m (45 in·lb) recommended
• Connector Torque: Max 0.565 N·m (5 in·lb)
• Bend Radius: Maintain min 25.4 mm (1.0 in)
• Important: 5.0m system works ONLY with 5 meter Proximitor

Maintenance & Debugging

• Patented TipLoc molding: stronger bond tip to body
• CableLoc design: 330 N pull strength prevents pull-out
• Gold-plated contacts resist corrosion
• Quick thread-in replacement
• 5.0m cable reaches remote monitoring locations

Compatibility & System Integration

• Works with Bently Nevada 3300 XL 5 meter Proximitors only
• Complete 5.0m system – requires specific proximitor matching
• Calibrated for AISI 4140 steel targets
• Entity parameters met with BN extension cables

Certifications

• Agency Approval: CN (Country Specific Approval)
• Suitable for China regulatory requirements
• Temperature classifications per EPL Ga, Gc, Dc

Package Includes

• 1 x Bently Nevada 330191-00-08-50-CN
  3300 XL 8 mm ETR Proximity Probes
• Factory configuration: 0.8in case, 5.0m cable, CN approval
• Certificate of conformance (available on request)
• New in factory packing

Warranty & Shipping

• Warranty: 12 months from delivery (factory warranty)
• Dispatch: 12-24 hours (subject to stock)
• Couriers: FedEx, UPS, DHL (tracked shipping)
• Contact: sales@powergearx.com or +86 18030005825 (WhatsApp)

Expert Review & Manager’s Insight

The 330191-00-08-50-CN is specifically engineered for 5 meter Proximitor systems. The 0.8in short case fits tight installations while the 5.0m cable reaches remote monitors. CN approval makes it ideal for China projects. Critical note: This probe must ONLY be used with 5 meter Proximitors – mismatching lengths causes calibration errors. For shallow mounting with long cable reach, this is our recommended choice.

Applications & Compatible Devices

• Compressors with shallow case depths (0.8in)
• Turbines needing 5m remote monitoring
• Machinery with 5 meter Proximitor systems
• China-based projects requiring CN approval
• Any installation requiring 5.0m cable with short case

Frequently Asked Questions (FAQ)

• What is special about this 5.0m probe?This probe is designed EXCLUSIVELY for 5 meter Proximitor sensors. Using it with other proximitors will give incorrect readings. Check your system compatibility.
• What is the DC resistance for this model?8.73 Ω ± 0.50 from center to outer conductor. This matches 5 meter system calibration requirements.
• Why choose 0.8in case length (Option 08)?0.8in is the shortest case available. Perfect for thin machine casings or where space is limited behind the mounting hole.
• Difference between 330191-00-08-50-CN and 330191-00-70-90-00?-00-08-50-CN: 0.8in case, 5.0m cable, CN approval.
  -00-70-90-00: 7.0in case, 9.0m cable, no approval. Choose based on case depth, cable length, and certification needs.
• Can I use this probe with armored cable?Armor is optional and must be ordered separately. This standard version has FEP insulation without armor.

Alternative Models & Selection Guide

• Bently Nevada 330191-00-70-90-00 – 7.0in case, 9.0m cable, no agency approval.View 330191-00-70-90-00

  Select for deep casings with extra-long 9m reach, no certification needed.

• Bently Nevada 330191-00-70-90-05 – 7.0in case, 9.0m cable, CSA/ATEX/IECEx approvals.View 330191-00-70-90-05

  Choose for deep casings with international hazardous area certifications.

• Selection tip: Use -00-08-50-CN for shallow mounting with China approval and 5m reach. For deeper casings, consider -00-70-90 series. Match cable length to your proximitor type.
