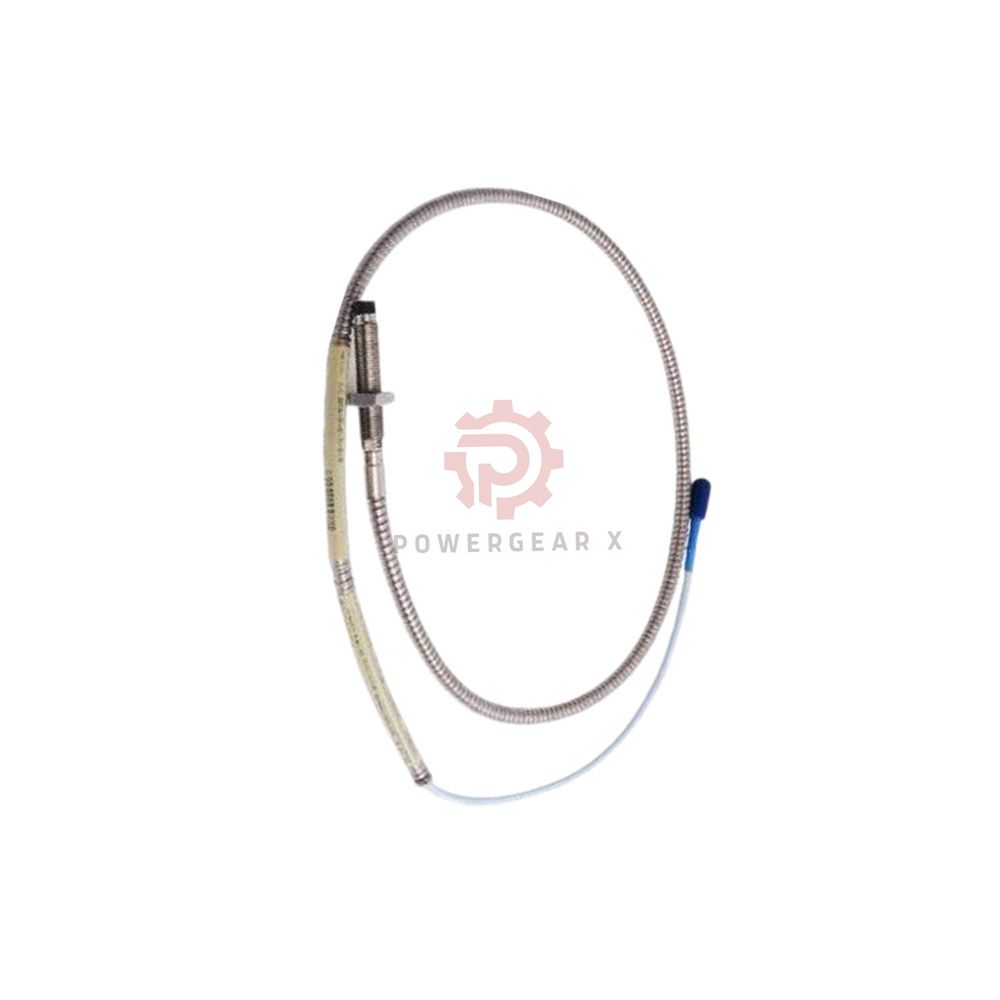

330172-04-12-05-02-CN Bently Nevada 5mm Short Case Armor Probe

330172-04-12-05-02-CN – Bently Nevada 5mm Short Case Probe

The 330172-04-12-05-02-CN is a 5mm proximity probe from Bently Nevada. It measures vibration and position. Made in U.S.A. Thread size: 1/4-28 UNF. With armor for tough jobs. Country specific approval (CN). Works with 3300 XL Proximitor systems.

Unthreaded length: 0.4 inches. Overall case length: 1.2 inches (short case). Cable length: 0.5 meter (1.6 feet). Connector: Miniature coaxial ClickLoc. Probe tip: PPS plastic. Case: AISI 304 stainless steel. Weight: 0.323 kg.

Technical Specifications

• Manufacturer: Bently Nevada
  • Product No.: 330172-04-12-05-02-CN
  • Type: 3300 5mm Probe, 1/4-28 UNF thread, with armor
• Length Options:
  • Unthreaded Length: 04 = 0.4 in
  • Overall Case Length: 12 = 1.2 in (short case)
  • Total Length (cable): 05 = 0.5 meter (1.6 feet)
• Connector & Approval:
  • Connector: 02 = Miniature coaxial ClickLoc
  • Agency Approval: CN = Country Specific
• Materials:
  • Probe Tip: Polyphenylene sulfide (PPS)
  • Probe Case: AISI 304 stainless steel
  • Cable: 75Ω triaxial, FEP insulated
  • Connector material: Gold-plated brass or beryllium copper
• Thread & Torque:
  • Thread: 1/4-28 UNF
  • Max thread engagement: 0.375 in
  • Probe case torque: 5.1 N·m (45 in·lb) recommended, 7.3 N·m (65 in·lb) max
• Electrical:
  • Power: -17.5 Vdc to -26 Vdc, 12 mA max
  • Supply Sensitivity: Less than 2 mV change per volt change
  • Output Resistance: 50 Ω
  • Probe DC Resistance (0.5m): 7.45 ± 0.50 Ω
• Environment & Limits:
  • Probe Temp Range: -35°C to +177°C (-31°F to +351°F)
  • Min Cable Bend Radius: 25.4 mm (1.0 in)
  • Tensile Strength: 222 N (50 lbf)
  • 60 Hz Magnetic Field effect: Up to 300 Gauss

Expert Review

The 330172-04-12-05-02-CN is a great short case probe for tight spots. Bently Nevada makes top quality sensors. This probe works from -35°C to +177°C. The 1.2 inch case fits where space is small. The PPS tip resists chemicals. Armor cable adds strength. A smart choice for crowded machines.

Manager’s Insight

We recommend this probe for tight mounting locations. The short 1.2 inch case fits where standard 4 inch cases cannot. Country specific approval (CN) meets local rules. ClickLoc connector is easy to use. Stock ready. For tight spaces, this is your best option.

Suitable Devices & Applications

• Small turbines (tight bearing areas)
• Compressors (limited space mounting)
• Gearboxes (internal vibration monitoring)
• Pumps (crowded machine trains)
• Generators (compact sensor placement)
• Rolling mills (restricted access points)

Comparison with Other Models

• 330191-00-40-15-CN – 8mm probe, 4.0 in case, 1.5m cable, CN approval
• 330191-00-40-20-00 – 8mm probe, 4.0 in case, 2m cable, no approval

Frequently Asked Questions (FAQ)

Q: Why choose this short case probe?
A: The 1.2 inch case fits tight spots. Standard 4 inch cases may not fit. Measure your space first.

Q: What power supply do I need?
A: Use -17.5 Vdc to -26 Vdc. Less than -23.5 Vdc may reduce linear range. Max 12 mA.

Q: Can this probe work in high heat?
A: Yes. Max probe temp is +177°C. Do not go below -34°C or seal may fail.

Q: What is CN approval?
A: CN means country specific approval. Meets local safety rules for your region.

Q: How tight should I install it?
A: Torque to 5.1 N·m (45 in·lb). Max 7.3 N·m (65 in·lb). Do not over tighten.

Q: What is the warranty?
A: 12 months from invoice date. Covers factory defects. Fast replacement.

Q: How fast do you ship?
A: 12-24 hour dispatch for stock items. Use FedEx, UPS, or DHL. Tracking provided.

Q: Can I bend the cable sharply?
A: No. Min bend radius is 25.4 mm (1.0 in). Sharp bends damage the cable.

Selection Guide

• Need short case (1.2 in) for tight spots? Pick 330172-04-12-05-02-CN.
• Need standard case (4.0 in)? Pick 330172-00-40-xx-xx-xx.
• Need armor cable? This model has armor.
• Need longer cable (1m, 2m, 5m, 9m)? Pick different suffix.
• Need country approval? This CN model is correct.
• No approval needed? Pick 00 model for lower cost.
