330172-00-40-05-02-00 Bently Nevada 5mm Probe – 1/4-28 Thread Fast Ship

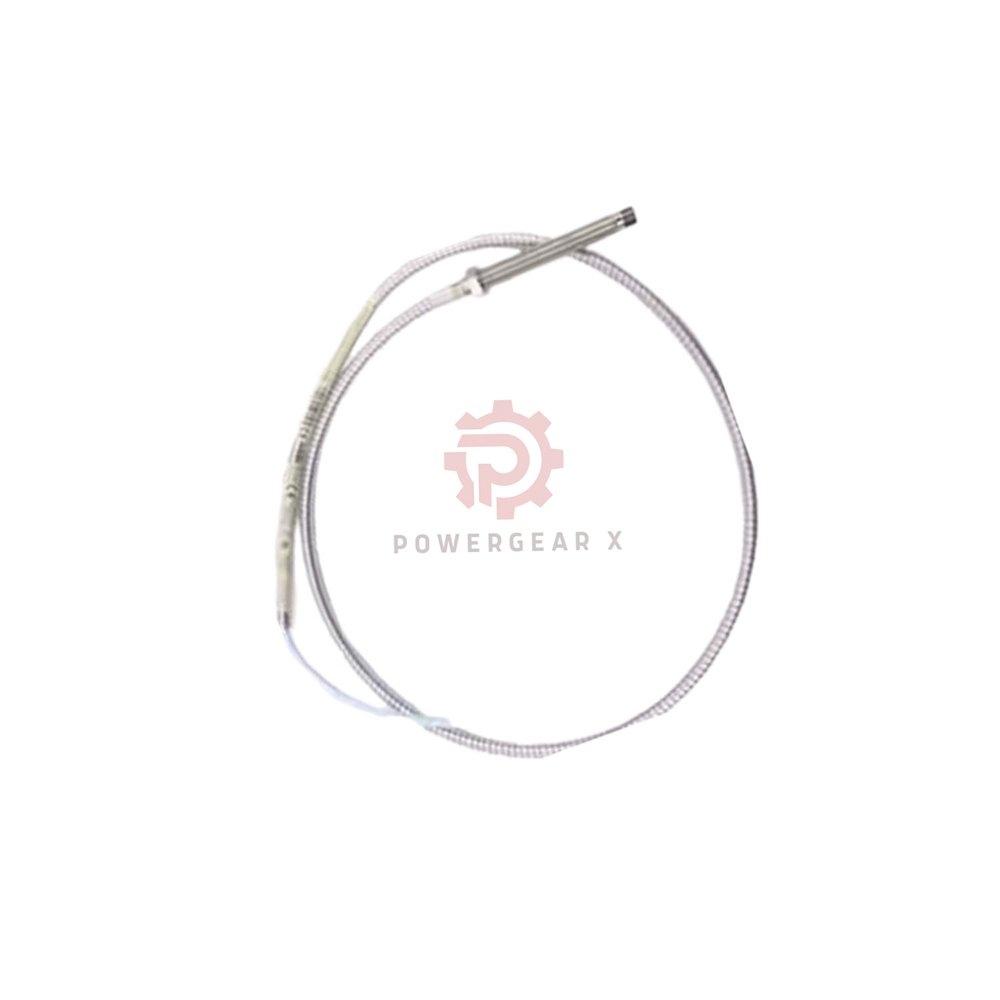

330172-00-40-05-02-00 – Bently Nevada 3300 5mm Probe

High-reliability proximity probe. Made in USA. 1/4-28 UNF thread with armor. Measures vibration and position. Works in harsh environments. For turbomachinery and industrial sensors.

Product Description

• Bently Nevada 3300 series probe – 5 mm tip. Non-contact measurement.
• Thread: 1/4-28 UNF – Easy mounting. Armor cable included for extra protection.
• Miniature coaxial ClickLoc connector – Secure connection. Standard cable length: 0.5 meter (1.6 feet).
• Probe tip: Polyphenylene sulfide (PPS). Case: AISI 304 stainless steel.
• Temperature range: -35°C to +177°C. Resists heat and chemicals.

Technical Specifications

• • ▪ Identity & Options
    • • Manufacturer: Bently Nevada
    • • Model: 330172-00-40-05-02-00
    • • Series: 3300 5mm Probe
    • • Unthreaded length: 00 = 0 inch
    • • Overall case length: 40 = 4.0 inch
    • • Total length: 05 = 0.5 meter (1.6 feet)
    • • Connector: 02 = Mini coaxial ClickLoc
    • • Approval: 00 = Not required

• • ▪ Materials & Construction
    • • Tip material: Polyphenylene sulfide (PPS)
    • • Case material: AISI 304 stainless steel
    • • Cable: 75Ω triaxial, FEP insulated
    • • Connector material: Gold-plated brass or beryllium copper
    • • Weight: 0.323 kg

• • ▪ Thread & Torque
    • • Thread size: 1/4-28 UNF
    • • Max thread engagement: 0.375 inch
    • • Recommended tap drill: #3 or larger
    • • Probe case torque: 5.1 N·m (45 in·lb) recommended. Max 7.3 N·m (65 in·lb)
    • • Connector torque: Max 0.565 N·m (0.42 ft·lbf)

• • ▪ Electrical Data
    • • Power required: -17.5 Vdc to -26 Vdc, max 12 mA
    • • Supply sensitivity: <2 mV change per volt input change
    • • Output resistance: 50 Ω
    • • Probe DC resistance: 7.45 ±0.50 Ω (0.5m cable)

• • ▪ Temperature & Environment
    • • Probe temp range: -35°C to +177°C (-31°F to +351°F)
    • • Avoid below -34°C – may damage pressure seal
    • • Min cable bend radius: 25.4 mm (1.0 inch)
    • • Tensile strength: 222 N (50 lbf) probe case to lead

• • ▪ 60 Hz Magnetic Field Effects (up to 300 Gauss)
    • • At 10 mil gap: Probe output 0.0004 mV pp/Gauss
    • • At 50 mil gap: Probe output 0.0014 mV pp/Gauss
    • • At 90 mil gap: Probe output 0.0045 mV pp/Gauss

• ▪ Temperature Class (Probe Only)
  • • T1: -55°C to +232°C (EPL Ga/Gc)
  • • T2: -55°C to +177°C
  • • T3: -55°C to +120°C
  • • T4: -55°C to +80°C
  • • T5: -55°C to +40°C

Installation Guide

• Drill & tap: Use #3 tap drill or larger for 1/4-28 thread.
• Max thread engagement: 0.375 inch. Do not exceed.
• Tightening torque: 5.1 N·m (45 in·lb) recommended. Max 7.3 N·m (65 in·lb).
• Cable bend radius: Keep at least 25.4 mm (1.0 inch). Avoid sharp bends.
• Connector mating: Hand-tighten then apply max 0.565 N·m torque.

Debugging & Maintenance

• Check gap voltage: Use Bently Nevada proximity system for linear range.
• Inspect cable armor: Look for cuts or kinks. Replace if damaged.
• Clean probe tip: Use soft cloth. Do not scratch PPS tip.
• Test resistance: Center to outer conductor should be 7.45±0.50 Ω for 0.5m cable.
• Avoid low temperatures: Below -34°C may break pressure seal.

Compatibility

• Works with Bently Nevada Proximitor sensors and extension cables.
• Compatible with 3300 XL series monitoring systems.
• Use with Bently Nevada 3500 rack or 1900/65 monitors.
• Mates with standard ClickLoc connectors.

Certifications

• Made in USA – Quality assured.
• Temperature classifications for EPL Ga/Gc and Dc (see schedule above).
• RoHS compliant (upon request).

Package Contents

• 1 x Bently Nevada 330172-00-40-05-02-00 probe with armor
• 1 x Miniature coaxial ClickLoc connector (attached)
• Installation sheet (digital copy via QR)

Warranty & Fast Delivery

• 12-month warranty against defects in material and workmanship.
• Dispatch in 12-24 hours for in-stock items (business days).
• Shipping partners: FedEx, UPS, DHL – worldwide express.
• Tracking number provided after shipment.

Expert Review

Vibration monitoring specialist: The 330172 probe is a workhorse for turbomachinery. 5mm tip gives good linear range. Armor cable survives tough plants. PPS tip resists chemicals. Thread engagement limits prevent damage. Very stable over temperature. Trusted for critical asset protection.

Manager’s Insight

For plant reliability teams, this probe reduces unplanned downtime. The 0.5 meter armored cable fits tight spots. ClickLoc connector locks securely. No special approval needed (option 00). Keep spare units on hand. Fast 12-24 hour dispatch gets you back online quickly. Recommended for compressors, turbines, pumps.

Applications & Suitable Devices

• Typical machines: Steam turbines, gas turbines, compressors, fans, pumps, generators.
• Measurements: Shaft vibration, axial position, eccentricity, differential expansion.
• Industries: Power generation, oil & gas, petrochemical, paper mills, mining.

Compare Similar Models

• 330173-00-09-10-02-CN – 8 mm ETR reverse mount probe. Larger tip, different thread.
• 330173-00-02-10-02-CN – Another 8 mm reverse mount option. Check your mounting requirement.

Frequently Asked Questions

• • Q1: What gap voltage should I set for this probe?
    A: Target -9 Vdc to -11 Vdc with standard Proximitor. That puts you in the linear range (about 50 mils gap).
  • Q2: Can I use this probe with a 5 meter extension cable?
    A: Yes. Use Bently Nevada extension cables with same impedance (75Ω). Total system length must match Proximitor calibration.
  • Q3: What happens if I exceed max thread engagement?
    A: You may damage the probe tip or case. The probe may not measure correctly. Stay within 0.375 inch.
  • Q4: Is this probe safe for hazardous areas?
    A: See temperature class schedule. It meets EPL Ga/Gc and Dc with proper installation. Use approved barrier if needed.
  • Q5: Why does the probe need -24 Vdc power?
    A: Proximitor sensors require negative voltage for eddy current operation. More positive than -23.5V reduces linear range.

• • Q6: Field tip: How to avoid cable damage near rotating shaft?
    A: Route armor away from moving parts. Use cable clamps every 30 cm. Leave slack for vibration.

• Buying Guide & Tips
  Choose 330172-00-40-05-02-00 when you need a standard 5mm probe with 4-inch case length and 0.5m armored cable. Great for tight mounting spots. We offer 12-month warranty and ship within 12-24 hours via FedEx, UPS, or DHL. Compare with 8 mm reverse mount probes above if you need larger tip. Contact us for custom lengths. Always verify thread engagement and torque limits before installation.
