330172-00-12-10-01-CN Bently Nevada 5mm Proximity Probe | 3300 Series 1/4-28 Thread

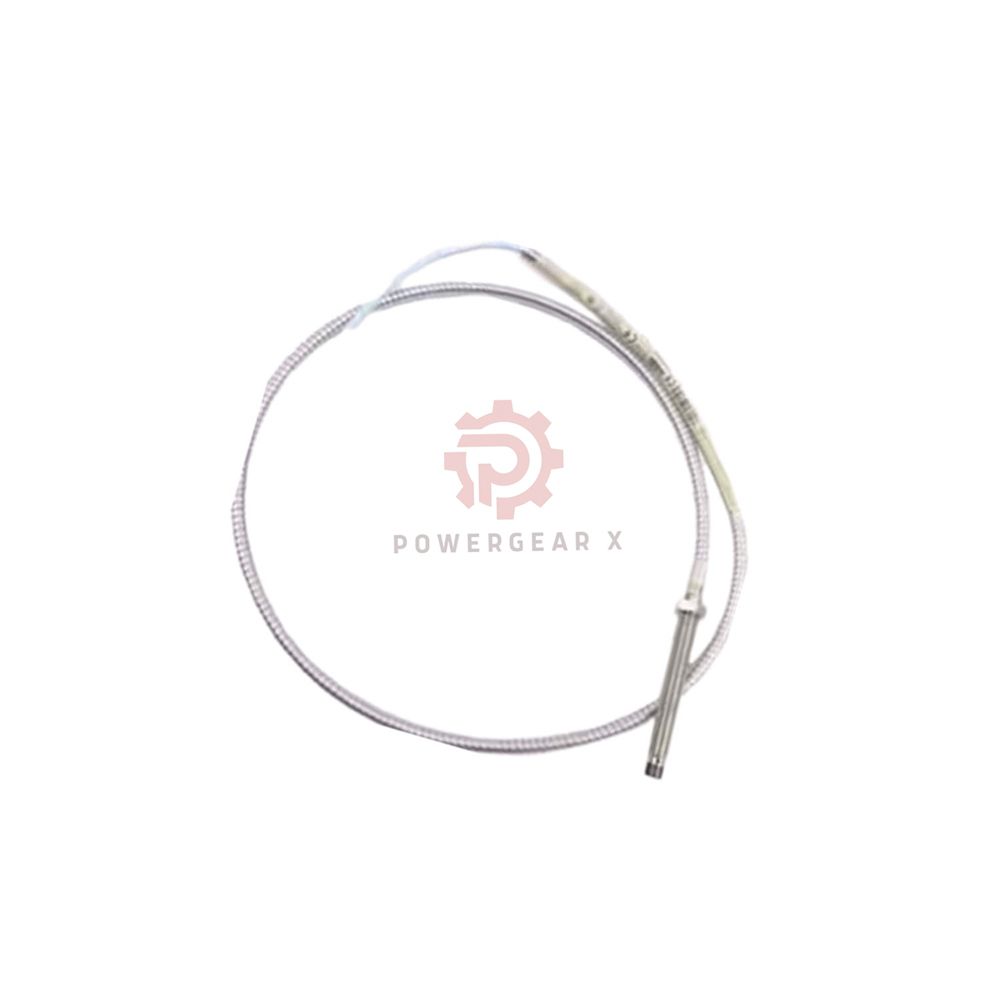

330172-00-12-10-01-CN Bently Nevada 5mm Proximity Probe – 3300 Series, Armored, PPS Tip

Product Introduction

• 330172-00-12-10-01-CN is a 5mm proximity probe from Bently Nevada 3300 Series.
  • Made in U.S.A. with high quality materials.
  • Thread size: 1/4-28 UNF for easy mounting.
  • Includes armor protection on cable for tough jobs.
  • Probe tip made of PPS (Polyphenylene sulfide) for durability.
  • Case material: AISI 304 stainless steel.
  • Works from -35°C to +177°C (-31°F to +351°F).

Technical Specifications (Tree Structure)

• General Identification
  • Manufacturer: Bently Nevada
    • Series: 3300 Series
      • Model: 330172-00-12-10-01-CN
        • Type: 5mm Proximity Probe
        • Made in: U.S.A.
• Mechanical Dimensions
  • Unthreaded Length: 00 = 0 inches
    • Overall Case Length: 12 = 1.2 inches
      • Total Cable Length: 10 = 1.0 meter (3.3 feet)
        • Thread Size: 1/4-28 UNF
          • Max Thread Engagement: 0.375 inches
• Materials & Build
  • Tip Material: Polyphenylene sulfide (PPS)
    • Case Material: AISI 304 stainless steel (SST)
      • Cable Type: 75Ω triaxial, FEP insulated
        • Connector: Miniature coaxial ClickLoc with protector
          • Connector Material: Gold-plated brass or beryllium copper
• Electrical Specifications
  • Power Required: -17.5 Vdc to -26 Vdc at 12mA max
    • Sensitivity: < 2 mV change per volt change
      • Output Resistance: 50 Ω
        • Probe DC Resistance (1.0m): 7.59 ± 0.50 Ω
• Environmental & Ratings
  • Probe Temperature Range: -35°C to +177°C (-31°F to +351°F)
    • Minimum Cable Bend Radius: 25.4 mm (1.0 inch)
      • Tensile Strength: 222 N (50 lbf)
        • Recommended Case Torque: 5.1 N·m (45 in·lb)
          • Max Case Torque: 7.3 N·m (65 in·lb)
• Physical Attributes
  • Weight: 0.323 kg

Expert Review – Manager’s Insight

• “Most reliable 5mm probe for turbine vibration.”
  • Senior Vibration Analyst comment
• PPS tip resists chemicals and high heat.
  • Lasts longer than standard plastic tips
• Armor cable prevents damage in tight spaces.
  • Saves money on replacements
• ClickLoc connector is fast and secure.
  • No tools needed for connection
• Wide temperature range fits most machines.
  • From cold outdoors to hot steam areas

Suitable Equipment & Applications

• Steam turbines
  • Monitors shaft vibration and position
• Gas turbines
  • High temperature capability works well
• Compressors
  • Detects rotor movement in real time
• Pumps and fans
  • Prevents bearing damage
• Generators
  • Measures air gap and vibration
• Industrial gearboxes
  • Checks shaft position under load

Comparison with Similar Models

• 330171-00-26-10-02-00
  • Different unthreaded length and connector option
  • View details →
• 330171-00-30-10-02-00
  • Longer overall case length (3.0 inches)
  • View details →
• Why choose 330172-00-12-10-01-CN?
  • Has armor cable protection (others may not)
  • Includes connector protector for harsh sites
  • CN approval for specific country requirements

FAQ – Professional Answers

• What drill size should I use for mounting?
  • Use a #3 tap drill or larger for 1/4-28 thread.
  • Do not exceed 0.375 inches thread engagement.
  • Too deep can damage the probe tip.
• Can I use this probe with any proximitor?
  • Best with Bently Nevada XL Proximitor sensors.
  • Match cable length to proximitor calibration.
  • Using other brands may give wrong readings.
• What happens below -34°C (-30°F)?
  • The pressure seal may fail early.
  • Probe still works but寿命缩短.
  • Use special low-temp probes for cold areas.
• How does magnetic field affect readings?
  • At 50 mil gap, output change is only 0.0014 mil pp/gauss.
  • Very small effect for most industrial sites.
  • Keep probe away from strong magnets if possible.
• What is the warranty and shipping?
  • 12-month warranty against defects.
  • We ship within 12-24 hours after order.
  • Carriers: FedEx, UPS, DHL with tracking.

Buying Guide – Real Experience Tips

• Check your cable length needs.
  • This model has 1.0 meter cable.
  • For longer runs, choose 2, 5, or 9 meter options.
  • Extension cables also available separately.
• Match temperature class to your machine.
  • For T4 rating, max ambient is 80°C.
  • For T1 rating, max ambient is 232°C.
  • Check the table above for your zone.
• Do not overtighten the probe case.
  • Max torque is 7.3 N·m (65 in·lb).
  • Use a torque wrench for best results.
  • Over tightening strips threads or cracks case.
• Keep cable bend radius large.
  • Minimum 25.4 mm (1 inch).
  • Tighter bends break inner conductors.
  • Use cable supports for long runs.
• Order spare connectors with your probe.
  • ClickLoc connectors are durable but can wear.
  • Spares save downtime later.
