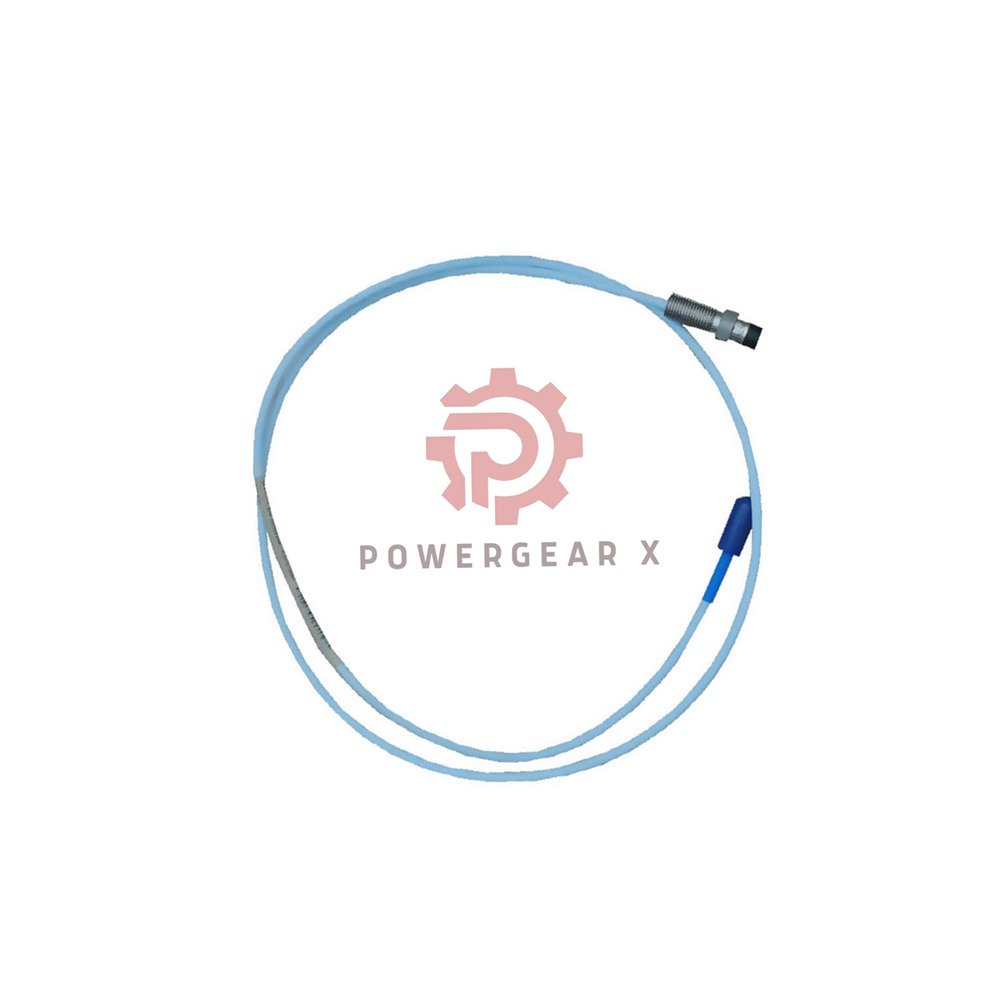

Name: 330171-00-08-90-01-05 Bently Nevada 3300 5mm Probe 9m PPS Tip 1/4-28 Thread
SKU: 330171-00-08-90-01-05
Availability: InStock

Product details

Genuine Bently Nevada 5mm eddy current probe, engineered for critical rotating machinery. Perfect for 3300 5mm Proximity Probes systems.
Polyphenylene sulfide (PPS) tip, AISI 304 stainless steel case. Provides excellent durability and consistent performance in harsh environments.
Total length 9.0 metres (29.5 feet) – includes miniature coaxial ClickLoc connector with connector protector.
Multiple agency approvals (option 05) ensure global compliance. Made in U.S.A, strict quality control.
For inquiries: sales@powergearx.com or +86 18030005825 (WhatsApp).

System power: -17.5 to -26 Vdc (12 mA max). Operation above -23.5 Vdc reduces linear range.
Output resistance: 50 W. DC resistance (center to outer conductor): 9.87 Ω ±0.90 (for 9m probe).
Thread: 1/4-28 UNF. Max thread engagement: 0.375 inch. Use #3 or larger tap drill.
Temperature range (probe only): -35°C to +177°C (-31°F to +351°F). Avoid below –34°C to protect pressure seal.
Cable bend radius: min 25.4 mm (1.0 in). Connector torque: max 0.565 N·m (0.42 ft·lbf).
Magnetic field immunity: 60 Hz up to 300 Gauss (5m system). Typical output ripple < 0.0133 mil pp/gauss.
Tensile strength: 222 N (50 lbf) at case-to-lead and lead-to-extension connections.

Probe case torque: 5.1 N·m (45 in·lb) recommended, max 7.3 N·m (65 in·lb).
Thread engagement limit: 0.375 in maximum. Use appropriate drill for 1/4-28 thread.
Probe tip material: Polyphenylene sulfide (PPS) – excellent chemical resistance.
Case material: AISI 304 stainless steel (SST) – rugged and corrosion resistant.
Temperature schedule (EPL Ga/Gc): T1 to T5 ambient ratings from -55°C up to +232°C (probe only).

Designed for Bently Nevada 3300 series proximitors and extension cables. Interchangeable with standard 5mm systems.
Works with AISI 4140 steel target (typical). Sensitivity < 2 mV change per volt of supply variation.
Connector: Gold-plated brass/beryllium copper, miniature coaxial ClickLoc. Mates with standard 3300 extension cables.
For retrofit or new installations: compare with similar models:
• 330171-10-24-05-02-00 (different cable length & connector)
• 330171-20-55-05-02-CN (armored version, longer case)
Select based on required cable length, thread configuration, and agency approvals.

Why choose this 330171 variant? The 00-08-90-01-05 suffix offers the most common industrial choice: 9m cable, PPS tip, standard connector, and universal certifications. Ideal for turbo-machinery, compressors, and pumps.
Installation tip: Always respect the maximum thread engagement (0.375 in) to avoid bottoming out. Use recommended torque to maintain linearity and mechanical integrity.
Reliability note: PPS tip provides stable gap readings even with target runout below 10 mils. The 5mm form factor fits tight spaces where 8mm probes cannot.

Q: What is the difference between 330171-00-08-90-01-05 and 330171-10-24-05-02-00?A: The main differences are cable length and connector style. Our model has 9m cable and ClickLoc connector; the other has different suffix for armored or extended length. Check your system requirements.
Q: Can I use this probe with older Bently Nevada monitors?A: Yes, the 3300 5mm probe works with most 3300 series proximitors and 5mm extension cables. Verify your system voltage range (-17.5 to -26Vdc).
Q: What is the recommended gap setting?A: Typically 1.27 mm (50 mils) for AISI 4140 steel. Adjust per application to stay within linear range.
Q: Does this probe come with a warranty?A: Yes, 12 months warranty against manufacturing defects. Fast 12-24h shipment via FedEx, UPS, or DHL.
Q: Which target materials are compatible?A: Primarily ferromagnetic steels (AISI 4140 reference). For other materials, recalibration may be needed.

Packaging: Each probe individually packed in anti-static bag with factory seal.
Delivery: Stock items ship within 12-24 hours via FedEx, UPS, DHL – tracked and insured.
Warranty: 12 months from invoice date. Full technical support included.
Weight: 0.323 kg (probe only). Customs-friendly documentation.

Compare our 3300 5mm Proximity Probes family. Choose tip material, cable length, and approvals based on your zone and mechanical constraints.
For hazardous areas, option 05 (multiple approvals) covers most global certifications. If you need higher temperature rating, consider the T2 or T1 schedule variants.
