Product details

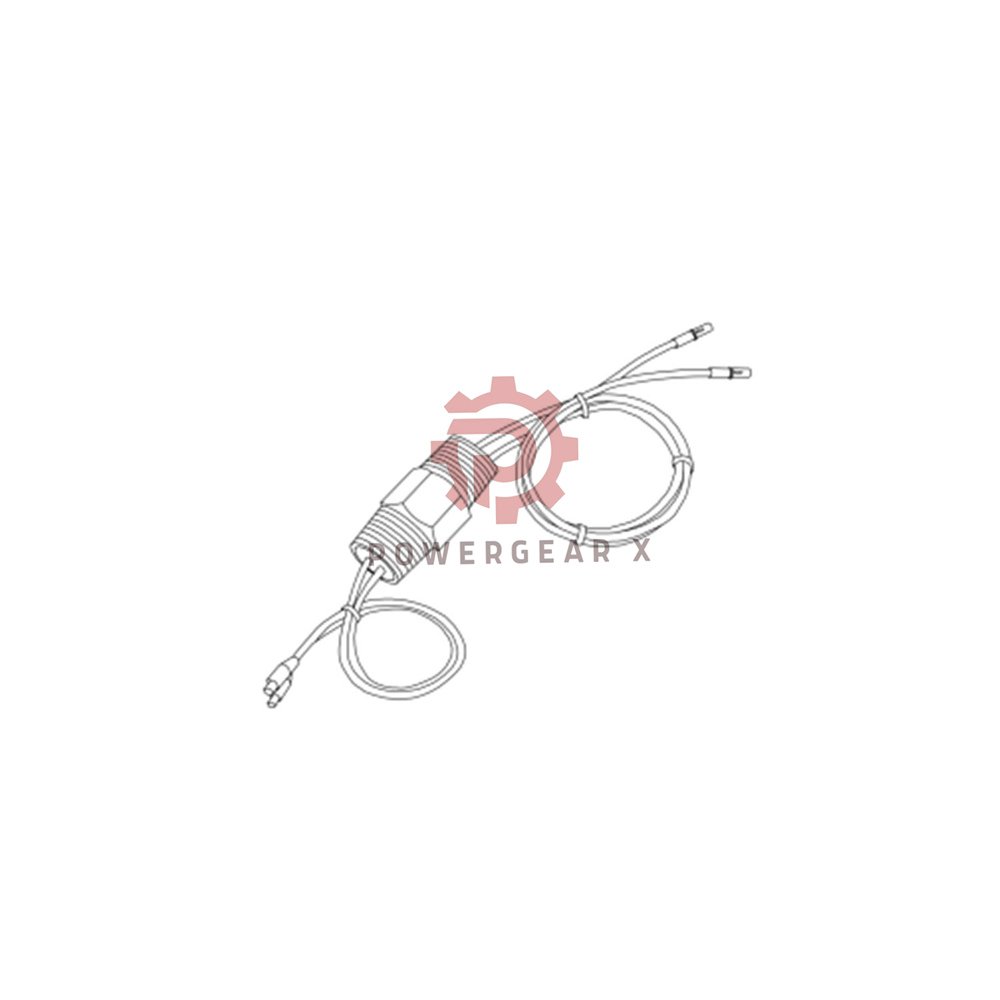

330161-01-40-05-79-00-00 Single Triaxial HP Feedthrough for 3300 System
Brand: Bently Nevada
Model: 330161-01-40-05-79-00-00
Series: 3300
Type: Single Triaxial High Pressure Feedthrough
Quick View
This part brings a probe cable through a pressurized case wall. It holds pressure inside. At the same time, it keeps the signal path outside. It works with 3300 XL 8 mm, 3300 XL 11 mm, and 3300 5 mm probes. The seal handles up to 2.76 MPa (400 psi). Also, it replaces a normal extension cable. As a result, system length stays correct.
Key Specs
- Brand: Bently Nevada
- Model: 330161-01-40-05-79-00-00
- Series: 3300
- Type: Single Triaxial HP Feedthrough
- Pressure Seal: 2.76 MPa (400 psi)
- Range: Set by the mated 3300 XL probe
- Frequency Response: Follows the paired 3300 XL system
- Sensitivity: Set by the paired Proximitor sensor
- Linearity: Set by the paired 3300 XL system
- Resolution: Set by the paired 3300 XL system
- Temperature Range: Depends on the O-ring and cable
- Environmental Resistance: Sealed case entry for high pressure
- Noise Immunity: Gold-plated brass ClickLoc design
- Armor: Without armor (01)
- Length 1: 0.5 metres (05)
- Length 2: 8.5 metres (85)
- O-Ring Material: Ethylene propylene (79)
- O-Ring Media: Ammonium hydroxide, carbon dioxide, chlorine, nitrogen, gaseous oxygen, steam
- High Pressure End: Without connector (00)
- Low Pressure End: Without connector (00)
- Origin: Made in U.S.A
Ordering Code Tree
- 330161-AA-BB-CC-DD-EE-FF
- A: Armor
- 01 = Without armor
- B: Length 1
- 05 = 0.5 metres
- C: Length 2
- 85 = 8.5 metres
- D: O-Ring Material
- 79 = Ethylene propylene for ammonium hydroxide, carbon dioxide, chlorine, nitrogen, gaseous oxygen, and steam
- E: High Pressure End
- 00 = Without connector
- F: Low Pressure End
- 00 = Without connector
- A: Armor
How to Install
- First, read the case pressure.
- Then pick the O-ring for the machine fluid.
- Next, fit the unit into the case wall.
- Feed the probe cable through.
- After that, add the connectors you need.
- Keep mating torque light. Hand tight is enough.
- Finally, test the seal before you run the machine.
Care and Service
- Look at the O-ring at each stop.
- Swap the O-ring if it looks worn.
- Also keep the cable clean and dry.
- Check the seal after any rework.
- In addition, note each check in the log book.
Works With
- 3300 XL 8 mm probes
- 3300 XL 11 mm probes
- 3300 5 mm probes
- 3300 XL Proximitor Sensors
- ClickLoc connectors
- One model routes 1, 2, or 3 cables
- The 11 mm model routes 2 cables
Approvals and Marking
- Made in U.S.A
- Gold-plated brass connectors resist corrosion
- Check site rules before you install
In the Box
- 1 x 330161-01-40-05-79-00-00 feedthrough
- 1 x ethylene propylene O-ring
- 1 x protective cap set
- 1 x data sheet
Warranty and Delivery
- 12-month warranty
- Ships in 12-24 hours
- FedEx, UPS, and DHL options
- Tracking number sent at dispatch
Expert Review
This is the no-frills version of the 3300 HP feedthrough. It has no connectors and no armor. That is a plus for teams that build their own cable ends. The short 0.5 metre leg saves space at the case wall. Meanwhile, the long 8.5 metre leg reaches the sensor easily. The ethylene propylene O-ring suits steam, oxygen, and nitrogen lines. However, it does not suit oil. Check your fluid first. The 400 psi seal covers most steam and gas cases. The unit keeps system length right. As a result, spares stay simple.
Manager’s Insight
Buy this build when your team crimps its own connectors. Do not buy it for oil service. The O-ring will not hold. Therefore, pick the fluorocarbon option for oil and fuel gas. Keep one spare O-ring in stock. The short leg is a space saver. Also, check the pressure rating before you order. Most field errors come from a wrong O-ring pick.
Best Fit Equipment
- Steam turbines
- Gas turbines
- Oxygen and nitrogen lines
- Steam header skids
- Chemical plant trains
- Pressurized pumps
- Chlorine service units
- Carbon dioxide loops
FAQ
- Q: Can I fit my own connectors?
- A: Yes. This build has no ends. You add the ends you need. Match the probe and sensor types.
- Q: Will the O-ring work in oil?
- A: No. This O-ring is ethylene propylene. It suits steam, oxygen, and nitrogen. Pick fluorocarbon for oil service.
- Q: Why are the legs two lengths?
- A: The short leg sits at the case wall. The long leg reaches the sensor. This saves space.
- Q: Does it hold full pressure with no connectors?
- A: Yes. The seal is in the body. Connectors are your choice.
- Q: How do I order a spare?
- A: Quote the full code. Add one spare O-ring. Ask us for a quote at sales@powergearx.com or +86 18030005825.
Buying Guide
- Name the fluid first. Pick the O-ring from that list.
- Check the case pressure.
- Measure the space at the case wall.
- Decide on armor or no armor.
- Decide on connectors or bare ends.
- Confirm total system length.
- Keep one spare O-ring on site.
- Order early. Shipping adds time.
