Industrial-Grade Vibration Monitoring Solution

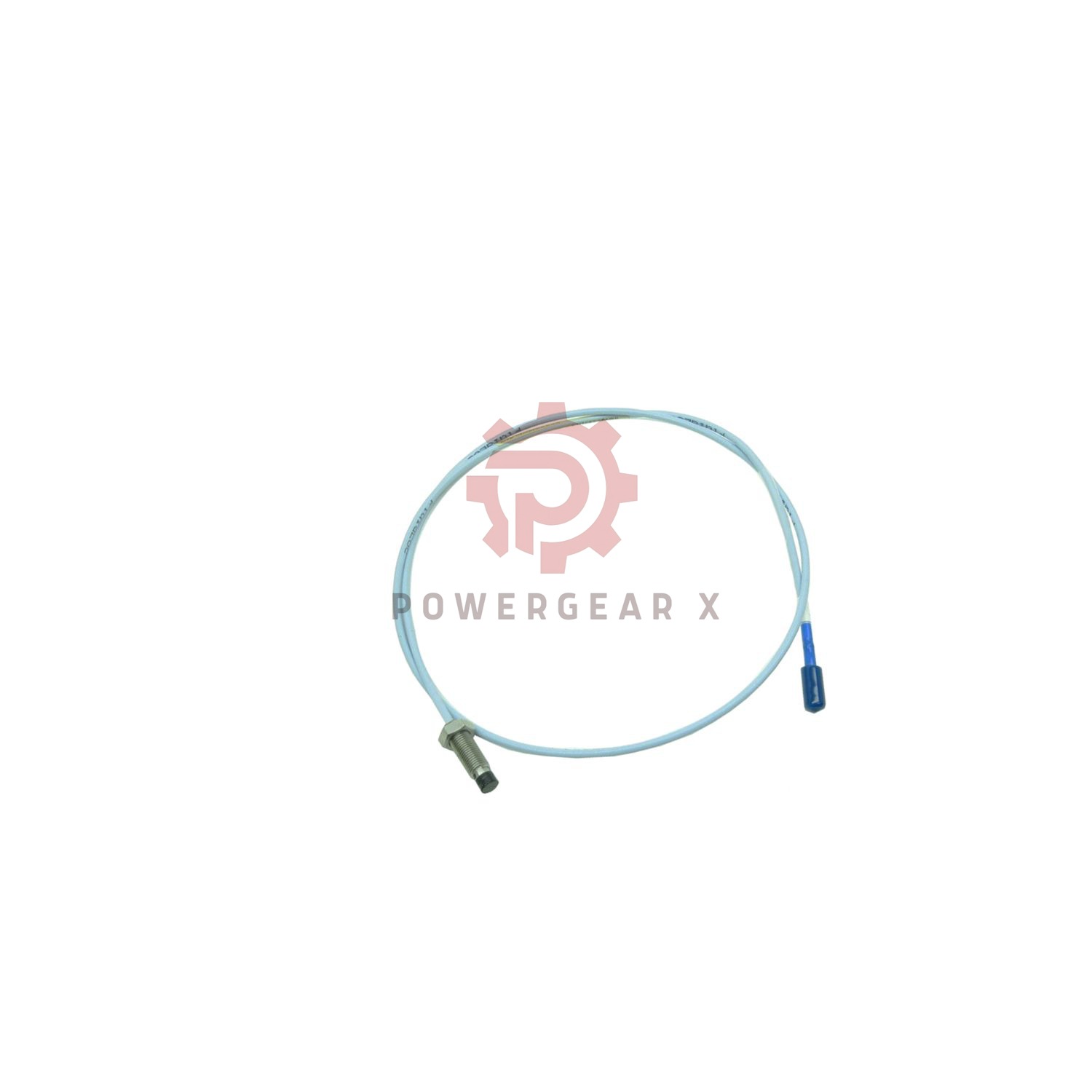

Precision-engineered for machinery monitoring, this 8mm proximity probe (330104-00-12-05-02-00) delivers accurate vibration and position measurements in demanding industrial environments.
Product Specifications
- Manufacturer: Bently Nevada
- Product Type: 3300 XL 8mm Proximity Probe
- Origin: Made in USA
- Thread Size: M10×1 with armor
- Unthreaded Length: 00mm (00 option)
- Case Length: 12mm (12 option)
- Cable Length: 0.5m (05 option)
- Connector: Miniature coaxial ClickLoc (02 option)
- Agency Approval: Not required (00 option)
Technical Details
- DC Resistance: 7.45Ω ±0.50Ω at 20°C
- Probe Tip Material: PPS (Polyphenylene sulfide)
- Case Material: AISI 303/304 stainless steel
- Sealing: Viton® O-ring (10 bar max pressure)
- Operating Temperature: -40°C to +125°C
- Output Voltage: -2V to -18V DC (@1.27mm gap)
- Power Requirement: -17.5Vdc to -26Vdc
- Output Resistance: 50Ω
Configuration Options (330104-00-12-05-02-00)
| Code | Option |
|---|---|
| 00 | 00mm unthreaded length |
| 12 | 12mm overall case length |
| 05 | 0.5 meter cable |
| 02 | Miniature ClickLoc connector |
| 00 | No agency approval required |
Compatibility & Applications
- Works with all 3300 XL monitoring systems
- Ideal for turbine and rotating machinery monitoring
- Perfect for predictive maintenance programs
- Suitable for power generation equipment
Note: Specifications apply when used with AISI 4140 steel target at 1.27mm gap. Performance may vary with other materials.
Contact Information
Questions? Email: sales@powergearx.com
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
