Product details
Overview

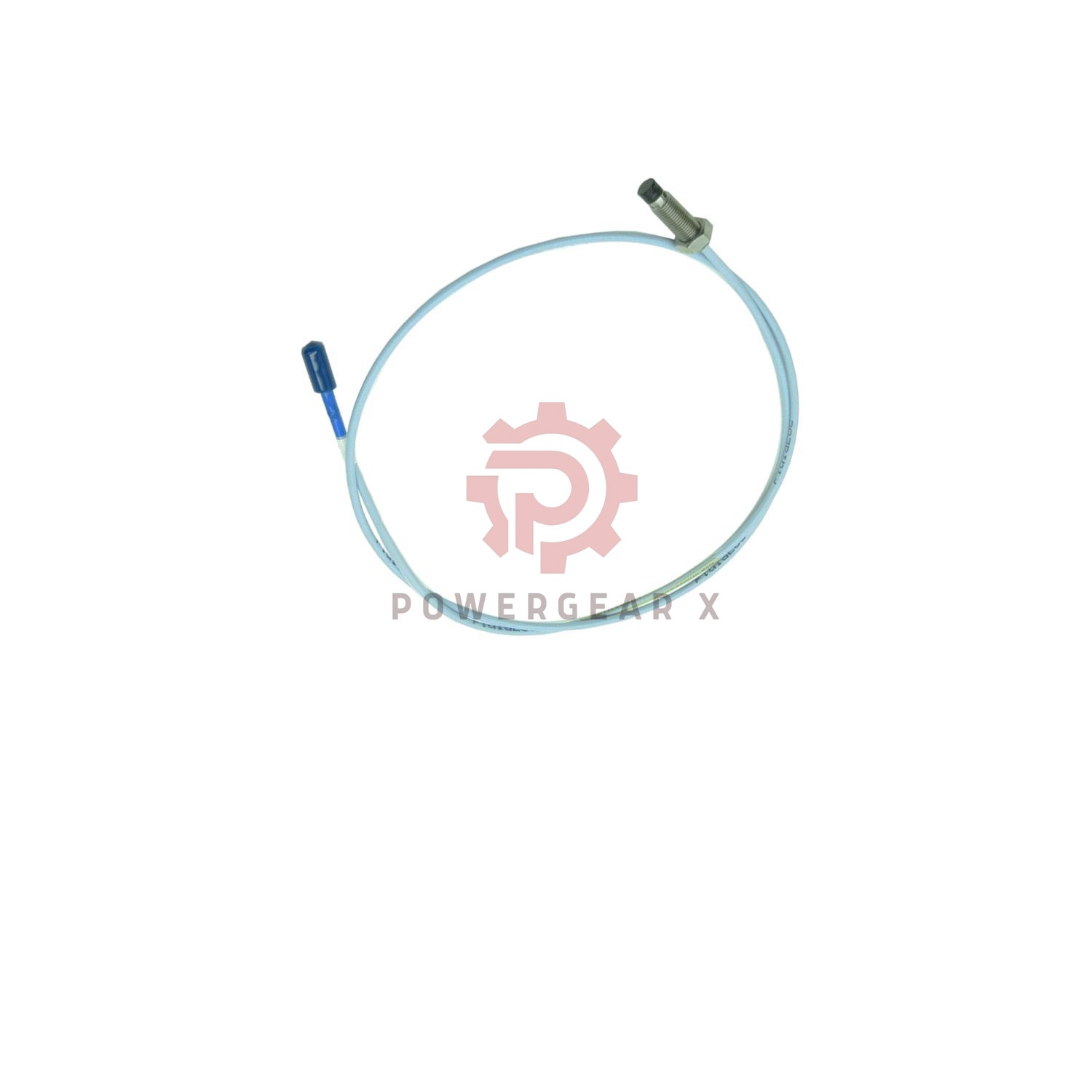

The Bently Nevada 330103 proximity probe is an 8mm vibration sensor designed for industrial machinery monitoring. 330103-00-06-05-02-IN features a stainless steel construction and compact design suitable for tight spaces.
Technical Specification
| Product Number | 330103-00-06-05-02-IN |
| Probe Diameter | 8 mm |
| Thread Type | M10×1 (without armor) |
| Case Length | 60 mm |
| Cable Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| DC Resistance | 7.45 Ω ±0.50 |
| Linear Range | 0.25-2.3 mm (10-90 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Output Voltage | -9 Vdc at recommended gap |
| Max Cable Length | 305 m (1000 ft) |
| Temperature Range | -52°C to +177°C (-62°F to +350°F) |
| Extended Temp Range | Tip: -52°C to +218°C Cable: -51°C to +260°C |
| Case Material | AISI 303/304 stainless steel |
| Tip Material | PPS (Polyphenylene sulfide) |
| Sealing | Viton® O-ring |
| Weight | 323 g/m (11.4 oz/ft) |
| Safety Approvals | Country Specific (IN), ATEX, IECEx |
| Hazardous Area Certification | Class I, Zone 0/2 |
Contact Information
For technical support or custom requirements, email sales@powergearx.com.
For more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
