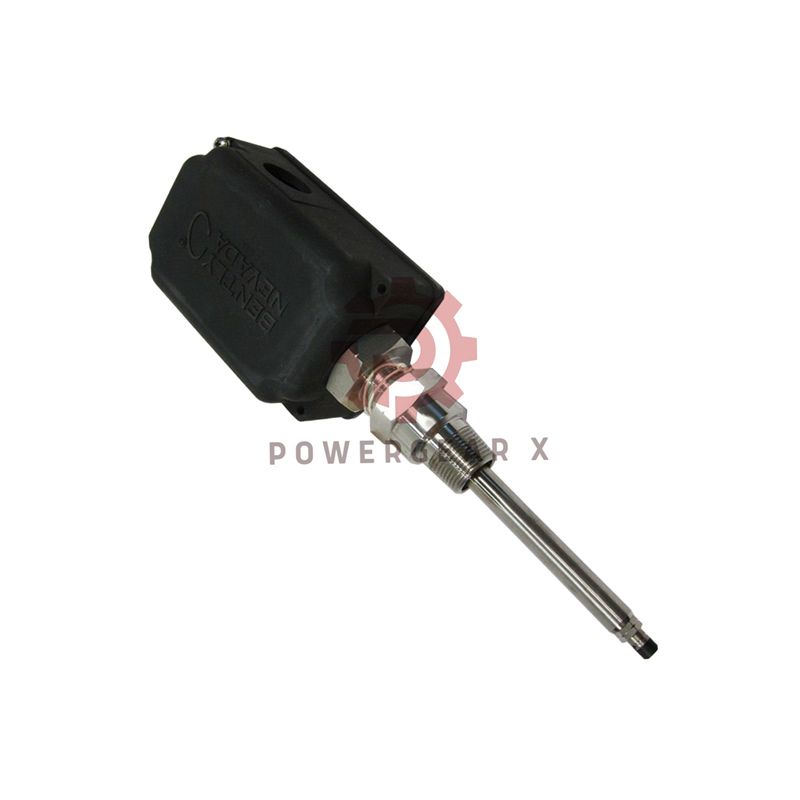

32000-16-05-00-080-03-02 Bently Nevada Proximity Probe Housing 8mm 80mm NPT

32000-16-05-00-080-03-02 Bently Nevada Metric Proximity Probe Housing

Product Brief
The 32000-16-05-00-080-03-02 is a premium 32000 Metric Proximity Probe Housing from Bently Nevada, made in U.S.A. This robust housing assembly is designed for the 3300 XL 8 mm probe system. It features an 80 mm probe penetration, 0.5 m cable, and 3/4-14 NPT mounting thread. Built with glass-reinforced PPS thermoplastic and stainless steel fittings, it delivers exceptional durability in harsh industrial environments.

Technical specifications

• Brand & Model
  • Manufacturer: Bently Nevada
  • Model No.: 32000-16-05-00-080-03-02
  • Product Type: 32000 Proximity Probe Housing Assemblies
  • Origin: Made in U.S.A.
• Configuration options (suffix decoded)
  • 16 – Probe option: 3300 XL 8 mm probe with connector
  • 05 – Cable length: 0.5 m (20 in)
  • 00 – Standoff adapter: None
  • 080 – Probe penetration: 80 mm
  • 03 – Fittings: Two plugs, one M20 fitting, one cable seal grip with grommets for armored probe cable
  • 02 – Mounting thread: 3/4-14 NPT
• Materials & construction
  • Housing: Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic with conductive fibers
  • Sleeve & retaining chain: AISI 304 stainless steel
  • Outer sleeve & exterior screws: AISI 303 stainless steel
  • O-Ring: Neoprene®
• Environmental & safety ratings
  • Protection rating: CSA Type 4X, IP66 (verified by SC115582-1)
  • Hazardous area: CENELEC EN50014 – electrostatic dissipation for plastic in hazardous areas
  • Impact strength: BASEEFA certified: withstands 2 × 4 Joule impacts at -39°C and +115°C; CSA: 7 Joule impact at ambient
  • Temperature rating: -51°C to +105°C (-60°F to +221°F)
• Physical data
  • Weight: 1.2 kg

Expert Review & Manager’s Insight

“The 32000 series housing is our go‑to choice for critical turbomachinery monitoring. Its glass‑reinforced PPS body with conductive fibers provides excellent EMI shielding and meets stringent hazardous area requirements. The 80 mm probe penetration (option 080) is ideal for machines with thick casings, like large compressors or steam turbines. Compared to the 31000 series, the 32000 offers a wider temperature range (-51°C to +105°C) and superior impact resistance – essential for offshore and Arctic installations. For standard pump monitoring, the 31000 series is cost‑effective, but for high‑vibration or extreme environments, the 32000 is unbeatable.” – Senior Product Manager, Powergear X Automation

Compatible devices & applications

• Compatible probes: Bently Nevada 3300 XL 8 mm proximity probes
• Ideal for:
  • Steam turbines, gas turbines, and compressors
  • Large motors and pumps in refineries
  • Paper mill rollers and heavy fans
  • Offshore platforms (Type 4X / IP66)
  • Hazardous areas (Zone 1/2 with proper barriers)

Selection guide – compare with similar models

• 31000-28-05-00-059-02-02 – Shorter penetration (59 mm), 3/4-14 NPT, no standoff. Good for smaller machines.
• 31000-30-05-15-049-03-02 – 49 mm penetration, includes standoff adapter (15). Compact design for tight spaces.
• Our 32000-16-05-00-080-03-02 – 80 mm deep penetration, heavy‑duty materials, wide temp range. Choose this when you need maximum robustness and extreme temperature tolerance.

FAQ – experience & selection guide

• What machines typically need the 80 mm probe penetration?
  Large rotating machines with thick housing walls, such as steam turbines, centrifugal compressors, or gearboxes. The extra length ensures the probe tip reaches the shaft reliably.
• Can this housing be used in Zone 1 hazardous areas?
  Yes, with proper intrinsic safety barriers. The housing meets EN50014 for electrostatic dissipation, making it suitable for Zone 1/2 when combined with certified probe systems.
• What is the advantage of the 3/4-14 NPT thread (option 02)?
  NPT threads provide a tight, leak‑proof seal in conduit systems. Required if you later add a standoff adapter – ensures mechanical compatibility.
• How do I choose between 32000 and 31000 series?
  Pick 32000 for extreme temperatures (-51°C to +105°C), high impact risk, or corrosive environments (IP66/Type 4X). The 31000 series is lighter and lower cost for general‑purpose indoor use.
• Do you ship internationally, and what is the warranty?
  Yes. We ship worldwide via FedEx, UPS, or DHL – usually within 12‑24 hours. 12‑month warranty against manufacturing defects included.

Package contents & shipping

• Includes: 1× Bently Nevada 32000 probe housing assembly (as configured), mounting hardware, O‑ring, cable seal grip with grommets, and two plugs.
• Warranty: 12 months
• Shipping: FedEx, UPS, DHL – tracked, 12‑24 hour dispatch
