Product details
Product Brief

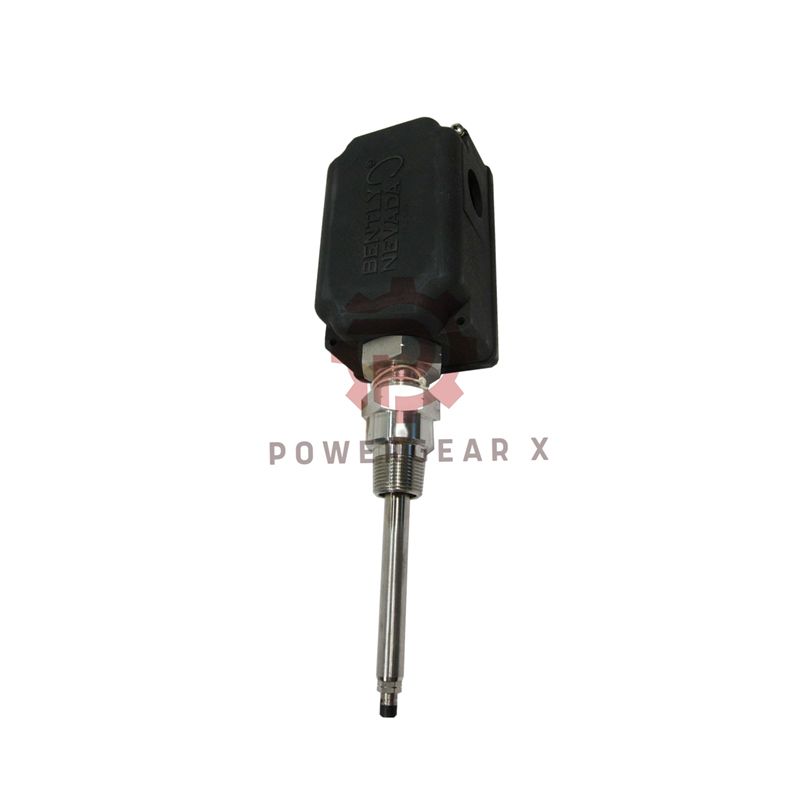

- 32000-00-00-04-470-01-02 – Bently Nevada Proximity Probe Housing Assemblies
- Part of trusted 31000 series for industrial vibration monitoring
- Designed for hazardous areas with advanced protection ratings
- Glass-reinforced PPS thermoplastic with conductive fibers
- Stainless steel sleeve and retaining chain for durability
- Type 4X and IP66 rated for harsh environments
- Wide temperature range -51°C to +105°C
- Made in USA by Bently Nevada
Manager’s Insight
- Built for critical rotating machinery in oil, gas, and power plants
- Exceptional impact strength certified by BASEEFA and CSA
- Electrostatic dissipation meets CENELEC EN50014 for hazardous zones
- Corrosion-resistant materials ensure long service life
- Recommended torque 29.4 N·m for reliable installation
- Supports 912 N load capacity for mechanical stability
Expert Review
- Ideal for 31000 and 3300 series proximity probes
- 40 mm standoff adapter optimizes probe positioning
- 470 mm probe penetration suits deep mounting applications
- M25 fitting with two plugs provides wiring flexibility
- 3/4-14 NPT mounting thread is industry standard
- Neoprene O-ring ensures environmental seal integrity
- Impact tested at extreme temperatures -39°C to +115°C
Suitable For
- Gas and steam turbine monitoring systems
- Compressors and pumps in hazardous areas
- Hydroelectric generators and large motors
- Refinery and petrochemical rotating equipment
- Paper mill rollers and steel mill drives
Technical Specifications
- Brand & model
- Brand: Bently Nevada
- Model: 32000-00-00-04-470-01-02
- Type: Proximity Probe Housing Assemblies
- Series: 31000 Series
- Origin: Made in U.S.A
- Configuration options
- Probe option: 00 – Probe not required
- Probe cable length: 00 – Cable not required
- Standoff adapter: 04 – 40 mm
- Probe penetration: 470 – 470 mm
- Fittings: 01 – One M25 fitting, two plugs
- Mounting thread: 02 – 3/4-14 NPT
- Materials
- Housing: Glass-reinforced PPS thermoplastic with conductive fibers
- Sleeve and retaining chain: AISI 304 stainless steel
- Outer sleeve and exterior screws: AISI 303 stainless steel
- O-ring: Neoprene®
- Protection ratings
- Type 4X – Certified by CSA
- IP66 – Verified by SC115582-1 (e) 106
- CENELEC EN50014 – Electrostatic dissipation for hazardous areas
- Mechanical specifications
- Housing impact strength: 4 Joule at -39°C and 115°C (BASEEFA)
- Additional impact: 7 Joule at ambient (CSA verified)
- Load capacity: 912 N at 38 mm from unsupported end
- Recommended torque (retaining nut): 29.4 N·m (260 in·lb)
- Environmental
- Temperature rating: -51°C to +105°C (-60°F to +221°F)
- Weight: 1.2 kg (2.6 lb)
Comparison & selection guide
- 32000-00-00-04-470-01-02 (this model)
- 40 mm standoff, 470 mm penetration, 3/4-14 NPT, M25 fitting
- Best for deep mounting applications with standard NPT thread
- 31000-16-10-00-085-03-02
- 16 mm probe, 85 mm penetration, different fitting configuration
- Suitable for shallower mounting requirements
- 31000-16-05-00-059-02-02
- 16 mm probe, 59 mm penetration, alternative mounting thread
- Compact design for space-constrained installations
- Choose 32000 series for maximum flexibility in hazardous areas
- Select based on required standoff, penetration, and fitting type
Package contents
- Bently Nevada 32000-00-00-04-470-01-02 probe housing assembly ×1
- M25 fitting and two plugs installed
- Mounting hardware and documentation
- 12‑month warranty against manufacturing defects
Shipping & delivery
- 12-24 hour dispatch for in-stock items
- Express carriers: FedEx, UPS, DHL
- Tracking number provided immediately after shipment
- Secure packaging for safe transit
FAQ – experience & selection guide
- What probes work with this housing?Compatible with 31000 and 3300 series Bently Nevada proximity probes.
- Can I use this in Zone 1 hazardous area?Yes, EN50014 rating ensures electrostatic dissipation for hazardous locations.
- What is the difference between 40 mm and other standoffs?Standoff determines probe tip distance from housing; 40 mm is common for standard clearance.
- Is the housing suitable for outdoor installation?Yes, Type 4X and IP66 protect against water, dust, and corrosion.
- Purchase Guide: Which model for high vibration areas?This 32000 model with 470 mm penetration provides stable mounting in high-vibration machinery.
- How soon can I get this delivered?12-24 hour dispatch via FedEx, UPS, or DHL for fastest delivery.
- Does the 12-month warranty cover impact damage?Covers manufacturing defects, not external impact. Housing is impact-tested for durability.
- What tools needed for installation?Standard wrench for retaining nut, torque wrench recommended for 29.4 N·m specification.
