Versatile Mid-Range Housing for Critical Machinery Monitoring

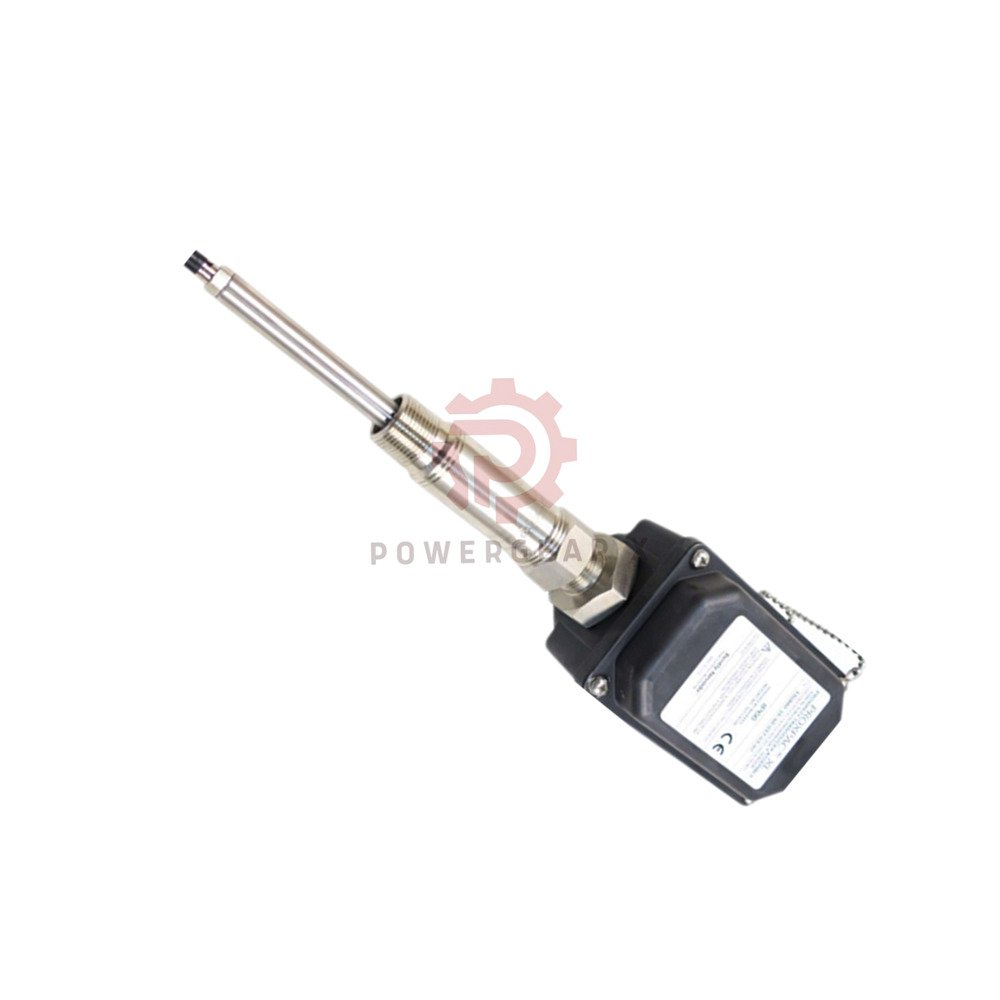

Secure your essential vibration sensors. This Bently Nevada 31000 housing delivers a balanced 6.8-inch probe penetration. It offers deep reach without excessive length. Perfectly protect your 3300 XL 8mm probe in demanding industrial settings with reliable, certified sealing.
Top Reasons This Housing is a Smart Choice
- Ideal Penetration Depth: Features a versatile 6.8-inch (173mm) probe extension. This depth suits many common applications like pumps, fans, and mid-sized motors.
- Complete Connection Package: Includes Fittings Option 03 with a full cable seal grip set. Achieve a watertight seal for cables from 1/8″ to 3/8″ diameter immediately.
- Direct Mount Simplicity: Designed for direct installation (No Standoff Adapter). It simplifies mounting where surface clearance is adequate.
- Compact Cable Management: Uses a short 0.5-meter (20-inch) attached cable. It keeps panel layouts neat and organized.
- Rugged & Certified Design: Maintains all key ratings: NEMA 4X, IP66, and hazardous area safety. Built to handle impacts and temperature swings.
Comprehensive Product Data Sheet
- Official Part Number: Bently Nevada 31000-16-05-00-068-03-02
- Product Line: 31000 Proximity Probe Housings
- Probe Compatibility: 3300 XL 8mm Vibration/Position Probe (Option 16)
- Penetration Distance: 6.8 Inches (172.7 mm)
- Standoff Configuration: Direct Mount (00 = No Adapter)
- Integrated Wiring: Cable Length: 0.5 m (20 in)
- Included Sealing Kit (Option 03): 2x Plugs, 1x 3/4-14 NPT Fitting, 1x SST Reducer, 1x Adjustable Cable Seal Grip (3 grommet sizes)
- Internal Seals: Dual O-Rings (Viton Internally, Neoprene at Sleeve)
- Weatherproof Certification: NEMA 4X & IEC IP66 Rated
- Explosive Atmosphere Safety: Complies with CENELEC EN50014
- Mechanical Installation Spec: Tightening Torque: 29.4 N·m (260 in-lb)
- Material Breakdown: Housing: Glass-Filled Conductive PPS; Internal Metal: 304 SS; Fasteners: 303 SS
- Structural Integrity Data: Tested to Support 912 N (205 lbf) Load
- Impact Resilience: BASEEFA Certified for 4 Joule Impacts at -39°C & +115°C
- Operating Envelope: Temperature Range: -51°C to +105°C (-60°F to +221°F)
- Unit Weight: Typical 1.2 kg (2.65 lb)
Straightforward Installation Steps
This housing mounts directly into a 3/4-14 NPT threaded hole. Clean the mounting threads on your equipment. Insert the probe assembly. Tighten the retaining nut to the specified 260 in-lb torque using a torque wrench for a guaranteed seal.
Typical Machine Applications
- Centrifugal pumps and compressors in chemical and water treatment plants.
- Induction motors and generators in manufacturing facilities.
- Fan and blower assemblies in HVAC and power generation.
- General industrial rotating equipment requiring reliable vibration monitoring.
Expert Advice & Customer Questions
What is the difference between Probe Option 16 and Option 28?
Option 16 specifies a standard 3300 XL 8mm probe. Option 28 indicates the same probe but with “multiple approvals,” often for specific geographic certifications. For most global applications, Option 16 is perfectly suitable.
Is the cable seal grip reusable?
Yes, the included cable seal grip is designed for multiple uses. The three interchangeable grommets allow you to seal different cable diameters. You can loosen the fitting and re-route cables if needed.
Can this housing be used in outdoor environments?
Absolutely. Its NEMA 4X and IP66 ratings certify protection against rain, snow, ice, and hose-directed water. It is built for reliable outdoor operation.
What are the payment and shipping terms?
We accept major credit cards and bank transfers. All items include a 12-month manufacturer warranty. Inventory ships promptly via FedEx, UPS, or DHL from our global hubs.
What is a common oversight during direct mounting?
Failing to check the depth of the NPT hole in your equipment. Ensure the hole is deep enough to fully engage the housing’s threads without bottoming out. This ensures proper sealing and mechanical strength.
How do I choose between 6.8-inch and other penetration lengths?
The 6.8-inch (068) penetration is a popular middle-ground choice. If your machine drawings specify a gap between 5 and 8 inches, this 31000-16-05-00-068 model is often the correct selection. Confirm with your system specs.
