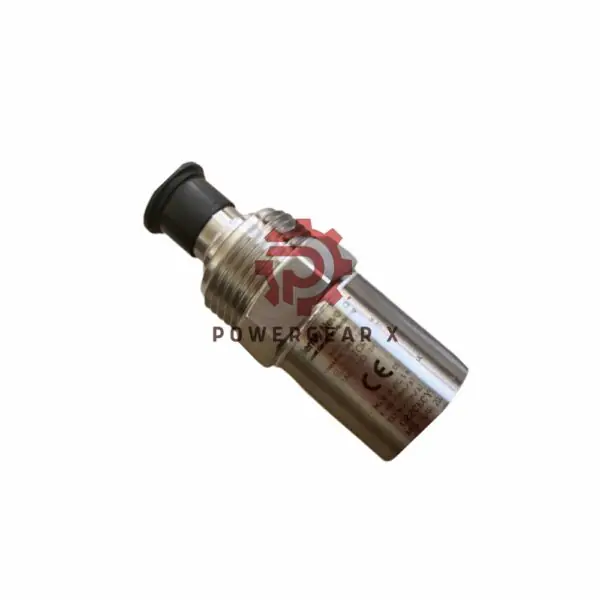

190501-12-99-02 Velomitor CT Velocity Transducer

Overview

The Bently Nevada 190501-12-99-02 Velomitor CT Velocity Transducer is a high-performance sensor designed for precise velocity measurement. With a durable 316L stainless steel housing and superior mounting options, this transducer is suitable for various industrial applications, ensuring reliable performance and minimal signal interference.

Key Features:

• Mounting Options: Includes plate stud (3/8-in 24 to M8x1).
• Cable Connection: Comes with a 32-foot cable for extended reach.
• Agency Approvals: Multiple approvals, ensuring compliance with various industry standards.
• Surface Mounting: 33 mm diameter and 82 mm height.
• Connector: 2-pin MIL-C5015, stainless steel.
• Mounting Torque: 4.5 N-m ± 0.6 N-m for secure attachment.
• Temperature Sensitivity: +/- 8% to +5% typical over the operating temperature range.

Technical Specifications:

• Brand: Bently Nevada
• Model: 190501-12-99-02 Velomitor CT Velocity Transducer
• Mounting Hardware Option: Plate stud 3/8-in 24 to M8x1
• Connection Option: Includes 32-foot cable
• Agency Approval Option: Multiple approvals
• Weight: 297g (10.5 oz.)
• Mounting Surface: 33mm diameter, 82mm height
• Case Material: 316L stainless steel
• Connector: MIL-C5015, 2-pin, 316L stainless steel
• Sensitivity: 3.94 mV/mm/s (100 mV/in/s) ±5%
• Frequency Response: 3.0 Hz to 900 Hz (180 to 54,000 cpm) ±1.0 dB
• Temperature Sensitivity: -8% to +5% typical
• Velocity Range: 63.5 mm/s pk (2.5 in/s pk)
• Amplitude Linearity: ±2% to 63.5 mm/s pk (2.5 in/s pk)
• Resonant Frequency: 9 kHz minimum (stud mounted)
• Output Bias Voltage: 10.1 Vdc ± 1.0 Vdc
• Dynamic Output Impedance: <400 Ω typical
• Broadband: 0.229 mm/s (0.009 in/s) pk

FAQ:

• Q: What is the maximum velocity range of the Velomitor CT Velocity Transducer?
  • A: The velocity range is 63.5 mm/s pk (2.5 in/s pk).
• Q: What type of mounting does the transducer support?
  • A: The transducer supports mounting with a 3/8-in 24 to M8x1 stud plate.
• Q: What is the typical temperature sensitivity of the transducer?
  • A: The temperature sensitivity is typically -8% to +5% over the operating temperature range.

Check official datasheet for more detailed information: 190501 Velomitor CT Transducer Datasheet
