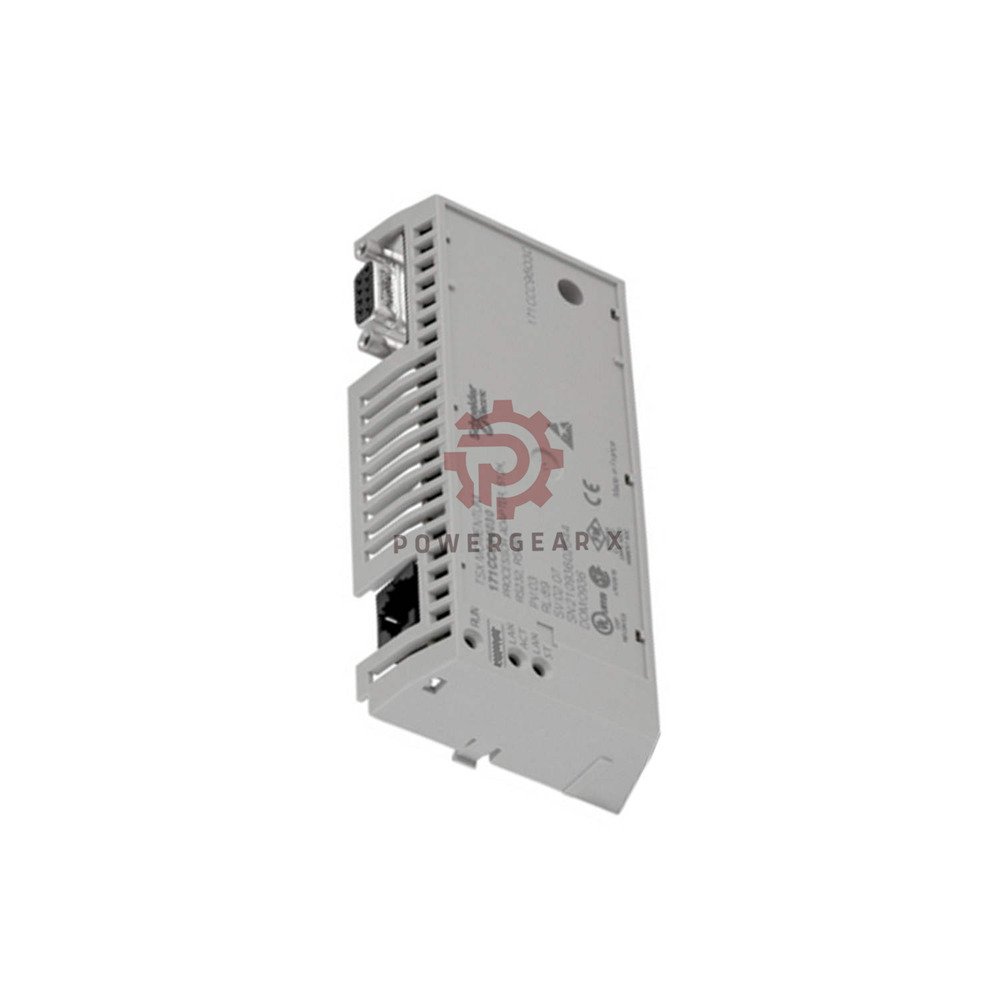

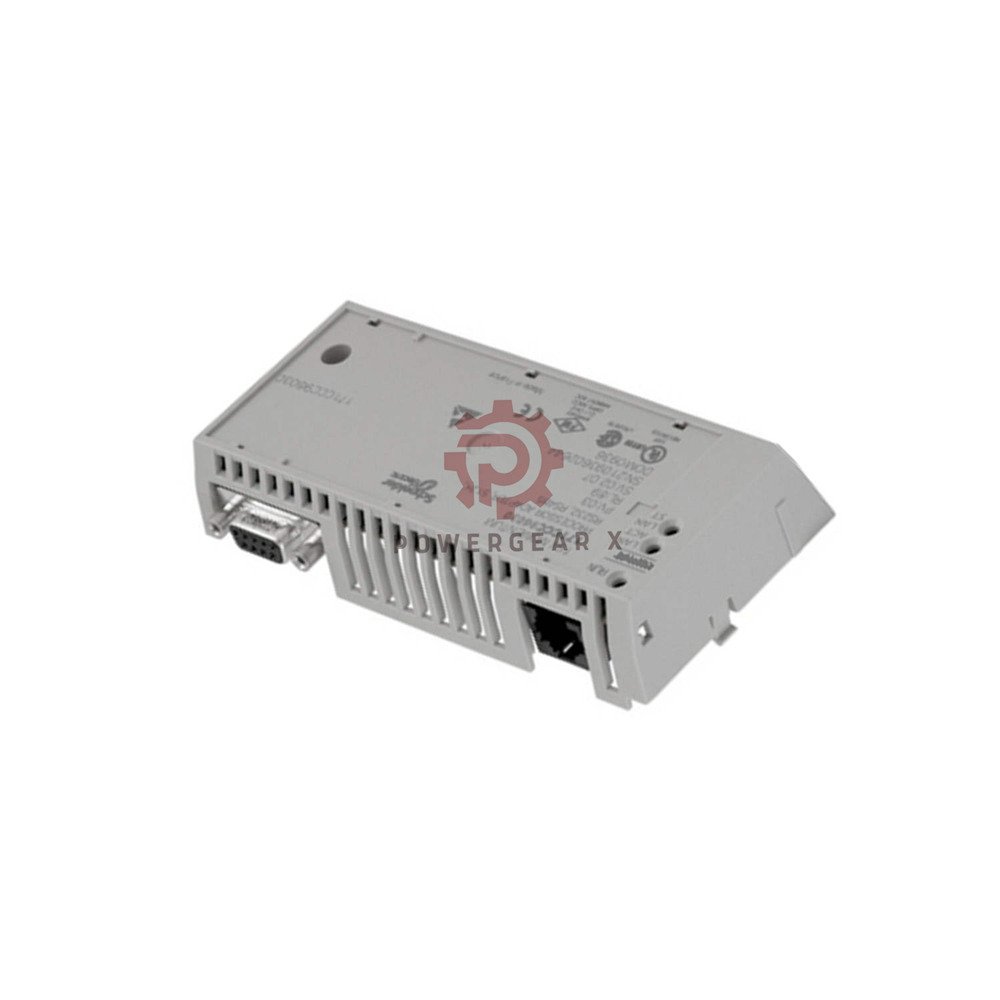

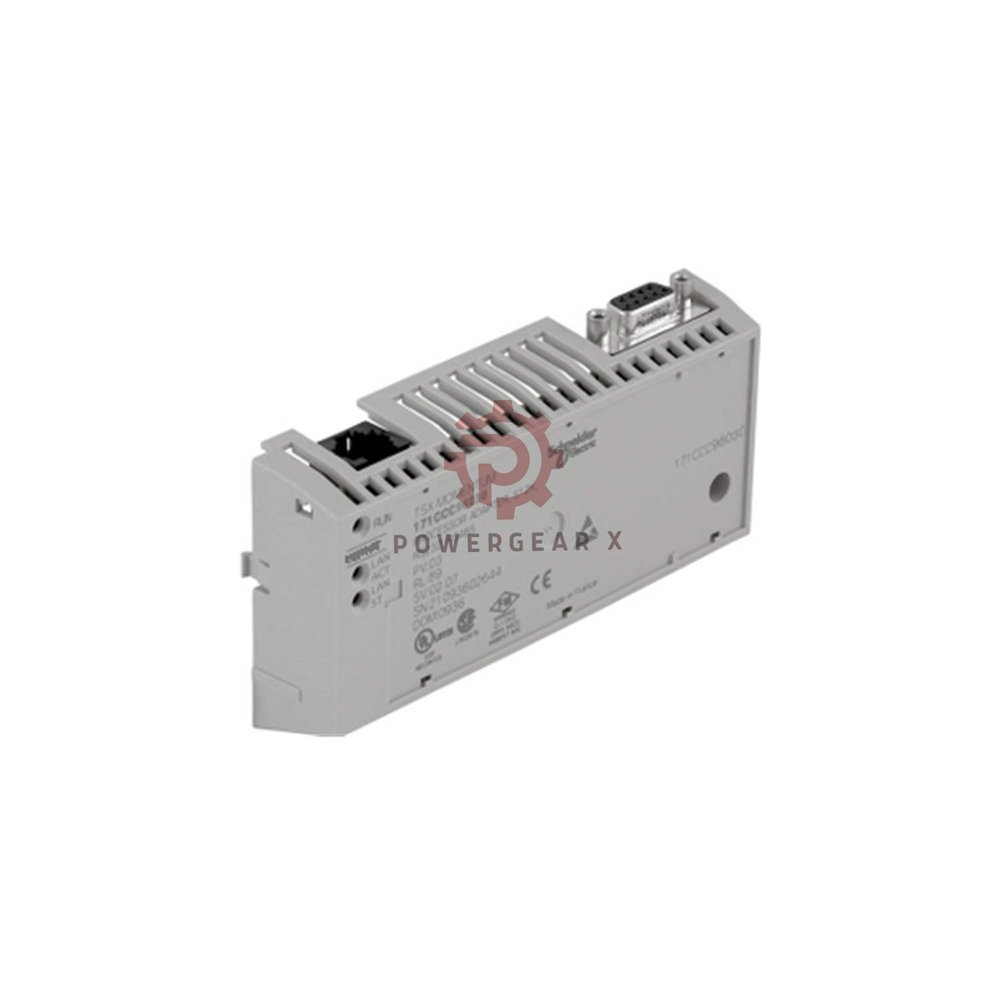

171CCC96030C Schneider Modicon Momentum Processor Adaptor Ethernet

Product Overview

• 171CCC96030C – Processor adaptor for Modicon Momentum
• Integrates Ethernet port for smooth network communication
• Operates at 50 MHz clock frequency for reliable control
• Supports I/O scanning and Modbus TCP messaging
• Equipped with 512 KB Flash and 512 KB RAM

Technical Specifications

• Manufacturer – Schneider Electric
• Model – 171CCC96030C
• Processor – x86 based (Intel/AMD) – 50 MHz
• Memory – 512 KB Flash + 512 KB RAM
• Program memory: 18 kB LL984, 200 kB IEC, Data 24 kB
• Discrete I/O capacity – 8192 Inputs / 8192 Outputs
• Register I/O capacity – 26048 Inputs / 26048 Outputs
• I/O words per drop – 128 (Concept) / 80 (ProWORX)
• Word length – 16 bit
• Supply voltage – 5.0 V DC ±5 % (via Momentum I/O base)
• Execution time – 1 ms per 1000 instructions

Environmental & Mechanical

• Operating temperature – 0…60 °C (32…140 °F)
• Storage temperature – -40…85 °C (-40…185 °F)
• Relative humidity – 5…96 % (non‑condensing)
• Operating altitude – up to 2000 m (6561.68 ft)
• Shock resistance – ≤ 15 gn peak, 11 ms half‑sine
• Vibration resistance – 1 gn / 0.75 mm amplitude
• Protective coating – Conformal coating Humiseal 1A33
• Material – Lexan
• Net weight – 0.093 lb (0.042 kg)

Compatibility & Software

• Compatible with Concept V2.6, Modsoft ≥ V2.5
• Supports ProWORX NxT V2.0 and ProWORX 32
• Works with Modicon Momentum automation platform
• Transparent Ready concept – class B10
• Web services, data editor, rack viewer, page loader

Certifications & Standards

• FM Class 1 Division 2
• UL, cUL, NEMA Type 250
• CE marked

Installation & Maintenance

• Simple plug‑in mounting on Momentum I/O base
• No complex wiring – supply via base
• Web‑based tools for easy setup and diagnostics
• Conformal coating protects against moisture and dust
• Routine cleaning with dry air recommended

Package Contents

• 1x 171CCC96030C Processor Adaptor
• Quick start guide (digital)
• Warranty card with 12‑month coverage

Shipping & Delivery

• Dispatch – 12‑24 hours after order
• Carriers – FedEx, UPS, DHL
• Tracking number provided upon shipment

Expert Review

• “Reliable workhorse for legacy and new Momentum systems. The Ethernet port and Modbus TCP make integration effortless. 50 MHz is sufficient for most mid‑size I/O tasks.” – Senior Controls Engineer

Manager’s Insight

• “Cost‑effective and durable. The 512 KB memory handles complex logic without slowdowns. Our clients appreciate the 12‑month warranty and fast 24‑hour shipping.” – Product Manager, Powergear X

Typical Applications

• Discrete and register I/O control in manufacturing
• Material handling systems
• Packaging machinery
• Building automation and HVAC
• Remote I/O scanning via Ethernet

Frequently Asked Questions

• Can this module be used with older Modicon PLCs?
• Yes. It supports Modsoft V2.5 and Concept V2.6, so it works with legacy systems.
• Does it support hot‑swapping?
• No. Always power down the base before inserting or removing the adaptor.
• What is the maximum number of I/O points?
• 8192 discrete inputs and outputs, and 26048 register I/O.
• Is the conformal coating necessary?
• Yes – it protects against humidity and light chemical exposure in industrial environments.
• Which programming software is recommended?
• ProWORX 32 or Concept V2.6 for full functionality.

Selection Guide

• Choose this model if you need Ethernet connectivity and Modbus TCP.
• For large I/O counts (8192+) – this adaptor is a perfect fit.
• Works best in clean indoor settings with controlled temperature.
• If you use ProWORX or Concept, this is the direct replacement for older M1E modules.
• Always verify your base model – it requires a Momentum I/O base for power.

Ordering Information

• Part Number – 171CCC96030C
• GTIN – 3595863804393
• Country of Origin – France (FR)
• Returnability – No (non‑returnable)
• Discount Schedule – PC31

• Contact our team for bulk or urgent orders:
• Email: sales@powergearx.com
• WhatsApp: +86 18030005825
