Product details

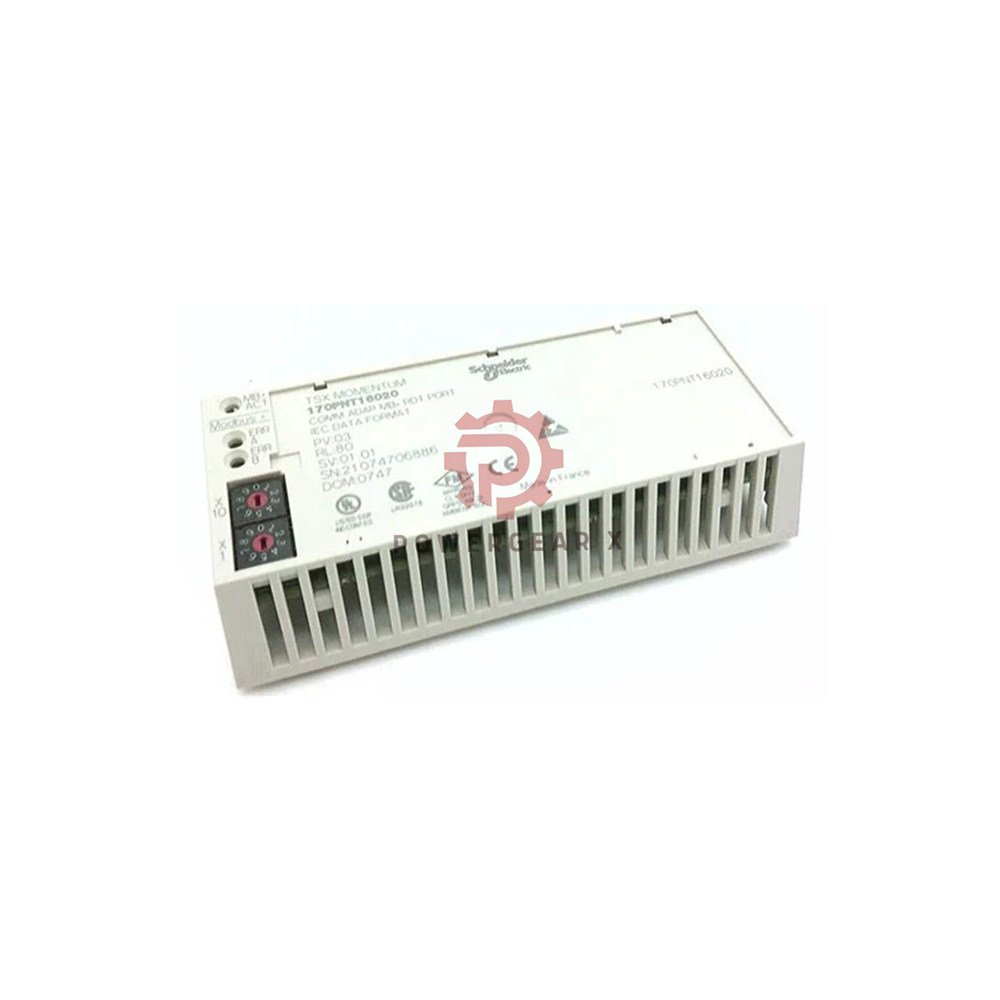

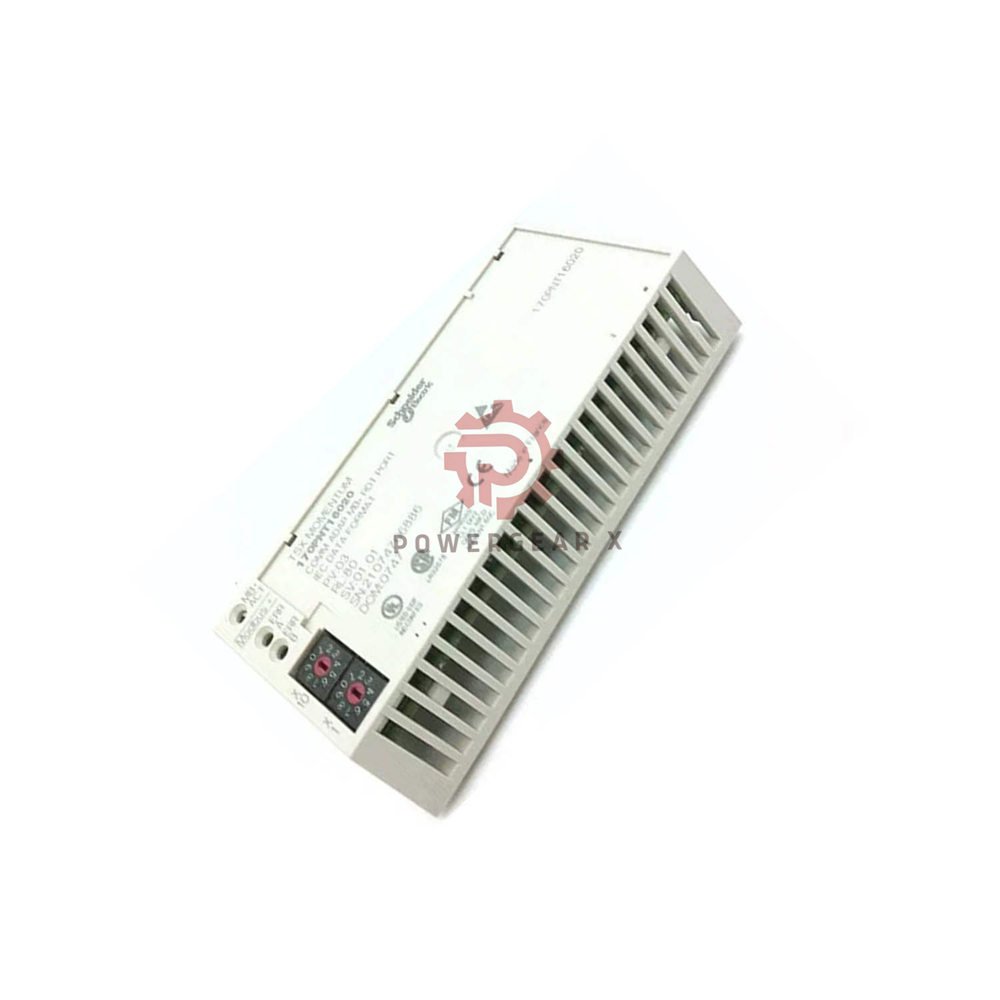

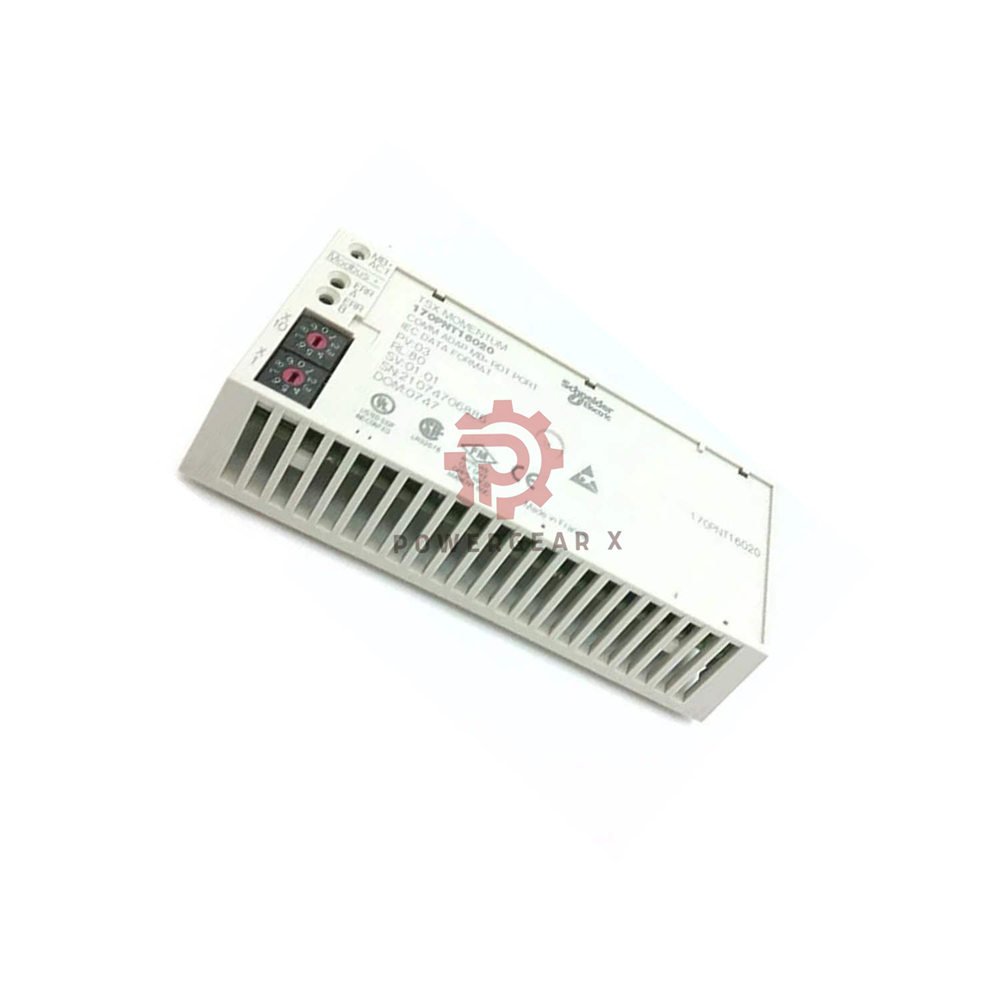

170PNT16020C – Communication Adapter
170PNT16020C is a communication adapter from Schneider Electric. It belongs to the Modicon Momentum series. This adapter uses the Modbus protocol at 1 Mbit/s. It connects up to 31 devices per segment. The unit supports multidrop, daisy-chain, or tap topologies.
Key Features
- Modbus protocol – industry standard communication
- High speed: 1 Mbit/s data rate
- Flexible topologies: multidrop, daisy-chain, or tap
- SUB-D9 connector – 9-pin for easy connection
- 31 devices per segment – scalable networks
- Compact design – fits Momentum systems
Technical Specifications
- Brand: Schneider Electric
- Model: 170PNT16020C
- Series: Modicon Momentum
- Type: Communication Adapter
- Protocol: Modbus
- Data rate: 1 Mbit/s
- Topology: Multidrop, daisy-chain, or tap
- Connector: SUB-D9 (9-pin)
- Devices per segment: Up to 31
- Operating temperature: 0…+40 °C
- Storage temperature: 0…+40 °C (based on humidity specs)
- Humidity: ≤80% (non-condensing)
- Altitude: ≤1000 m above sea level
Installation & Mounting
- Mounting: DIN rail or panel mount
- Wiring: Connect SUB-D9 cable to network
- Configuration: Set device address via DIP switches
- Maintenance: Check cable connections periodically
Manager’s Insight
This Schneider adapter is a reliable choice for Modbus networks. The 1 Mbit/s speed handles demanding applications. The flexible topologies suit various plant layouts. We recommend it for Momentum systems and mixed PLC environments. The 12-month warranty and fast shipping give you confidence.
Applications
- Factory automation: connect PLCs and field devices
- Process control: Modbus device integration
- Building management: HVAC and lighting systems
- Water treatment: SCADA communication
- Machine building: distributed I/O networks
Comparison with Similar Models
- 170PNT16020C – 1 Mbit/s, SUB-D9, Modbus
- 170PNT11020C – 19.2 kbit/s, slower speed
- 170PNT16020U – USB version for PC connection
- TSX SCM 01 – older serial communication module
Selection Guide
- Choose 170PNT16020C if: you need high-speed Modbus for Momentum systems.
- Consider this adapter for: new installations or network upgrades.
- Avoid if: you need Profibus or Ethernet (different models).
- Best paired with: Modicon Momentum PLC and Modbus devices.
- Warranty: 12 months from invoice date.
Shipping & Delivery
- Dispatch: 12-24 hours after order confirmation.
- Carriers: FedEx, UPS, DHL (tracking provided).
- Packaging: Anti-static bag in a sturdy box.
Frequently Asked Questions (FAQ)
- Q: What protocol does this adapter use?
- A: It uses Modbus communication protocol.
- Q: What is the maximum data rate?
- A: 1 Mbit/s.
- Q: How many devices can I connect per segment?
- A: Up to 31 devices.
- Q: What type of connector does it have?
- A: SUB-D9 (9-pin male connector).
- Q: Can I use this with non-Schneider PLCs?
- A: Yes, if they support Modbus protocol.
